House Plan: DFD-3436

See All 5 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,286
BEDS
3
BATHS
2
STORIES
1
CARS
2
HOUSE PLANS SALE
START AT  $739.50
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 3436:

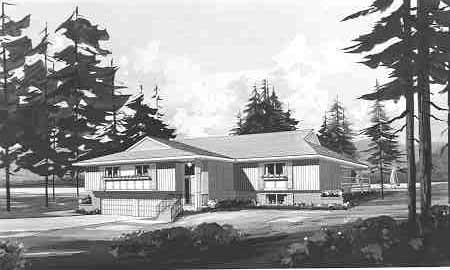

The vaulted split-foyer in this design is brightened by transom and sidelight windows. A few steps up from the foyer, the living room boasts a cathedral ceiling and a fireplace flanked by angled window walls. The eat-in kitchen accesses the rear deck and adjoins the dining and living rooms. The large master bedroom boasts a walk-in closet and a private bathroom with glass-block walls framing the designer shower. Two secondary bedrooms at the front of the home share a full bathroom and offer ample closet space. The lower level offers finishing opportunities.
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $640
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $870
Immediate Delivery!
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $980
Five printed sets of house plans

8 Printed Sets


Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

8 Printed Sets $1,055
Eight printed sets of house plans
STEP 2 CHOOSE YOUR FOUNDATION
STEP 3 OPTIONAL ADD-ONS
Subtotal
$870
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
1,286 Sq. Ft.
Main Level:
1,286 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
General House Information
1
Number of Stories:
52' 0"
Width:
37' 0"
Depth:
Single
Dwelling Number:
1st Floor
Bonus Access:
Unfinished Square Footage
449 Sq. Ft.
Garage:
565 Sq. Ft.
Bonus Room:
GARAGE
Under
Garage Location:
2
Garage Size:
Exterior Style
Contemporary
Modern
Traditional
Collections
Affordable
Bi-Level
Exclusive
First Home
Old House Classics
Split Level
Foundation
Basement
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
6/12
Primary:
Roof Load
30
Live:
10
Dead:
Insulation (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
19
Floor:
House And Ceiling Heights
8'-1"
First Floor Ceiling:
Facade
Owner's Choice
OwnersChoice
Key Features
Attached
Basement
Bonus Room
Deck
Dining Room
Drive Under Garage
Drive-under
Expandable
Fireplace
Formal Dining Room
Foyer
Suited for narrow lot
Suited for sloping lot

Our Guarantees

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  •  PDFs NOW!™ plans in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
