House Plan: DFD-3902

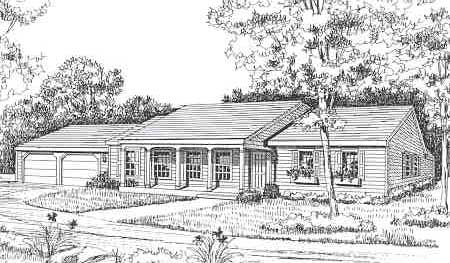

See All 3 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,697
BEDS
3
BATHS
2.5
STORIES
1
CARS
2
PLANS FROM $940
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 3902:

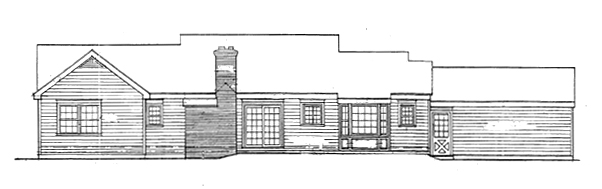

This is another in the series of traditional linear ranches that were designed by Sam Paul, Architect. This plan, however also includes a large master suite with a walk-in closet and large bath. The formal entertaining rooms straddle the front porch in the higher central section. The informal rooms are stretched across the rear and include a lovely family room and spacious kitchen, with an adjoining bayed breakfast room. All face out through large window areas to the rear patio.
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $710
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $940
Immediate Delivery!
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,050
Five printed sets of house plans

8 Printed Sets


Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

8 Printed Sets $1,125
Eight printed sets of house plans
STEP 2 CHOOSE YOUR FOUNDATION
STEP 3 OPTIONAL ADD-ONS
Subtotal
$940
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
1,697 Sq. Ft.
Main Level:
1,697 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
1
Number of Stories:
83' 8"
Width:
37' 9"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
461 Sq. Ft.
Garage:
GARAGE
Side
Garage Location:
2
Garage Size:
Exterior Style
Country
Farmhouse
Ranch
Collections
Affordable
Empty Nester
Exclusive
First Home
Old House Classics
Foundation
Basement
Crawl Space
Slab Foundation
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
6/12
Primary:
Roof Load
30
Live:
10
Dead:
Insulation (R)
19
Exterior Wall:
0
Interior Wall:
38
Ceiling:
19
Floor:
House And Ceiling Heights
8'-1"
First Floor Ceiling:
17' 6"
Maximum House Height:
Facade
Owner's Choice
OwnersChoice
Key Features
2 & 1/2 Baths
Attached
Basement
Crawlspace
Dining Room
Family Room
Fireplace
Formal Dining Room
Foyer
Front Porch
Front-entry
Gourmet Kitchen
Kitchen Island
Laundry 1st Fl
Primary Bdrm Main Floor
Primary Suite
Nook / Breakfast Area
Oversized Garage
Separate Living / Family Room
Separate Tub and Shower
Slab
Vaulted Ceilings
Walk-in Closet
