House Plan: DFD-4511

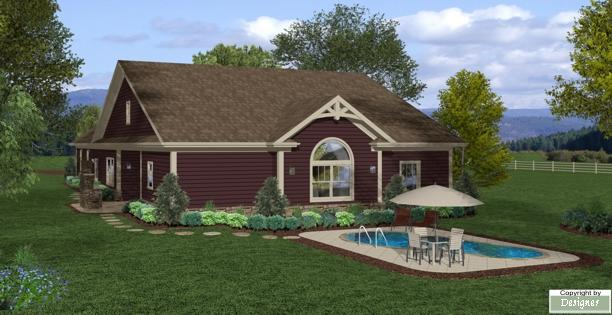

See All 2 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,793
BEDS
3
BATHS
2.5
STORIES
1
CARS
3
PLANS FROM $1,295
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 4511:
This inviting ranch is designed for narrow lots. We've included our most requested features and even
added a few of our own "signature touches." Just a couple of rounded corners add flair as they direct
the flow from the entry to the indoor & outdoor living areas. We've also provided access to the
outdoor living area from the master suite and the breakfast area.

With very little wasted space, it's carefully designed 1793 square feet provide the feel and features
of a much larger home. There are 9' high ceilings throughout with just a couple of added accents; The
master suite ceiling vaults to 11' and the dining room provides natural light via a light shaft to the
dormer above. The 3-car garage provides plenty of space for multiple vehicles as well as a sizable
area for storage and mechanical needs.
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $845
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,295
Immediate Delivery!
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,345
Five printed sets of house plans

8 Printed Sets


Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

8 Printed Sets $1,395
Eight printed sets of house plans

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $1,795
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1295
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
1,793 Sq. Ft.
Main Level:
1,793 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
1
Number of Stories:
42' 0"
Width:
83' 8"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
GARAGE
Side
Garage Location:
3
Garage Size:
Exterior Style
Country
Craftsman
Ranch
Collections
Builders
Exclusive
First Home
Old House Classics
Open Floor Plan
Foundation
Optional Basement Foundation (Please allow 4-7 Days for Delivery)
Optional Crawlspace Foundation (Please allow 4-7 Days for Delivery)
Slab Foundation
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
6/12
Primary:
8/12
Secondary:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
House And Ceiling Heights
9
First Floor Ceiling:
22' 4"
Maximum House Height:
Key Features
Attached
Basement
Crawlspace
Side-entry
Slab
