House Plan: DFD-4520

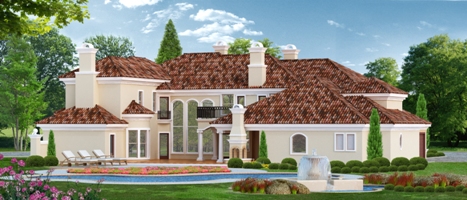

See All 6 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
7,529
BEDS
5
BATHS
5.5
STORIES
2
CARS
3
HOUSE PLANS SALE
START AT  $2,800.75
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 4520:
This Mediterranean beauty proves that opulence is a good thing. The house design is perfect for a corner lot, and double doors introduce a raised foyer. The formal living room is great for serious conversation. The family room is at the center of the home. The island kitchen serves the dining room and the breakfast nook with ease. A distinctive trophy room flows into a curved nook where you can set up for your weekly card game. The master suite is simply amazing, with a curved sitting area and a posh bath. Just steps away is possibly the largest laundry room you've ever seen! Relaxation is king on the upper floor. Take your pick: studying, reading, playing games or lounging. Oh, and don't forget the gym!
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $3,365
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $3,545
Five printed sets of house plans

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $5,050
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$3365
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
4,356 Sq. Ft.
Main Level:
2,903 Sq. Ft.
Upper Level:
7,529 Sq. Ft.
Total:
Room Details
5
Bedrooms:
5
Full Baths:
1
Half Baths:
General House Information
2
Number of Stories:
101' 0"
Width:
90' 6"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
940 Sq. Ft.
Garage:
90 Sq. Ft.
Porch:
405 Sq. Ft.
Patio:
GARAGE
Rear
Garage Location:
3
Garage Size:
Exterior Style
Mediterranean
Traditional
Tuscan
Collections
Luxury
Old House Classics
Foundation
Crawlspace
Slab
Framing Information
Stick
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
7
Primary:
12
Secondary:
12
Porch:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
House And Ceiling Heights
11
First Floor Ceiling:
9
Second Floor Ceiling:
35' 0"
Maximum House Height:
Key Features
2 Story Volume
Arches
Attached
Butler's Pantry
Covered Front Porch
Covered Rear Porch
Deck
Dining Room
Double Vanity Sink
Exercise Room
Family Room
Fireplace
Formal LR
Foyer
Front Porch
Guest Suite
Kitchen Island
Laundry 1st Fl
Primary Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Rear Porch
Rec Room
Separate Tub and Shower
Sitting Area
Slab
Split Bedrooms
Suited for corner lot
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
