House Plan: DFD-4702

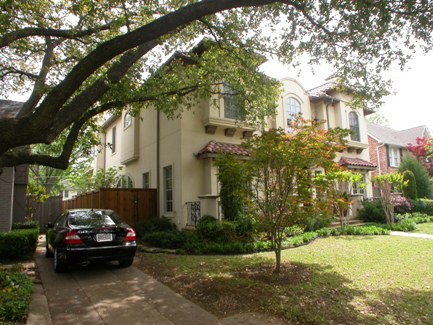

See All 12 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
5,131
BEDS
5
BATHS
5.5
STORIES
2
CARS
2
HOUSE PLANS SALE
START AT  $1,936.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 4702:

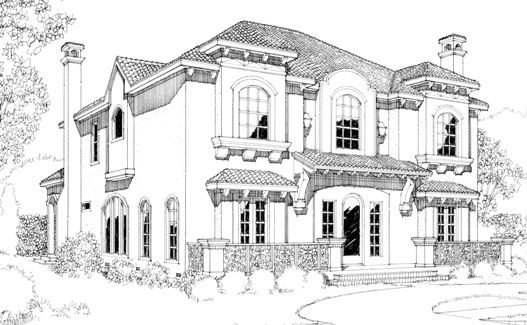

This striking two-story home plan was inspired by the grand homes of Tuscany. In the welcoming foyer, a curved staircase is the main focal point. On the right, a fireplace warms the quiet study. On the left, the formal living room is lovely enough to receive special guests in style. The dining room is just as elegant, located near a handy elevator. A second fireplace crackles in the spacious family room. The island kitchen flows into a cheerful breakfast area. A secluded bedroom with bath would be great for in-laws. Upstairs, you'll be amazed at the master suite's bath arrangement; each of you can have some personal space as you get ready in the morning. A game room includes a refreshing bar. A railed loft overlooks the foyer below. Three more bedrooms open to full baths.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $2,180
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $2,360
Five printed sets of house plans

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $3,270
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$2180
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
2,497 Sq. Ft.
Main Level:
2,634 Sq. Ft.
Upper Level:
5,131 Sq. Ft.
Total:
Room Details
5
Bedrooms:
5
Full Baths:
1
Half Baths:
General House Information
2
Number of Stories:
49' 6"
Width:
75' 1"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
457 Sq. Ft.
Garage:
249 Sq. Ft.
Porch:
77 Sq. Ft.
Patio:
GARAGE
Rear
Garage Location:
2
Garage Size:
Exterior Style
Mediterranean
Tuscan
Collections
Luxury
Open Floor Plan
Split Bedroom
Foundation
Crawlspace
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
8
Primary:
5
Secondary:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
House And Ceiling Heights
11
First Floor Ceiling:
10
Second Floor Ceiling:
34' 5"
Maximum House Height:
Key Features
2 Story Volume
Arches
Butler's Pantry
Country Kitchen
Covered Rear Porch
Crawlspace
Dining Room
Double Vanity Sink
Family Room
Fireplace
Formal LR
Foyer
Front Porch
His and Hers Primary Closets
Home Office
In-law Suite
Kitchen Island
Primary Bdrm Upstairs
Nook / Breakfast Area
Peninsula / Eating Bar
Rear Porch
Rear-entry
Rec Room
Sitting Area
Slab
Split Bedrooms
Suited for corner lot
Suited for narrow lot
Vaulted Ceilings
Walk-in Closet

Our Guarantees

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  •  PDFs NOW!™ plans in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
