House Plan: DFD-4786

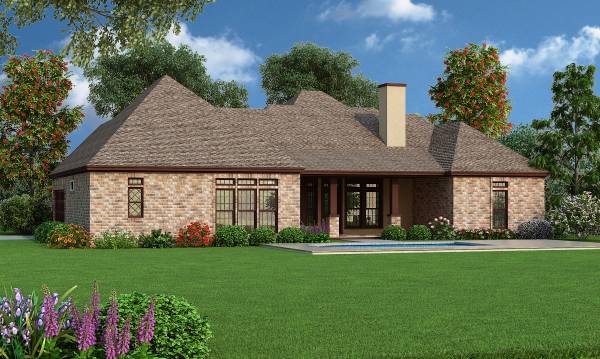

See All 5 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,342
BEDS
4
BATHS
3.5
STORIES
1
CARS
0
HOUSE PLANS SALE
START AT  $880.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 4786:
A marvelous medley of rustic and Craftsman styles creates the unique facade of this Tudor-inspired home. But the exterior is just the beginning of all the 2,342 square foot stunner has to offer. An interior with a ranch-style layout creates the perfect space for a family that is growing and needs space but also wants to feel together and comfortable. And with up to 4 bedrooms, the plan can do exactly that. Check out the common areas such as the living room and island kitchen. For entertaining, there is a covered back deck and a formal dining room. And for relaxing, be sure to explore that master suite. Beyond having dual walk-in closets, there are also separate his and hers full bathroom suites. This creates the ultimate privacy and relaxation potential! There is also the option to add a full basement level if your lot allows for it.
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $900
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,100
Immediate Delivery!
Most recommended package

4 Printed Sets


Four printed sets of construction drawings shipped and received in 3-5 business days

4 Printed Sets $1,185
Four printed sets of house plans

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,230
Five printed sets of house plans

8 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS eight printed sets shipped and delivered 3-5 business days.

8 Printed Sets + PDF $1,340
Immediate Delivery!
Digital plans plus 8 printed sets

8 Printed Sets


Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

8 Printed Sets $1,340
Eight printed sets of house plans

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $2,100
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1100
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
2,342 Sq. Ft.
Main Level:
2,342 Sq. Ft.
Total:
Room Details
4
Bedrooms:
3
Full Baths:
1
Half Baths:
General House Information
1
Number of Stories:
70' 0"
Width:
64' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
484 Sq. Ft.
Garage:
32 Sq. Ft.
Storage:
610 Sq. Ft.
Porch:
GARAGE
Side
Garage Location:
0
Garage Size:
Exterior Style
Country
Craftsman
Traditional
Collections
Builders
Old House Classics
Open Floor Plan
Outdoor Living
Foundation
Concrete Slab Foundation
Optional Basement Foundation
Optional Crawl Space Foundation
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
12:12
Secondary:
3:12
Dormer:
Insulation (R)
11
Exterior Wall:
0
Interior Wall:
19
Ceiling:
19
Floor:
House And Ceiling Heights
10
First Floor Ceiling:
25' 0"
Maximum House Height:
Facade
Brick
Stone
Stucco
Key Features
Attached
Basement
Bonus Room
Country Kitchen
Covered Front Porch
Covered Rear Porch
Crawlspace
Dining Room
Fireplace
Foyer
Front Porch
His and Hers Primary Closets
Kitchen Island
Laundry 1st Fl
Primary Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Rear Porch
Separate Tub and Shower
Slab
Split Bedrooms
Storage Space
Suited for corner lot
Suited for view lot
Vaulted Ceilings
Walk-in Closet
