House Plan: DFD-4836

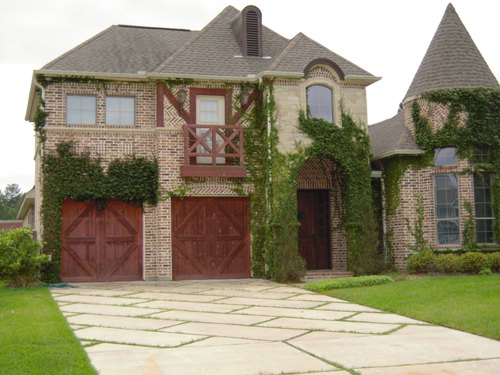

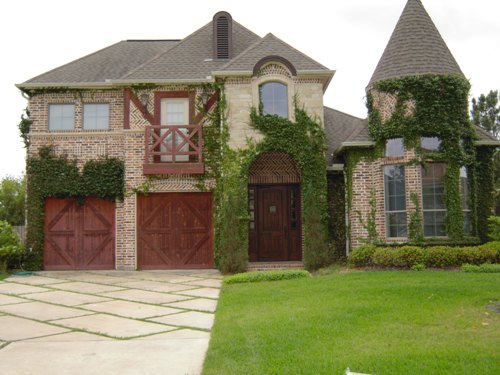

See All 16 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
3,454
BEDS
3
BATHS
3
STORIES
2
CARS
2
HOUSE PLANS SALE
START AT  $928.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 4836:
This family home design is sure to be the most attractive in your new neighborhood. The central family room hosts any gathering in style and comfort. The secluded master suite boasts a refreshing wet bar and a posh bath. The island kitchen will impress any cook. Upstairs, the sizable game room makes a nice getaway space.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,045
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,225
Five printed sets of house plans

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $1,570
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1045
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
2,956 Sq. Ft.
Main Level:
498 Sq. Ft.
Upper Level:
3,454 Sq. Ft.
Total:
Room Details
3
Bedrooms:
3
Full Baths:
General House Information
2
Number of Stories:
55' 0"
Width:
84' 10"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
495 Sq. Ft.
Garage:
79 Sq. Ft.
Porch:
77 Sq. Ft.
Patio:
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
European
Traditional
Collections
Luxury
Old House Classics
Open Floor Plan
Outdoor Living
Foundation
Crawlspace
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
House And Ceiling Heights
10
First Floor Ceiling:
9
Second Floor Ceiling:
30' 4"
Maximum House Height:
Key Features
2 Story Volume
Attached
Bonus Room
Country Kitchen
Covered Front Porch
Covered Rear Porch
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Front Porch
Front-entry
Guest Suite
Home Office
Kitchen Island
Laundry 1st Fl
Primary Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Rear Porch
Separate Tub and Shower
Sitting Area
Slab
Vaulted Ceilings
