House Plan: DFD-5117

See All 35 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
3,774
BEDS
4
BATHS
4
STORIES
1
CARS
3
PLANS FROM $1,250
For questions and help, live chat, email or call us at 877-895-5299

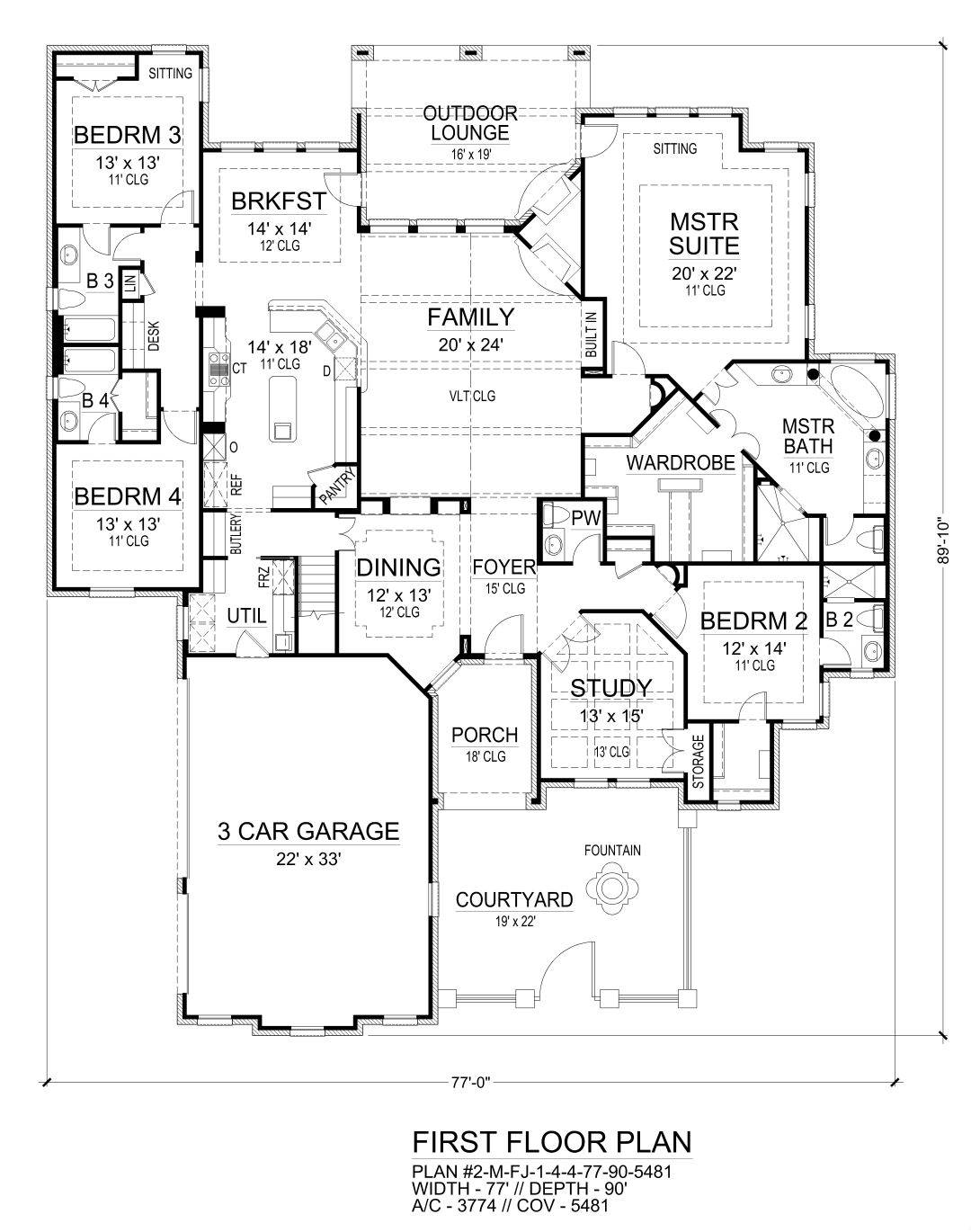

Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5117:

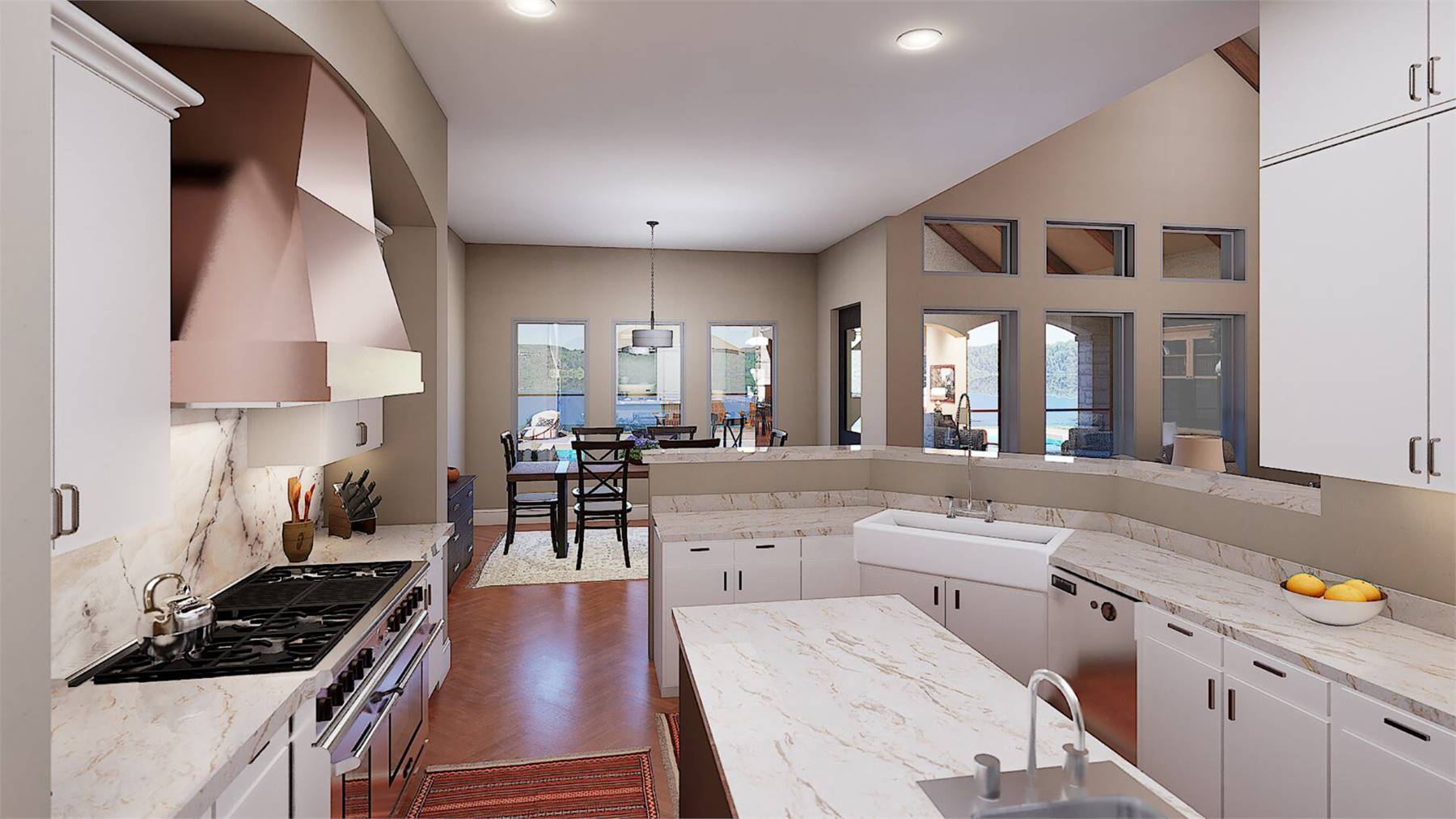

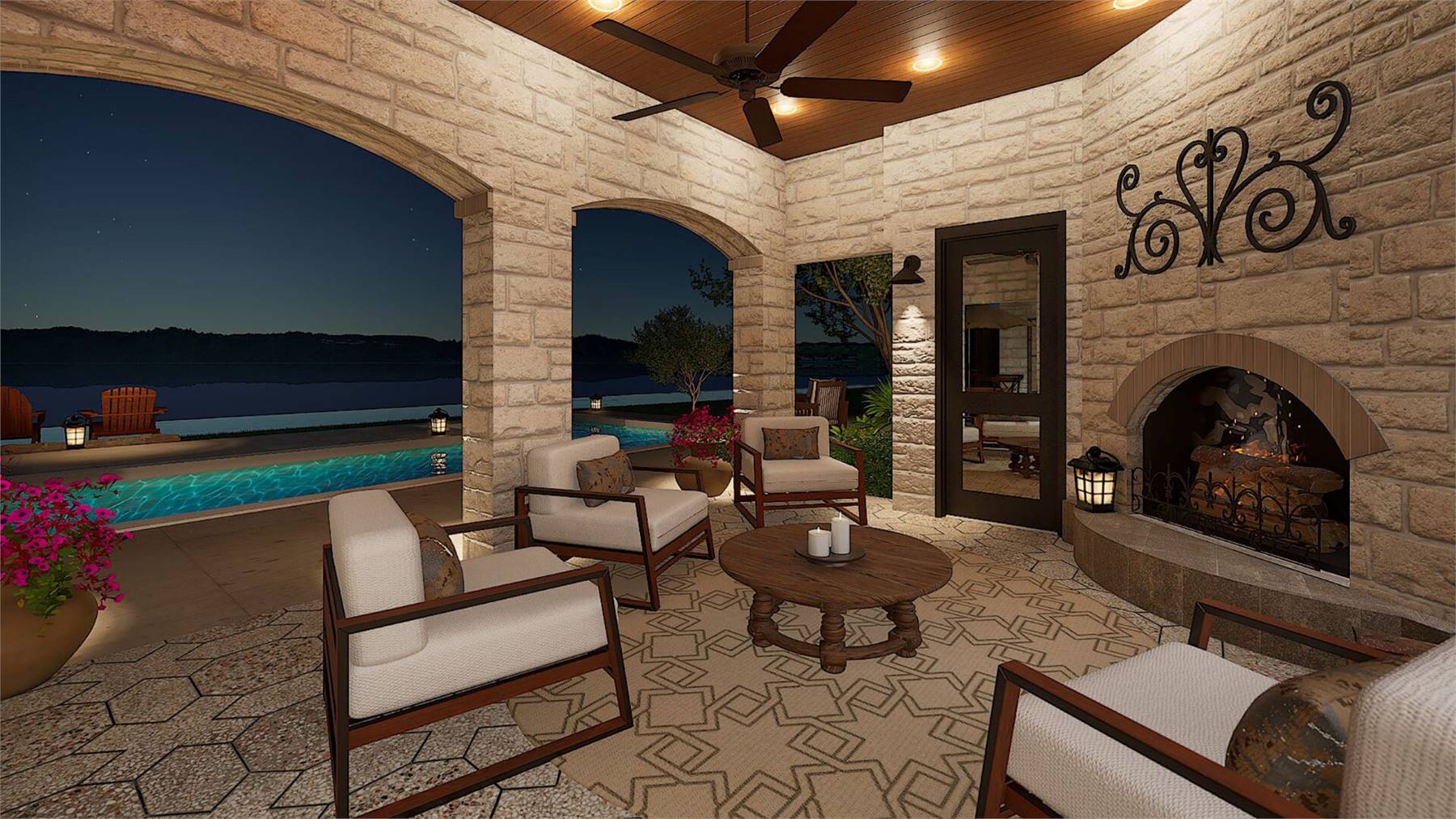

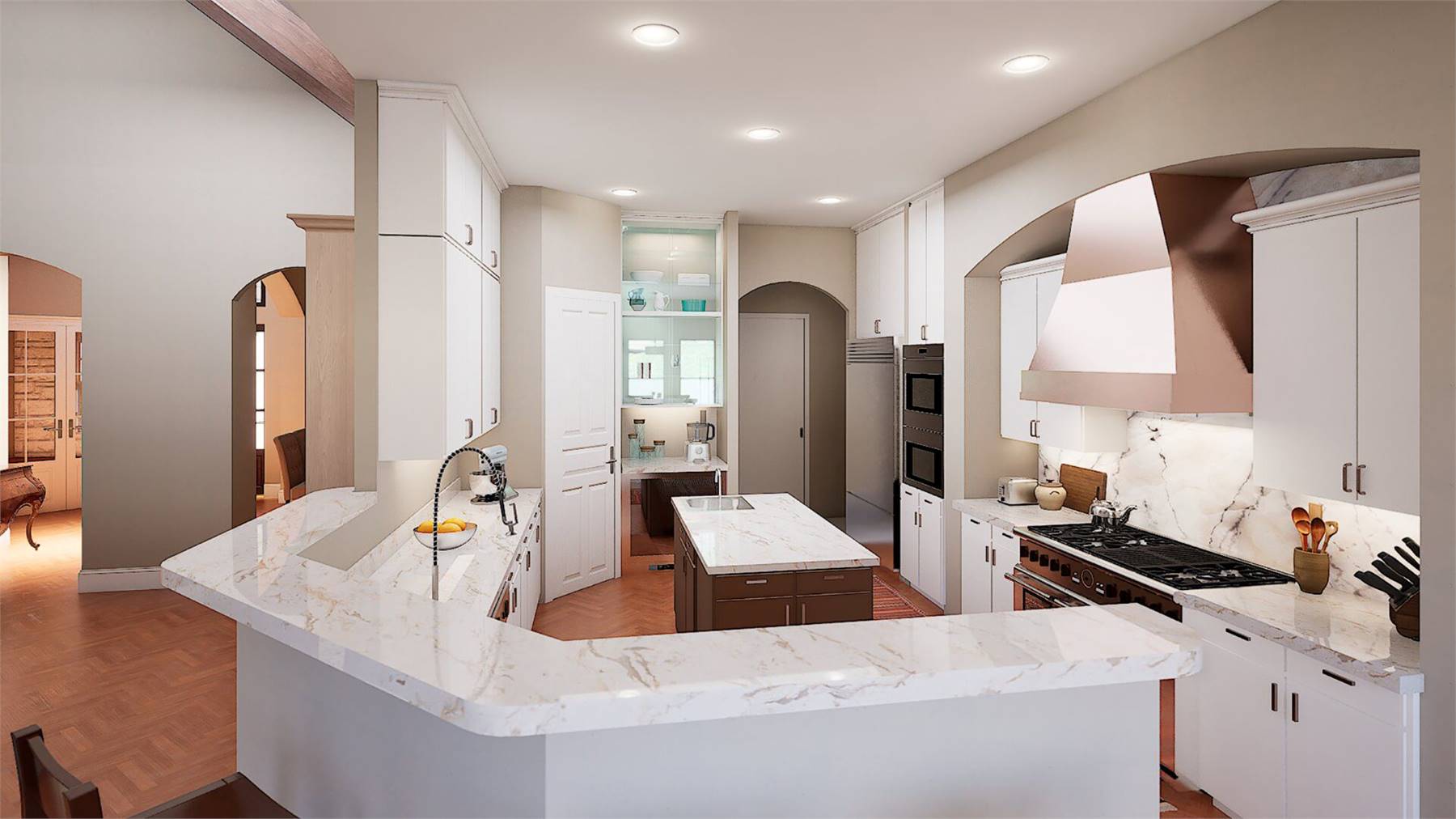

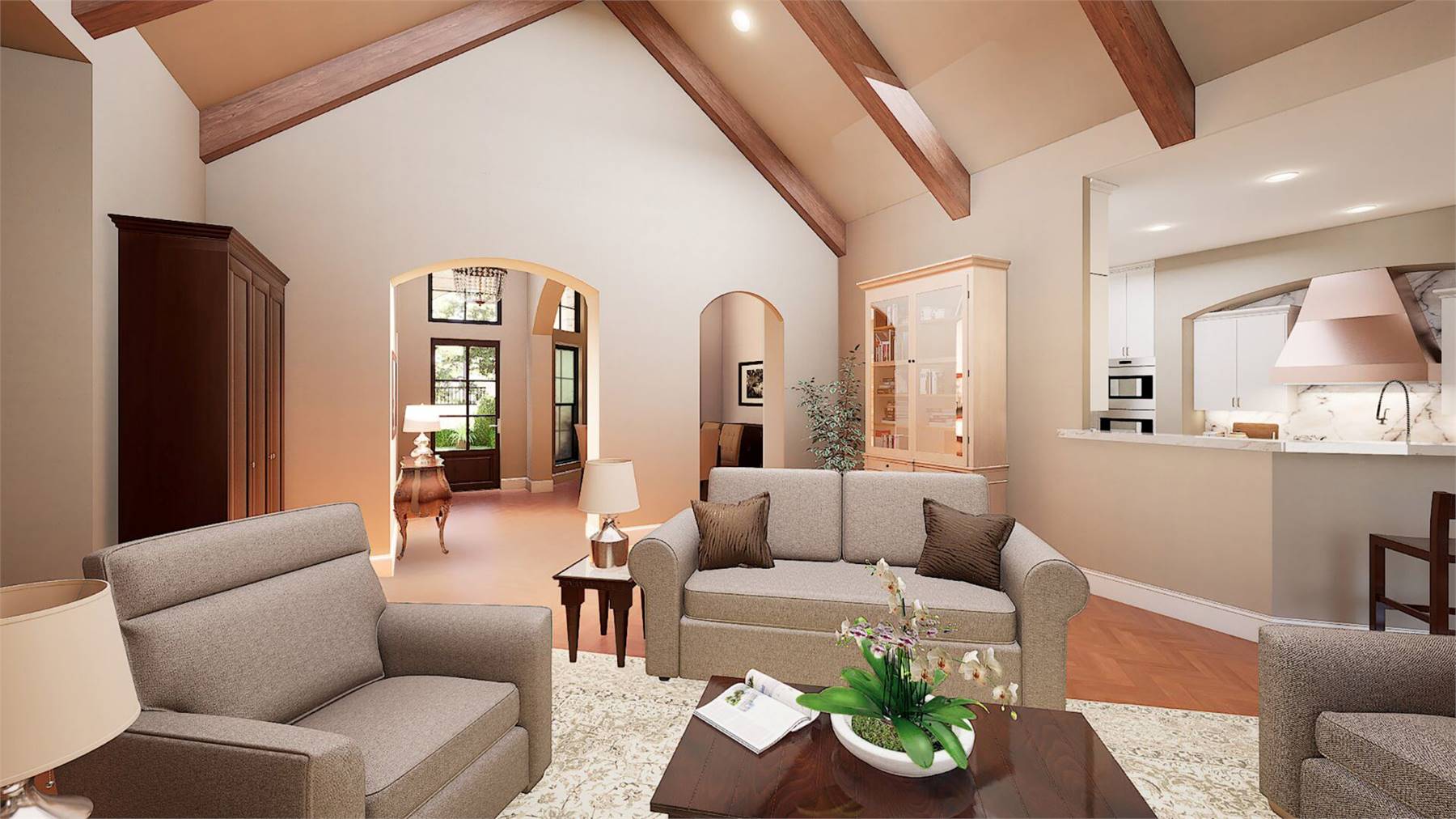

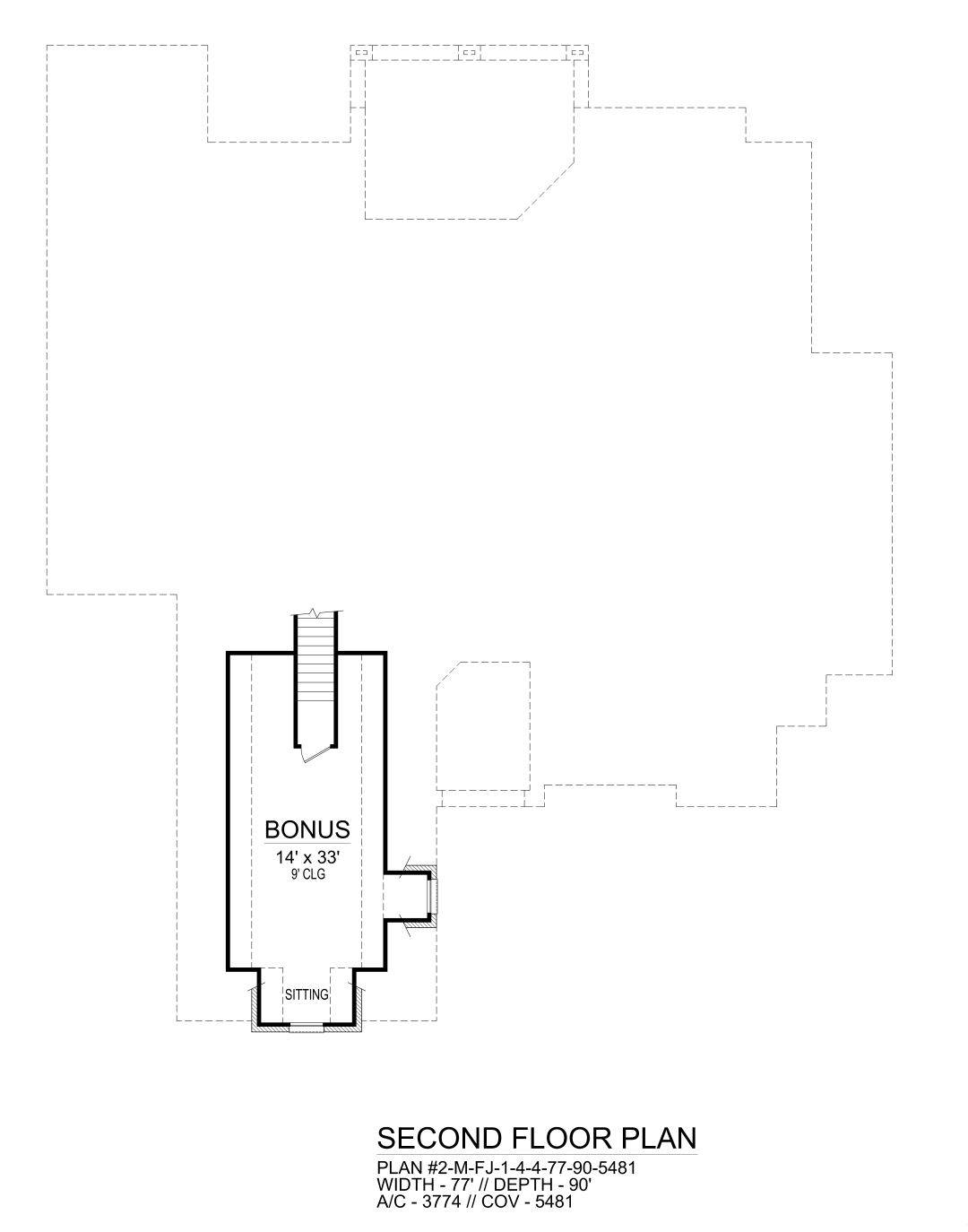

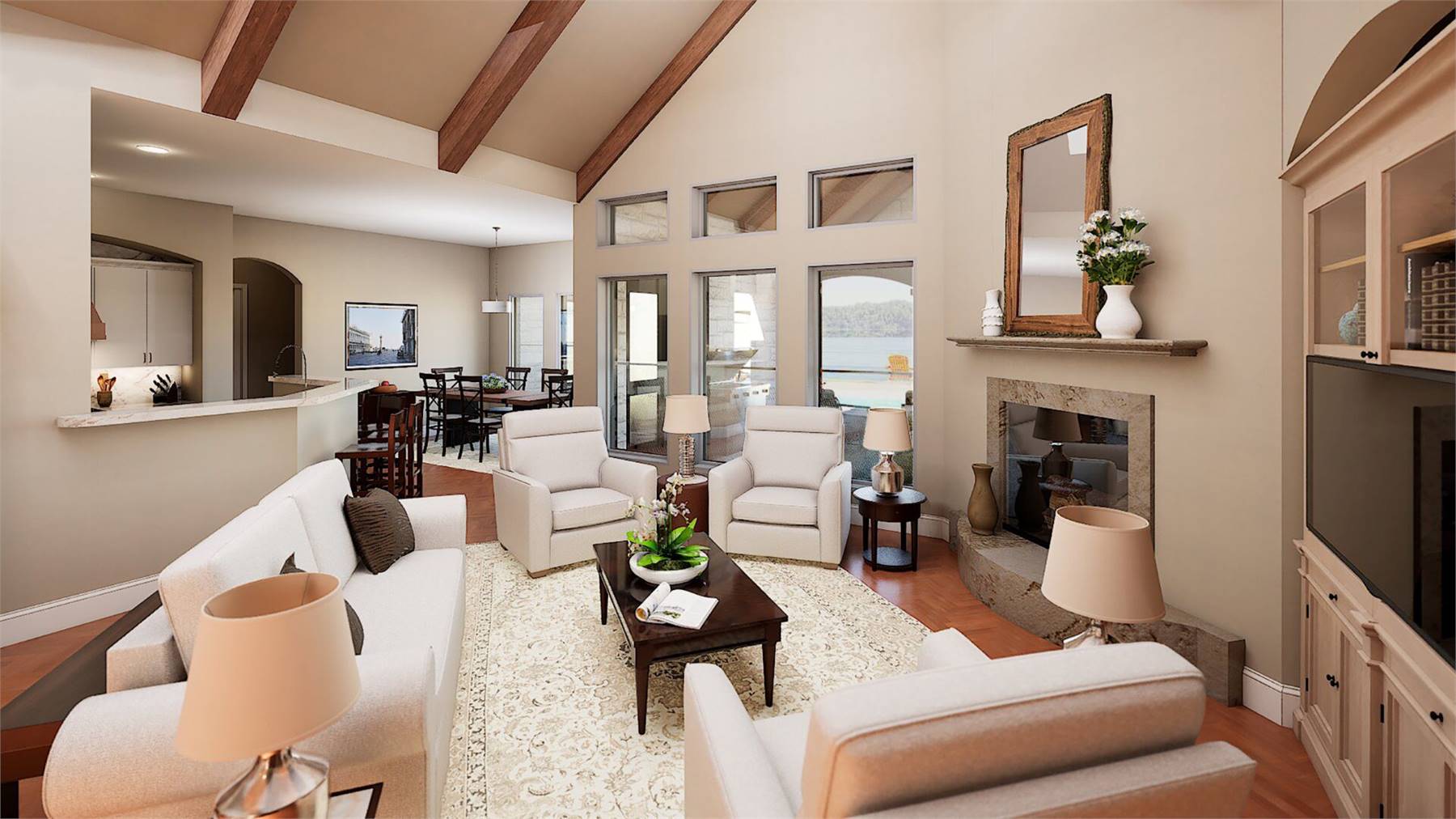

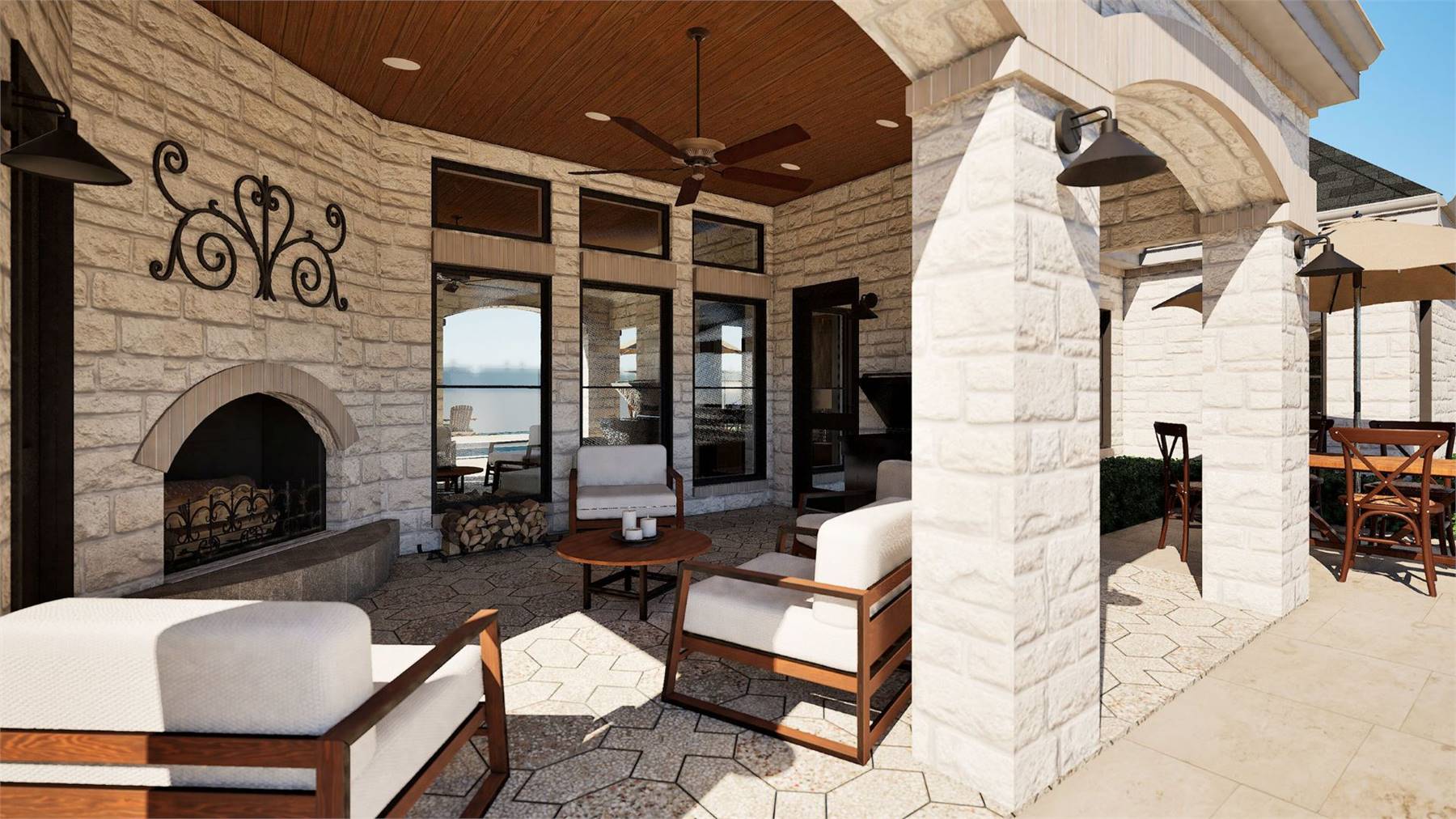

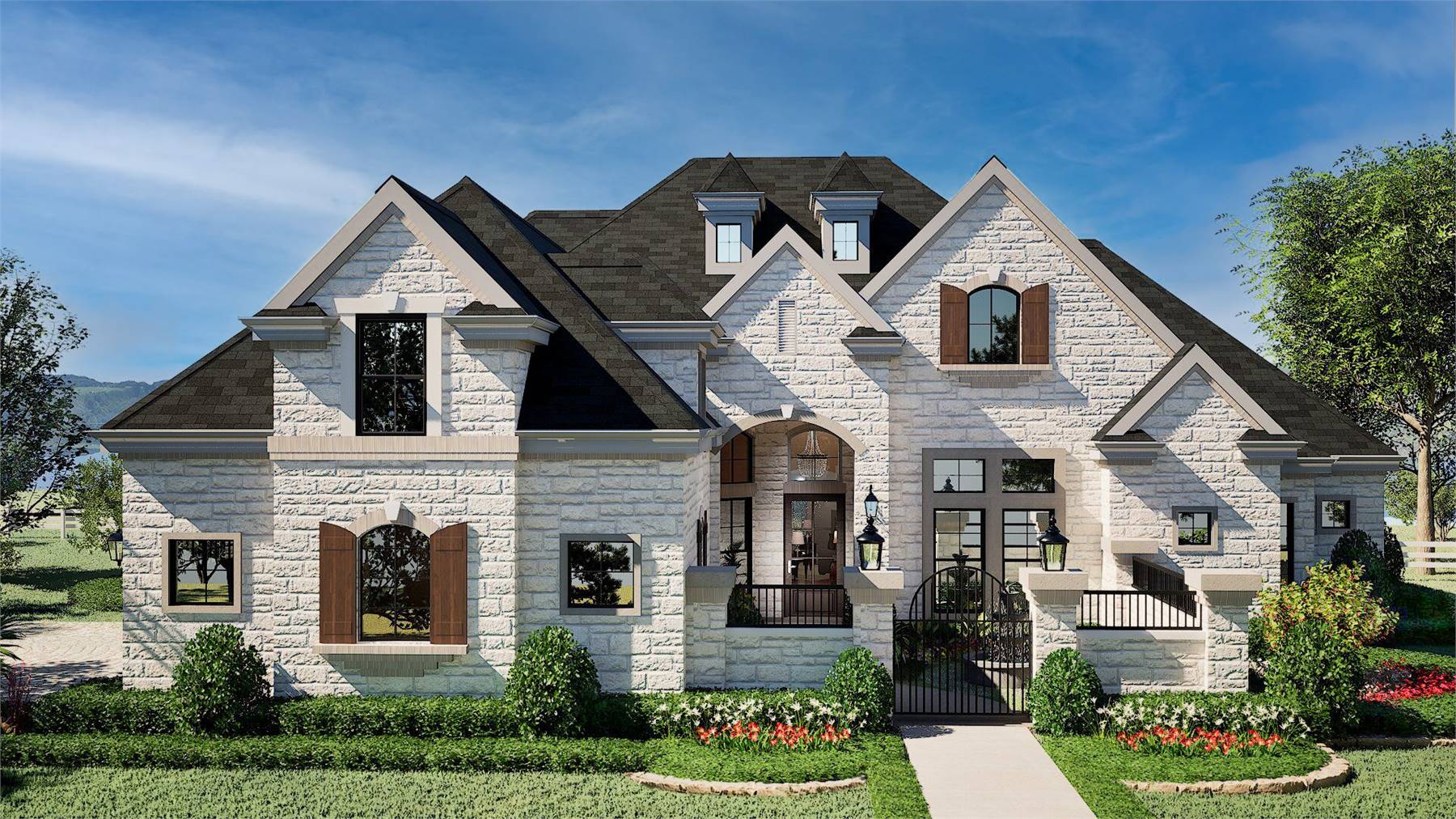

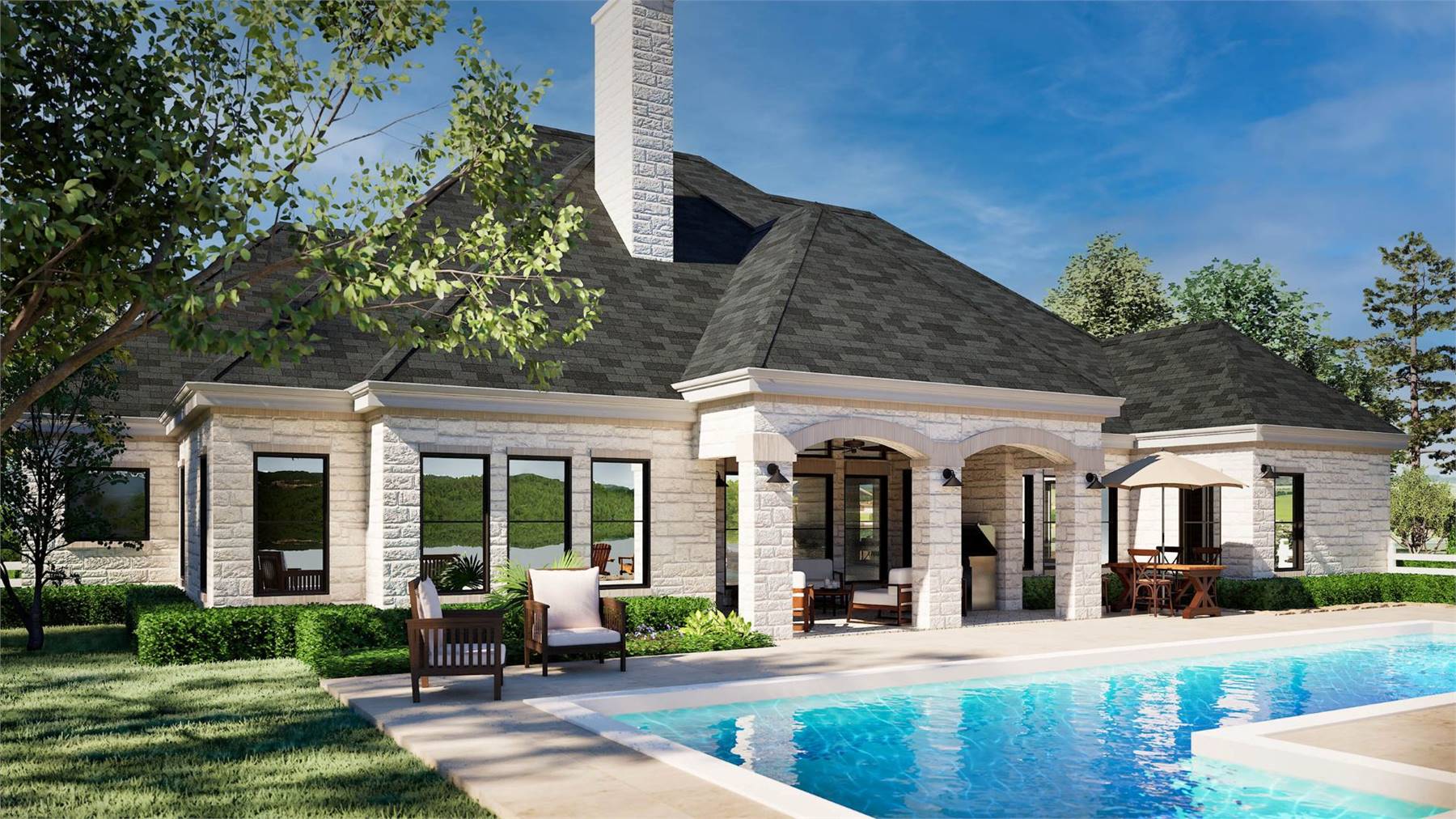

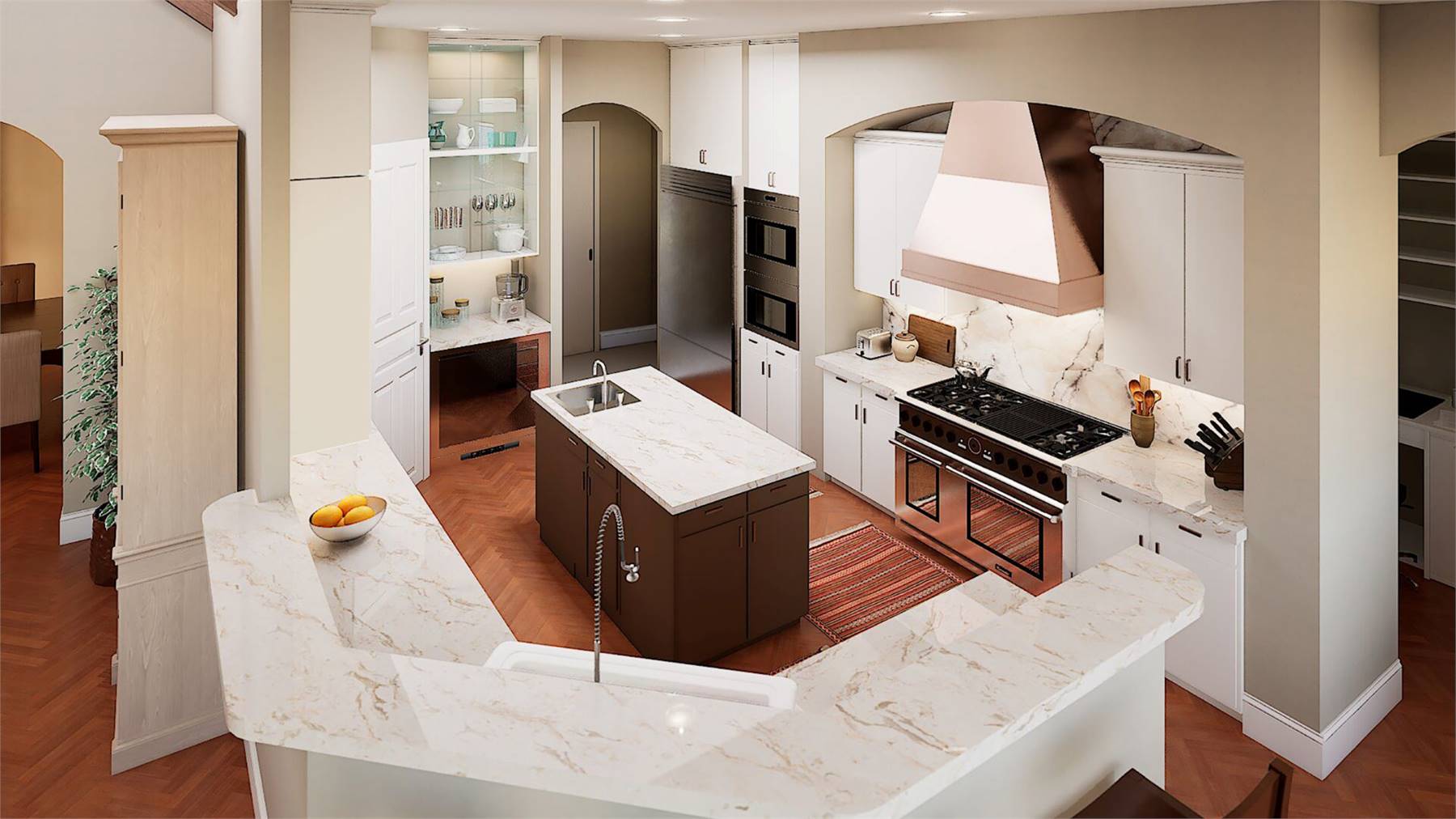

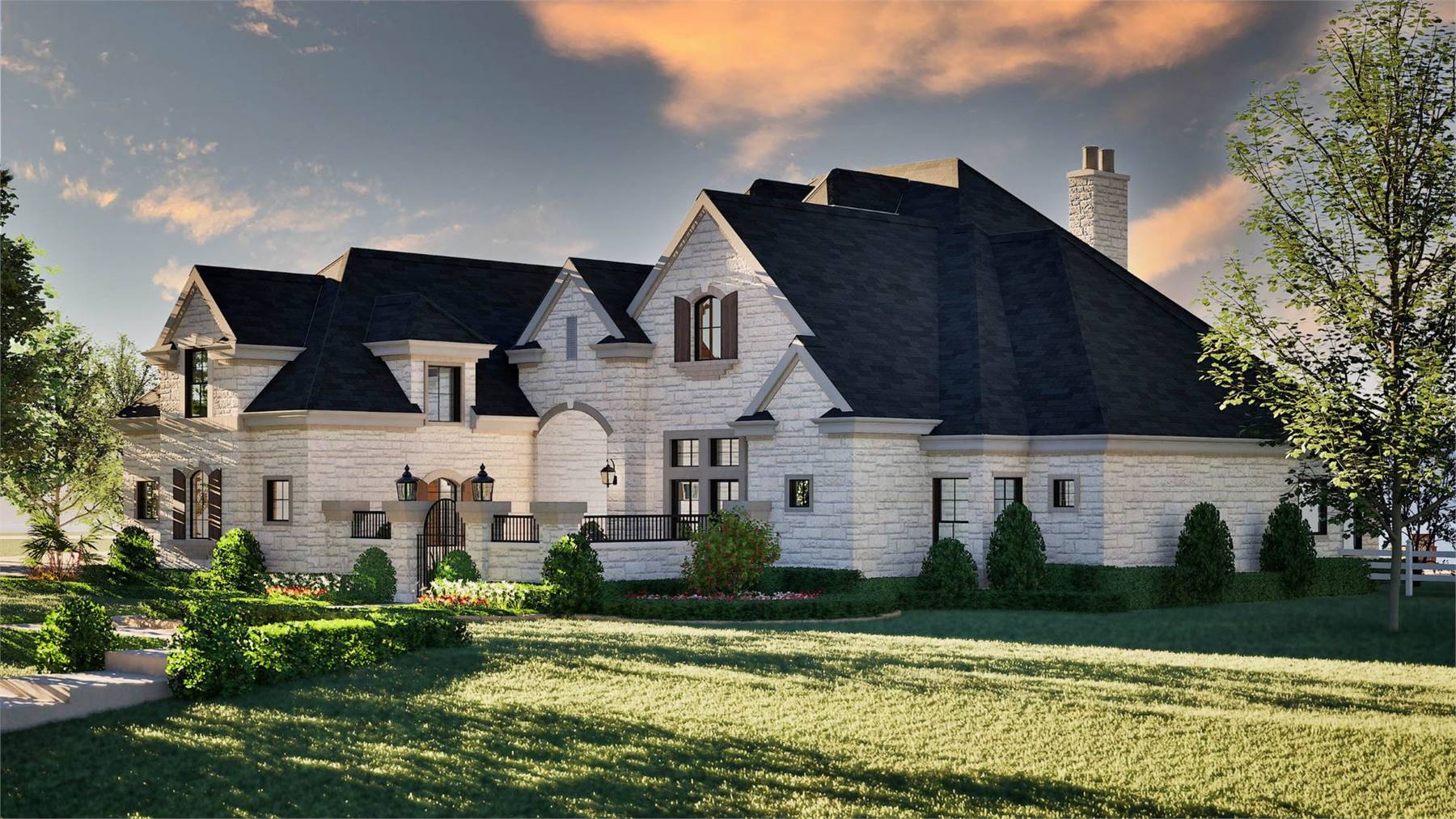

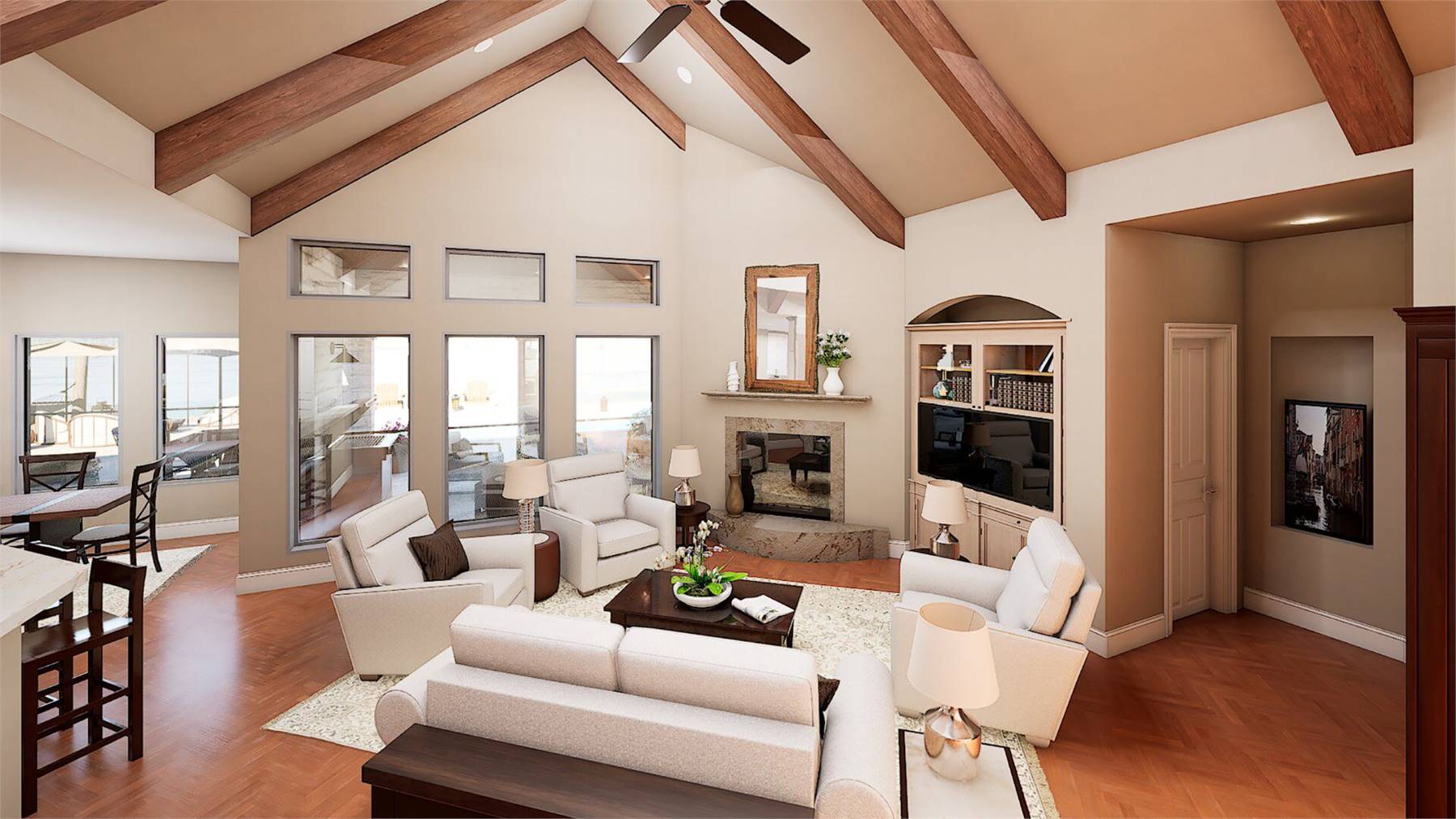

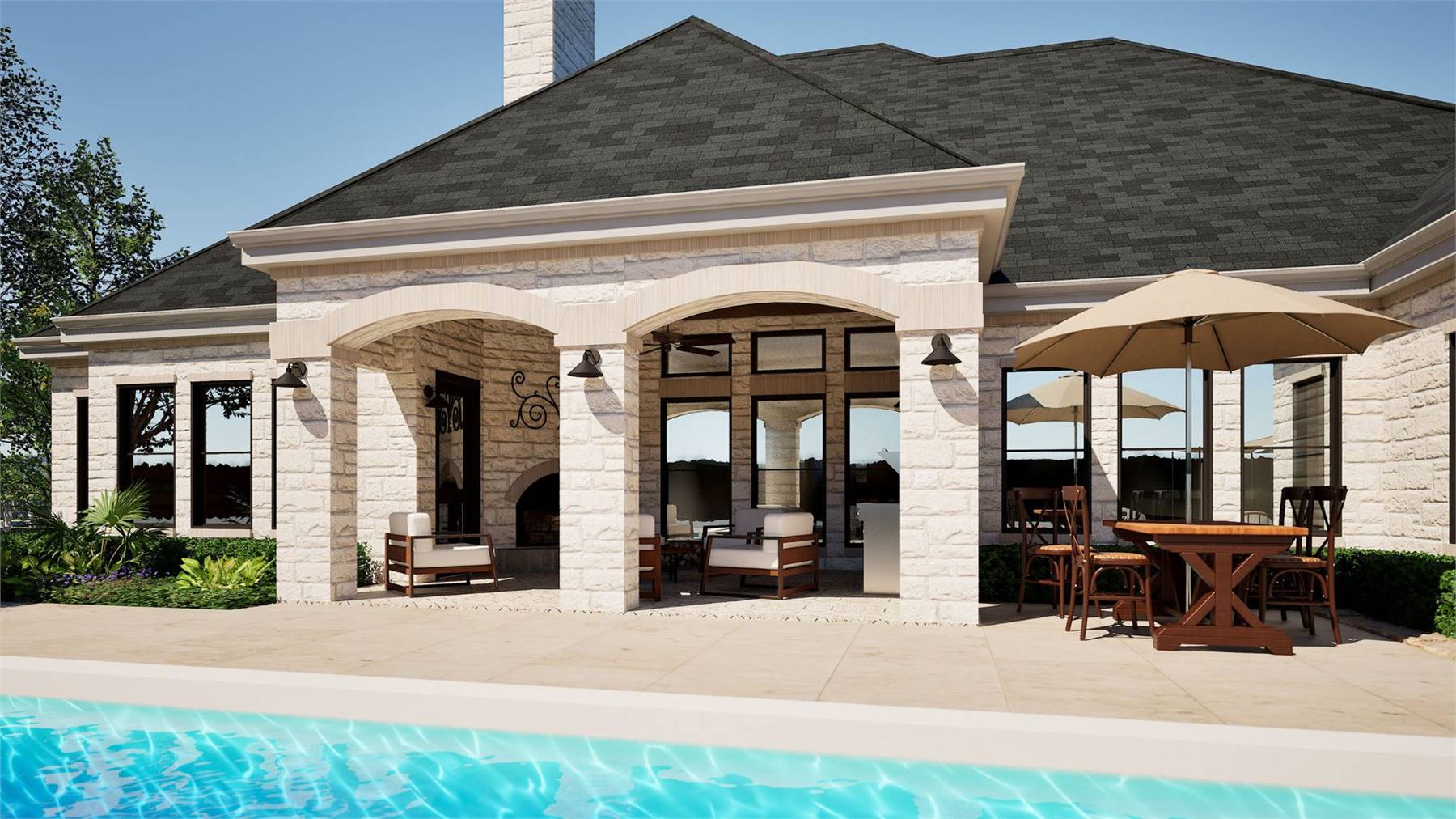

This luxury Tuscan house plan offers different ceiling treatments throughout. The two story foyer is flanked by the quiet study and elegant dining room. The dining room has direct access to the utility room, pantry and butlery for ease in serving. The kitchen, family room, and breakfast area are open to one another, divided only by the breakfast bar. The kitchen also offers a free-standing island for extra counter space. The fireplace has built-ins, a vaulted ceiling and warming fireplace. Step outside the breakfast area onto the outdoor lounge, where the fireplace will keep you warm when the cool air blows. Two family bedrooms share a built-in desk. Separately, they each have trey ceilings, walk-in closets and full baths. One bedroom offers a private sitting area. The master suite carries a sitting area, lavish master bath with his and hers vanities, separate shower, corner garden tub, and a large wardrobe. A quiet family bedroom with walk-in closet and private bath is quietly tucked away in the front of the house plan. Walls of windows in this house allow the sun to stream through. Upstairs, a large bonus room with sitting area completes this luxury Tuscan house plan.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,125
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,305
Five printed sets of house plans

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $1,670
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1125
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
3,774 Sq. Ft.
Main Level:
3,774 Sq. Ft.
Total:
Room Details
4
Bedrooms:
4
Full Baths:
General House Information
1
Number of Stories:
89' 10"
Width:
77' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
789 Sq. Ft.
Garage:
112 Sq. Ft.
Porch:
323 Sq. Ft.
Patio:
483 Sq. Ft.
Bonus Room:
GARAGE
Side
Garage Location:
3
Garage Size:
Exterior Style
European
Traditional
Tuscan
Collections
Luxury
Old House Classics
Open Floor Plan
Outdoor Living
Foundation
Crawlspace
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
12
Primary:
10
Secondary:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
House And Ceiling Heights
11
First Floor Ceiling:
34' 0"
Maximum House Height:
Key Features
Arches
Attached
Bonus Room
Covered Front Porch
Covered Rear Porch
Dining Room
Double Vanity Sink
Family Room
Fireplace
Foyer
Front Porch
Home Office
Kitchen Island
Laundry 1st Fl
Primary Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Rear Porch
Separate Tub and Shower
Side-entry
Sitting Area
Slab
