House Plan: DFD-5710

See All 2 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,268
BEDS
2
BATHS
2
STORIES
1
CARS
0
HOUSE PLANS SALE
START AT  $1,036.15
For questions and help, live chat, email or call us at 877-895-5299

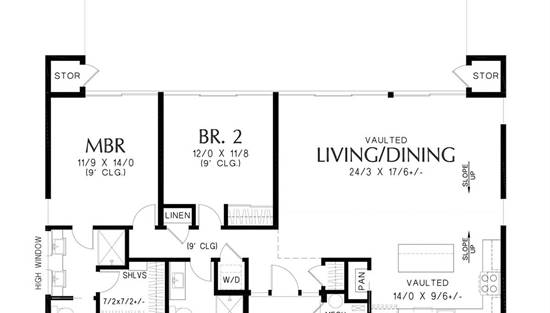

Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5710:
House Plan 5710 is a rectangular ranch perfect for a vacation property! It offers 1,268 square feet with two bedrooms and two bathrooms in a contemporary ranch package. On one side of the floor plan, the island kitchen looks out over the living and dining space--and the whole great room is beneath a vaulted ceiling! The hallway on the opposite side contains the primary suite, another bedroom, a hall bath, and the laundry. A row of patio doors spreads across the bedrooms and common area to bring in plenty of light and views!
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,219
Most recommended package

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $1,519
Digital plans plus 5 printed sets

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $2,438
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1219
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
1,268 Sq. Ft.
Main Level:
1,268 Sq. Ft.
Total:
Room Details
2
Bedrooms:
2
Full Baths:
General House Information
1
Number of Stories:
50' 0"
Width:
30' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
GARAGE
None
Garage Location:
0
Garage Size:
Exterior Style
Barndominium
Contemporary
Ranch
Collections
Affordable
Budget
Empty Nester
First Home
Open Floor Plan
Vacation
Foundation
Basement
Crawlspace
Stem Wall Slab Foundation-Included
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
Roof Load
25
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
9
First Floor Ceiling:
19' 10"
Maximum House Height:
Key Features
Covered Front Porch
Double Vanity Sink
Family Style
Foyer
Great Room
Kitchen Island
Laundry 1st Fl
L-Shaped
Primary Bdrm Main Floor
None
Open Floor Plan
Pantry
Rear Porch
Suited for view lot
Vaulted Ceilings
Vaulted Great Room/Living
Vaulted Kitchen
Walk-in Closet

Our Guarantees

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  •  PDFs NOW!™ plans in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
