House Plan: DFD-5733

See All 4 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,859
BEDS
4
BATHS
3.5
STORIES
2
CARS
2
HOUSE PLANS SALE
START AT  $1,060.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5733:

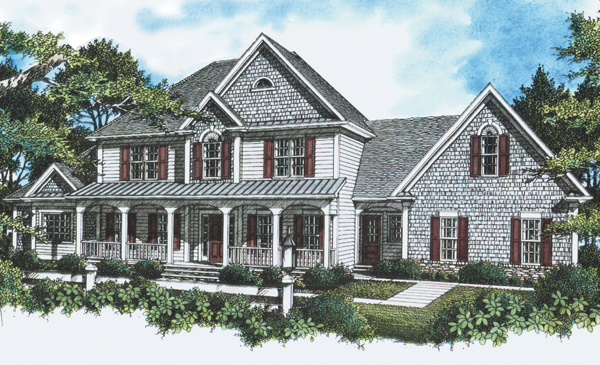

Dominating this rambling plan is an inviting country style porch. A two story foyer looks through to a dramatic radius window on the landing of the staircase located on the rear wall of the house. A vestibule separates the family and living rooms featuring a built-in decorative niche. The optional entrance to the living room allows it to be used as an office or sitting room off the master suite. The first floor master features a bay window sitting area. A dramatic barrel ceiling is the focal point of the master bath. . Independent access to the room over the garage provides a perfect home office or future guest suite. Three bedrooms open to the balconies overlooking the first floor.
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $850
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,325
Immediate Delivery!
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,450
Five printed sets of house plans

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $1,988
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1325
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
1,912 Sq. Ft.
Main Level:
947 Sq. Ft.
Upper Level:
2,859 Sq. Ft.
Total:
Room Details
4
Bedrooms:
3
Full Baths:
1
Half Baths:
General House Information
2
Number of Stories:
86' 0"
Width:
51' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
619 Sq. Ft.
Garage:
237 Sq. Ft.
Porch:
256 Sq. Ft.
Deck:
364 Sq. Ft.
Bonus Room:
GARAGE
Side
Garage Location:
2
Garage Size:
Exterior Style
Farmhouse
Southern
Traditional
Collections
Empty Nester
Old House Classics
Open Floor Plan
PDFs Fast!
Split Bedroom
Foundation
Basement Alternate
WALK OUT BASEMENT
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
12/12
Primary:
9/12
Secondary:
12/12
Gable:
3/12
Porch:
Roof Load
20
Live:
10
Dead:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
9
First Floor Ceiling:
8
Second Floor Ceiling:
31' 8"
Maximum House Height:
Key Features
2 Story Volume
Arches
Attached
Basement
Bonus Room
Covered Front Porch
Deck
Dining Room
Double Vanity Sink
Family Room
Fireplace
Formal LR
Foyer
Front Porch
His and Hers Primary Closets
Home Office
Laundry 1st Fl
Loft / Balcony
Primary Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Separate Tub and Shower
Side-entry
Sitting Area
Suited for view lot
Unfinished Space
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
Walkout Basement
