House Plan: DFD-5843

Pin It

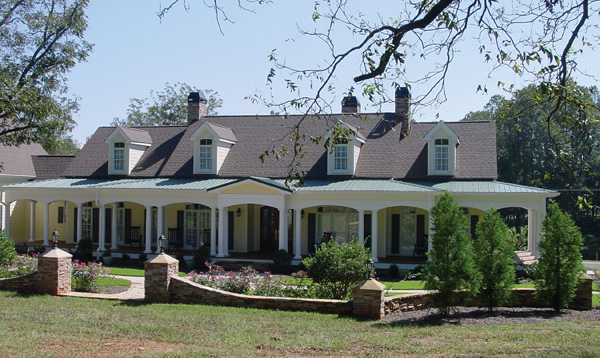

See All 6 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,911
BEDS
3
BATHS
2.5
STORIES
1
CARS
2
HOUSE PLANS SALE
START AT  $1,120.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plan
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5843:
This grand split bedroom ranch features an expansive view to the rear. Every major room of the house can take advantage of a rear view. A gracious wraparound porch span the entire front of the house providing shade to all who wish to gather and rock. The detached garage offers the ideal guest quarters above allowing for privacy for the family au pare or visiting in-law.
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $900
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,400
Immediate Delivery!
Most recommended package

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,550
Five printed sets of house plans
STEP 2 CHOOSE YOUR FOUNDATION
STEP 3 OPTIONAL ADD-ONS
Subtotal
$1400
FREE SHIPPING

Detailed Plan Packages & Pricing
Our Structural Detail & IRC Guarantee
Architect's Preferred Home Products
Plan Details
See All Details
Finished Square Footage
2,911 Sq. Ft.
Main Level:
2,911 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
1
Number of Stories:
90' 0"
Width:
100' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
672 Sq. Ft.
Garage:
980 Sq. Ft.
Porch:
193 Sq. Ft.
Deck:
450 Sq. Ft.
Patio:
525 Sq. Ft.
Bonus Room:
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
Country
Farmhouse
Southern
Collections
Empty Nester
Old House Classics
Open Floor Plan
PDFs Fast!
Split Bedroom
Vacation
Foundation
WALK OUT BASEMENT
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
9/12
Primary:
12/12
Gable:
12/12
Dormer:
3/12
Porch:
Roof Load
20
Live:
10
Dead:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
10
First Floor Ceiling:
24' 0"
Maximum House Height:
Key Features
Arches
Basement
Butler's Pantry
Covered Front Porch
Covered Rear Porch
Deck
Detached
Dining Room
Double Vanity Sink
Family Room
Fireplace
Foyer
Front Porch
Great Room
Home Office
Laundry 1st Fl
Library/Media Rm
Primary Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Rear Porch
Separate Tub and Shower
Side-entry
Split Bedrooms
Suited for sloping lot
Suited for view lot
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
Walkout Basement
With Living Space
Wraparound Porch
