House Plan: DFD-5847

See All 4 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,483
BEDS
4
BATHS
3
STORIES
2
CARS
2
HOUSE PLANS SALE
START AT  $960.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5847:

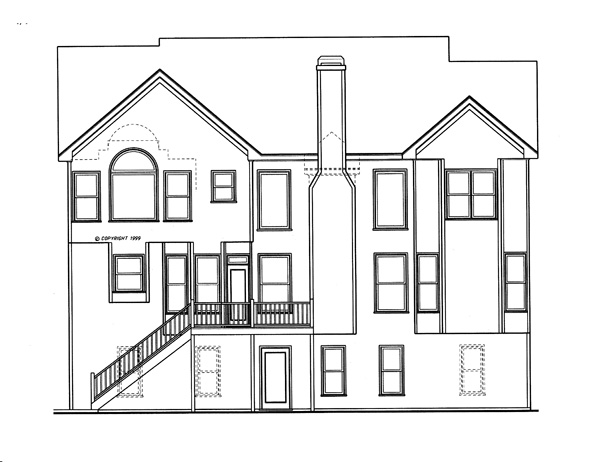

Shake and board & batten siding help create a cottage feel to an otherwise traditional style. A first floor bedroom creates that perfect office when it's not being used as a guest suite. The dramatic master suite features a barrel ceiling highlighting the windows on rear wall of the bedroom. The two story bay on the rear of the house maximizes space in the bedrooms on both floors. An optional vaulted ceiling in the front bedroom makes sure every space has it's own unique character.
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $750
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,200
Immediate Delivery!
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,300
Five printed sets of house plans
STEP 2 CHOOSE YOUR FOUNDATION
STEP 3 OPTIONAL ADD-ONS
Subtotal
$1200
FREE SHIPPING

Note: Please contact Designer for delivery date on this plan.

Plan Details
See All Details
Finished Square Footage
1,164 Sq. Ft.
Main Level:
1,319 Sq. Ft.
Upper Level:
1,164 Sq. Ft.
Lower Level:
2,483 Sq. Ft.
Total:
Room Details
4
Bedrooms:
3
Full Baths:
General House Information
2
Number of Stories:
50' 0"
Width:
39' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
462 Sq. Ft.
Garage:
172 Sq. Ft.
Porch:
110 Sq. Ft.
Deck:
GARAGE
Side
Garage Location:
2
Garage Size:
Exterior Style
Colonial
Cottage
Traditional
Collections
Affordable
Builders
Mountain
Old House Classics
Open Floor Plan
PDFs Fast!
Split Bedroom
Foundation
WALK OUT BASEMENT
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
10/12
Primary:
12/12
Gable:
3/12
Porch:
Roof Load
20
Live:
10
Dead:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
9
First Floor Ceiling:
8
Second Floor Ceiling:
31' 0"
Maximum House Height:
Key Features
2 Story Volume
Attached
Basement
Covered Front Porch
Deck
Dining Room
Double Vanity Sink
Fireplace
Foyer
Front Porch
Great Room
Guest Suite
Home Office
Kitchen Island
Laundry 2nd Fl
Library/Media Rm
Loft / Balcony
Primary Bdrm Upstairs
Nook / Breakfast Area
Open Floor Plan
Separate Tub and Shower
Side-entry
Sitting Area
Suited for corner lot
Suited for narrow lot
Suited for sloping lot
Unfinished Space
Vaulted Ceilings
Walk-in Closet
Walkout Basement
