House Plan: DFD-8620

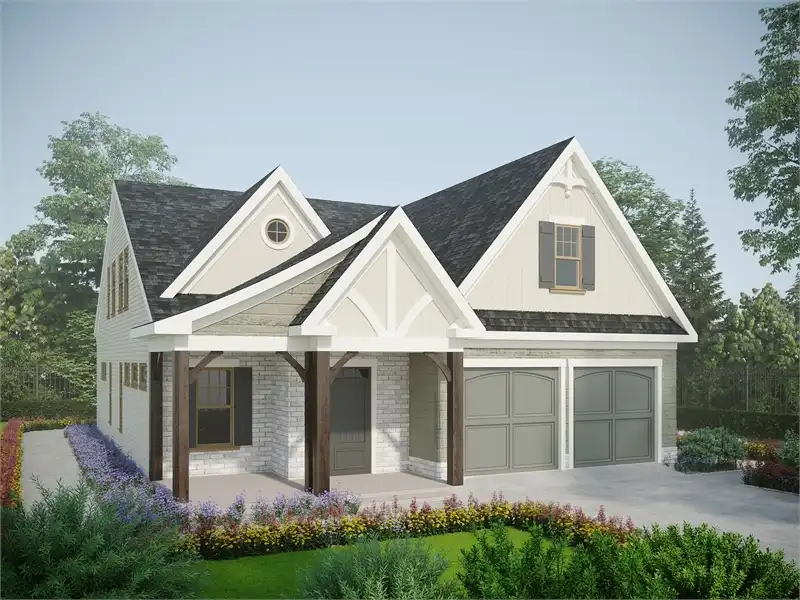

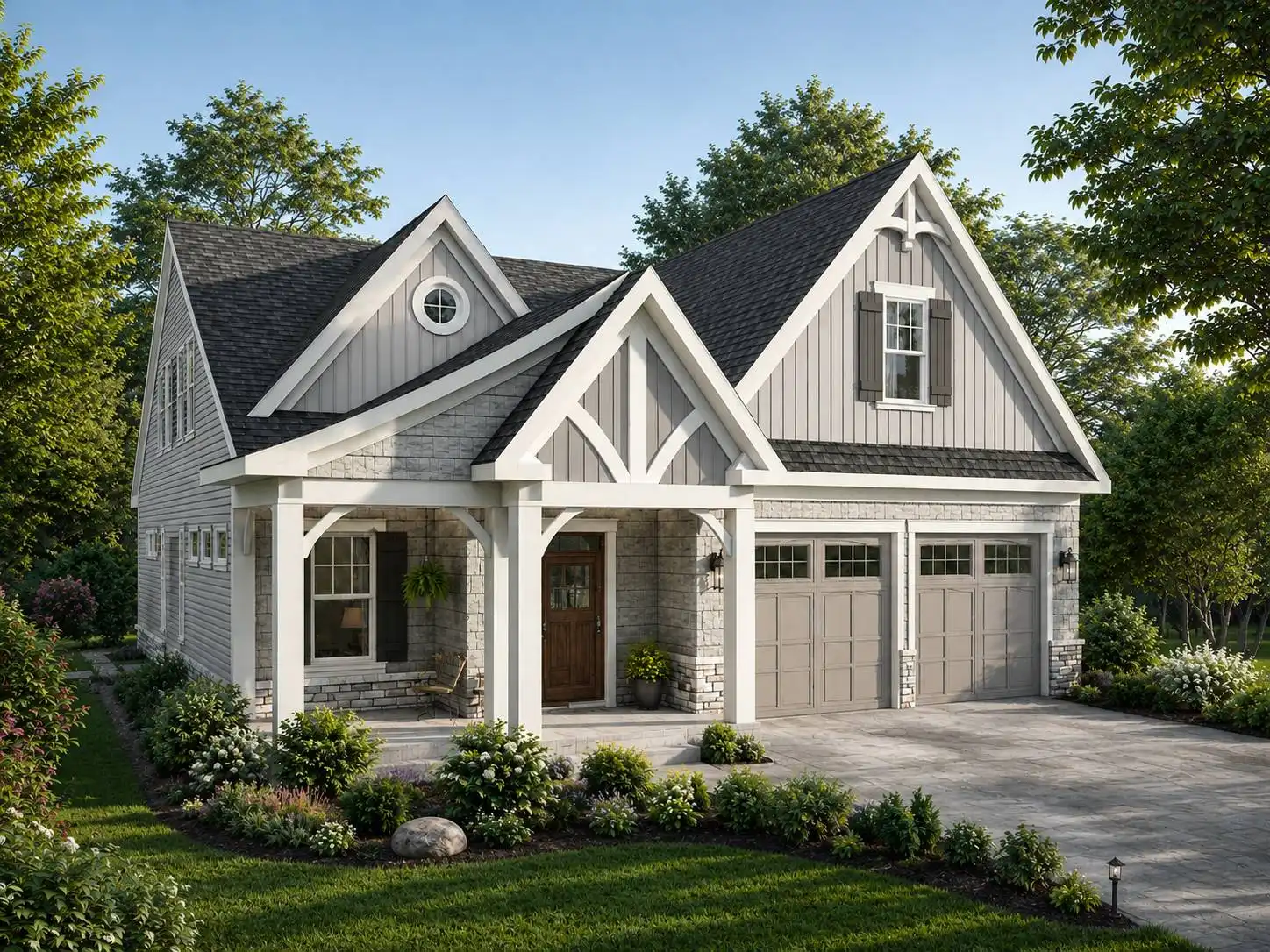

See All 4 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,841
BEDS
4
BATHS
3.5
STORIES
1.5
CARS
2
HOUSE PLANS SALE
START AT  $1,060.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 8620:
Affordable and full of charm, this modern Craftsman ranch has it all. 2,841 square feet of space is both impressive and totally functional, offering rooms such as 4 beds, 2.5 baths, and an open concept main area. The ground floor has everything from a 2-car garage to a galley kitchen and breakfast nook, right off of the living and dining rooms. The master is also on the first level, along with its full spa bath and walk-in closet. If you don't need all of the auxiliary bedrooms, consider turning one into an office, hobby space, or even a home gym, the choice is yours!
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $850
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,325
Immediate Delivery!
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,450
Five printed sets of house plans

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $1,988
2D electronic editable computer files
STEP 2 CHOOSE YOUR FOUNDATION
STEP 3 OPTIONAL ADD-ONS
Subtotal
$1325
FREE SHIPPING

Note: E

Plan Details
See All Details
Finished Square Footage
1,563 Sq. Ft.
Main Level:
1,278 Sq. Ft.
Upper Level:
2,841 Sq. Ft.
Total:
Room Details
4
Bedrooms:
3
Full Baths:
1
Half Baths:
General House Information
1.5
Number of Stories:
41' 6"
Width:
69' 0"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Unfinished Square Footage
543 Sq. Ft.
Garage:
195 Sq. Ft.
Deck:
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
Bungalow
Cottage
Country
Craftsman
Collections
Affordable
Budget
Builders
First Home
Old House Classics
Open Floor Plan
PDFs Fast!
Foundation
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
7/12
Primary:
14/12
Secondary:
14/12
Gable:
6+/-
Porch:
Roof Load
20
Live:
10
Dead:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
10
First Floor Ceiling:
8
Second Floor Ceiling:
24' 2"
Maximum House Height:
Key Features
Attached
Basement
Covered Front Porch
Dining Room
Double Vanity Sink
Fireplace
Foyer
Front Porch
Front-entry
Great Room
Guest Suite
His and Hers Primary Closets
Kitchen Island
Laundry 1st Fl
Loft / Balcony
Primary Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Pantry
Separate Tub and Shower
Suited for corner lot
Suited for narrow lot
Walk-in Closet
