House Plan: DFD-8702

See All 9 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
3,637
BEDS
4
BATHS
4.5
STORIES
1
CARS
3
HOUSE PLANS SALE
START AT  $1,695.75
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 8702:

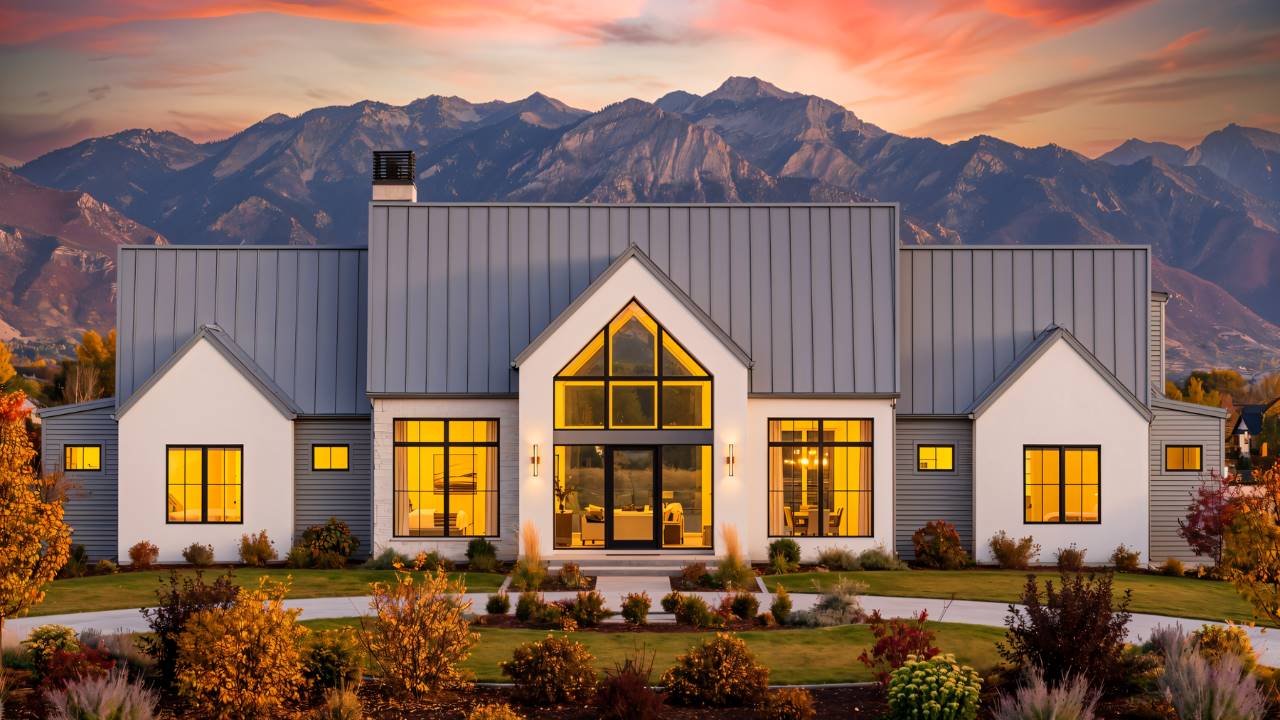

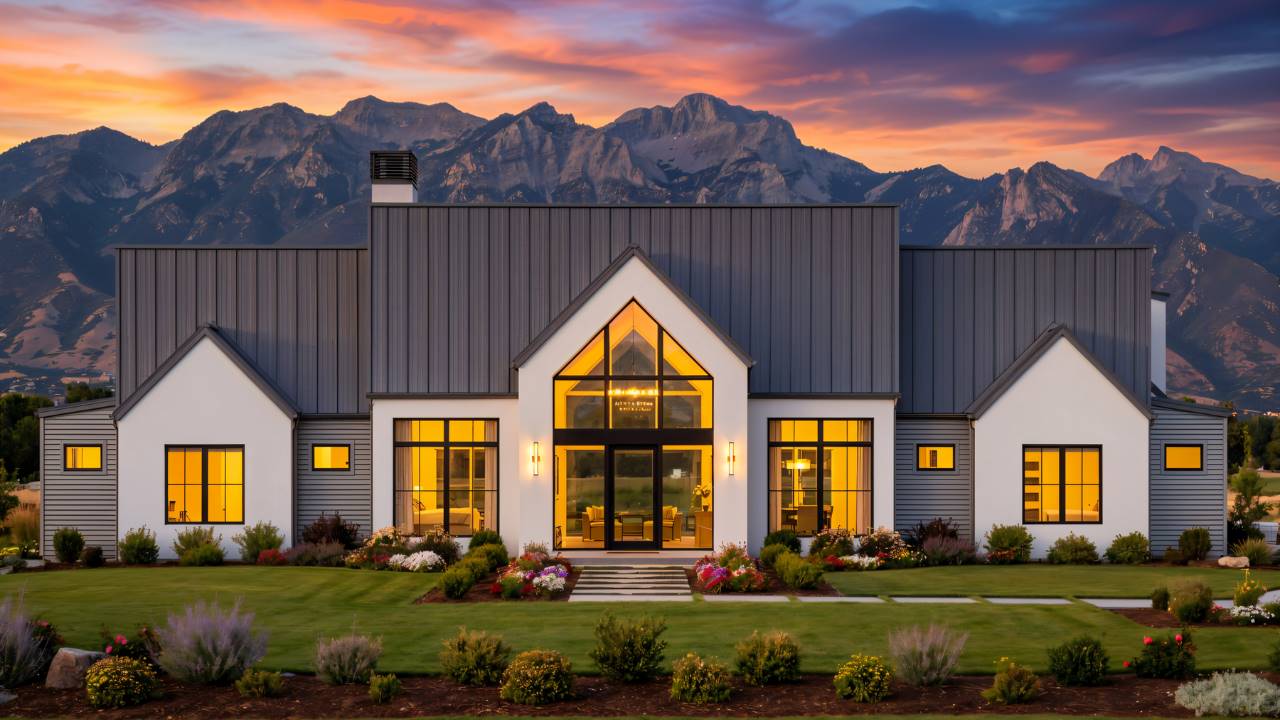

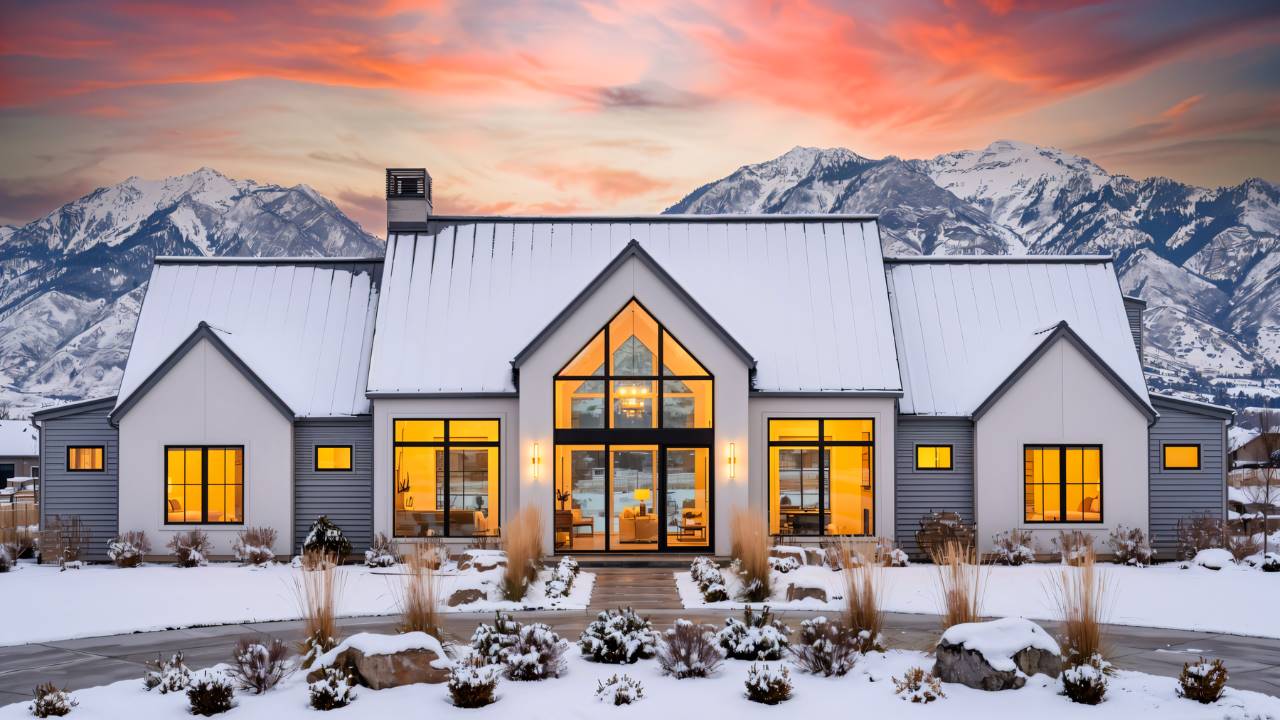

House Plan 8702 is an amazing luxury ranch with chic Scandinavian style ideal for families with transitional tastes! Behind that streamlined exterior with plenty of windows, you'll find 3,637 square feet with four bedrooms and four-and-a-half bathrooms. The layout includes a vaulted foyer that leads into a vaulted great room, with an office and the formal dining by the entrance and the bedrooms split around the common areas. The primary suite boasts a vaulted bedroom and a super spacious five-piece bath and walk-in closet. It's also privately located in its own hallway with the laundry room. A second vaulted bedroom suite is off another hallway on that side of the house while two more suites are in the hallway behind the island kitchen. That's right--every bedroom has its own private bathroom! House Plan 8702 features a side-entry three-car garage in back with a bonus above, so there's plenty of parking and additional space to spread out!
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,995
Most recommended package

PDF Unlimited Build


Digital plans with an unlimited build license emailed in PDF format, that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators and more

PDF Unlimited Build $2,695
Digital plans including unlimited build license

CAD Unlimited Build


2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

CAD Unlimited Build $2,995
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1995
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
3,637 Sq. Ft.
Main Level:
3,637 Sq. Ft.
Total:
Room Details
4
Bedrooms:
4
Full Baths:
1
Half Baths:
General House Information
1
Number of Stories:
88' 4"
Width:
91' 6"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Unfinished Square Footage
895 Sq. Ft.
Garage:
68 Sq. Ft.
Front Porch:
819 Sq. Ft.
Rear Porch:
623 Sq. Ft.
Bonus Room:
GARAGE
Rear
Garage Location:
3
Garage Size:
Exterior Style
Contemporary
Ranch
Scandinavian
Transitional
Collections
Kitchens
Luxury
Primary Suites
Mountain
Open Floor Plan
Outdoor Living
Split Bedroom
Texas
Foundation
Basement
Crawlspace
Monolithic Slab
Walkout Basement
Framing Information
Stick
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
8
Primary:
12
Secondary:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
10
First Floor Ceiling:
25' 11"
Maximum House Height:
Key Features
Arches
Attached
Bonus Room
Covered Front Porch
Covered Rear Porch
Dining Room
Double Vanity Sink
Fireplace
Foyer
Great Room
Home Office
Kitchen Island
Laundry 1st Fl
Primary Bdrm Main Floor
Mud Room
Open Floor Plan
Separate Tub and Shower
Side-entry
Split Bedrooms
Suited for view lot
U-Shaped
Vaulted Ceilings
Vaulted Foyer
Vaulted Great Room/Living
Vaulted Kitchen
Vaulted Primary
Walk-in Closet
Walk-in Pantry

Our Guarantees

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  •  PDFs NOW!™ plans in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
