House Plan: DFD-9047

Pin It
See All 41 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,350
BEDS
3
BATHS
3.5
STORIES
1.5
CARS
2
HOUSE PLANS SALE
START AT  $1,440.75
For questions and help, live chat, email or call us at 877-895-5299
1st Floor Plan
2nd Floor
Floor Plans
Click to Zoom In on Floor Plan

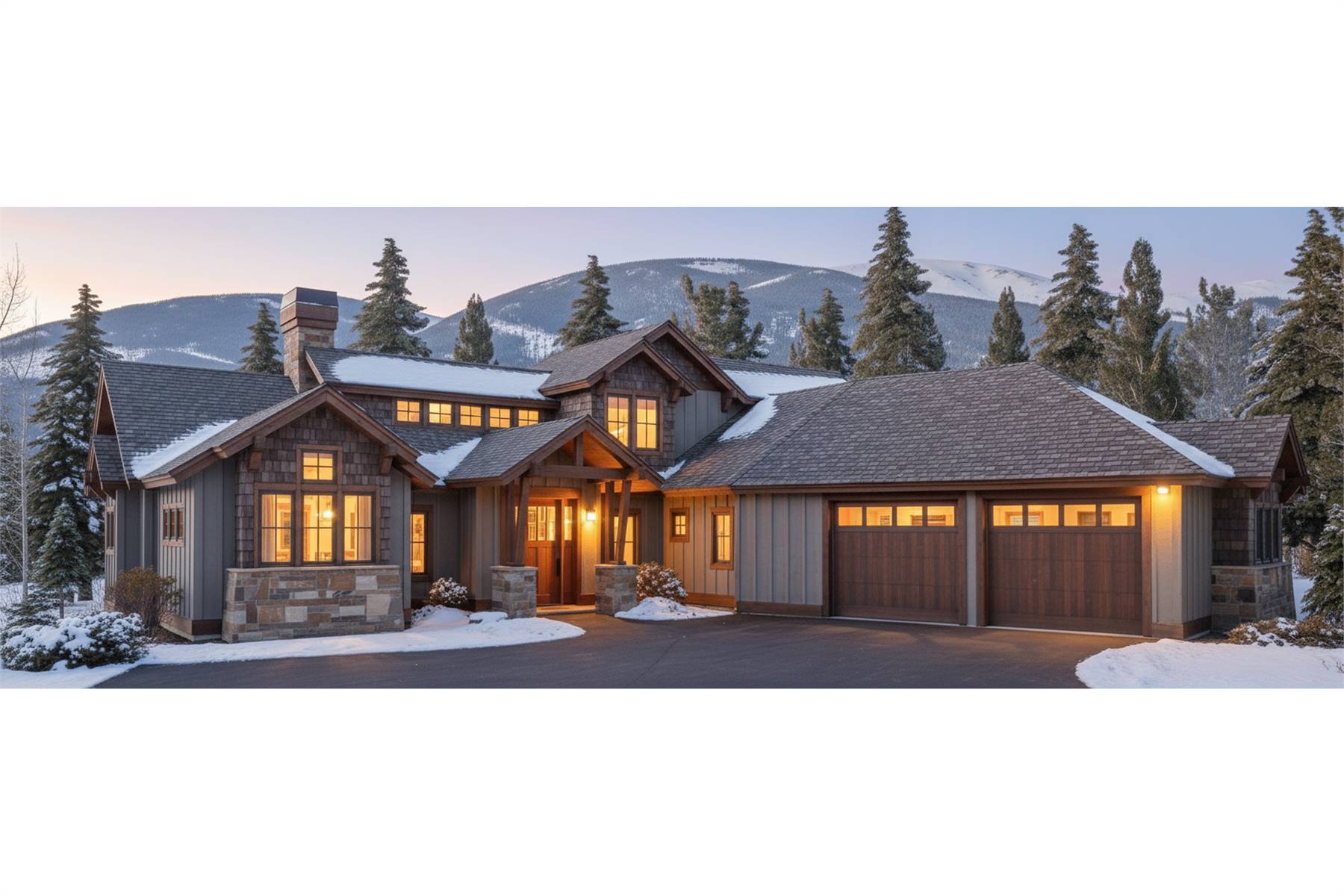

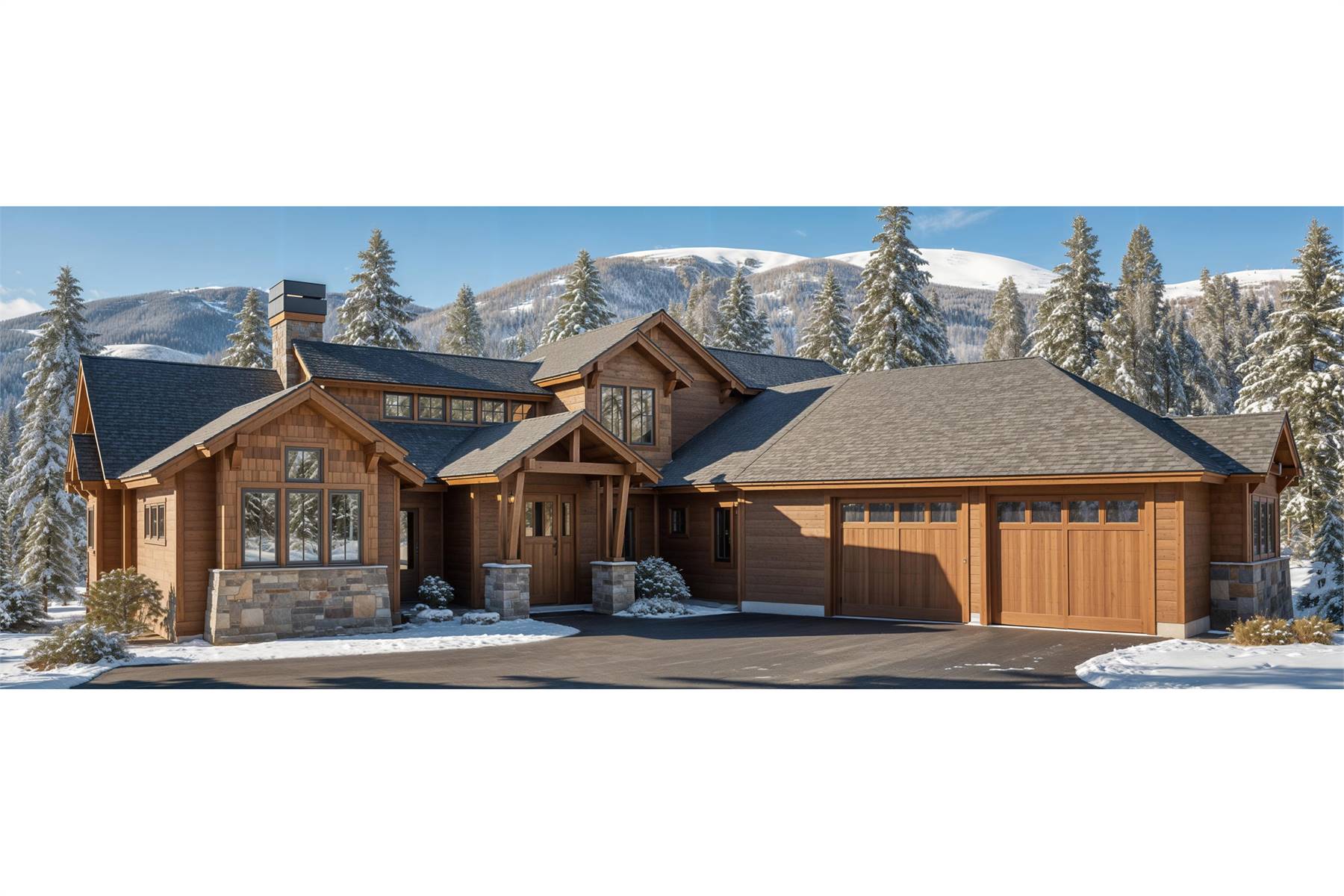

About House Plan 9047:
When you step into this Craftsman bungalow you immediately enter a large living space with a fireplace on the left. The open concept layout allows everyone in the kitchen and dining room to enjoy the view of the fireplace easily. The far wall features large picture windows that go to ceiling height and flood the room with natural light.
The kitchens raised bar is the perfect place for casual dining or for entertaining guests.
A short hallway gives you access to the powder room and laundry room and leads to a stairway that ascends to the guest suite.
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $995
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,695
Immediate Delivery!
Most recommended package

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,795
Five printed sets of house plans

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

8 Printed Sets $1,895
Eight printed sets of house plans

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $2,595
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1695
FREE SHIPPING

Detailed Plan Packages & Pricing
Our Structural Detail & IRC Guarantee
Architect's Preferred Home Products
Plan Details
See All Details
Finished Square Footage
1,921 Sq. Ft.
Main Level:
429 Sq. Ft.
Upper Level:
2,350 Sq. Ft.
Total:
Room Details
3
Bedrooms:
3
Full Baths:
1
Half Baths:
General House Information
1.5
Number of Stories:
71' 0"
Width:
69' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
699 Sq. Ft.
Garage:
240 Sq. Ft.
Bonus Room:
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
Bungalow
Craftsman
Collections
Affordable
Architects Choice
Builders
Old House Classics
Open Floor Plan
Outdoor Living
Vacation
Foundation
Crawl Space
Framing Information
Combination
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
Roof Load
50
Live:
17
Dead:
85
Wind:
Insulation (R)
21
Exterior Wall:
0
Interior Wall:
38
Ceiling:
25
Floor:
House And Ceiling Heights
9
First Floor Ceiling:
8
Second Floor Ceiling:
23' 6"
Maximum House Height:
Key Features
Attached
Bonus Room
Crawlspace
Double Vanity Sink
Exercise Room
Fireplace
Inverted Living
Kitchen Island
Laundry 2nd Fl
Loft / Balcony
Primary Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Rec Room
Side-entry
Split Bedrooms
Suited for view lot
Vaulted Ceilings
Walk-in Closet
