House Plan: DFD-1139

See All 2 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,603
BEDS
4
BATHS
2
STORIES
1.5
CARS
1
PLANS FROM $460
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 1139:

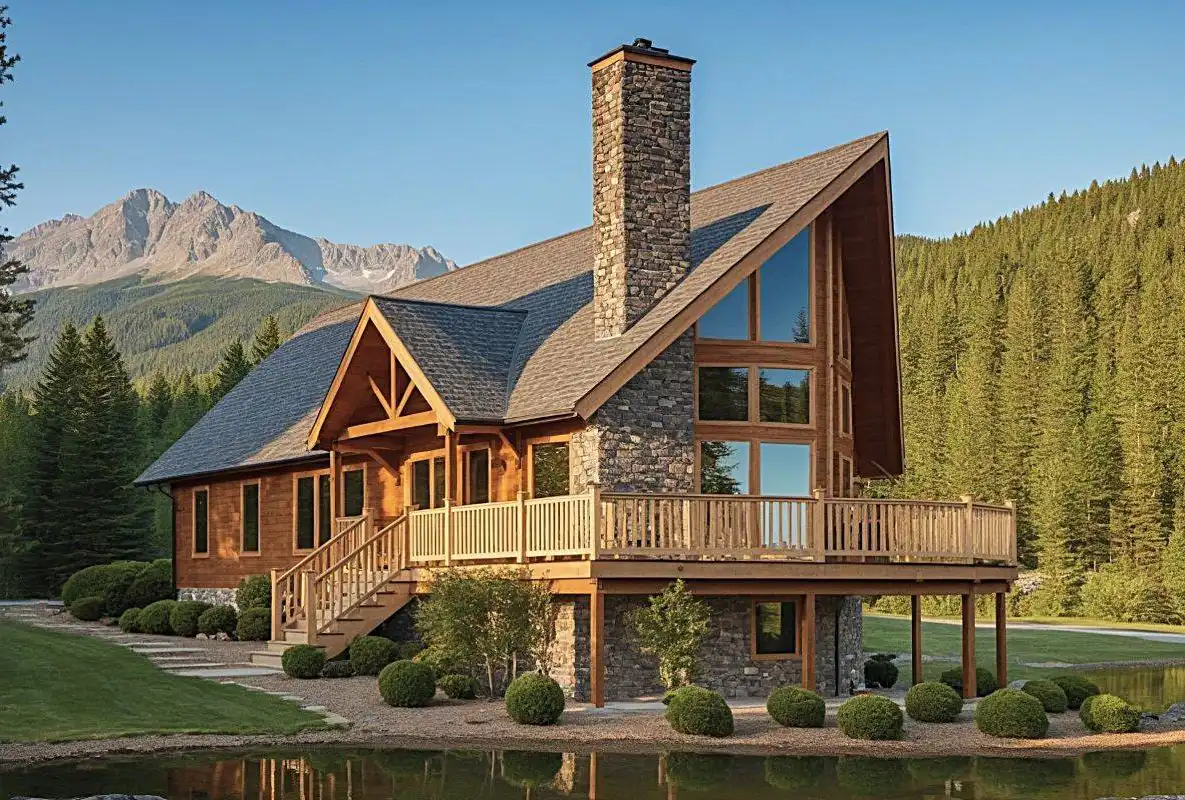

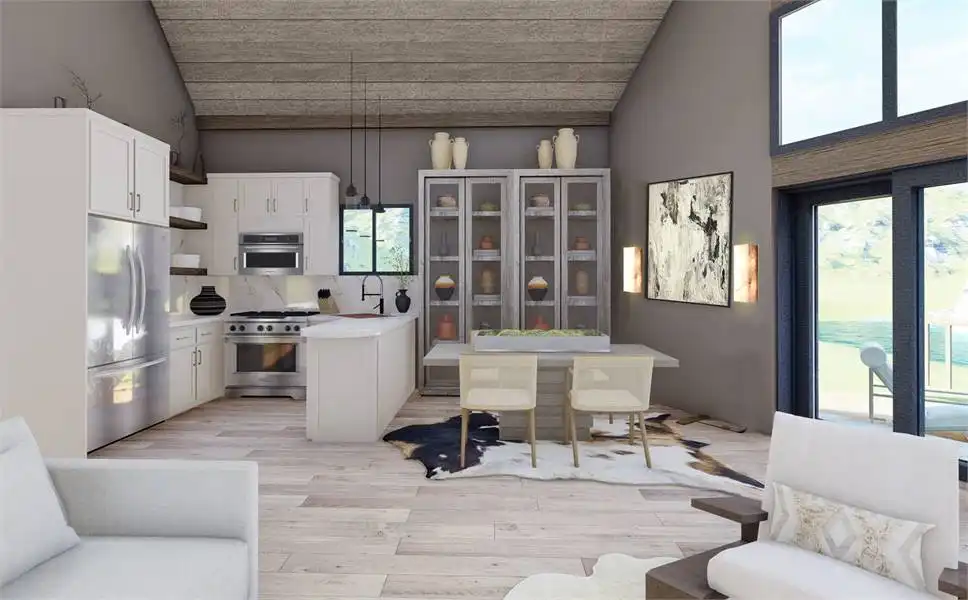

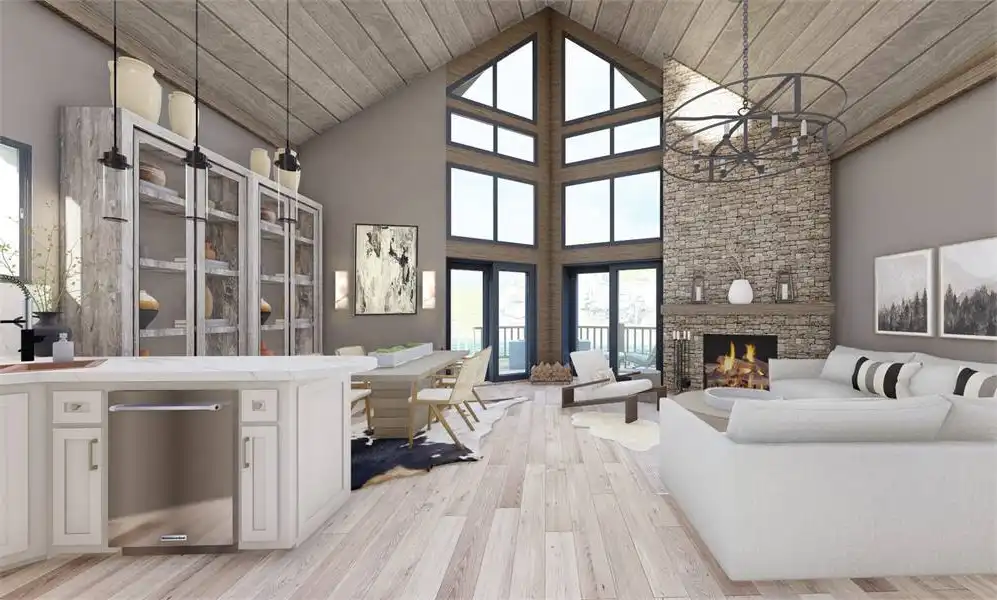

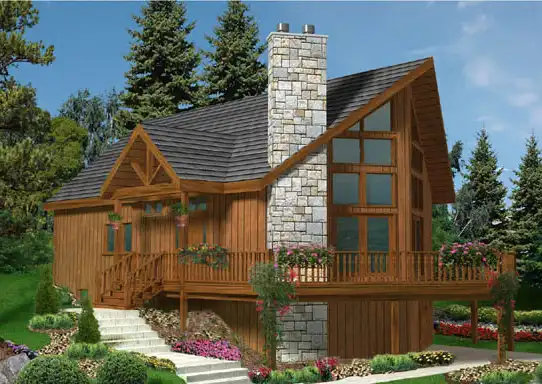

Imagine this chalet as your new vacation home at the lake! You'll have great views from any room. Relax with friends on the sizable deck before inviting them inside. The living and dining rooms flow together beneath a dramatic cathedral ceiling, warmed by a toasty fireplace. Serve beverages and hors d'oeuvres at the kitchen's handy snack bar. You'll appreciate the den's flexibility. It could be a bedroom or an office.
When guests have left, relax in the upstairs sitting area, reflecting on the fun party. The master suite could not be more dramatic, with an 11-ft. ceiling above.
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $520
Digital set of plans for bidding purposes only

4 Printed Sets


Four printed sets of construction drawings shipped and received in 3-5 business days

4 Printed Sets $575
Four printed sets of house plans

8 Printed Sets


Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

8 Printed Sets $659
Eight printed sets of house plans

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $793
Immediate Delivery!
Most recommended package
STEP 2 CHOOSE YOUR FOUNDATION
STEP 3 OPTIONAL ADD-ONS
Subtotal
$575
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
1,088 Sq. Ft.
Main Level:
515 Sq. Ft.
Upper Level:
764 Sq. Ft.
Lower Level:
1,603 Sq. Ft.
Total:
Room Details
4
Bedrooms:
2
Full Baths:
General House Information
1.5
Number of Stories:
25' 4"
Width:
46' 8"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
324 Sq. Ft.
Garage:
GARAGE
Under
Garage Location:
1
Garage Size:
Exterior Style
Beach
Cottage
Traditional
Collections
Architects Choice
Mountain
Old House Classics
Vacation
Foundation
Basement
Crawlspace
Slab
Framing Information
Stick
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
12/12
Primary:
Roof Load
45
Live:
15
Dead:
100
Wind:
Insulation (R)
19
Exterior Wall:
0
Interior Wall:
38
Ceiling:
19
Floor:
House And Ceiling Heights
8
First Floor Ceiling:
11 - 6'-4"
Second Floor Ceiling:
Key Features
2 Story Volume
Attached
Basement
Crawlspace
Daylight Basement
Deck
Drive-under
Fireplace
Foyer
Front Porch
Separate Tub and Shower
Slab
Wraparound Porch
