House Plan: DFD-1620

See All 4 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,511
BEDS
3
BATHS
2.5
STORIES
2
CARS
2
HOUSE PLANS SALE
START AT  $1,060.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 1620:
A dramatic curved staircase adds to the formality of this beautiful European-style home. The foyer leads to a formal living/dining area to its right, completing the feel.

The master suite is accessed from the hall connecting the foyer to the informal part of the house, providing the ultimate privacy for the owner. A screened porch off the master suite is shared with the family room giving both spaces expanded living space.

The family room is open to the kitchen/breakfast room, where an angled island is a great gathering place.

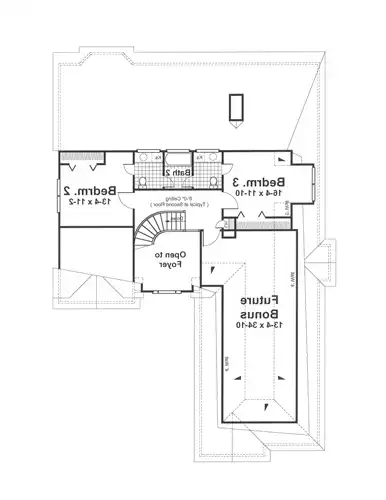

Two bedrooms open to the upper landing and are connected by half baths that share a tub area. The bonus area above the garage and master suite allows for a future recreation or media room.
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $850
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,325
Immediate Delivery!
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,450
Five printed sets of house plans

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $1,988
2D electronic editable computer files
STEP 2 CHOOSE YOUR FOUNDATION
STEP 3 OPTIONAL ADD-ONS
Subtotal
$1325
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
1,852 Sq. Ft.
Main Level:
659 Sq. Ft.
Upper Level:
175 Sq. Ft.
Lower Level:
2,511 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
2
Number of Stories:
52' 0"
Width:
74' 0"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Unfinished Square Footage
660 Sq. Ft.
Garage:
224 Sq. Ft.
Porch:
288 Sq. Ft.
Deck:
533 Sq. Ft.
Bonus Room:
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
European
Traditional
Collections
Empty Nester
PDFs Fast!
Split Bedroom
Foundation
WALK OUT BASEMENT
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
12/12
Primary:
3.5/12
Secondary:
12/12
Gable:
12/12
Dormer:
3.5/12
Porch:
Roof Load
20
Live:
10
Dead:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
9
First Floor Ceiling:
8
Second Floor Ceiling:
29' 5"
Maximum House Height:
Key Features
2 Story Volume
Arches
Attached
Basement
Bonus Room
Country Kitchen
Covered Rear Porch
Deck
Dining Room
Double Vanity Sink
Family Room
Fireplace
Formal LR
Foyer
Front-entry
Kitchen Island
Laundry 1st Fl
Primary Bdrm Main Floor
Nook / Breakfast Area
Oversized
Screened Porch/Sunroom
Separate Tub and Shower
Side-entry
Split Bedrooms
Suited for narrow lot
Suited for view lot
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
Walkout Basement
With Living Space
