House Plan: DFD-1747

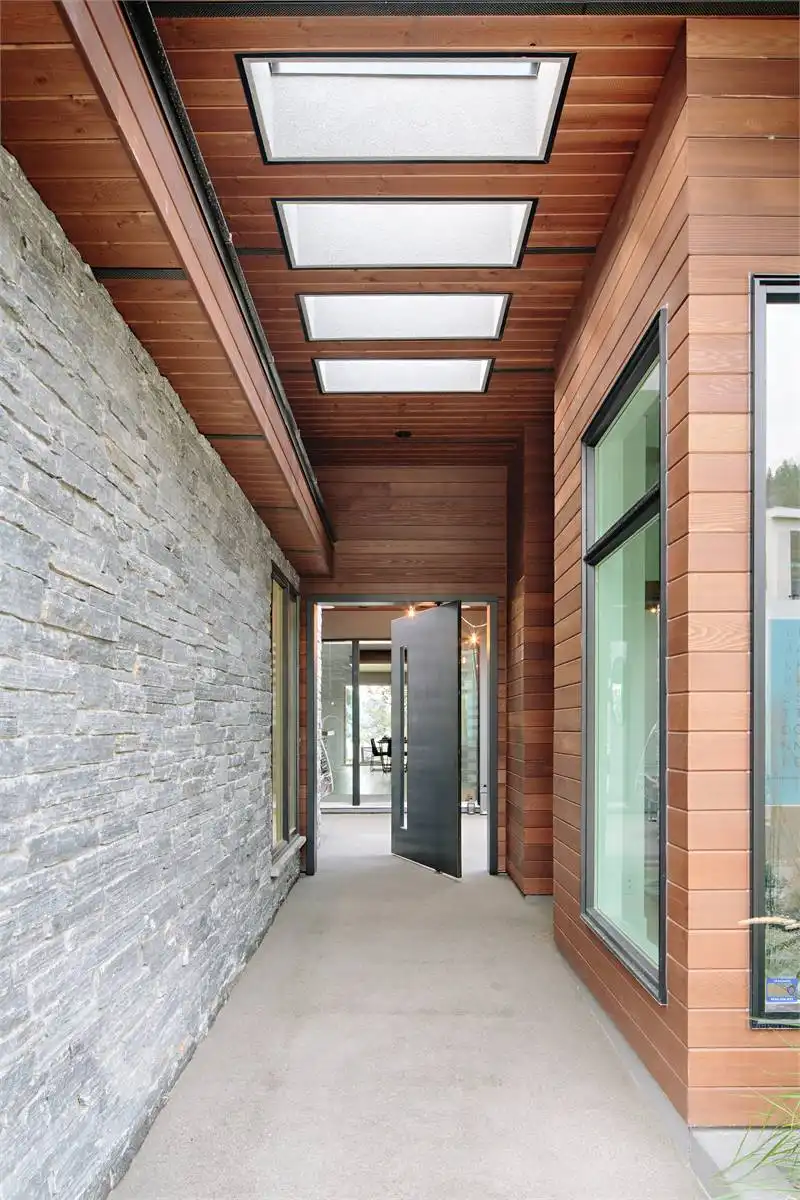

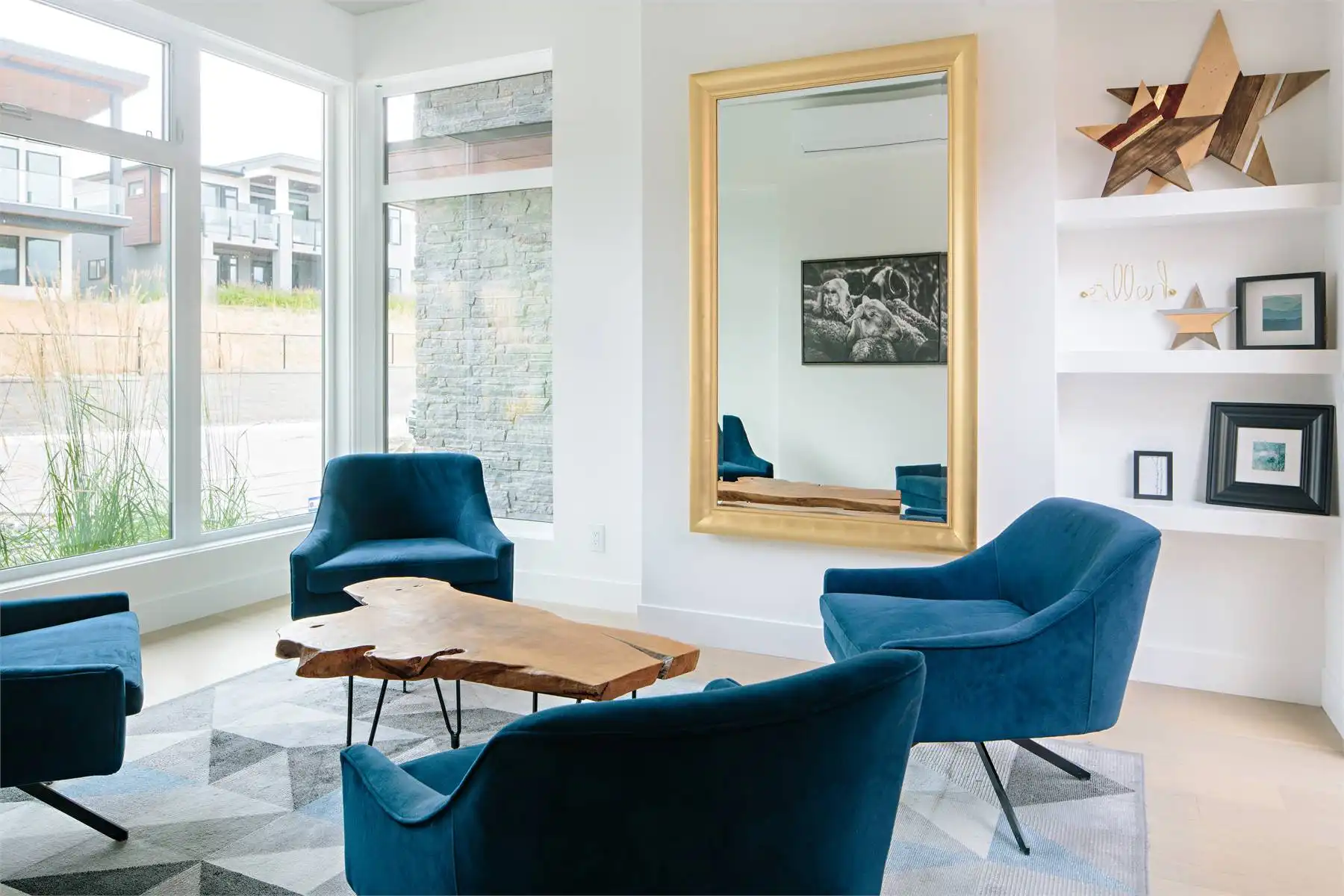

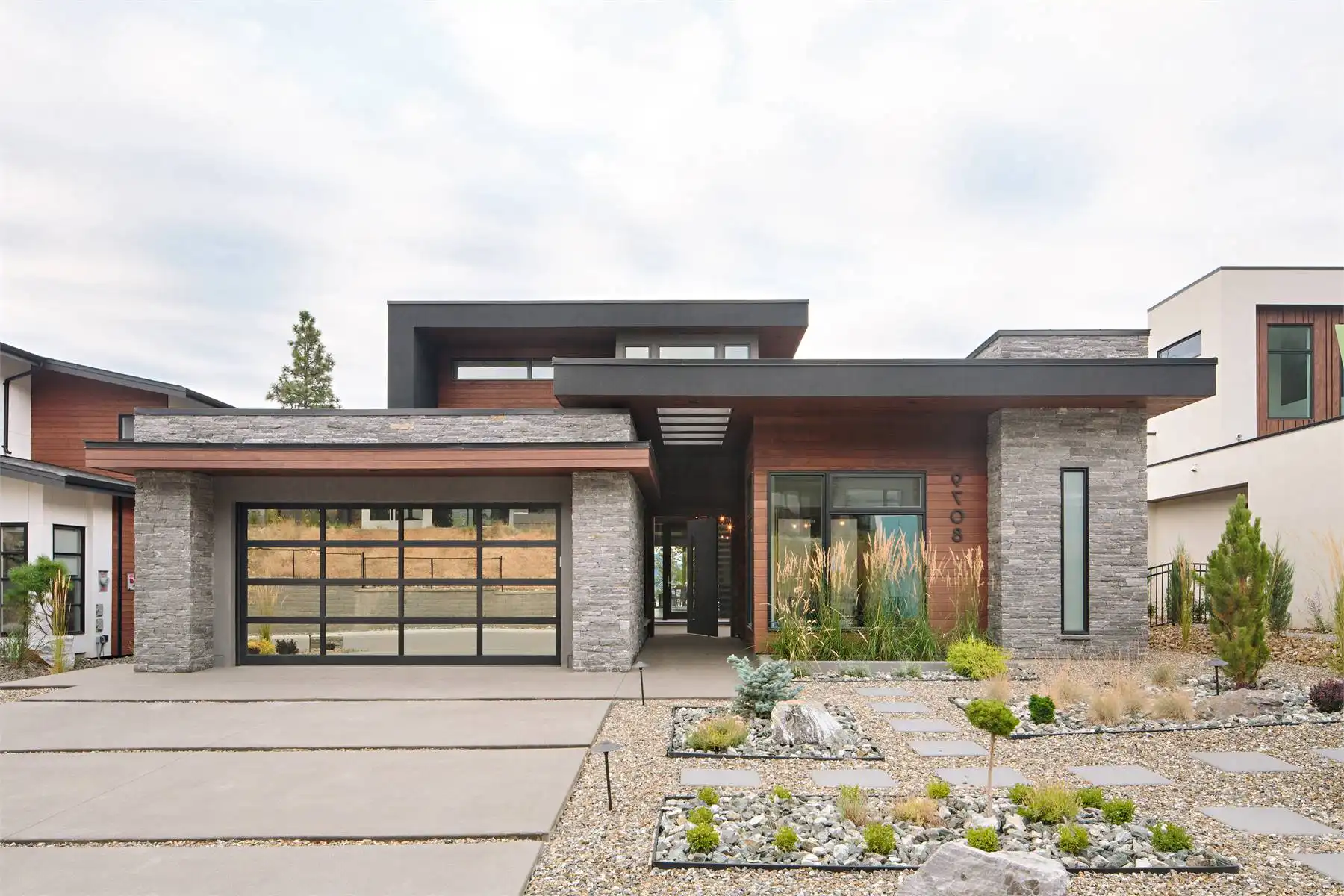

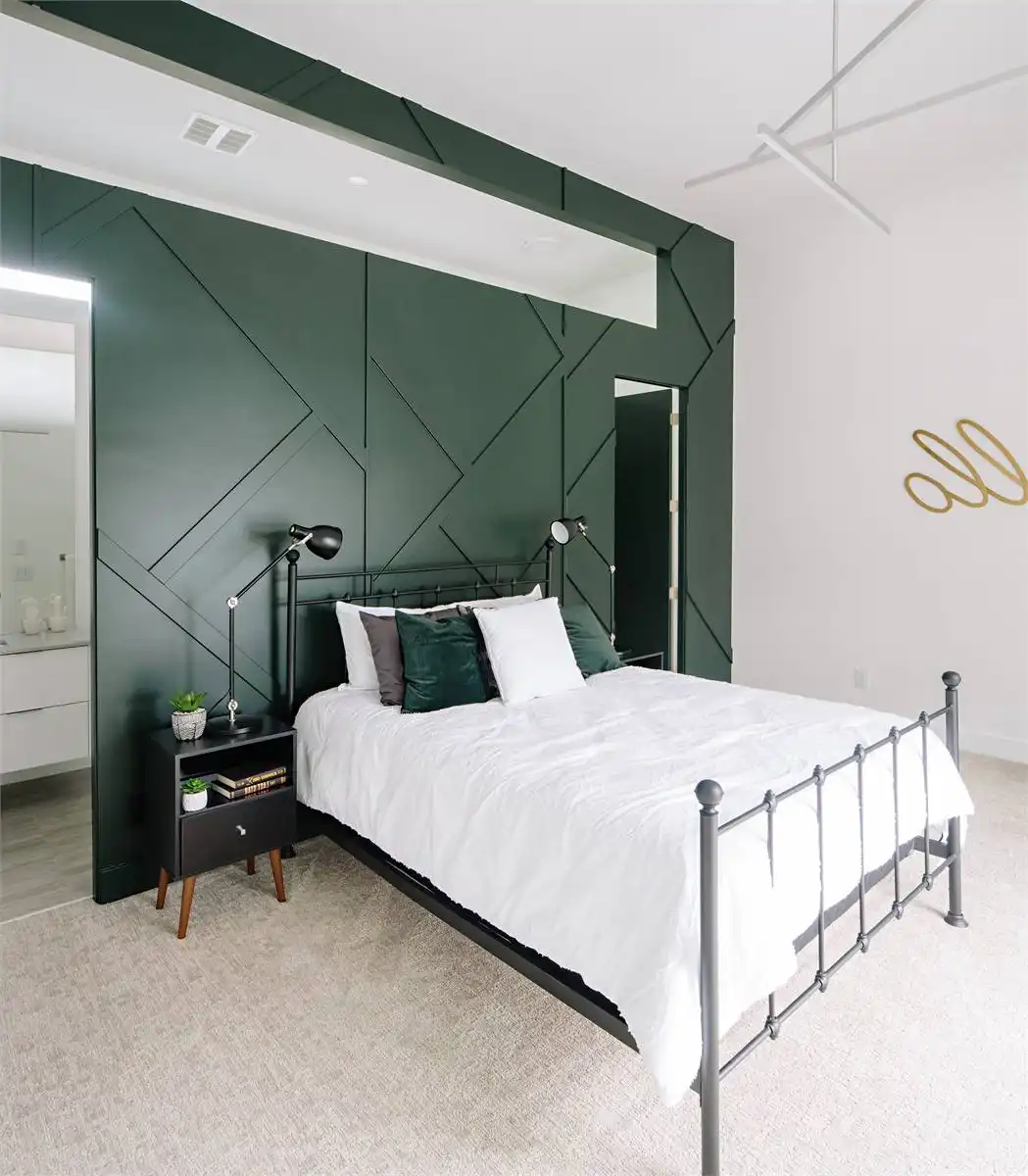

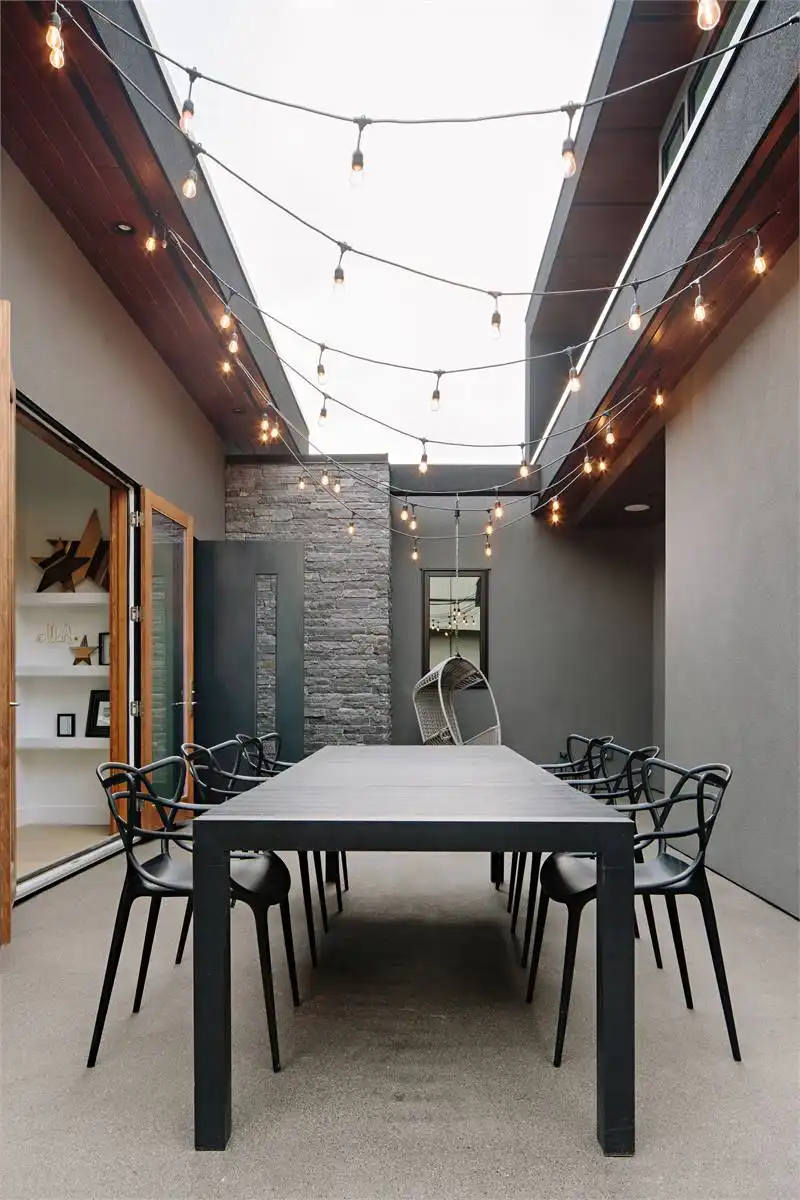

See All 13 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
3,461
BEDS
4
BATHS
4.5
STORIES
2
CARS
2
HOUSE PLANS SALE
START AT  $2,000.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 1747:

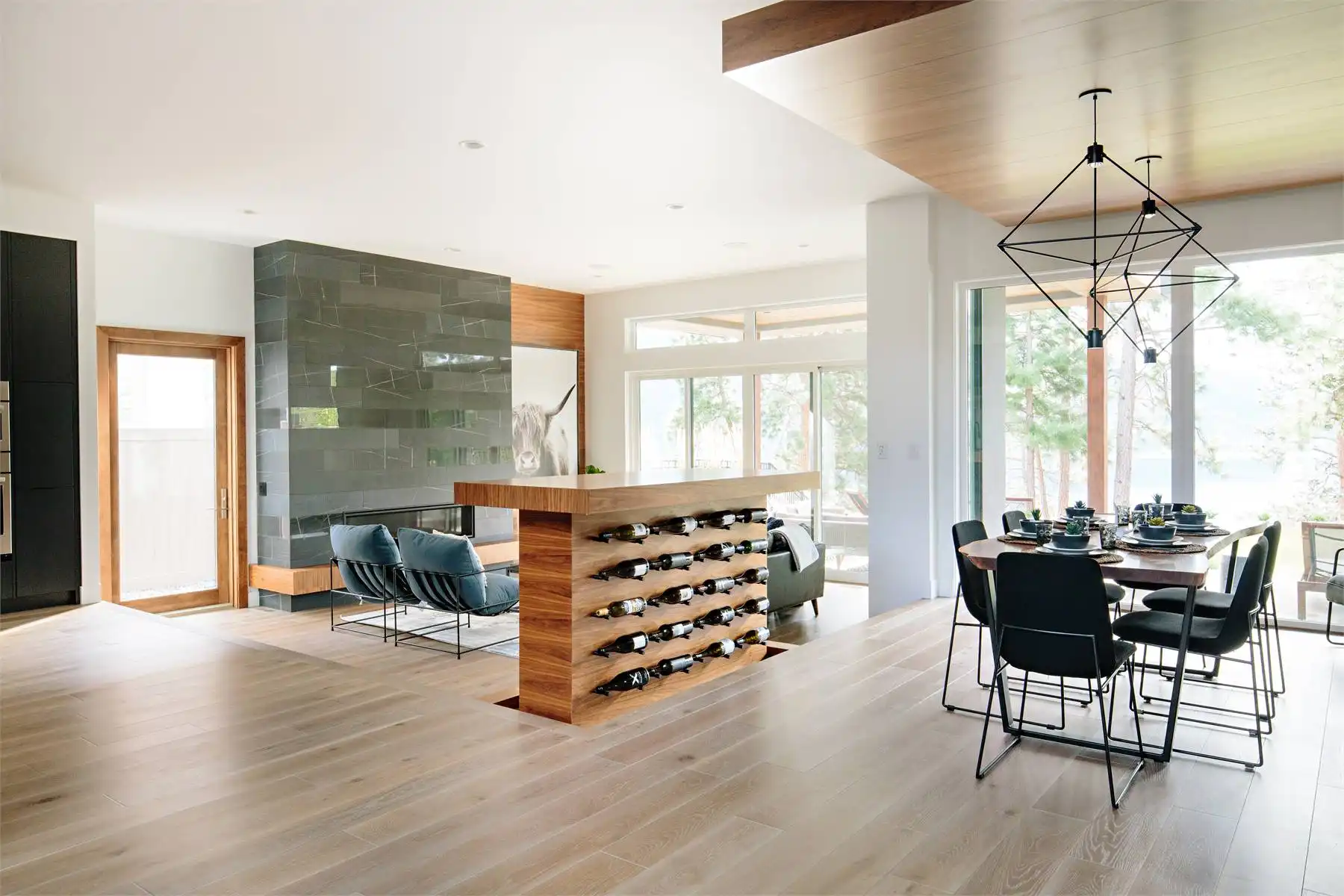

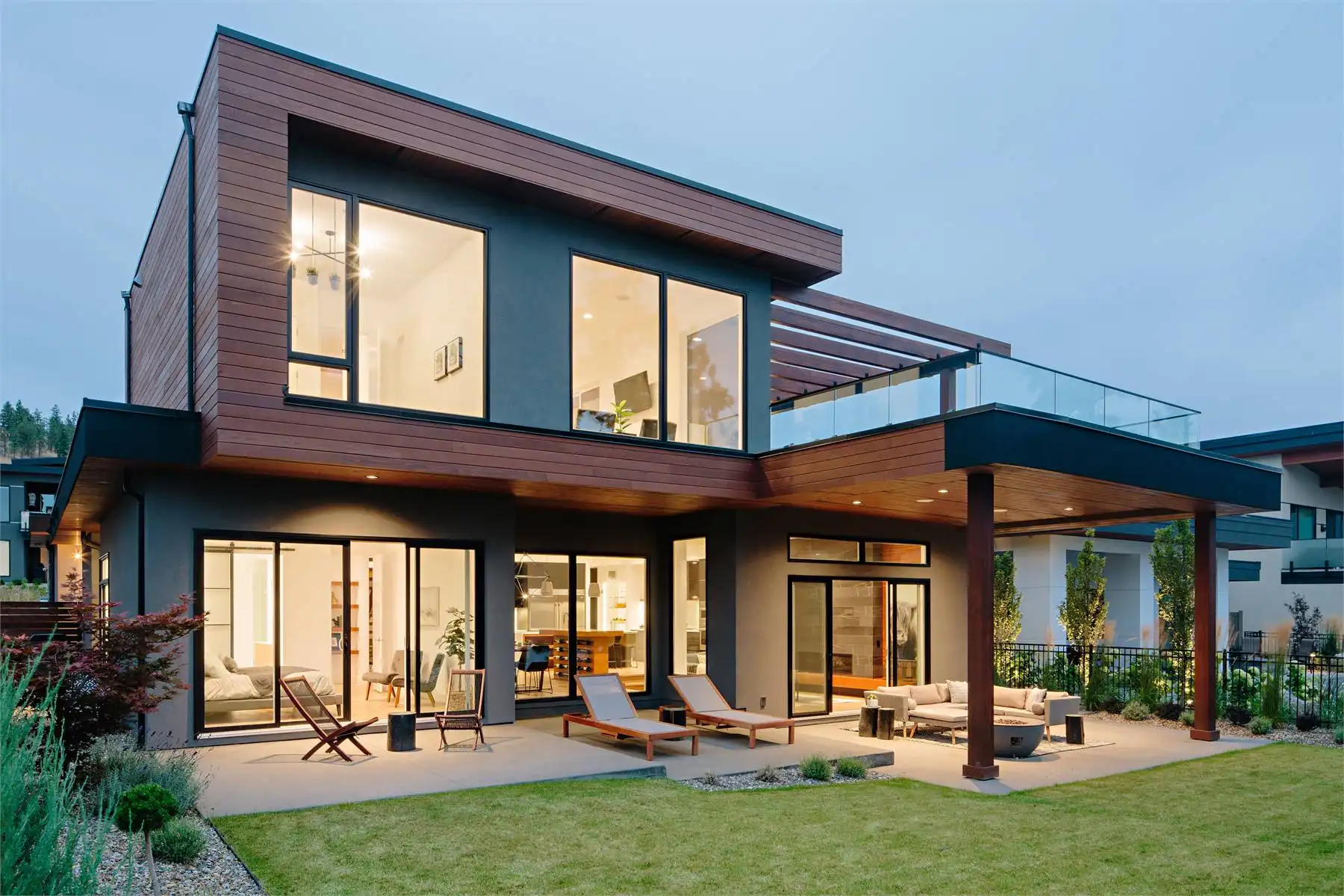

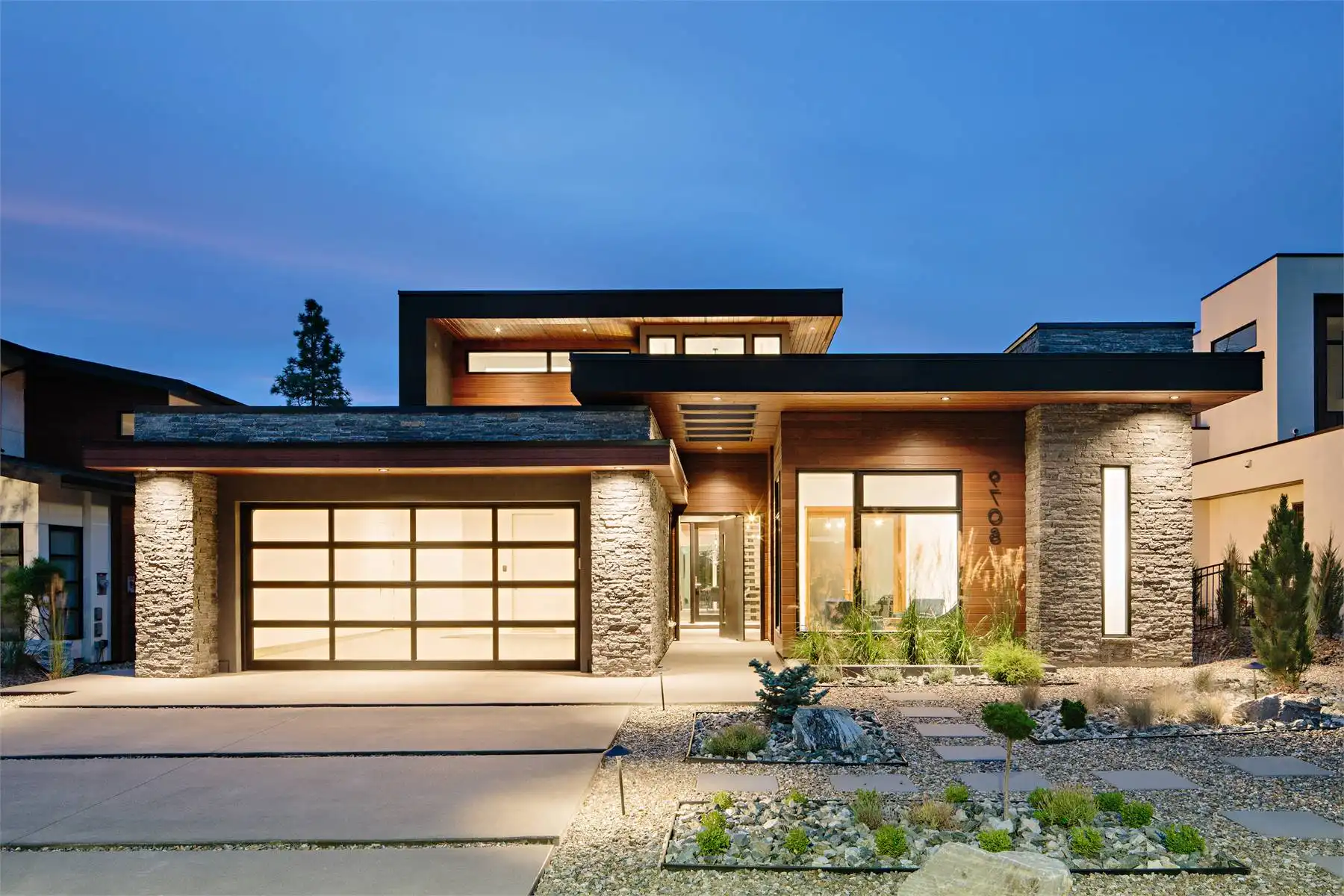

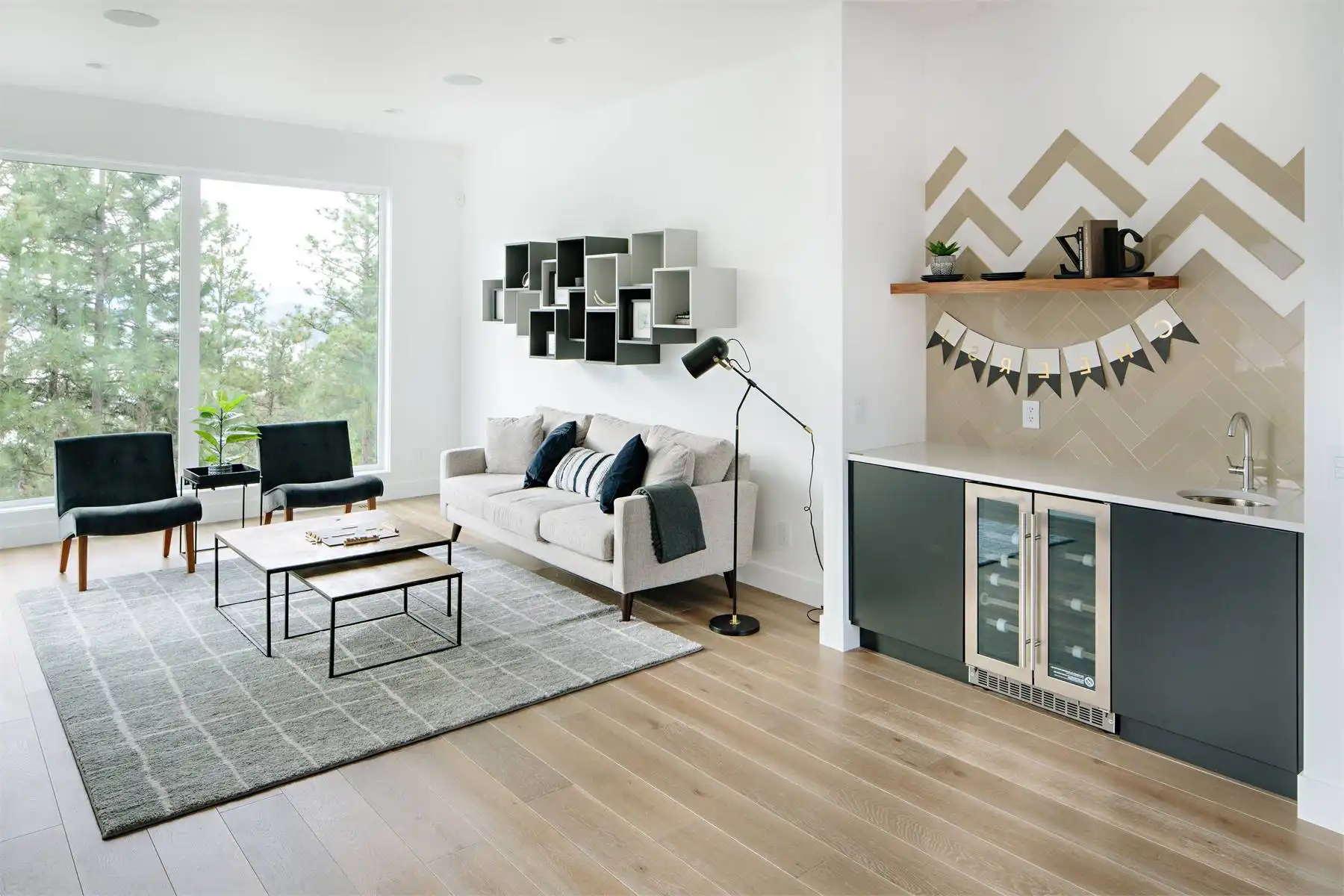

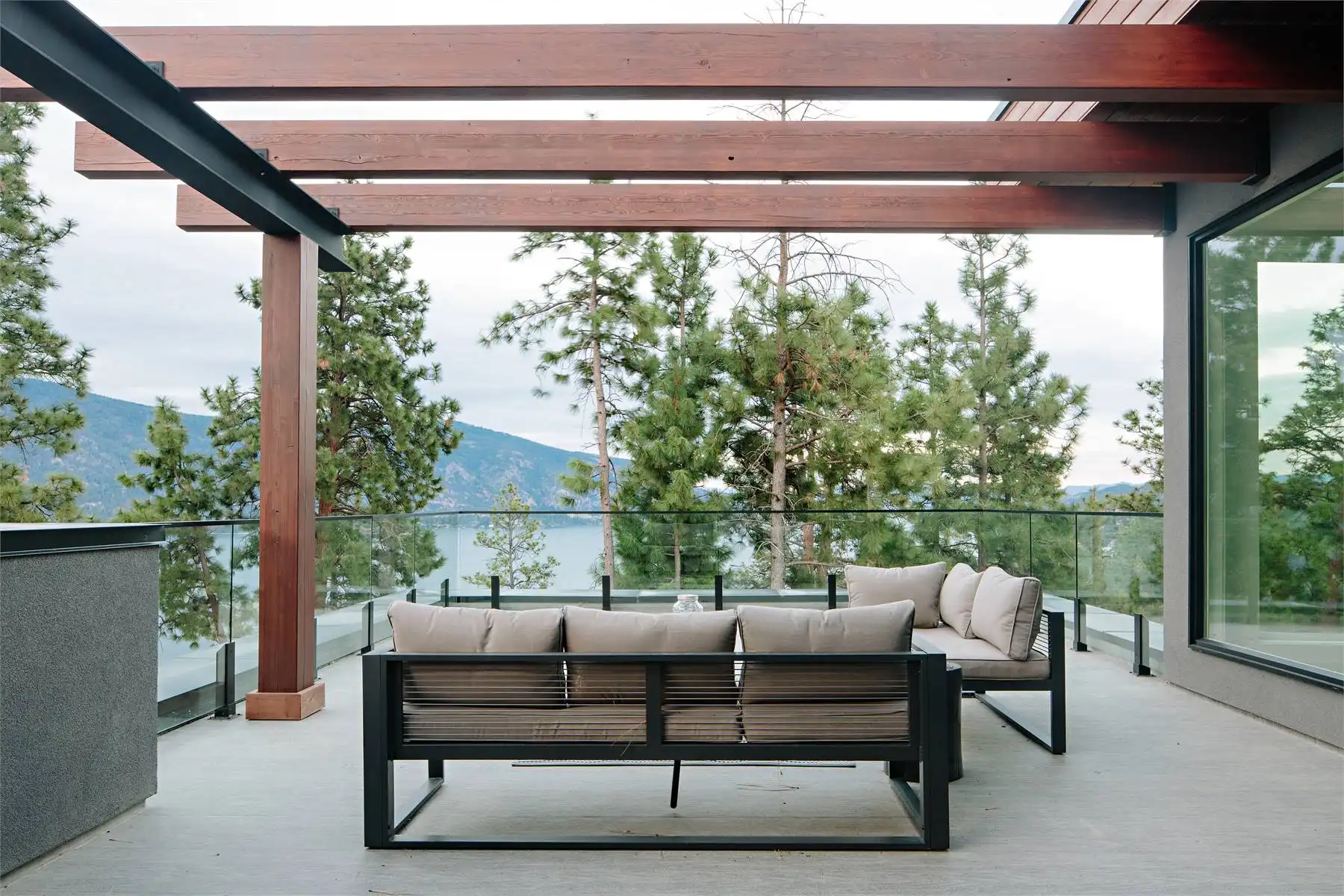

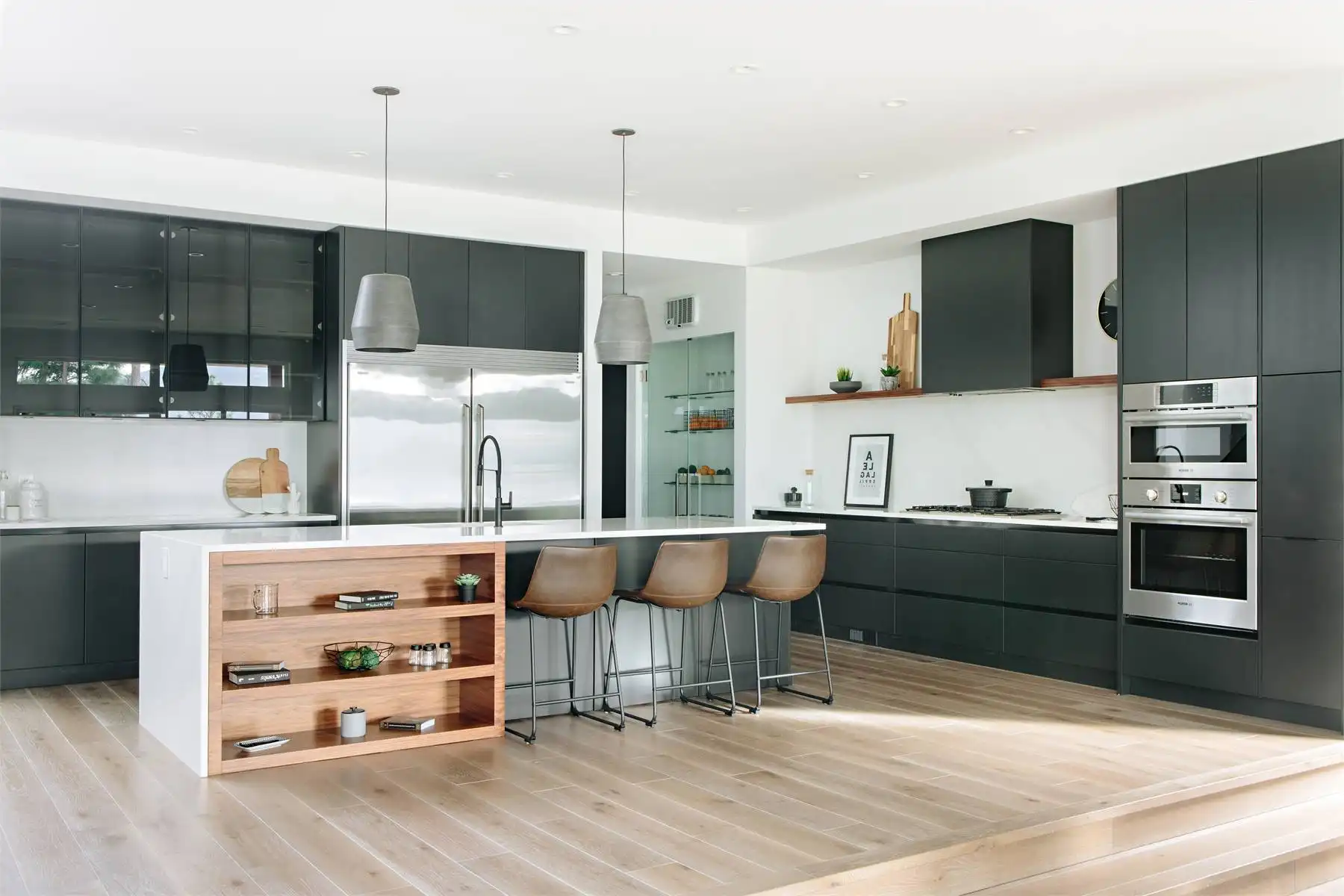

This stunning modern house plan spans two stories and boasts 3,461 square feet of living space. Designed with multi-generational living in mind, the house features a private casita. The exterior is a charming blend of traditional and modern styles, with brick and siding complementing each other to create an inviting curb appeal. Inside, the first floor offers an open concept design that seamlessly connects the living area to a gourmet kitchen with a large island and a dining area. This space is perfect for hosting family and friends. A private luxurious master suite with a spacious walk-in closet and a spa-like master bathroom complete with a soaking tub, separate shower, and double vanities complete the first floor layout. The second floor features two ensuite bedrooms, a large media room, and a balcony with pergola.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $2,500
Immediate Delivery!
Most recommended package

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $3,500
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$2500
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
2,397 Sq. Ft.
Main Level:
1,064 Sq. Ft.
Upper Level:
3,461 Sq. Ft.
Total:
Room Details
4
Bedrooms:
4
Full Baths:
1
Half Baths:
General House Information
2
Number of Stories:
46' 5"
Width:
93' 10"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
496 Sq. Ft.
Garage:
355 Sq. Ft.
Porch:
278 Sq. Ft.
Deck:
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
Beach
Contemporary
Lake
Modern
Collections
Architects Choice
Exclusive
Kitchens
Luxury
Primary Suites
Mountain
Open Floor Plan
Outdoor Living
Split Bedroom
Texas
Foundation
Slab
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
1/4:12
Primary:
1/4:12
Secondary:
Roof Load
20psf
Live:
20psf
Dead:
102
Wind:
Insulation (R)
30
Exterior Wall:
0
Interior Wall:
60
Ceiling:
10
Floor:
House And Ceiling Heights
10
First Floor Ceiling:
10
Second Floor Ceiling:
28' 2"
Maximum House Height:
Key Features
2 Primary Suites
2 Story Volume
Attached
Courtyard
Covered Rear Porch
Deck
Dining Room
Double Vanity Sink
Fireplace
Formal LR
Foyer
Front-entry
Great Room
Guest Suite
Home Office
Kitchen Island
Laundry 1st Fl
L-Shaped
Primary Bdrm Main Floor
Mud Room
Open Floor Plan
Outdoor Living Space
Rec Room
Separate Tub and Shower
Suited for view lot
Vaulted Foyer
Walk-in Closet
Walk-in Pantry
