House Plan: DFD-3252

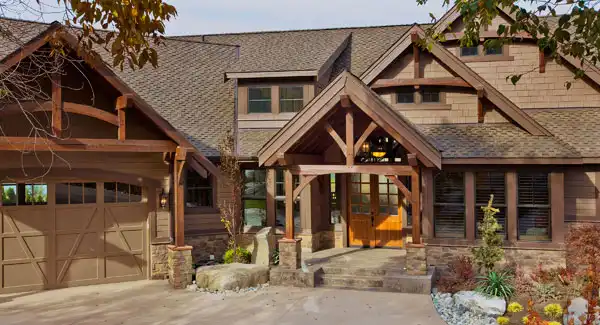

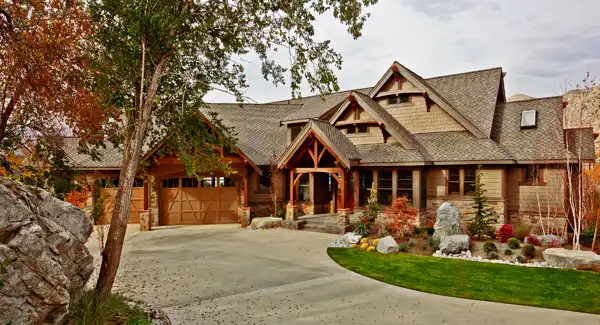

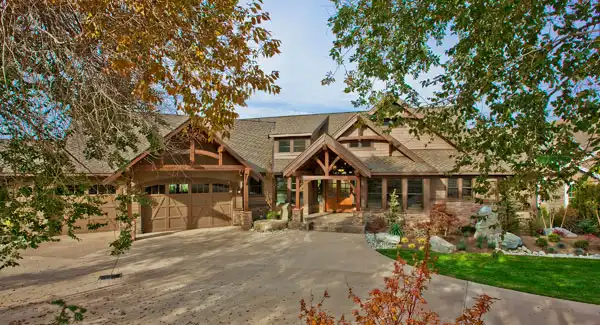

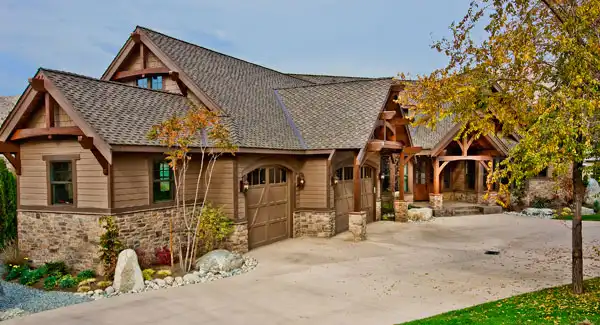

See All 21 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
3,780
BEDS
3
BATHS
2.5
STORIES
1
CARS
3
HOUSE PLANS SALE
START AT  $1,870.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 3252:

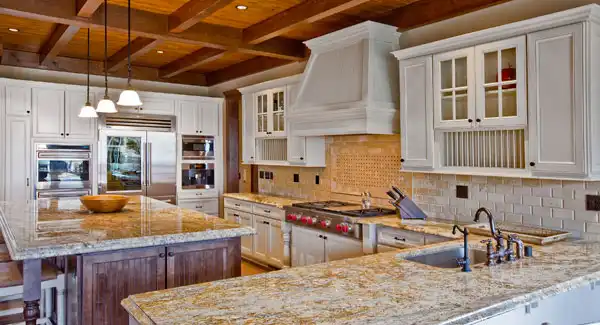

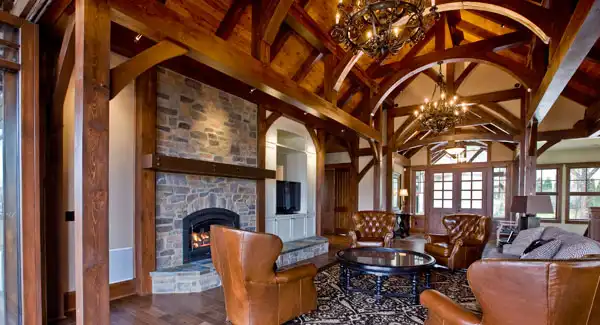

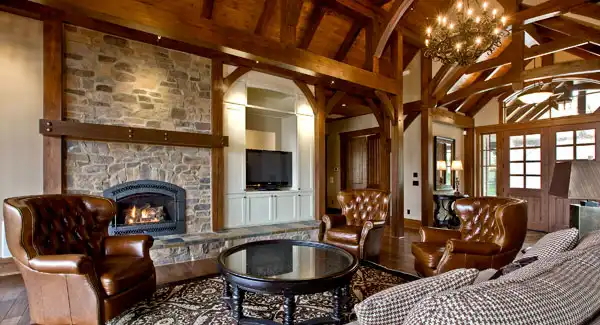

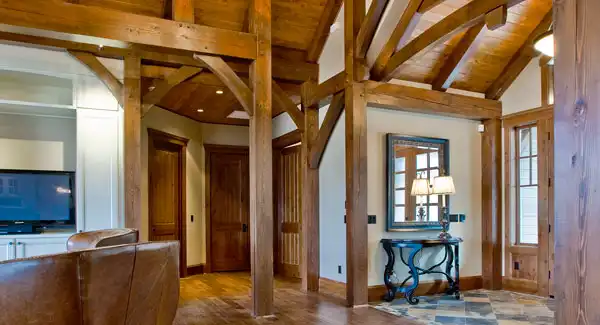

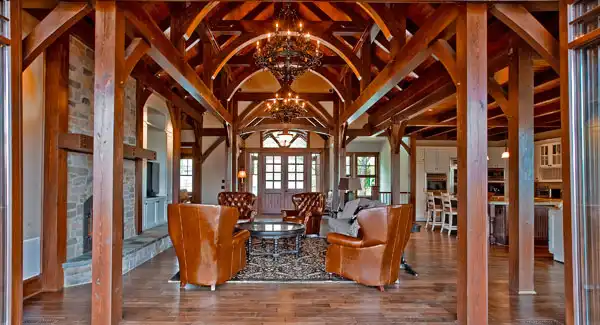

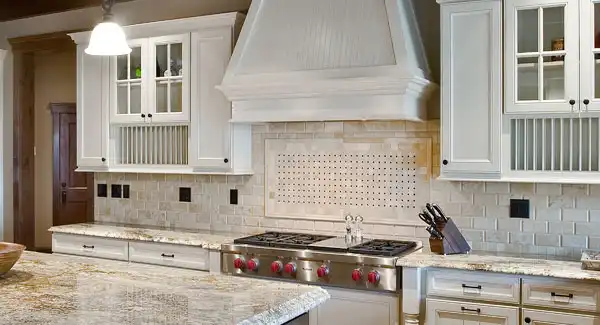

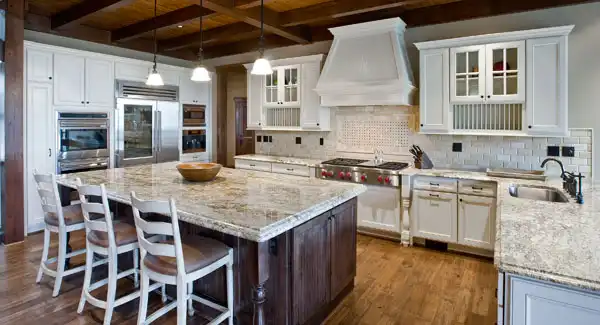

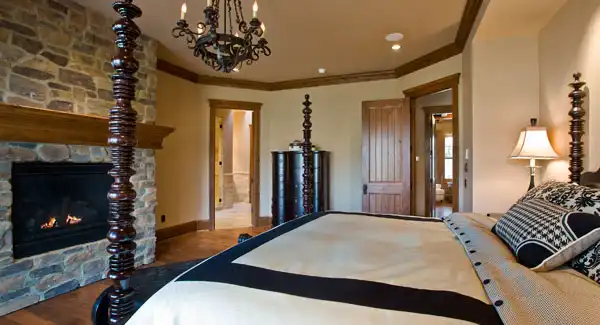

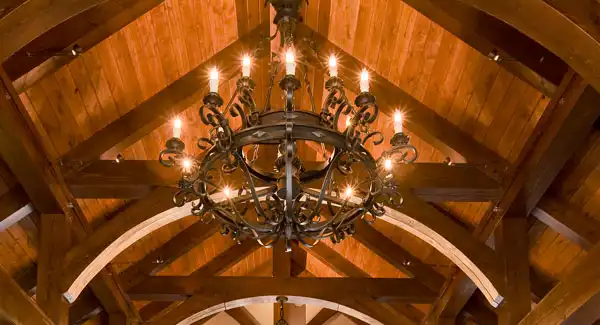

Designed as the offseason home for an NFL QB, the Mansfield Meadows combines a powerful central axis, grand vaulted ceilings, timber beams and trusses, folding NanaWall glass doors and endless windows to connect its occupants to the landscape. The spacious floor plan is perfect for an informal, active lifestyle, featuring large covered BBQ and sun porches adjacent to a wide-open great room, multi-windowed nook and gourmet island kitchen. The work-at-home den and luxury master suite with grand bath and walk-in closet are segregated for maximum owner privacy. The powder room and pantry, two secondary bedrooms, a common bath, a large utility room, and stair to the huge bonus room over the 3-car garage complete his graceful residence.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $2,200
Most recommended package

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $3,700
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$2200
FREE SHIPPING
IMPORTANT NOTE: Due to state regulations, this home is not available for purchase in the State of Washington. Contact us for more information.

Note: This plan cannot be purchased for construction in Washington State.

Plan Details
See All Details
Finished Square Footage
3,135 Sq. Ft.
Main Level:
645 Sq. Ft.
Upper Level:
3,780 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
1
Number of Stories:
108' 0"
Width:
96' 0"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Unfinished Square Footage
1125 Sq. Ft.
Garage:
GARAGE
Front
Garage Location:
3
Garage Size:
Exterior Style
Cottage
Traditional
Collections
Luxury
Mountain
Old House Classics
Open Floor Plan
Outdoor Living
Split Bedroom
Vacation
Foundation
Crawl Space
Framing Information
Combination
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
10
Primary:
5
Secondary:
Roof Load
25
Live:
15
Dead:
85
Wind:
Insulation (R)
21
Exterior Wall:
0
Interior Wall:
38
Ceiling:
30
Floor:
House And Ceiling Heights
10
First Floor Ceiling:
8
Second Floor Ceiling:
25' 6"
Maximum House Height:
Key Features
Attached
Bonus Room
Covered Rear Porch
Crawlspace
Double Vanity Sink
Fireplace
Foyer
Front-entry
Great Room
Kitchen Island
Laundry 1st Fl
Library/Media Rm
Primary Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Rear Porch
Separate Tub and Shower
Split Bedrooms
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
