House Plan: DFD-3688

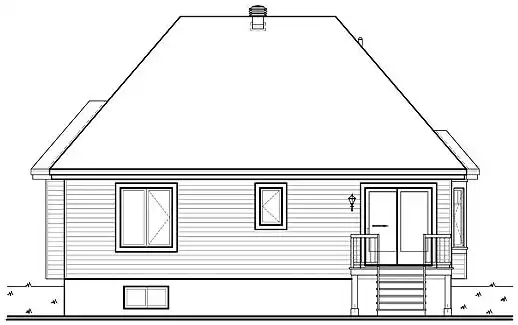

See All 2 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,173
BEDS
2
BATHS
1
STORIES
1
CARS
0
HOUSE PLANS SALE
START AT  $1,139.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 3688:
The 1,173 square feet of this darling Craftsman house plan will make you feel right at home!  Forward-facing twin gables and double slope on the main roof create a pleasing combination of roof angles. A weather-lock vestibule provides convenient coat storage. Inside, an angled staircase creates a unique visual feature. Families and guests will appreciate an open living area with the two-sided fireplace separating the living area from the bay windowed dining area. An alcove to the rear provides a cozy conversation area or computer nook. The unique angle of the kitchen provides definition to the cooking area and an adjoining eating bar allows space for visiting or snacks. Two bedrooms enjoy generous closets and are well separated by a 5-fixture bathroom with independent bath and large angled shower. An undeveloped basement is a blank slate for additional living or storage spaces.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,340
Most recommended package

3 sets + PDF


Please allow 3-5 days for delivery
3 sets + PDF $1,475
3 sets + PDF

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $2,340
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1340
FREE SHIPPING
Please allow 3-5 business days for delivery of this plan Please check our PDFs NOW collection for plans that can be downloaded and received immediately or live chat us to help you find a similar plan available now.

Plan Details
See All Details
Finished Square Footage
1,173 Sq. Ft.
Main Level:
1,173 Sq. Ft.
Total:
Room Details
2
Bedrooms:
1
Full Baths:
General House Information
1
Number of Stories:
34' 8"
Width:
37' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
GARAGE
None
Garage Location:
0
Garage Size:
Exterior Style
Bungalow
Country
Craftsman
Traditional
Collections
Affordable
Builders
Empty Nester
First Home
Old House Classics
Open Floor Plan
Foundation
Crawlspace
Floating slab
Full Unfinished Basement (included)
Monolithic slab
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
10/12
Primary:
14/12
Secondary:
14/12
Gable:
Roof Load
55
Live:
20
Dead:
Insulation (R)
20
Exterior Wall:
0
Interior Wall:
40
Ceiling:
0
Floor:
House And Ceiling Heights
8
First Floor Ceiling:
8
Second Floor Ceiling:
16' 8"
Maximum House Height:
Key Features
Basement
Covered Front Porch
Crawlspace
Daylight Basement
Dining Room
Double Vanity Sink
Family Room
Fireplace
Foyer
Home Office
Laundry 1st Fl
Primary Bdrm Main Floor
Open Floor Plan
Peninsula / Eating Bar
Separate Tub and Shower
Slab
Unfinished Space
