House Plan: DFD-4198

Pin It

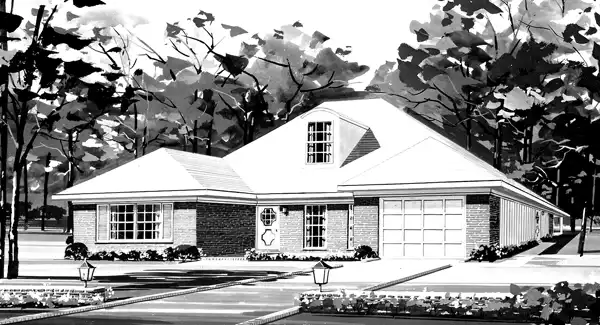

See All 3 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,453
BEDS
3
BATHS
2
STORIES
1.5
CARS
1
HOUSE PLANS SALE
START AT  $739.50
For questions and help, live chat, email or call us at 877-895-5299
First Floor Plan
Second Floor Plan
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 4198:
This affordable traditional three-bedroom ranch can expand up to five bedrooms. It features a narrower footprint, which allows it to fit a smaller lot. The floor plan is open, allowing enhanced views throughout. The eat-in kitchen is visually connected to the adjoining dining room and family room. A large covered porch enhances this informal area. The master includes a private bath and walk-in closet. The bonus space on the second floor is designed to provide two additional bedrooms and a full bath.
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $640
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $870
Immediate Delivery!
Most recommended package

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $980
Five printed sets of house plans

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

8 Printed Sets $1,055
Eight printed sets of house plans
STEP 2 CHOOSE YOUR FOUNDATION
STEP 3 OPTIONAL ADD-ONS
Subtotal
$870
FREE SHIPPING

Detailed Plan Packages & Pricing
Our Structural Detail & IRC Guarantee
Architect's Preferred Home Products
Plan Details
See All Details
Finished Square Footage
1,453 Sq. Ft.
Main Level:
1,453 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
General House Information
1.5
Number of Stories:
44' 8"
Width:
45' 8"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
278 Sq. Ft.
Garage:
350 Sq. Ft.
Bonus Room:
GARAGE
Front
Garage Location:
1
Garage Size:
Exterior Style
Ranch
Traditional
Collections
Affordable
Exclusive
Foundation
Basement
Crawl Space
Slab Foundation
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
Roof Load
30
Live:
10
Dead:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
8.1
First Floor Ceiling:
8.1
Second Floor Ceiling:
23' 8"
Maximum House Height:
Key Features
Attached
Basement
Covered Rear Porch
Crawlspace
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Front-entry
Laundry 1st Fl
Primary Bdrm Main Floor
Mud Room
Nook / Breakfast Area
Rear Porch
Slab
Suited for narrow lot
Walk-in Closet
