House Plan: DFD-4643

See All 8 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,852
BEDS
3
BATHS
1.5
STORIES
2
CARS
0
HOUSE PLANS SALE
START AT  $1,284.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 4643:

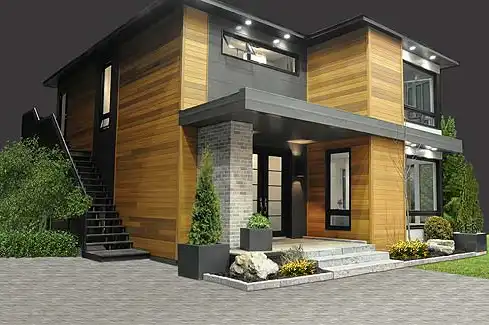

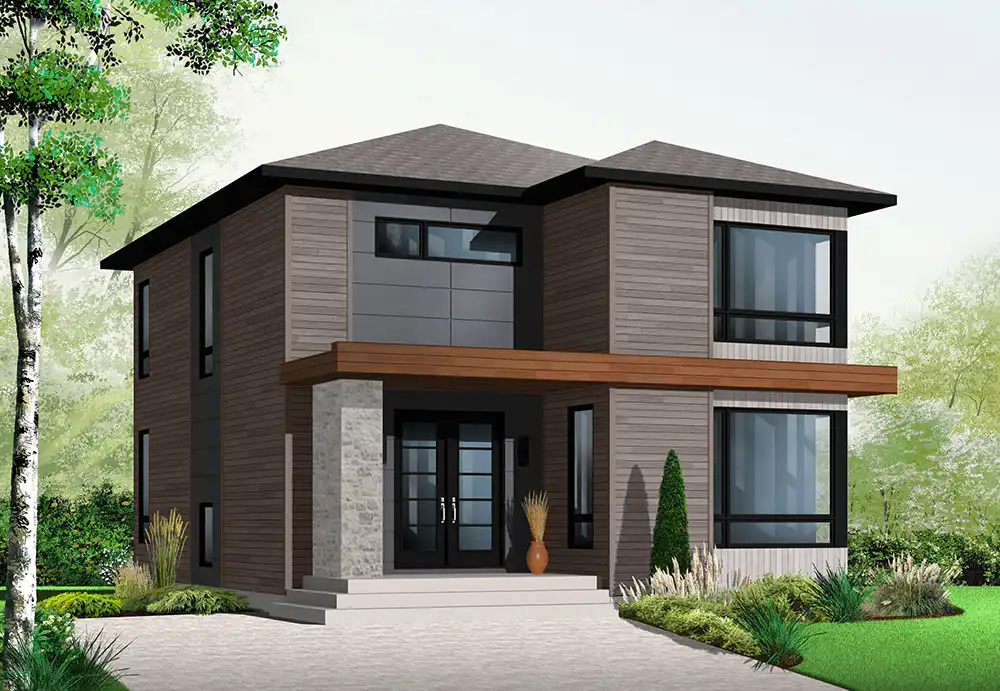

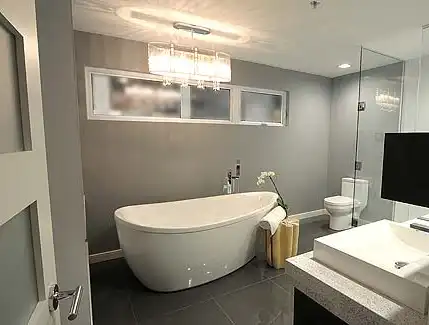

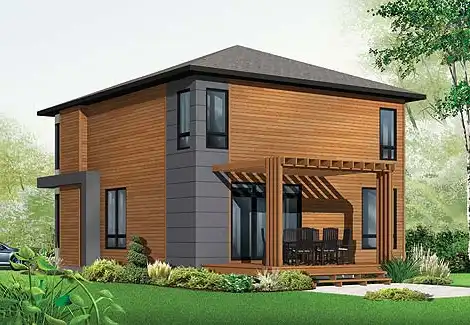

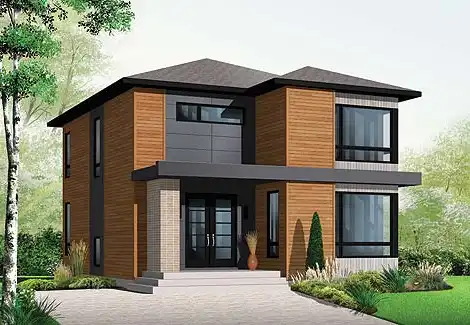

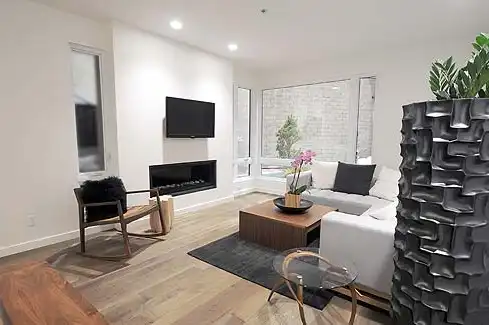

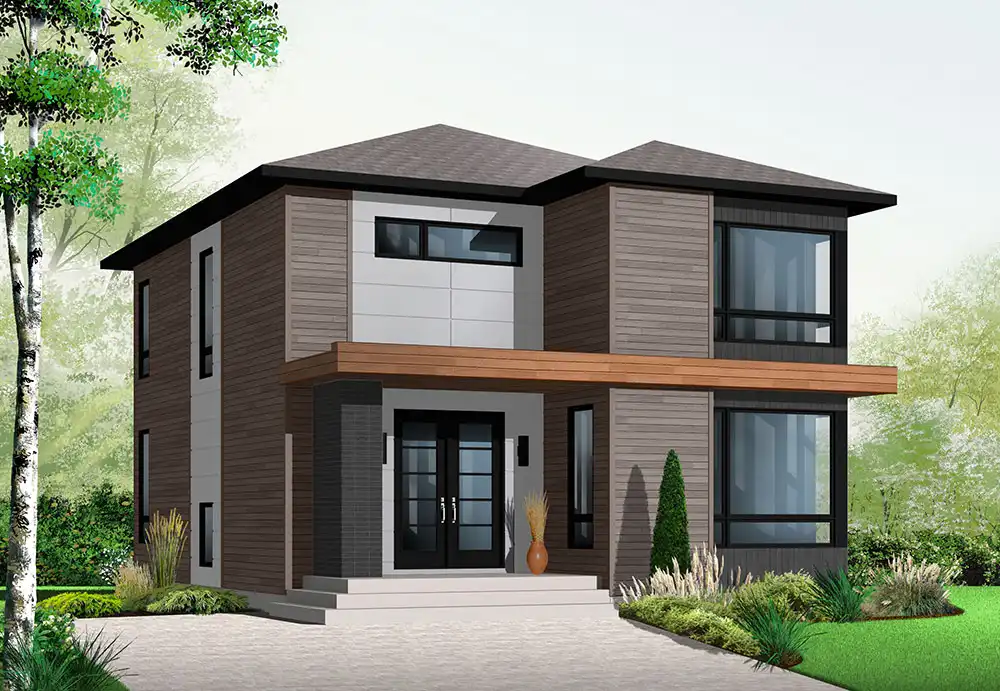

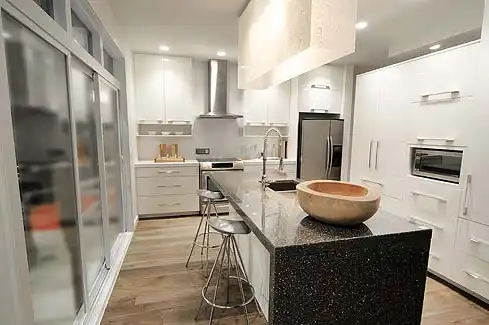

This stately, modern house design features strong geometric lines, subtly enhanced by a blend of wood, brick and fiber cement panels. Beyond the foyer, light intersecting from living room, dining room and staircase windows ensures well-lit spaces all day. The back of the house features a kitchen with 8' x 3' island, patio access and adjoining conversation room. The plan includes a proposed pergola off the back for architectural interest and sun shelter. Upstairs are three sizable bedrooms and a convenient laundry closet. The generous bath flaunts a double-sink vanity, a garden tub and a 42" x 60" shower. This home is sure to become a landmark on any street.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,605
Most recommended package

3 sets + PDF


Please allow 3-5 days for delivery
3 sets + PDF $1,740
3 sets + PDF

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $2,605
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1605
FREE SHIPPING
Please allow 3-5 business days for delivery of this plan Please check our PDFs NOW collection for plans that can be downloaded and received immediately or live chat us to help you find a similar plan available now.

Plan Details
See All Details
Finished Square Footage
926 Sq. Ft.
Main Level:
926 Sq. Ft.
Upper Level:
1,852 Sq. Ft.
Total:
Room Details
3
Bedrooms:
1
Full Baths:
1
Half Baths:
General House Information
2
Number of Stories:
28' 0"
Width:
36' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
GARAGE
None
Garage Location:
0
Garage Size:
Exterior Style
Contemporary
Modern
Collections
Builders
Old House Classics
Open Floor Plan
Foundation
Crawlspace
Floating slab
Full Unfinished Basement (included)
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
5/12
Primary:
Roof Load
55
Live:
20
Dead:
Insulation (R)
20
Exterior Wall:
0
Interior Wall:
40
Ceiling:
0
Floor:
House And Ceiling Heights
9
First Floor Ceiling:
8
Second Floor Ceiling:
26' 7"
Maximum House Height:
Key Features
Basement
Butler's Pantry
Covered Front Porch
Covered Rear Porch
Crawlspace
Daylight Basement
Deck
Dining Room
Double Vanity Sink
Family Room
Fireplace
Formal LR
Foyer
Front Porch
Guest Suite
His and Hers Primary Closets
Home Office
Kitchen Island
Laundry 1st Fl
Library/Media Rm
Primary Bdrm Upstairs
Mud Room
None
Peninsula / Eating Bar
Rear Porch
Separate Tub and Shower
Sitting Area
Slab
Storage Space
Suited for narrow lot
Suited for sloping lot
Unfinished Space
Walk-in Closet
