House Plan: DFD-5040

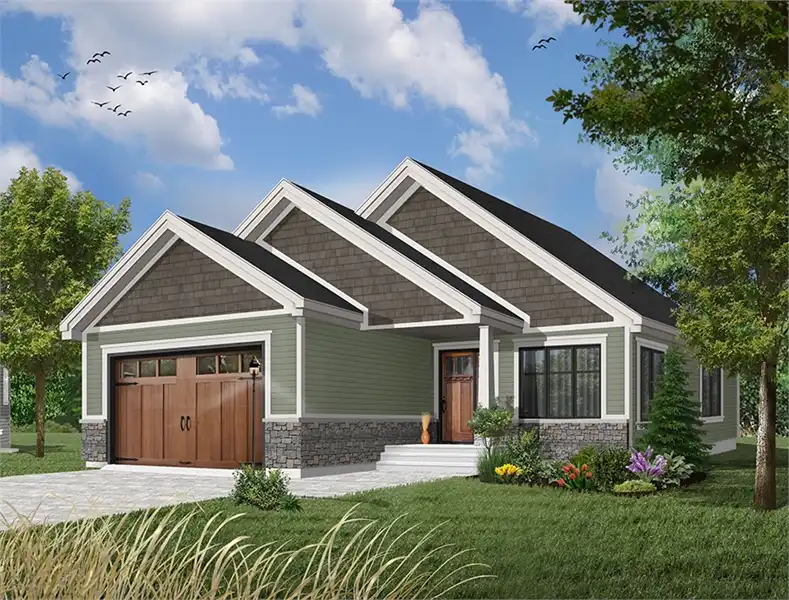

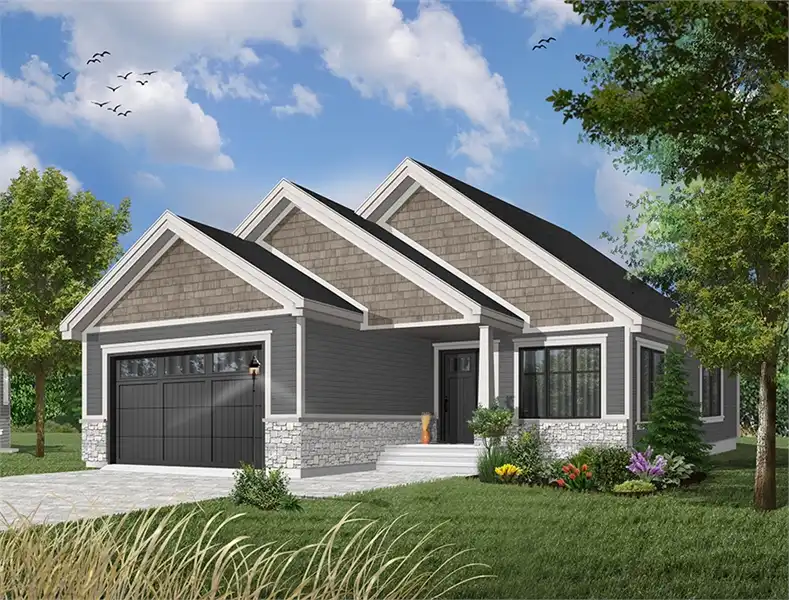

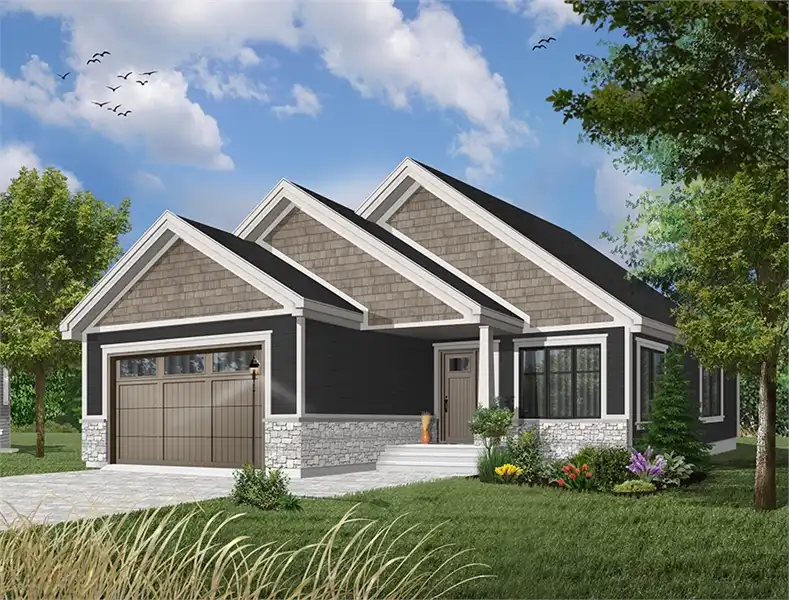

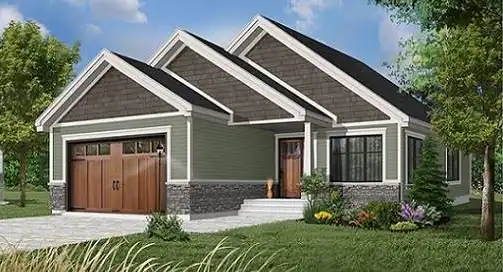

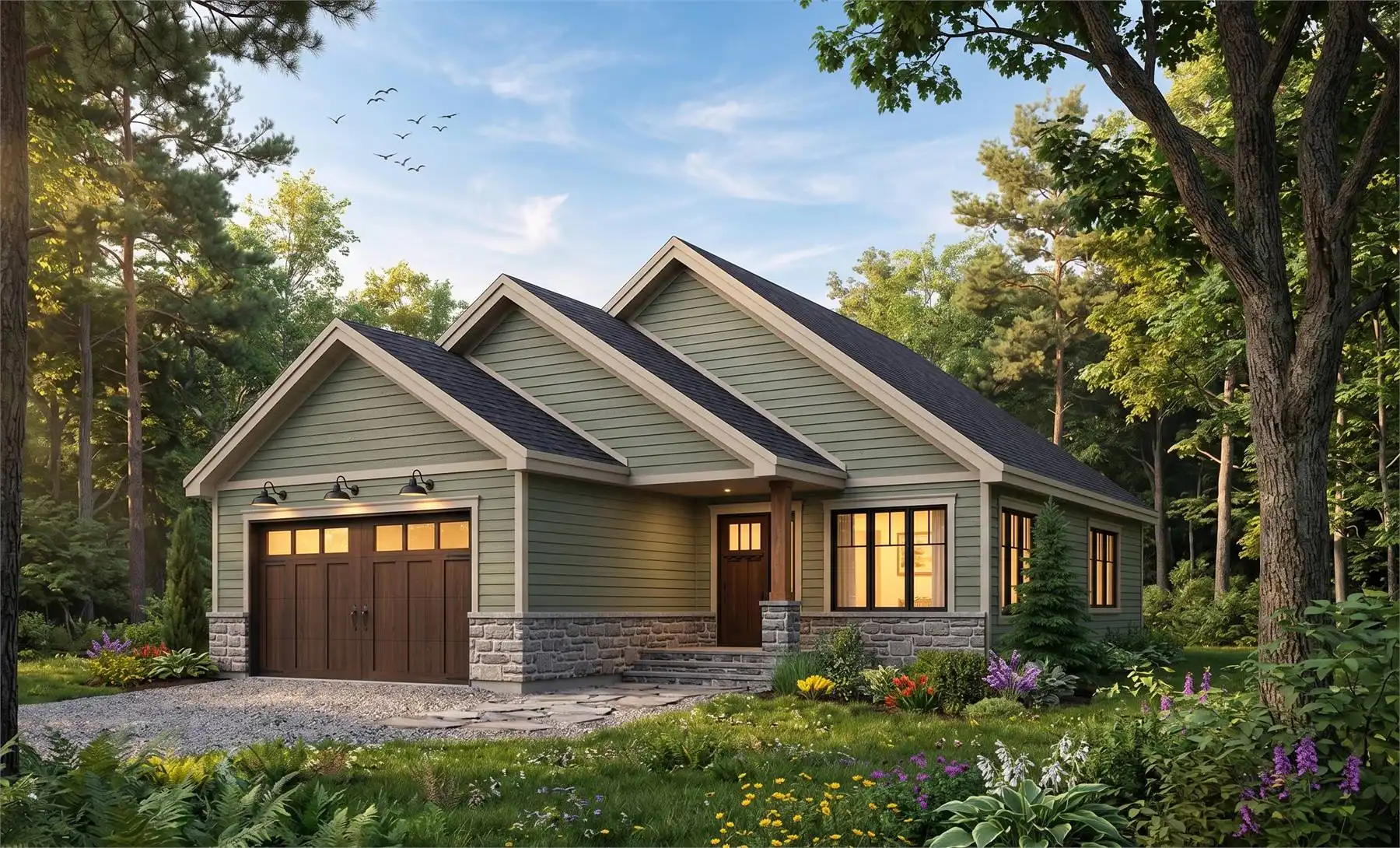

See All 5 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,317
BEDS
2
BATHS
1
STORIES
1
CARS
1
HOUSE PLANS SALE
START AT  $1,116.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5040:
One story house plan with garage, ideal for a narrow lot. Of rustic-country style, this new house plan will be sure to please! For starters, the main entrance is closed off and also gives direct access to the garage area. Continuing past the main entrance into the main living area, a practical computer space can be arranged, or you can simply turn this
space into a game area for the kids. You will find that the living room area is of good size and can easily welcome a double couch and an armchair, as well a wall unit for the television that is planned along the exterior left wall. The spacious kitchen area allows for fluid circulation between living room, dining and kitchen area. A practical kitchen
island is well situated with double sink and the kitchen gives direct access to the back yard through patio doors. The laundry area is conveniently located near the kitchen and family bathroom and also features cupboards, a sink and folding space. The bathroom is equipped with a bath and separate shower as well as double sinks. The two bedrooms are of same format and each include a good sized closet. The one car garage gives practical direct access to the house through the closed in main entrance which is ideal during the colder seasons. The daylight basement can be finished during the construction process or at a later date and according to the family’s evolution.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,395
Most recommended package

3 sets + PDF


Please allow 3-5 days for delivery
3 sets + PDF $1,530
3 sets + PDF

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $2,395
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1395
FREE SHIPPING
Please allow 3-5 business days for delivery of this plan Please check our PDFs NOW collection for plans that can be downloaded and received immediately or live chat us to help you find a similar plan available now.

Note: Please allow 12 days for delivery

Plan Details
See All Details
Finished Square Footage
1,317 Sq. Ft.
Main Level:
1,317 Sq. Ft.
Total:
Room Details
2
Bedrooms:
1
Full Baths:
General House Information
1
Number of Stories:
32' 0"
Width:
58' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
365 Sq. Ft.
Garage:
32 Sq. Ft.
Porch:
GARAGE
1
Garage Size:
Exterior Style
Country
Craftsman
Farmhouse
Ranch
Traditional
Collections
Affordable
Budget
Builders
Concept Plan
Empty Nester
First Home
Mountain
Open Floor Plan
Foundation
Crawlspace
Floating slab
Full Unfinished Basement (included)
Monolithic slab
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Load
55
Live:
20
Dead:
Insulation (R)
25
Exterior Wall:
0
Interior Wall:
40
Ceiling:
0
Floor:
House And Ceiling Heights
8
First Floor Ceiling:
21' 8"
Maximum House Height:
Key Features
Attached
Basement
Covered Front Porch
Crawlspace
Daylight Basement
Deck
Dining Room
Double Vanity Sink
Family Room
Foyer
Kitchen Island
Laundry 1st Fl
Primary Bdrm Main Floor
Rec Room
Separate Tub and Shower
Slab
Suited for narrow lot
