House Plan: DFD-5077

See All 8 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
4,185
BEDS
5
BATHS
4
STORIES
2
CARS
2
HOUSE PLANS SALE
START AT  $1,920.00
For questions and help, live chat, email or call us at 877-895-5299

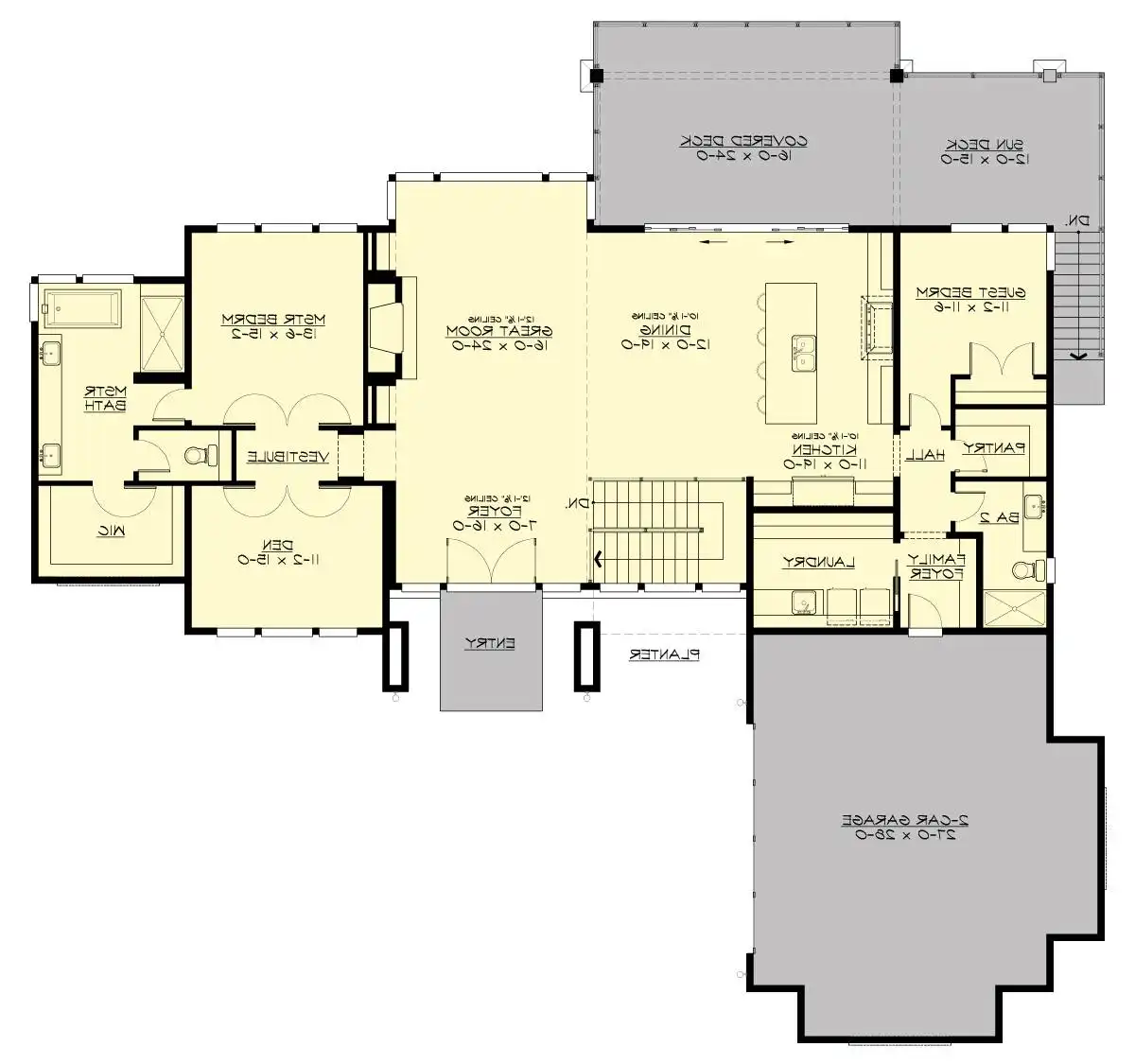

Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5077:

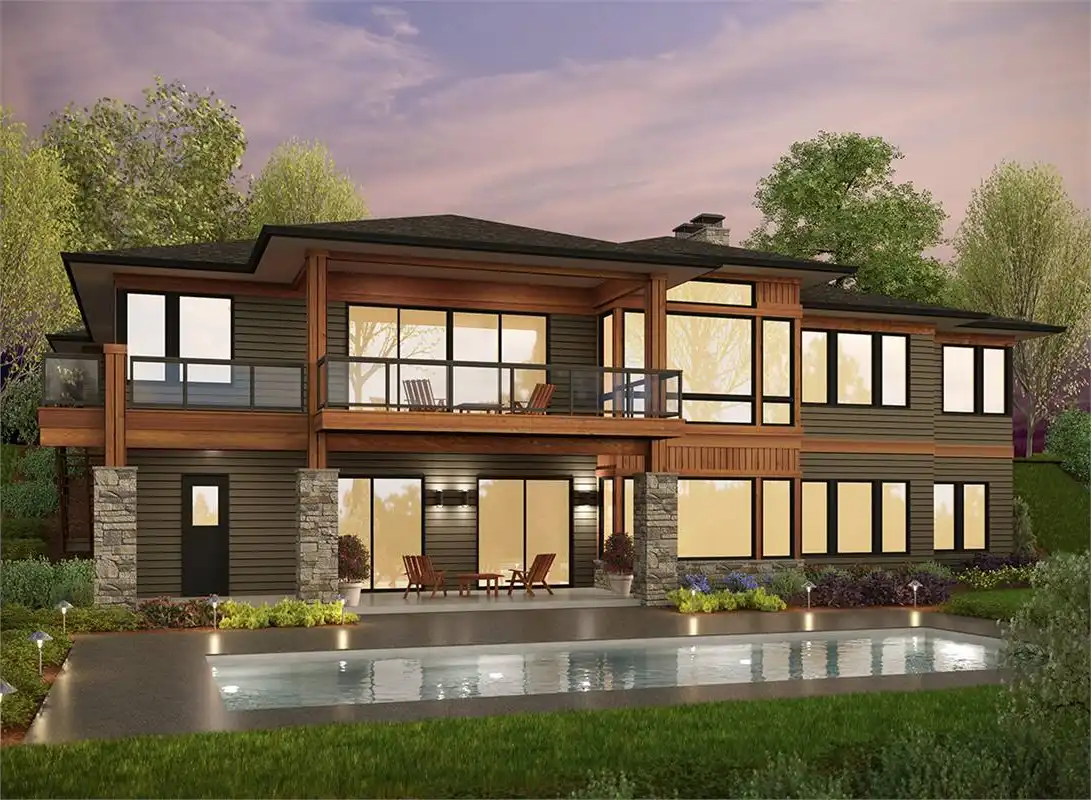

This modern, prairie style house plan is a lovely plan for a growing family! This ranch design has 4,185 square feet, five bedrooms, four baths, and an attached two-car garage. The open kitchen has seating for four on the island and is near the comfortable dining room. The great room is spacious and is a perfect gathering spot for entertaining. On the main floor, make your way over to the master bedroom which has plenty of opportunities for relaxation. Feel comfortable inviting friends and family over as they will fit without a doubt! Guests will feel extra special in their private suite on the main floor.  Three bedrooms, second laundry and large recreation room can be found in the walkout basement. This plan will be a neighborhood favorite!
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $2,400
Most recommended package

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $3,900
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$2400
FREE SHIPPING
IMPORTANT NOTE: Due to state regulations, this home is not available for purchase in the State of Washington. Contact us for more information.

Plan Details
See All Details
Finished Square Footage
2,405 Sq. Ft.
Main Level:
1,780 Sq. Ft.
Lower Level:
4,185 Sq. Ft.
Total:
Room Details
5
Bedrooms:
4
Full Baths:
General House Information
2
Number of Stories:
84'
Width:
74'
Depth:
Single
Dwelling Number:
1st Floor
Bonus Access:
Unfinished Square Footage
785 Sq. Ft.
Garage:
GARAGE
Side
Garage Location:
2
Garage Size:
Exterior Style
Contemporary
Modern
Ranch
Collections
Kitchens
Primary Suites
Open Floor Plan
Outdoor Living
Split Bedroom
Foundation
Daylight Basement
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
4:12
Primary:
Roof Load
25 PSF
Live:
15 PSF
Dead:
85 MPH
Wind:
Insulation (R)
House And Ceiling Heights
10
First Floor Ceiling:
16'
Maximum House Height:
Key Features
Attached
Bonus Room
Deck
Dining Room
Double Vanity Sink
Exercise Room
Family Room
Fireplace
Foyer
Front-entry
Great Room
Guest Suite
Home Office
Kitchen Island
Laundry 1st Fl
L-Shaped
Primary Bdrm Main Floor
Mud Room
Open Floor Plan
Rear Porch
Rec Room
Side-entry
Split Bedrooms
Storage Space
Suited for sloping lot
Walk-in Closet
Walk-in Pantry
