House Plan: DFD-5084

Pin It

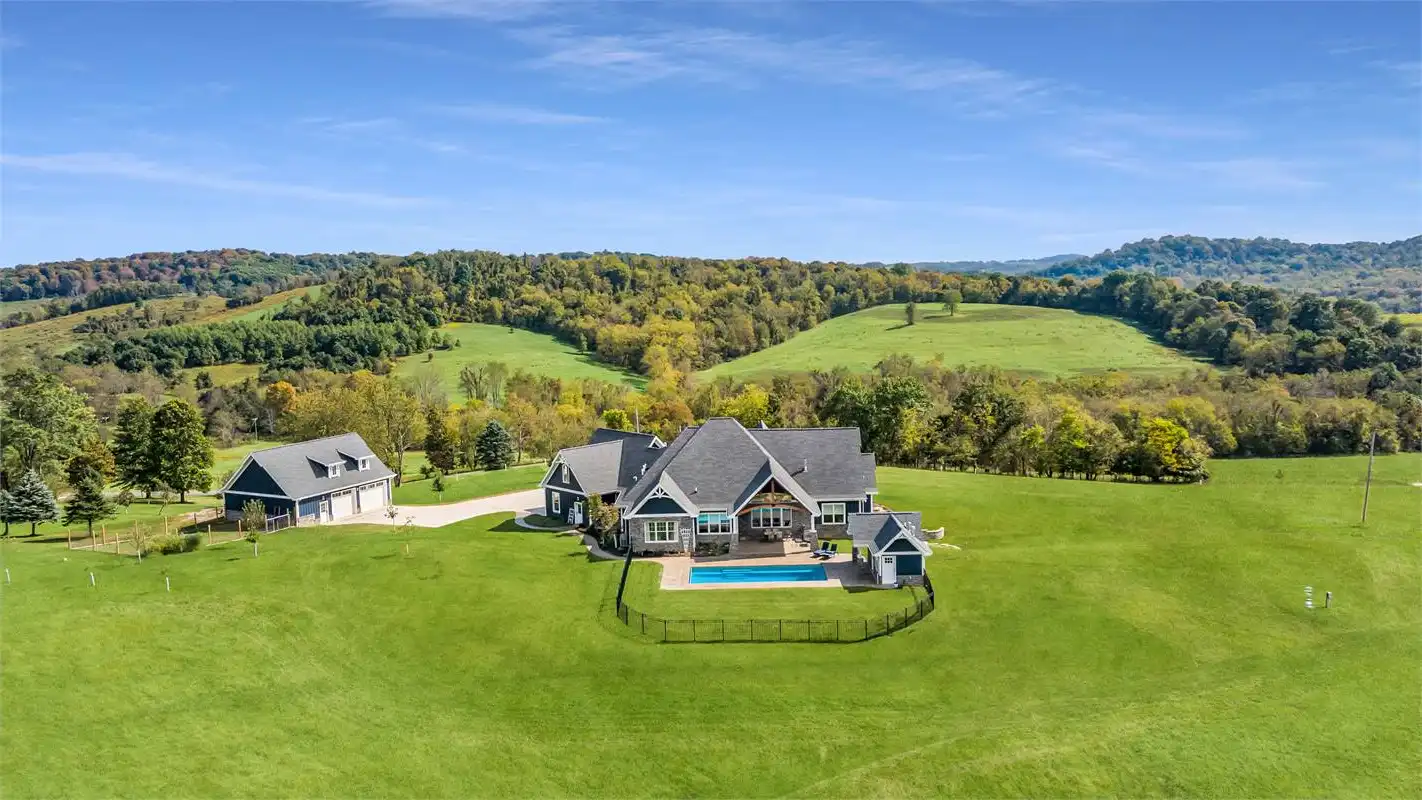

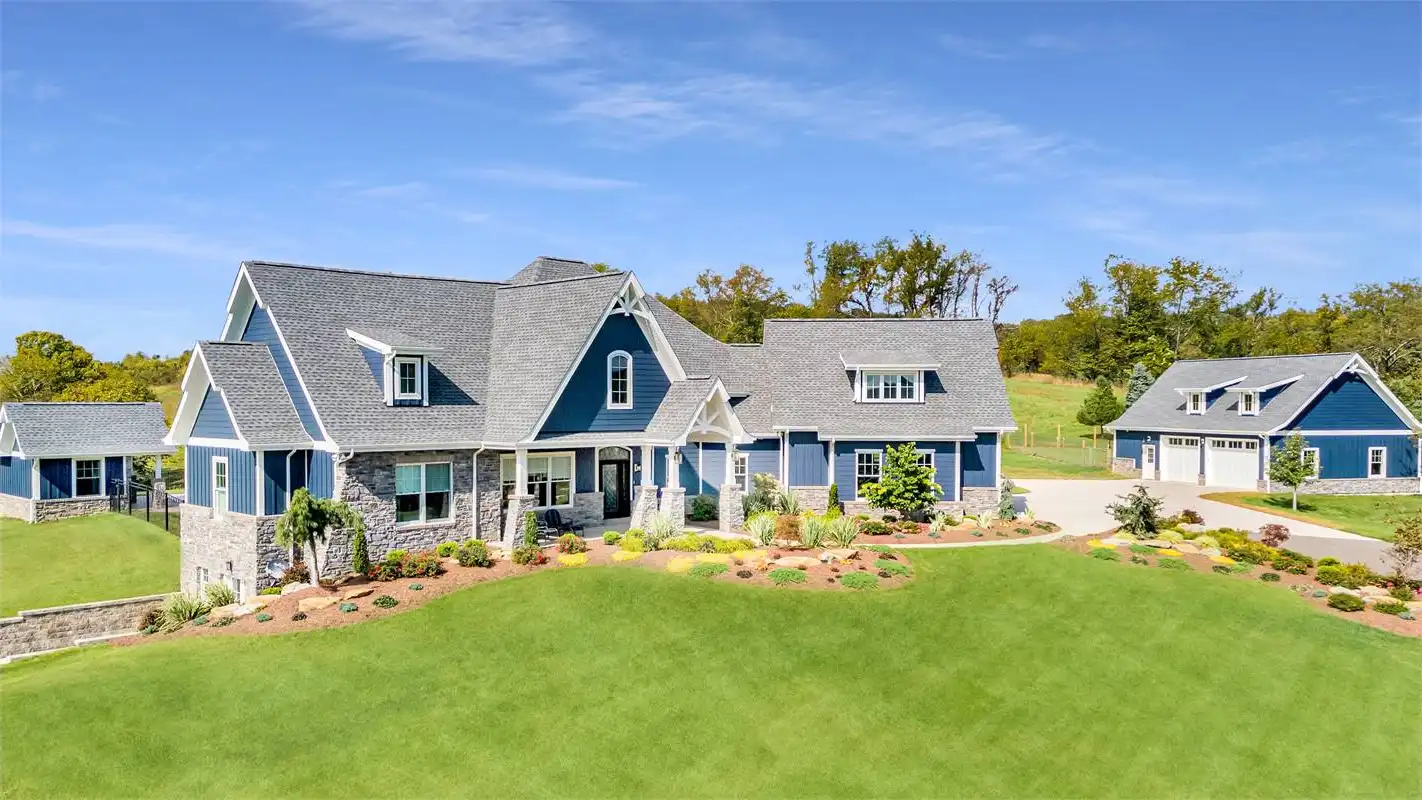

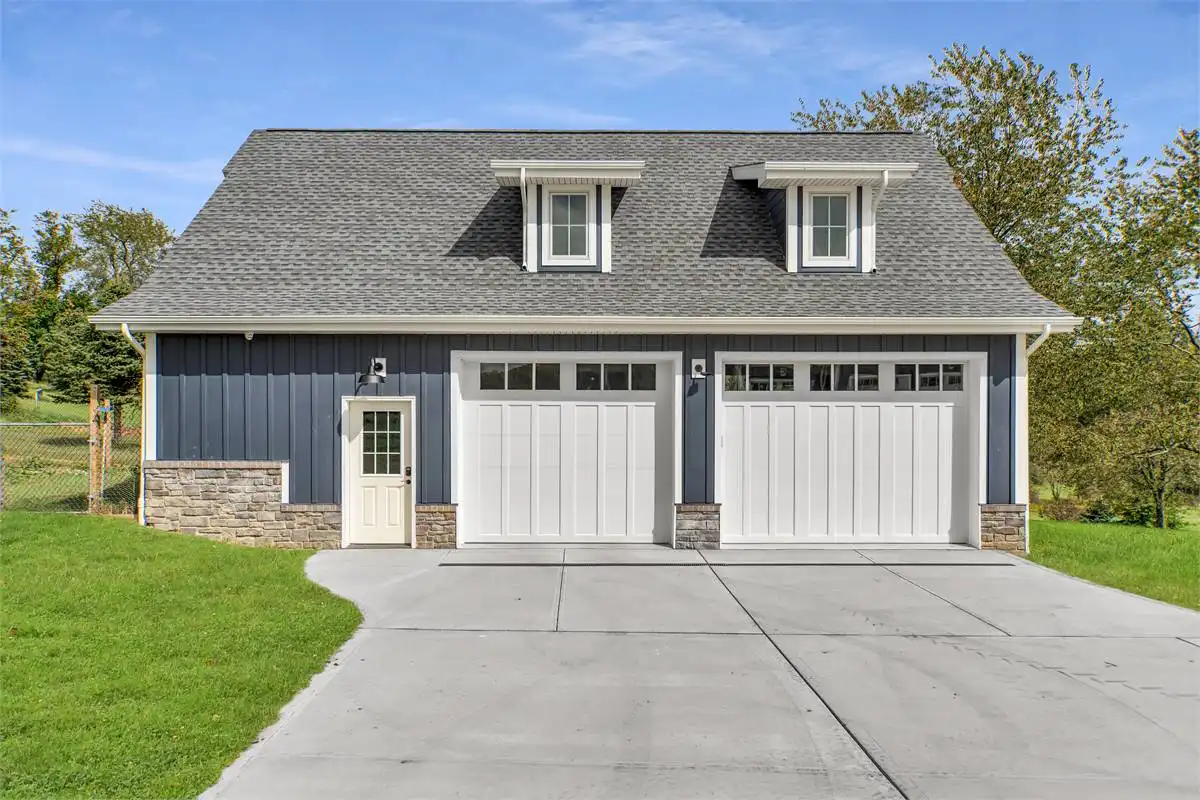

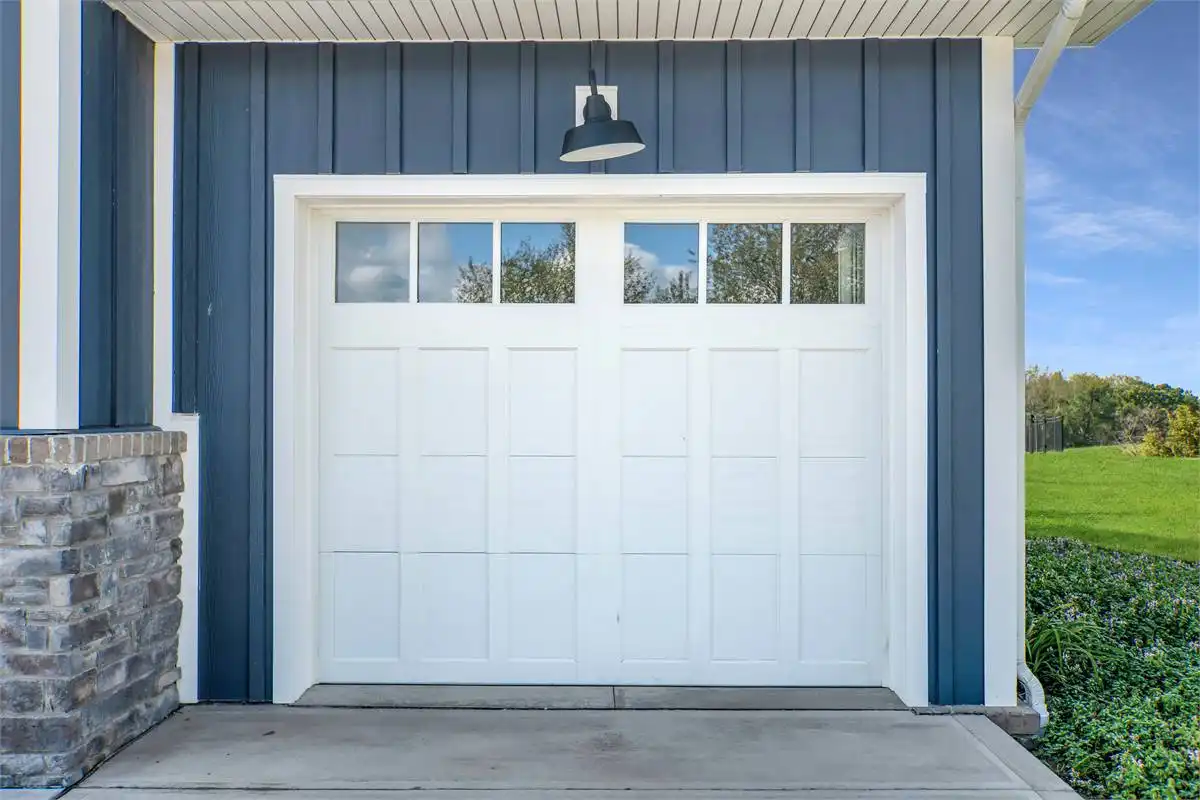

See All 65 Photos > (photographs may reflect modified homes)
© copyright by architect
SQ FT
2,662
BEDS
3
BATHS
2.5
STORIES
1.5
CARS
3
HOUSE PLANS SALE
START AT  $1,076.00
For questions and help, live chat, email or call us at 877-895-5299
First Floor Plan
Second Floor Plan
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5084:

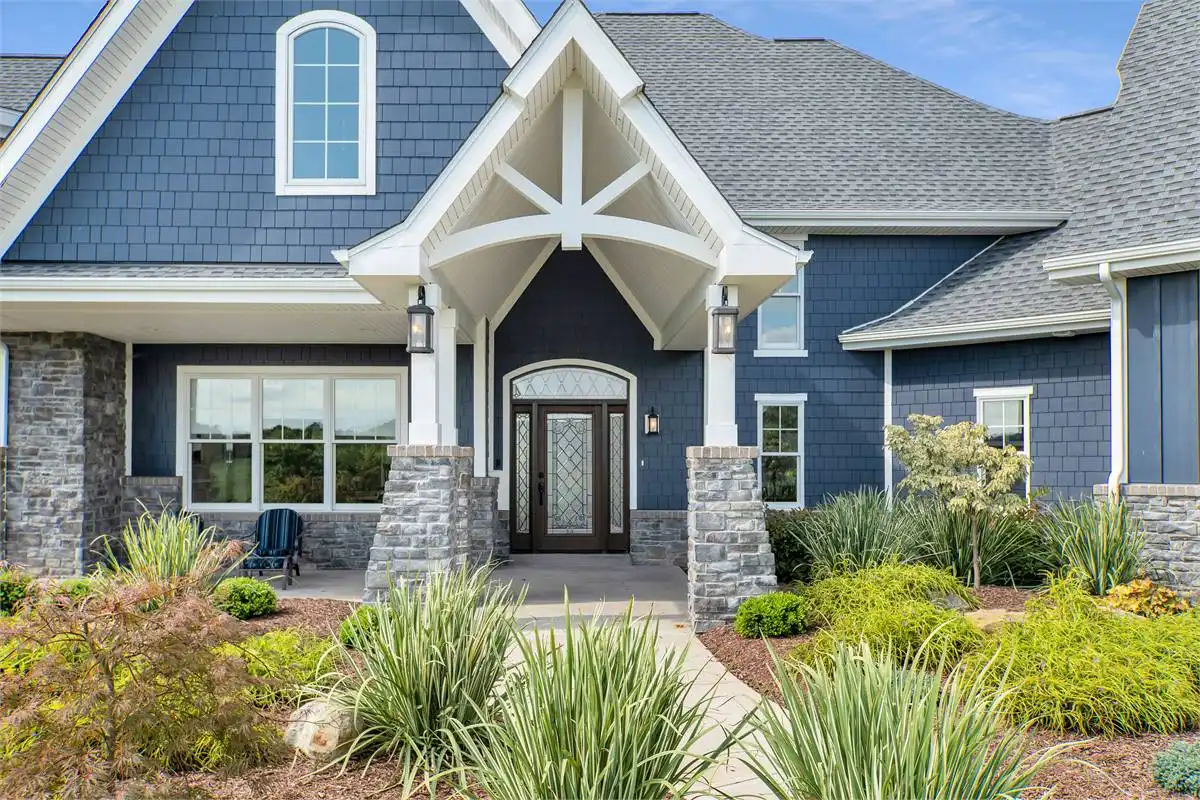

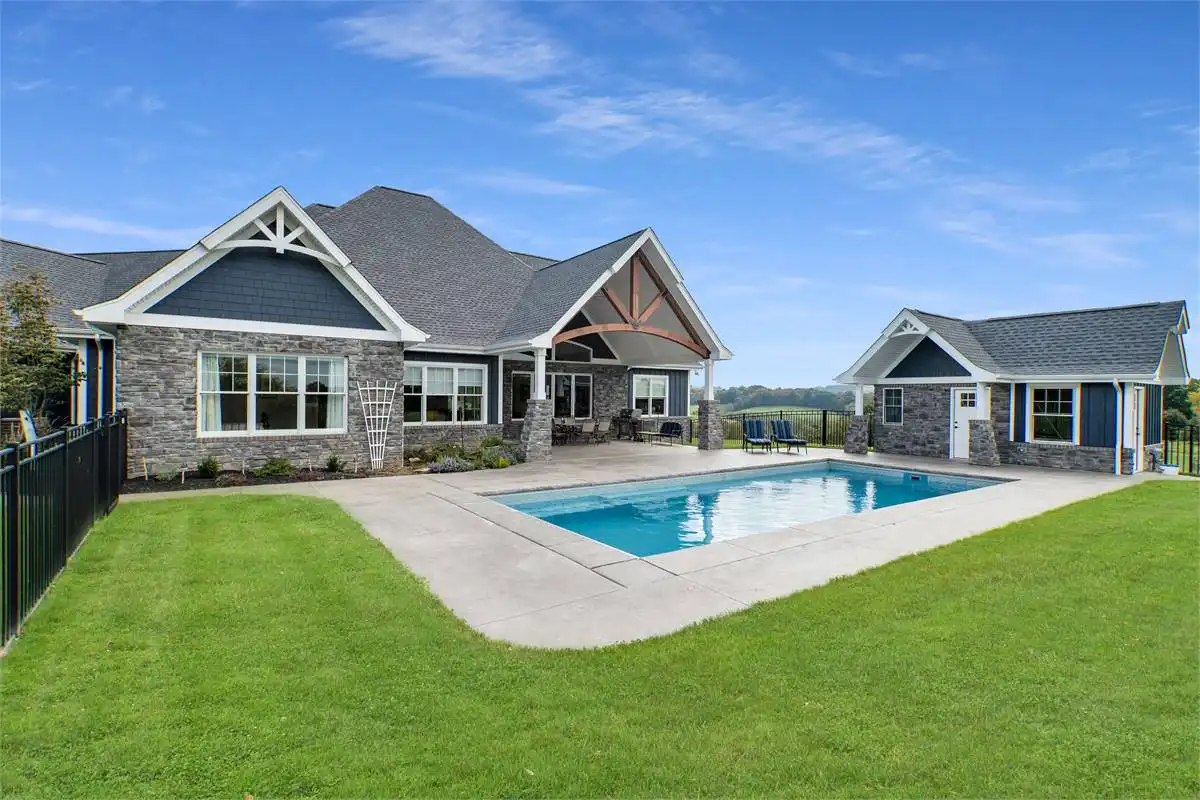

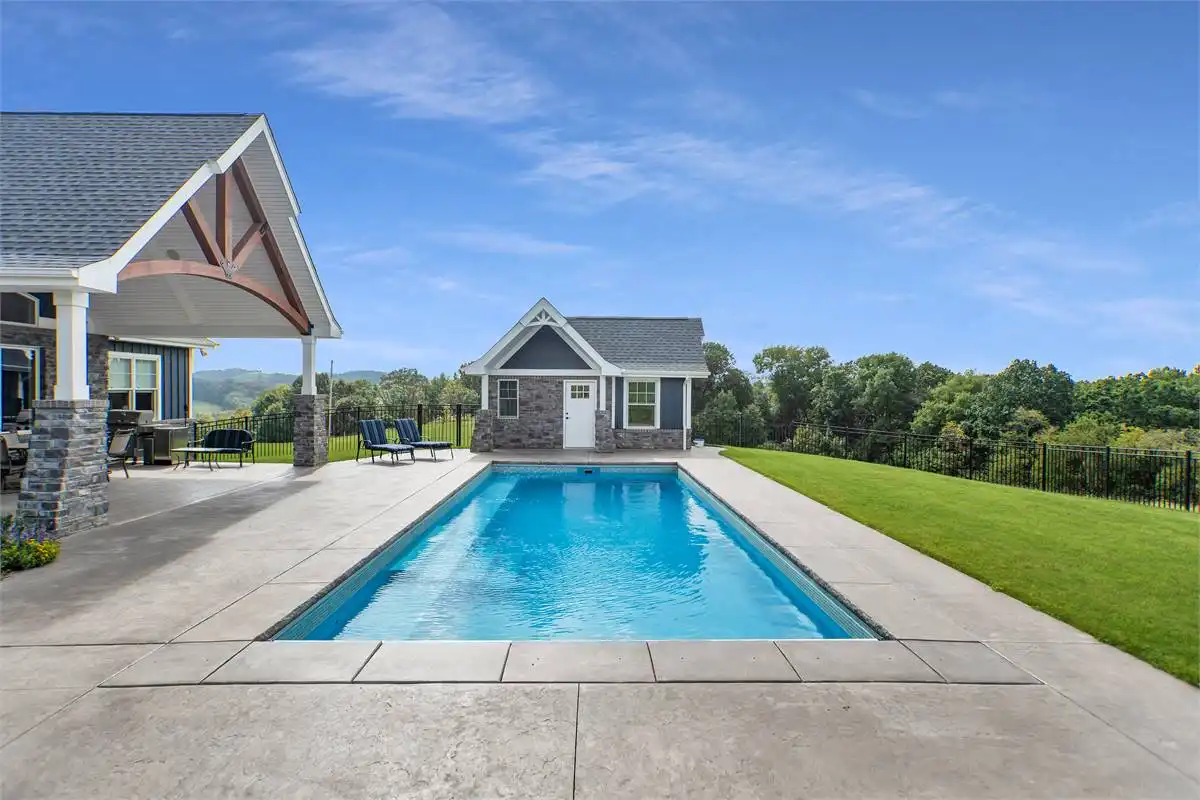

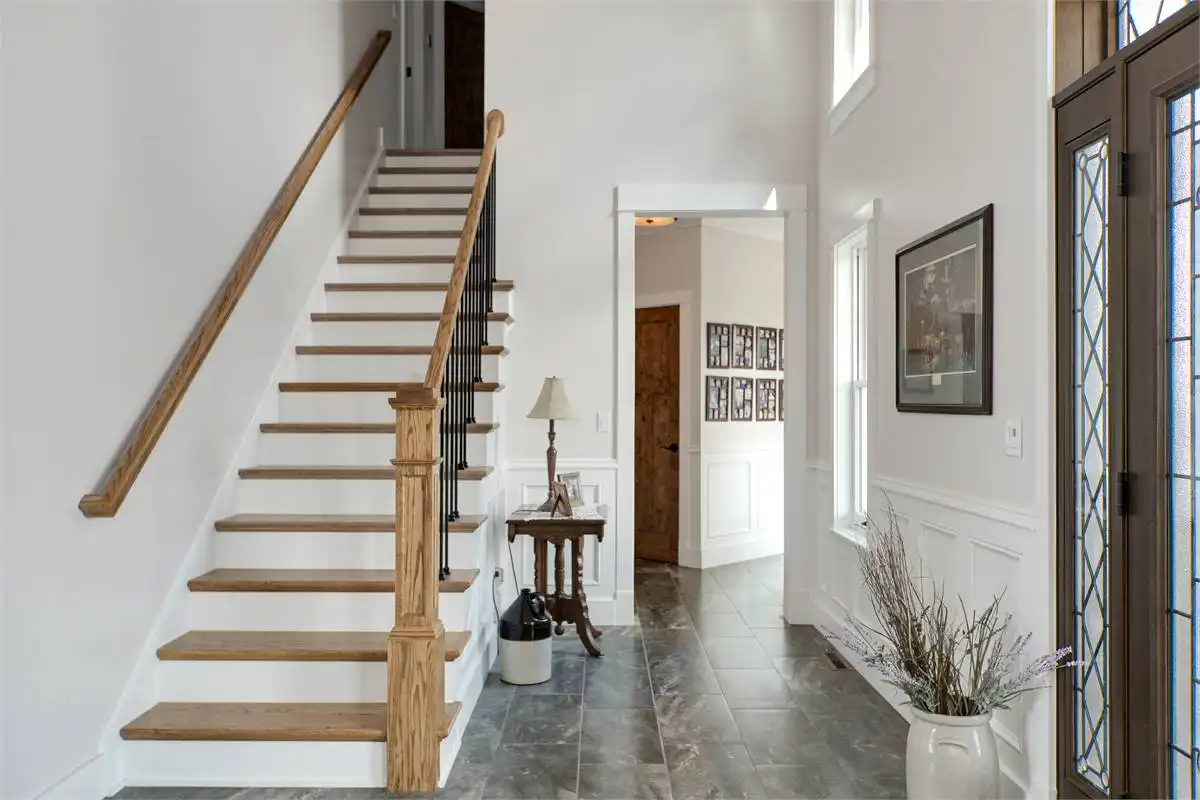

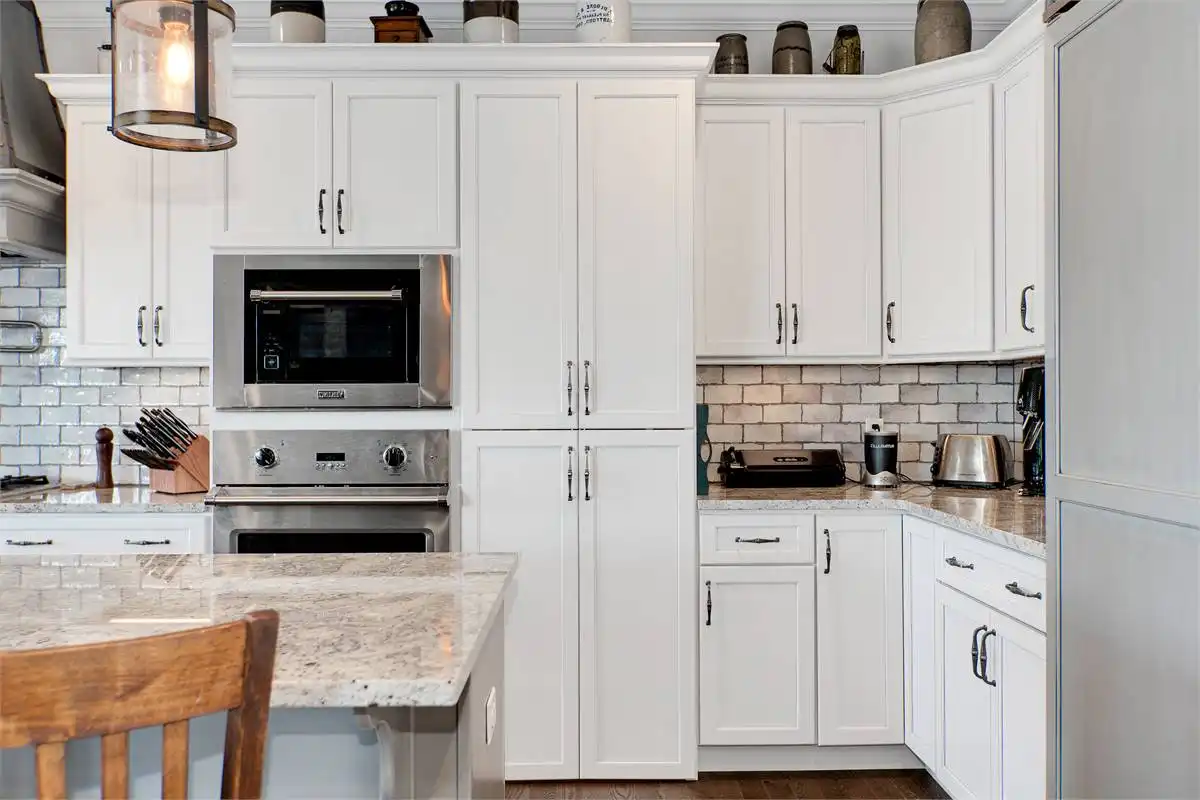

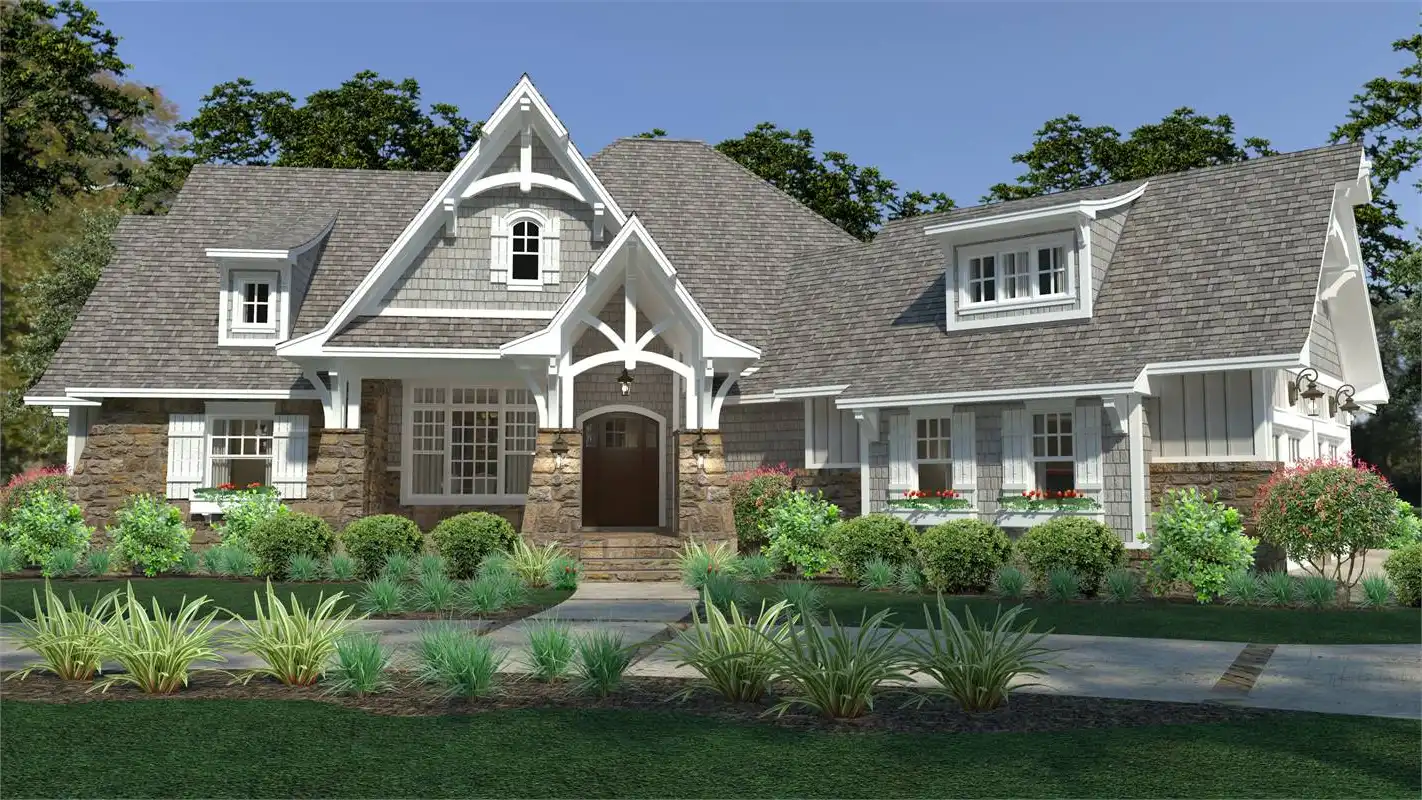

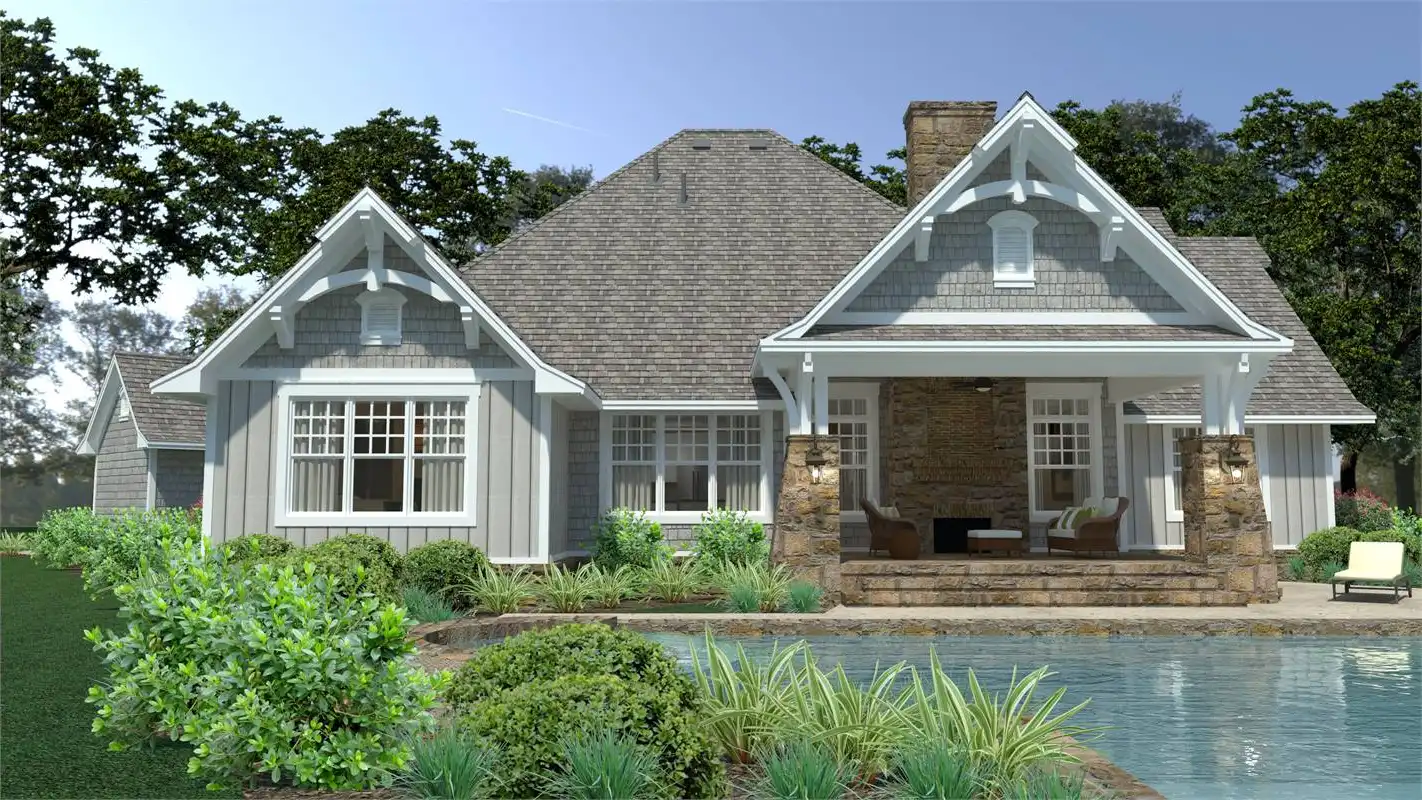

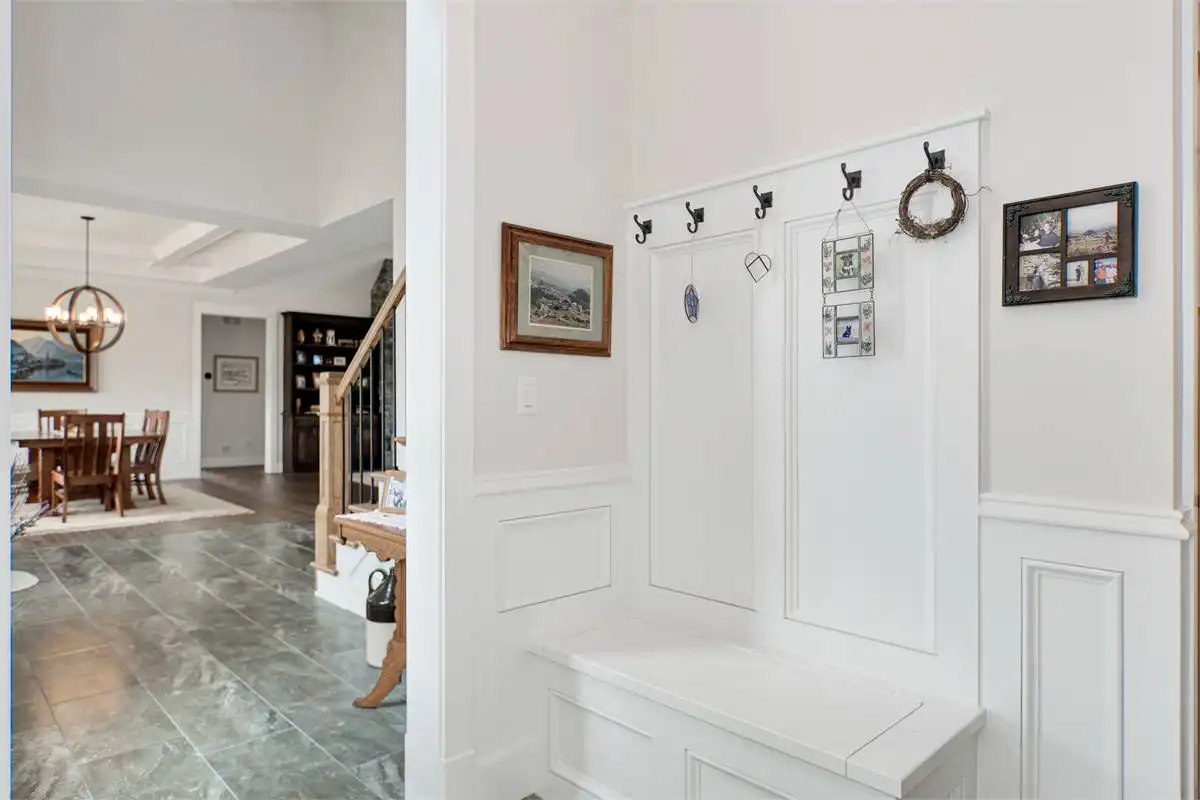

Prepare to be amazed by this remarkable 2,662 square foot Craftsman cottage house plan, featuring 3 bedrooms, 2.5 baths, and an optional upstairs bonus room that can be tailored to your preferences and budget, whether you choose to finish it during construction or at a later time. As you step onto the grand vaulted, covered front porch, you'll immediately feel the allure. The foyer beckons, opening up to an expansive open-concept design that seamlessly combines the family room, kitchen, and dining area. Embrace the outdoors with a rear lanai, a delightful space for entertaining, while also sharing a double-sided fireplace with the family room. Designed to delight even the most discerning culinary enthusiast, the kitchen showcases a center island for additional seating and countertop space, complemented by ample cabinetry for all your storage needs. Indulge in the opulence of the spacious master suite, complete with a tray ceiling and a luxurious ensuite bath—a true sanctuary to retreat to after a long day. Privacy is paramount in the thoughtfully planned split bedroom design, positioning the secondary bedrooms on the right side of the house. These bedrooms offer walk-in closets and share a convenient Jack and Jill bath, enhancing comfort and functionality. Extra convenience awaits with the additional storage area adjacent to the 3-car garage, perfectly suited for storing gardening tools and seasonal items. Choose from a selection of foundations, including slab, crawl space, or basement, to suit your preferences and requirements.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,345
Most recommended package

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,495
Five printed sets of house plans

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $1,595
Digital plans plus 5 printed sets

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $2,145
2D electronic editable computer files

CAD Unlimited Build

2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

CAD Unlimited Build $2,540
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1345
FREE SHIPPING

Detailed Plan Packages & Pricing
Our Structural Detail & IRC Guarantee
Architect's Preferred Home Products
Plan Details
See All Details
Finished Square Footage
2,662 Sq. Ft.
Main Level:
2,662 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
1.5
Number of Stories:
98' 3"
Width:
78' 7"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Unfinished Square Footage
1120 Sq. Ft.
Garage:
227 Sq. Ft.
Porch:
322 Sq. Ft.
Deck:
650 Sq. Ft.
Bonus Room:
GARAGE
Side
Garage Location:
3
Garage Size:
Exterior Style
Cottage
Craftsman
European
Collections
Empty Nester
Kitchens
Primary Suites
Mountain
Old House Classics
Open Floor Plan
Outdoor Living
PDFs Fast!
Split Bedroom
Foundation
Basement
Crawl Space
Slab
Walk-out Basement
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
12:12
Primary:
16:12
Gable:
Roof Load
20
Live:
15
Dead:
80
Wind:
Insulation (R)
15
Exterior Wall:
13
Interior Wall:
30
Ceiling:
0
Floor:
House And Ceiling Heights
9 & 10
First Floor Ceiling:
9
Second Floor Ceiling:
32' 7"
Maximum House Height:
Key Features
Attached
Basement
Bonus Room
Covered Front Porch
Covered Rear Porch
Crawlspace
Dining Room
Double Vanity Sink
Family Room
Fireplace
Foyer
Front Porch
Kitchen Island
Laundry 1st Fl
Primary Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Rear Porch
Separate Tub and Shower
Side-entry
Slab
Split Bedrooms
Storage Space
Suited for corner lot
Suited for sloping lot
Suited for view lot
Unfinished Space
Walk-in Closet
Walk-in Pantry
Walkout Basement
