House Plan: DFD-5118

See All 5 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
5,193
BEDS
0
BATHS
0
STORIES
2
CARS
3
HOUSE PLANS SALE
START AT  $1,936.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5118:

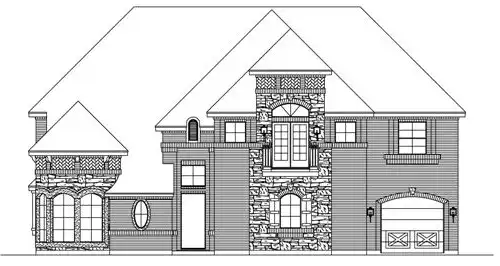

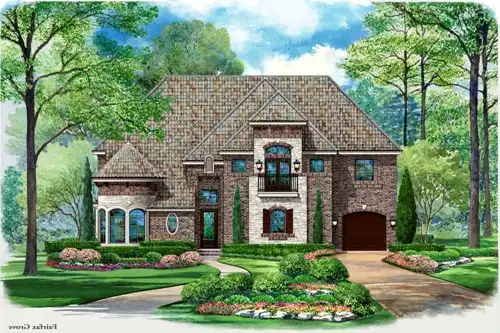

This luxury starter castle has three total alternative elevations, Fairfax Grove, Fairfax Ridge and Fairfax Valley. When you enter through this two-story foyer, your eyes are immediately drawn to the elegant dining room with direct access to the wine room. This estate house plan is very open, as you see when you enter. The quiet study has a bayed area, next to the large bank of windows up the 15' ceiling. The family gathering rooms consisting of the kitchen, dining room, and family room are open to one another, separated only by the free standing eating bar in the kitchen. The large bank of windows on the back of this luxury house plan has views onto the outdoor lounge. The master suite boasts a lavish master bath with separate shower and tub, his and her vanities, a large wardrobe and utility room. Access to the one-car garage is easily accessible from the master suite. A two-car garage completes this level of this luxury estate house plan. Upstairs three family bedrooms with full baths and walk-in closets flank the game room with built-ins and storage space. A media room completes this level of this luxury estate.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $2,180
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $2,360
Five printed sets of house plans

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $3,270
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$2180
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
3,145 Sq. Ft.
Main Level:
2,048 Sq. Ft.
Upper Level:
5,193 Sq. Ft.
Total:
General House Information
2
Number of Stories:
60' 0"
Width:
75' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
699 Sq. Ft.
Garage:
GARAGE
Side
Garage Location:
3
Garage Size:
Exterior Style
European
Traditional
Collections
Luxury
Old House Classics
Open Floor Plan
Foundation
Crawlspace
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
12
Primary:
8
Secondary:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
House And Ceiling Heights
10
First Floor Ceiling:
9
Second Floor Ceiling:
35' 0"
Maximum House Height:
Key Features
2 Story Volume
Attached
Covered Front Porch
Covered Rear Porch
Dining Room
Double Vanity Sink
Family Room
Fireplace
Foyer
Front Porch
Home Office
Kitchen Island
Laundry 1st Fl
Library/Media Rm
Primary Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Rear Porch
Separate Tub and Shower
Side-entry
Sitting Area
Slab
Vaulted Ceilings
