House Plan: DFD-5119

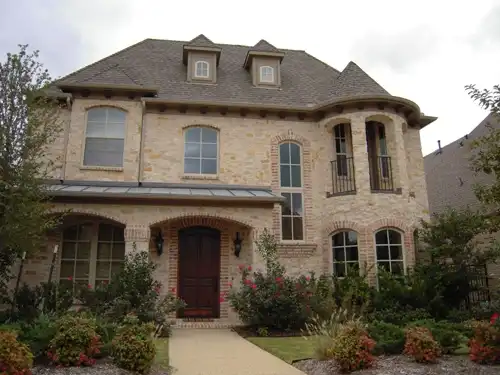

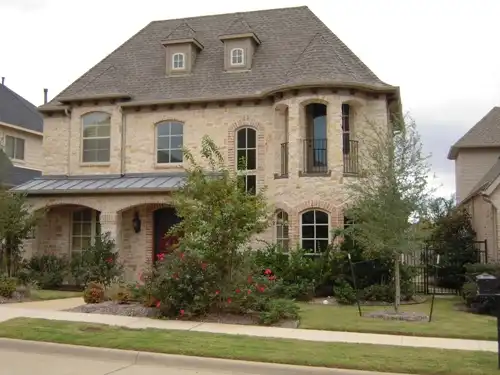

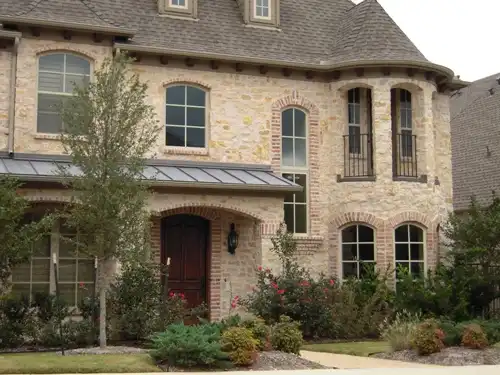

See All 30 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
3,428
BEDS
3
BATHS
3
STORIES
2
CARS
2
HOUSE PLANS SALE
START AT  $928.00
For questions and help, live chat, email or call us at 877-895-5299

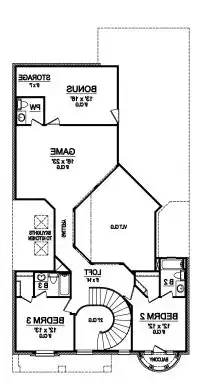

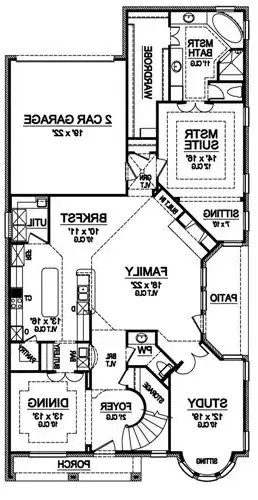

Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5119:

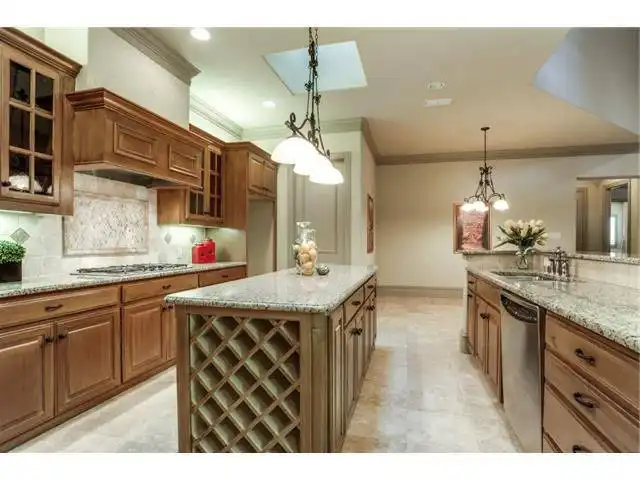

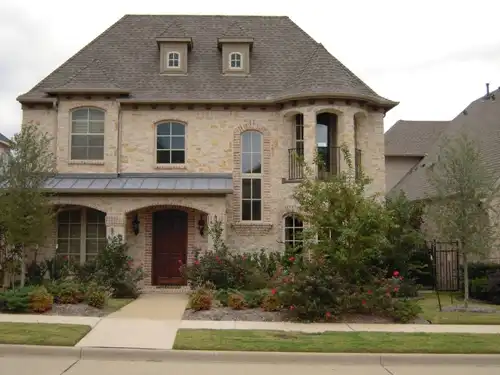

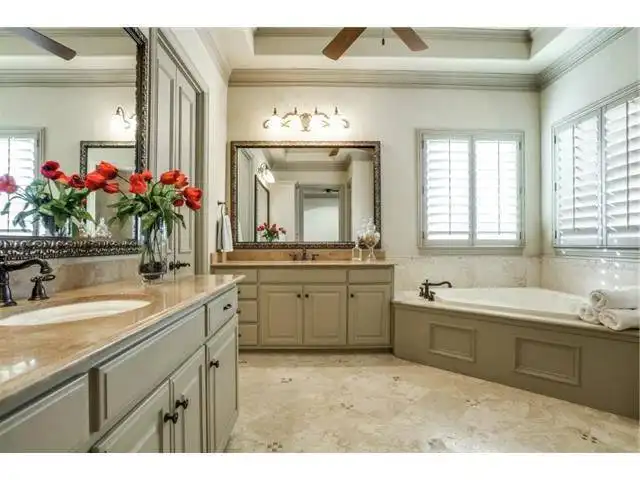

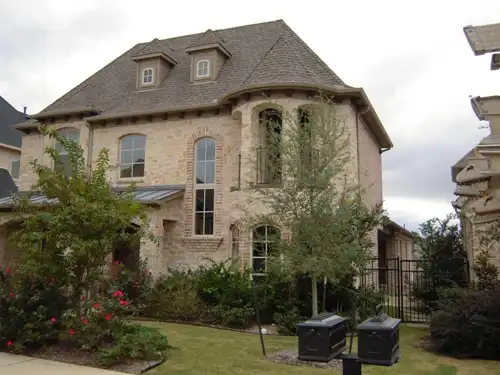

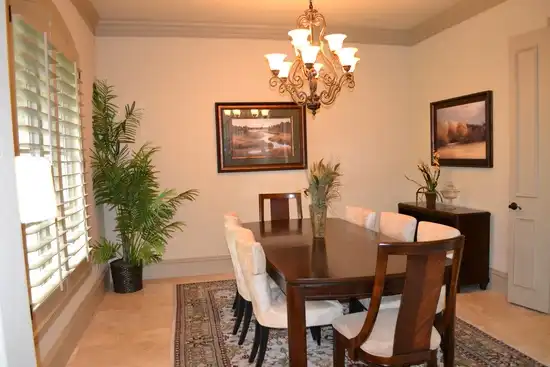

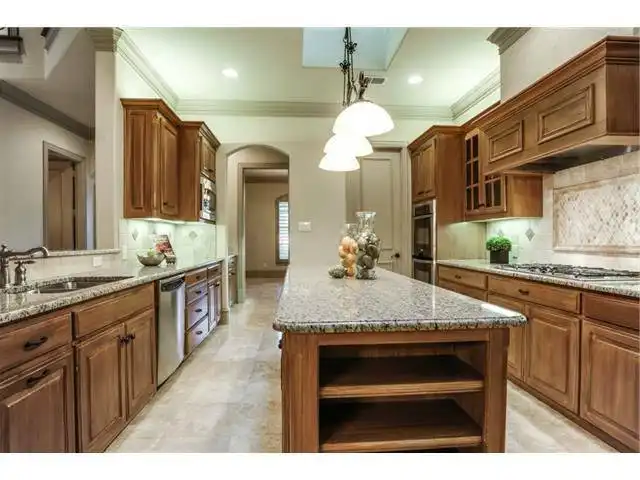

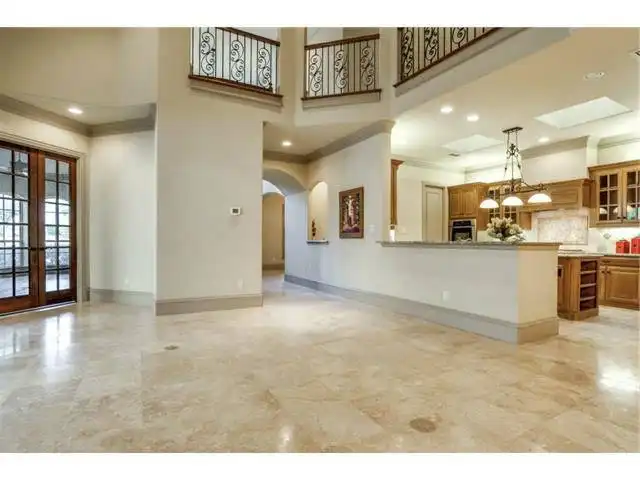

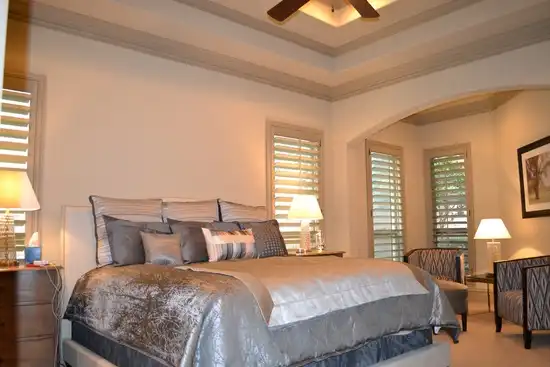

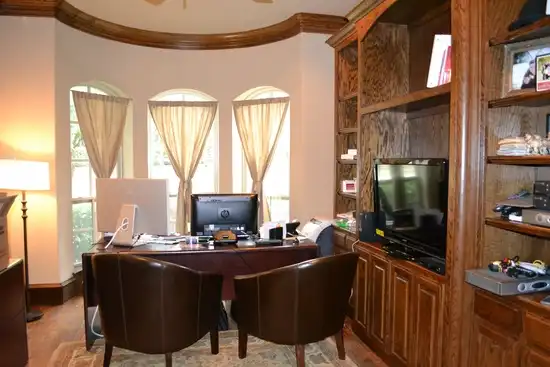

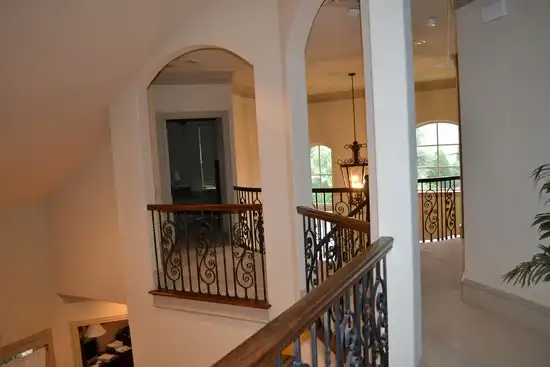

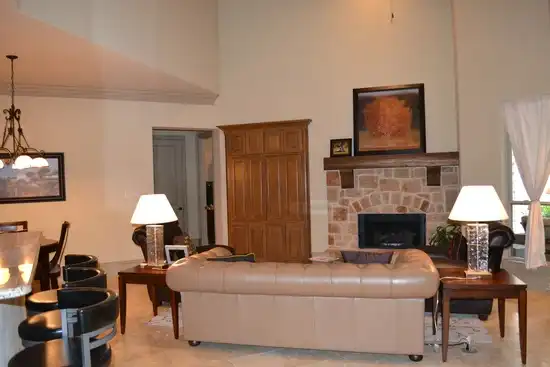

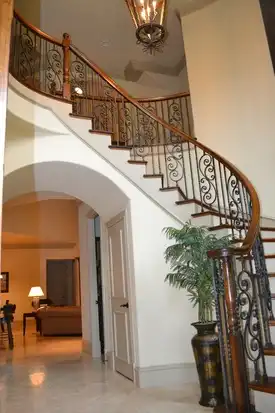

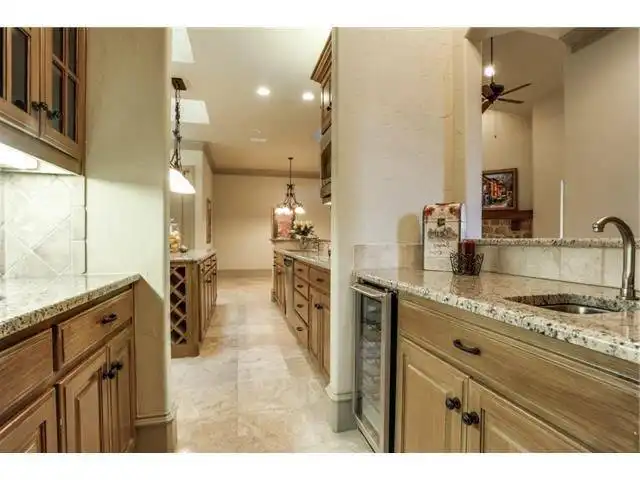

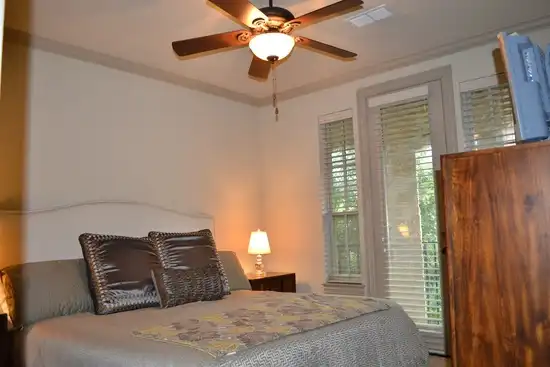

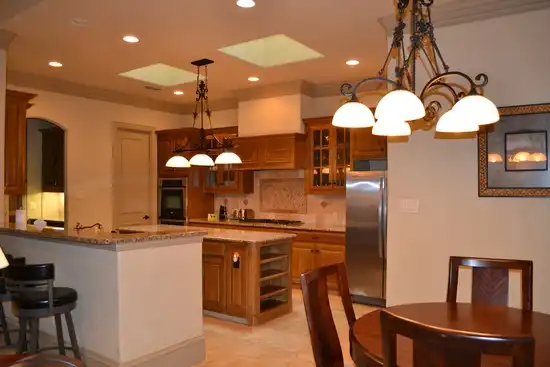

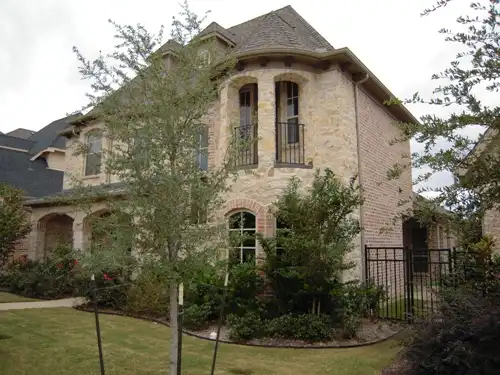

This Texas-inspired luxury house plan is perfect for a narrow or zero lot line. The two-story foyer has a curved staircase to the second story and a barrel vaulted ceiling through to the vaulted family room. The family room, kitchen and breakfast area are open to one another, separated only by the breakfast bar. A free-standing island offers extra counter space, while skylights add brightness. A quiet study with bayed sitting area sits off the family room. The elegant dining room has direct access to the bar, butlery and pantry for ease in serving. The master suite offers a sitting area with trey ceiling and lavish bath with his and hers vanities, separate shower, corner garden tub and a large wardrobe. A two-car garage is behind the family room through the barrel vaulted ceiling. Upstairs, two family bedrooms, one with a balcony, offer walk-in closets and full baths. There is a game room, loft and bonus room with storage area that completes this luxury house plan.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,045
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,225
Five printed sets of house plans

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $1,570
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1045
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
2,264 Sq. Ft.
Main Level:
1,164 Sq. Ft.
Upper Level:
3,428 Sq. Ft.
Total:
Room Details
3
Bedrooms:
3
Full Baths:
General House Information
2
Number of Stories:
40' 0"
Width:
78' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
453 Sq. Ft.
Garage:
283 Sq. Ft.
Storage:
89 Sq. Ft.
Porch:
30 Sq. Ft.
Deck:
119 Sq. Ft.
Patio:
283 Sq. Ft.
Bonus Room:
GARAGE
Rear
Garage Location:
2
Garage Size:
Exterior Style
Country
French Country
Traditional
Collections
Luxury
Old House Classics
Open Floor Plan
Foundation
Crawlspace
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
16
Primary:
8
Secondary:
18
Dormer:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
House And Ceiling Heights
10
First Floor Ceiling:
9
Second Floor Ceiling:
34' 0"
Maximum House Height:
Key Features
2 Story Volume
Arches
Attached
Country Kitchen
Covered Front Porch
Covered Rear Porch
Dining Room
Double Vanity Sink
Family Room
Fireplace
Foyer
Front Porch
Home Office
Kitchen Island
Laundry 1st Fl
Library/Media Rm
Primary Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Rear Porch
Rear-entry
Separate Tub and Shower
Sitting Area
Slab
Vaulted Ceilings
