House Plan: DFD-5138

Pin It

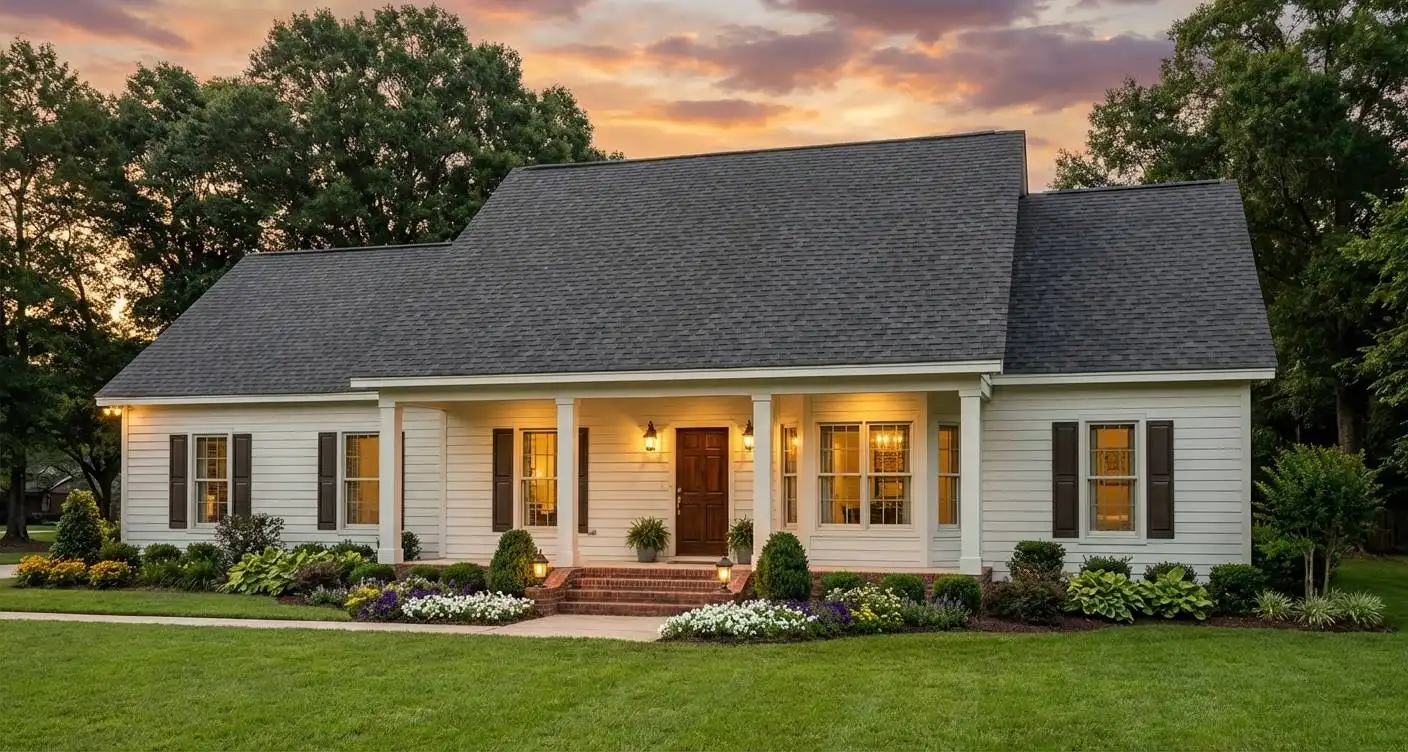

See All 2 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,695
BEDS
3
BATHS
2
STORIES
1
CARS
2
HOUSE PLANS SALE
START AT  $928.00
For questions and help, live chat, email or call us at 877-895-5299
First Floor Plan
Second Floor Plan
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5138:
A straight forward design keeps construction costs lower. The living space on the main floor offers split bedrooms, bayed dining area and a separate den which could be used as an office, study or fourth bedroom. The den is replaced by the stair(s) in the basement option and/or if you plan to use the future space above.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,160
Immediate Delivery!
Most recommended package

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,355
Five printed sets of house plans

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $1,530
Immediate Delivery!
Digital plans plus 5 printed sets

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $2,065
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1160
FREE SHIPPING

Detailed Plan Packages & Pricing
Our Structural Detail & IRC Guarantee
Architect's Preferred Home Products
Plan Details
See All Details
Finished Square Footage
1,695 Sq. Ft.
Main Level:
1,695 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
General House Information
1
Number of Stories:
63' 0"
Width:
53' 2"
Depth:
Single
Dwelling Number:
1st Floor
Bonus Access:
Unfinished Square Footage
488 Sq. Ft.
Garage:
68 Sq. Ft.
Storage:
366 Sq. Ft.
Porch:
922 Sq. Ft.
Bonus Room:
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
Cottage
Southern
Traditional
Collections
Affordable
Empty Nester
First Home
Old House Classics
PDFs Fast!
Split Bedroom
Vacation
Foundation
Basement
Crawl Space
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
Roof Load
30
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
9
First Floor Ceiling:
25' 0"
Maximum House Height:
Facade
Siding
Key Features
Attached
Basement
Bonus Room
Covered Front Porch
Covered Rear Porch
Crawlspace
Dining Room
Double Vanity Sink
Fireplace
Foyer
Front Porch
Great Room
His and Hers Primary Closets
Home Office
Laundry 1st Fl
Primary Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Rear Porch
Separate Tub and Shower
Side-entry
Slab
Split Bedrooms
Storage Space
Suited for corner lot
Unfinished Space
Walk-in Closet
