House Plan: DFD-5165

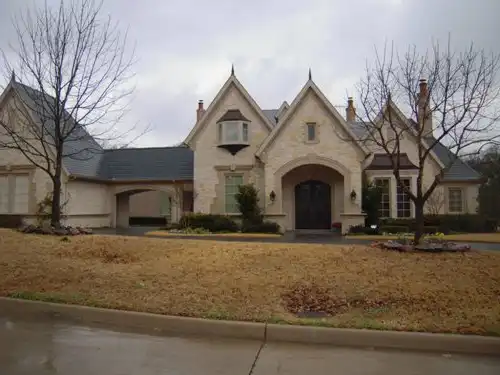

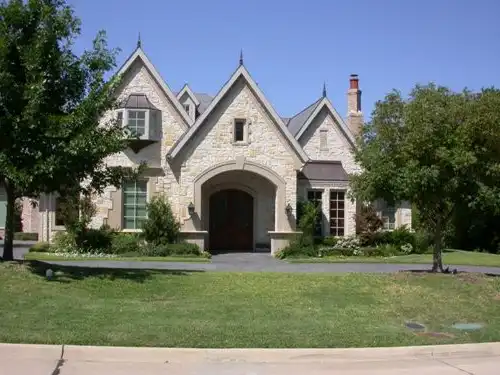

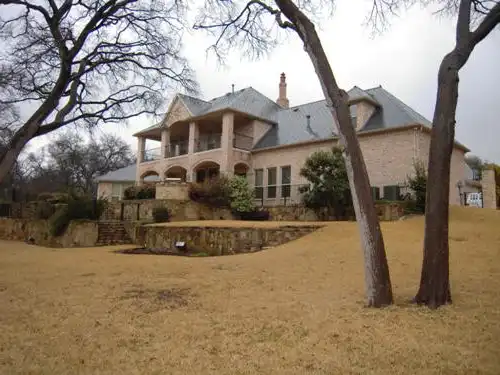

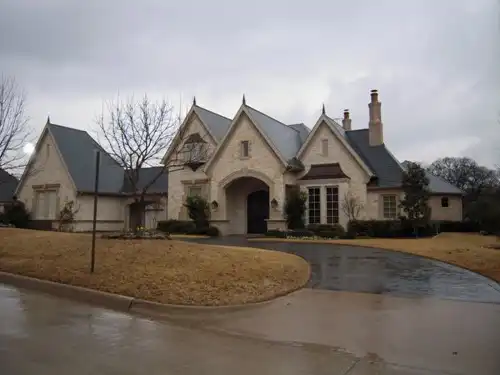

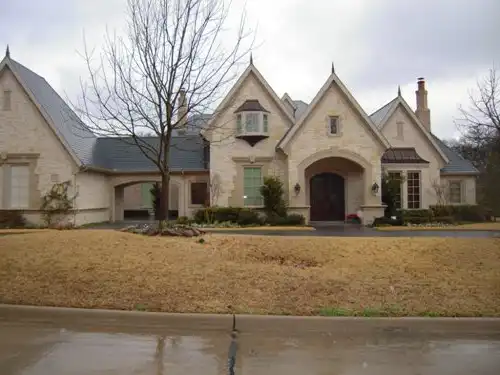

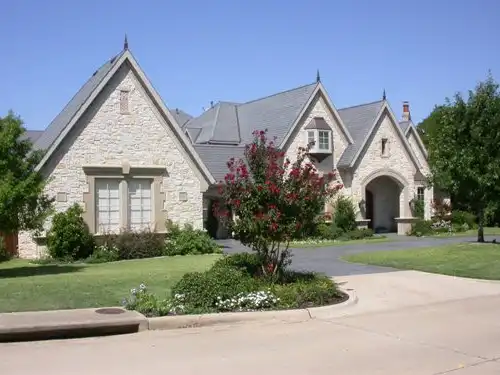

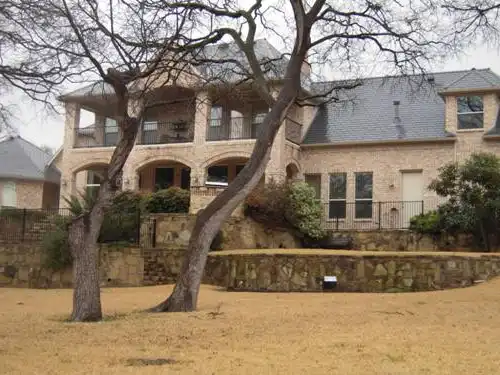

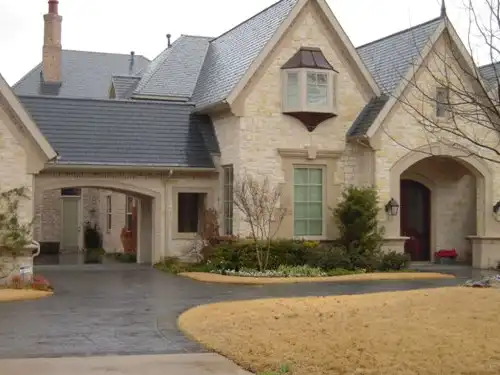

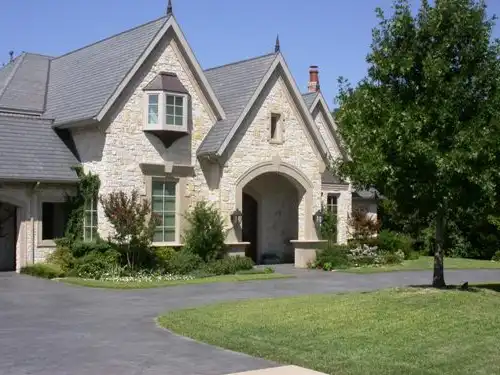

See All 14 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
7,175
BEDS
4
BATHS
4
STORIES
2
CARS
4
HOUSE PLANS SALE
START AT  $2,800.75
For questions and help, live chat, email or call us at 877-895-5299

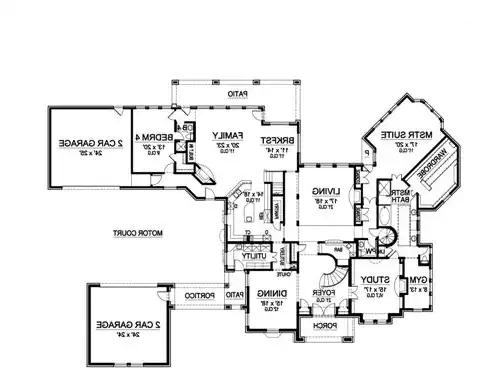

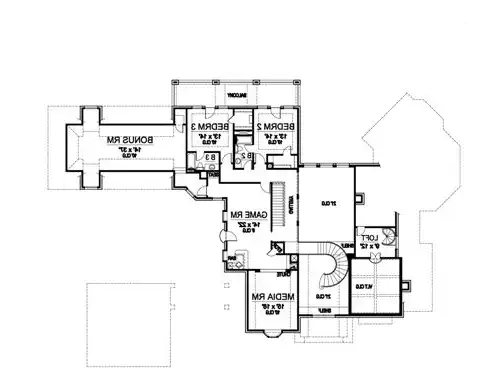

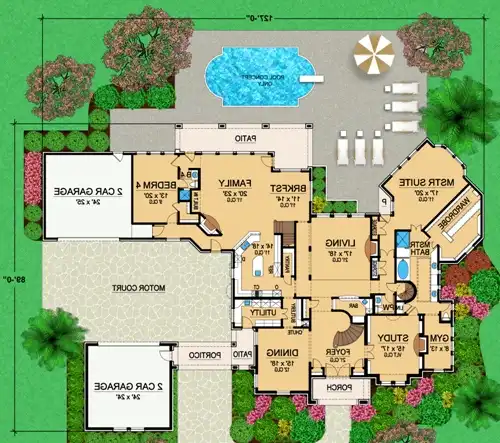

Floor Plans
Click to Zoom In on Floor Plan

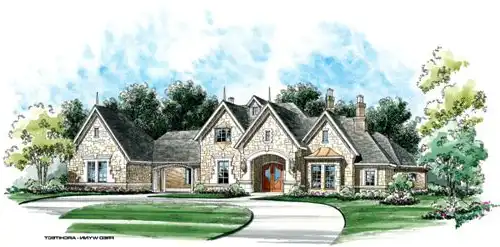

About House Plan 5165:
This European luxury mansion house plan brings your dreams to your door step. When you enter the two-story foyer, your eyes will immediately be drawn to the curved staircase leading to the second floor, and the bar is tucked quietly away under the staircase. The foyer is flanked by a study with warming fireplace and the formal dining room with direct access to the butlery, utility room, and kitchen for ease in serving. The family gathering area consists of the kitchen, breakfast room and family room. The corner warming fireplace helps keep this area cozy. Access to the patio can be achieved through the breakfast area. The gourmet kitchen provides a free-standing island for additional counter space. The breakfast bar can be shared with the family room and breakfast area. A family bedroom with walk-in closet and full bath sits quietly in the back of the house next to a two-car garage. The large master suite boasts a bayed window, lavish master bath with his and hers vanities, separate shower, tub, and large wardrobe. A gym and access to the study can be achieved through the master bath. A spiral staircase goes up to the second story loft. Off the utility room is the patio that leads to the portico and into the second two-car garage. Upstairs, two family bedrooms with trey ceilings, balcony access, walk-in closets and full baths share space with the bonus, media and game room with bar. Enjoy the amazing views from the gallery to the main level below, completing this luxury mansion house plan.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $3,365
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $3,545
Five printed sets of house plans

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $5,050
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$3365
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
4,620 Sq. Ft.
Main Level:
2,555 Sq. Ft.
Upper Level:
7,175 Sq. Ft.
Total:
Room Details
4
Bedrooms:
4
Full Baths:
General House Information
2
Number of Stories:
127' 0"
Width:
89' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
1038 Sq. Ft.
Garage:
696 Sq. Ft.
Bonus Room:
GARAGE
Side
Garage Location:
4
Garage Size:
Exterior Style
European
Traditional
Collections
Luxury
Old House Classics
Open Floor Plan
Foundation
Crawlspace
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
12
Primary:
16
Secondary:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
House And Ceiling Heights
11
First Floor Ceiling:
9
Second Floor Ceiling:
35' 0"
Maximum House Height:
Key Features
Arches
Attached
Country Kitchen
Covered Front Porch
Covered Rear Porch
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Front Porch
Home Office
Kitchen Island
Laundry 1st Fl
Library/Media Rm
Primary Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Rear Porch
Separate Tub and Shower
Side-entry
Slab
Storage Space
