House Plan: DFD-5184

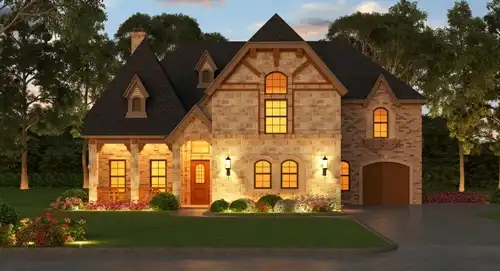

See All 5 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
5,297
BEDS
5
BATHS
5
STORIES
2
CARS
3
HOUSE PLANS SALE
START AT  $1,936.00
For questions and help, live chat, email or call us at 877-895-5299

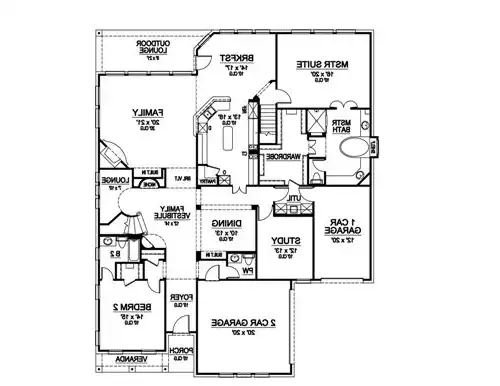

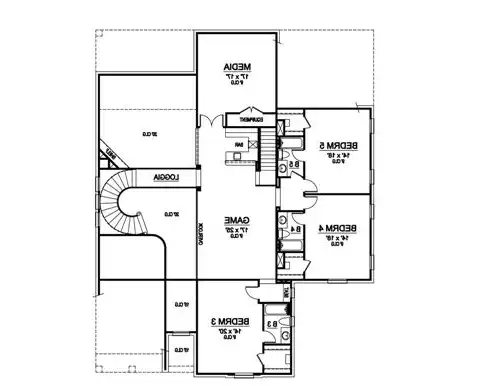

Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5184:
Feel right at home as you walk into this stunning European luxury mansion. The two-story foyer opens to a family vestibule with corner lounge, niche, and stairs to the second level. The large decorative pillars define the elegant dining room. Access to the pantry and kitchen offers ease in serving meals to family and guests. Through the barrel vault off the family vestibule, the family room with corner warming fireplace and built-ins offers streaming sunlight through its bank of rear windows. The breakfast area leads to the outdoor lounge and is part of the kitchen and family room. A free-standing island and breakfast bar add counter space to this gourmet kitchen. The spacious master suite boasts a large master bath with his and hers vanities, separate shower, tub and large wardrobe. A door from the wardrobe leads to the utility room, study and the one-car garage. A front family bedroom with large walk-in closet, private full bath, and veranda views, can be converted to an in-law suite. A two-car garage completes this level of this mansion house plan. Upstairs, three family bedrooms offer walk-in closets and private, full baths. They share space on the second level of this European luxury mansion house plan with a bar, equipment room, game room, media room, and loggia for overlook views to below.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $2,180
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $2,360
Five printed sets of house plans

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $3,270
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$2180
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
3,116 Sq. Ft.
Main Level:
2,181 Sq. Ft.
Upper Level:
5,297 Sq. Ft.
Total:
Room Details
5
Bedrooms:
5
Full Baths:
General House Information
2
Number of Stories:
60' 0"
Width:
75' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
709 Sq. Ft.
Garage:
96 Sq. Ft.
Porch:
199 Sq. Ft.
Patio:
GARAGE
Front
Garage Location:
3
Garage Size:
Exterior Style
European
Traditional
Collections
Luxury
Old House Classics
Open Floor Plan
Foundation
Crawlspace
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
12
Primary:
20
Secondary:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
House And Ceiling Heights
10
First Floor Ceiling:
9
Second Floor Ceiling:
35' 0"
Maximum House Height:
Key Features
Arches
Attached
Country Kitchen
Covered Front Porch
Covered Rear Porch
Dining Room
Double Vanity Sink
Family Room
Fireplace
Foyer
Front Porch
Front-entry
Home Office
Kitchen Island
Laundry 1st Fl
Library/Media Rm
Primary Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Rear Porch
Separate Tub and Shower
Side-entry
Slab
