House Plan: DFD-5193

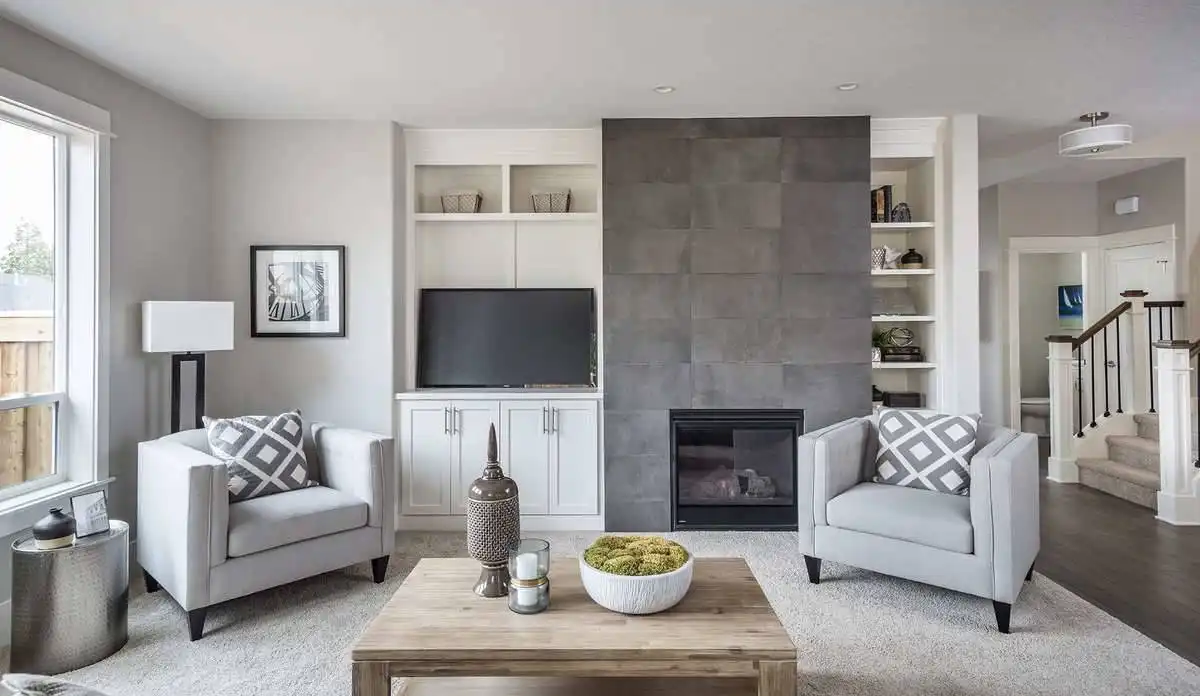

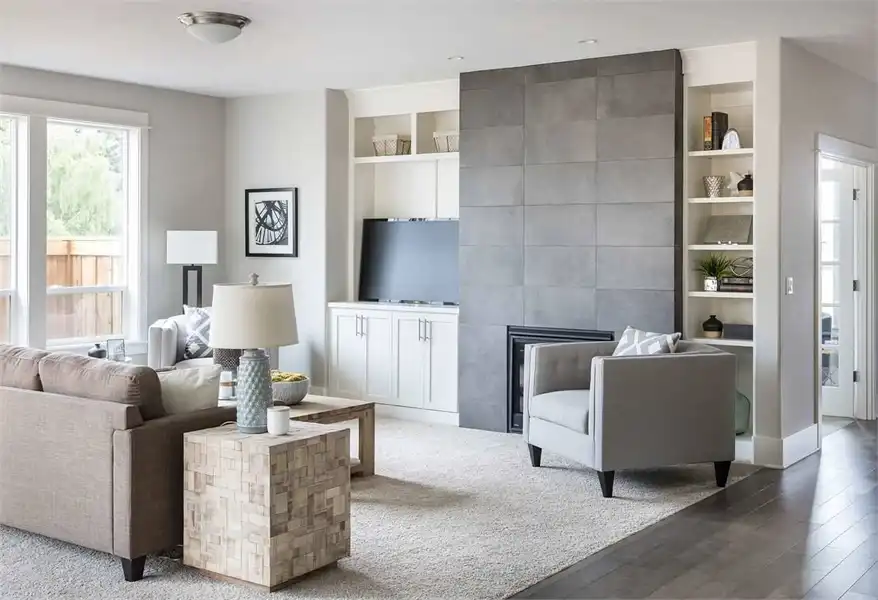

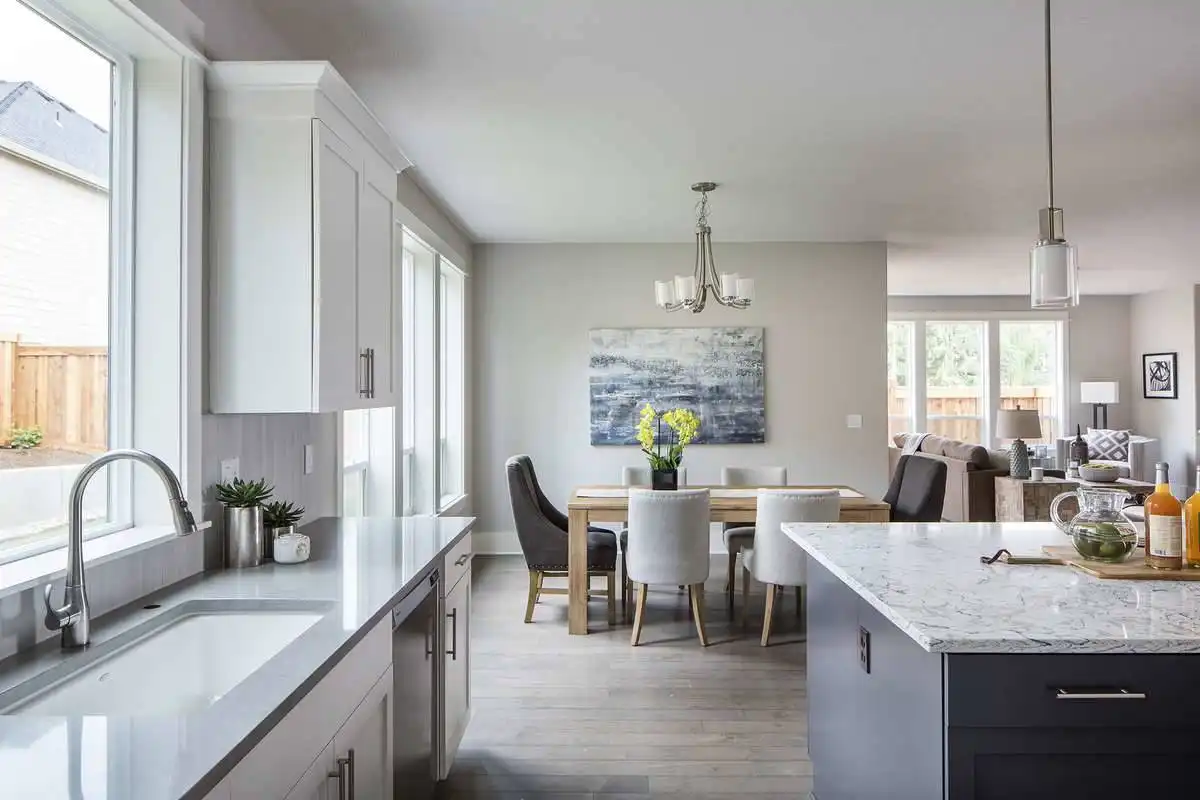

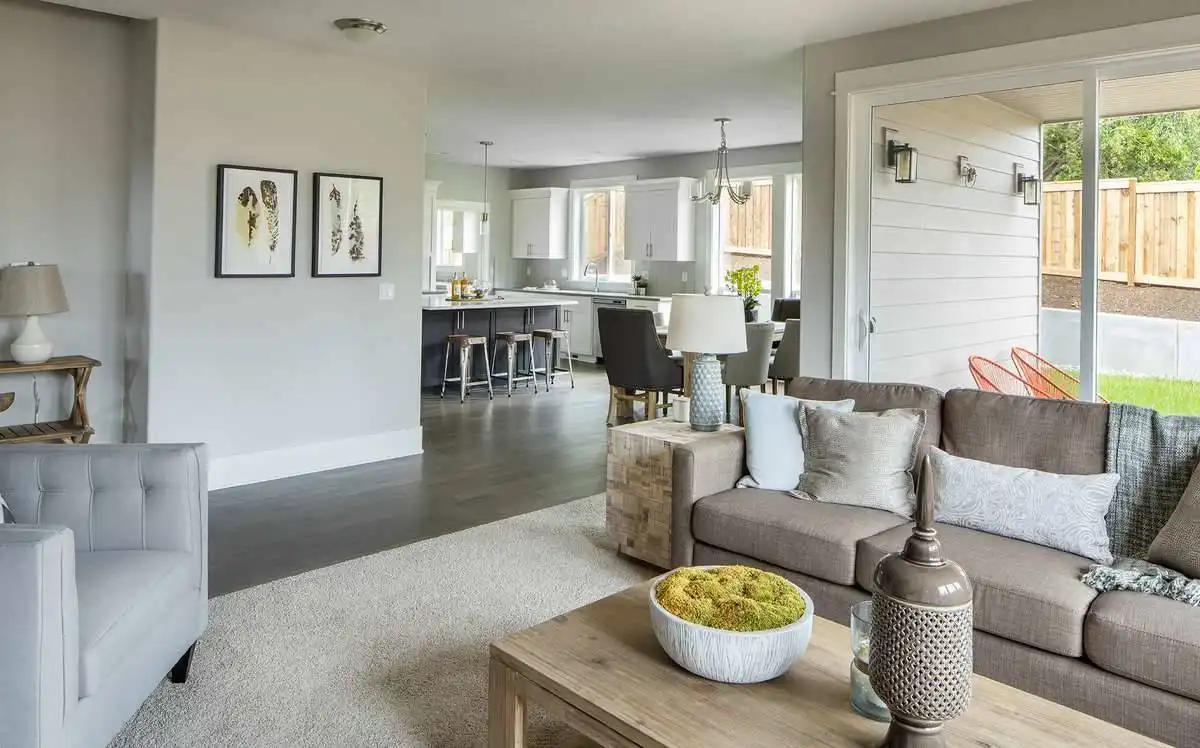

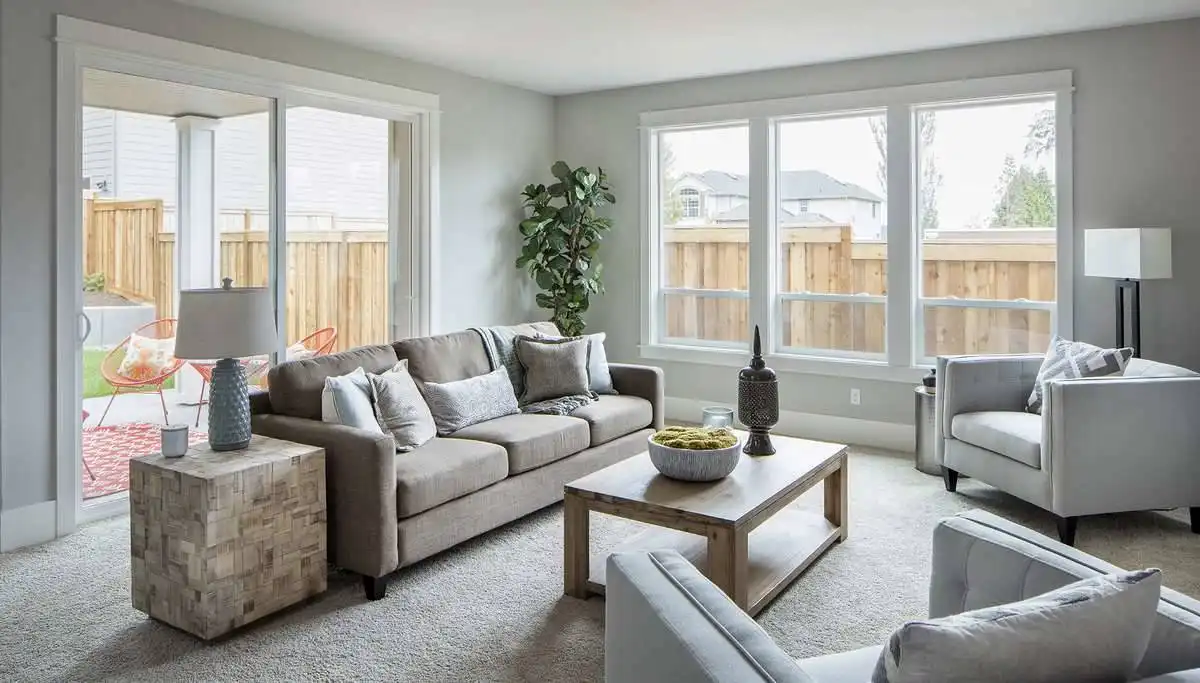

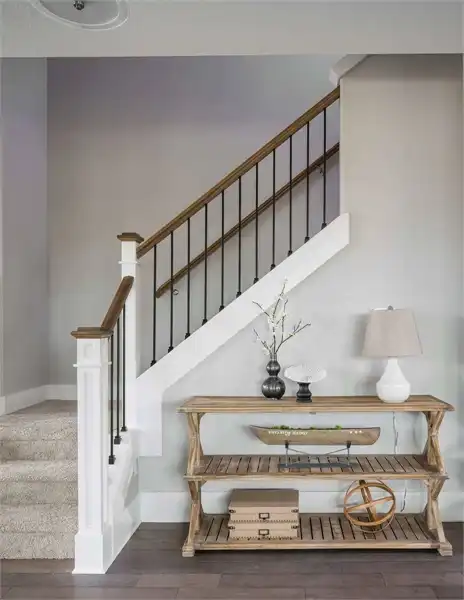

See All 15 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,936
BEDS
3
BATHS
2.5
STORIES
2
CARS
2
HOUSE PLANS SALE
START AT  $1,489.60
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5193:

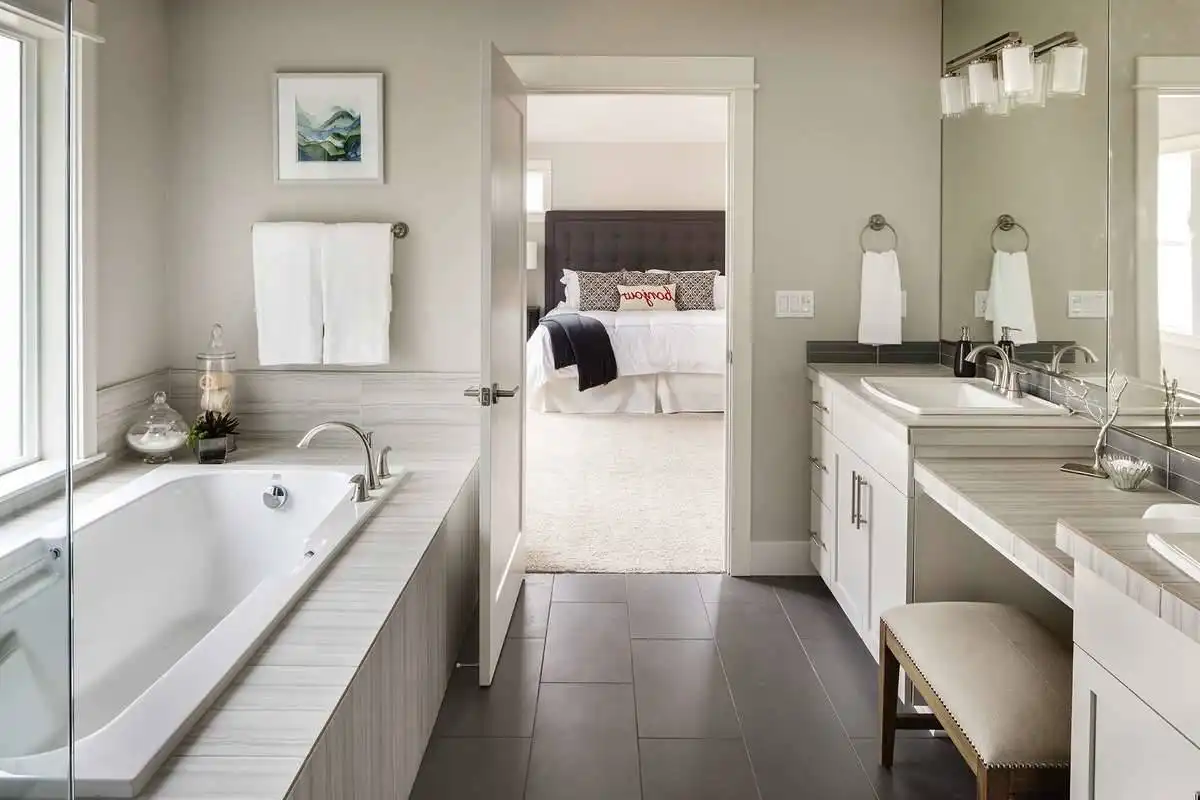

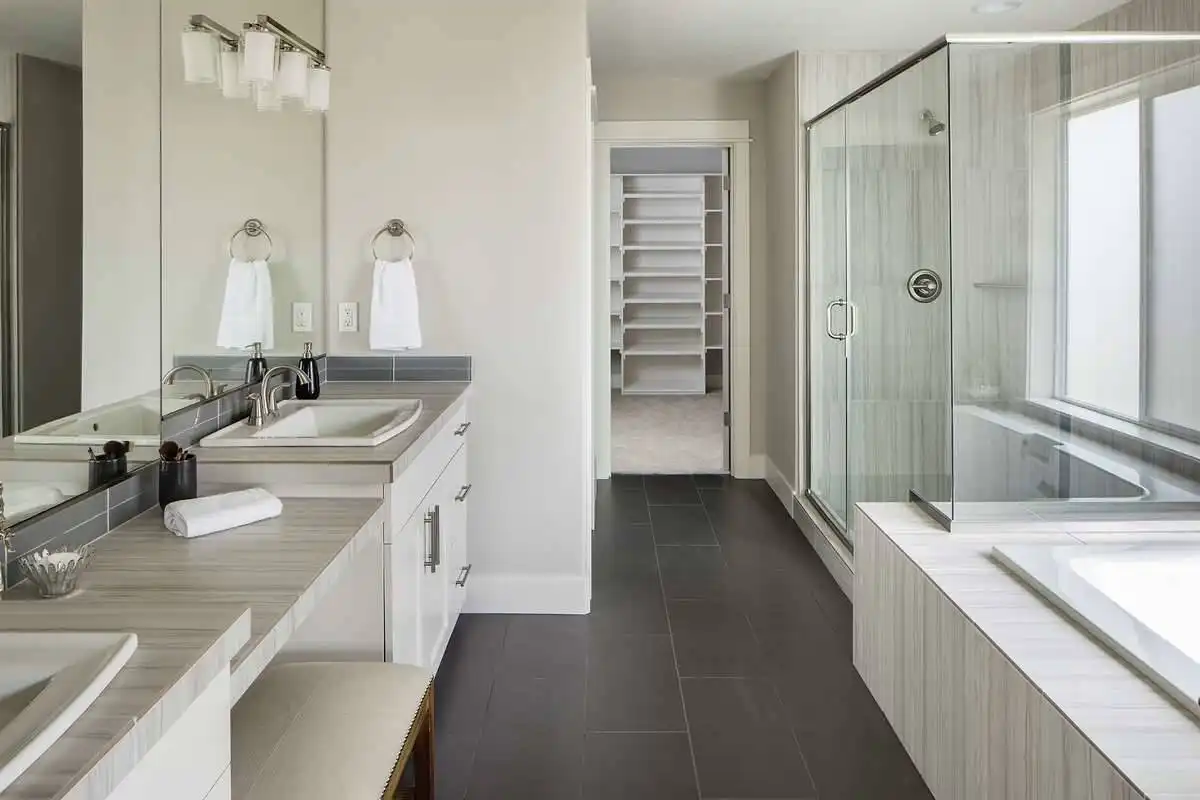

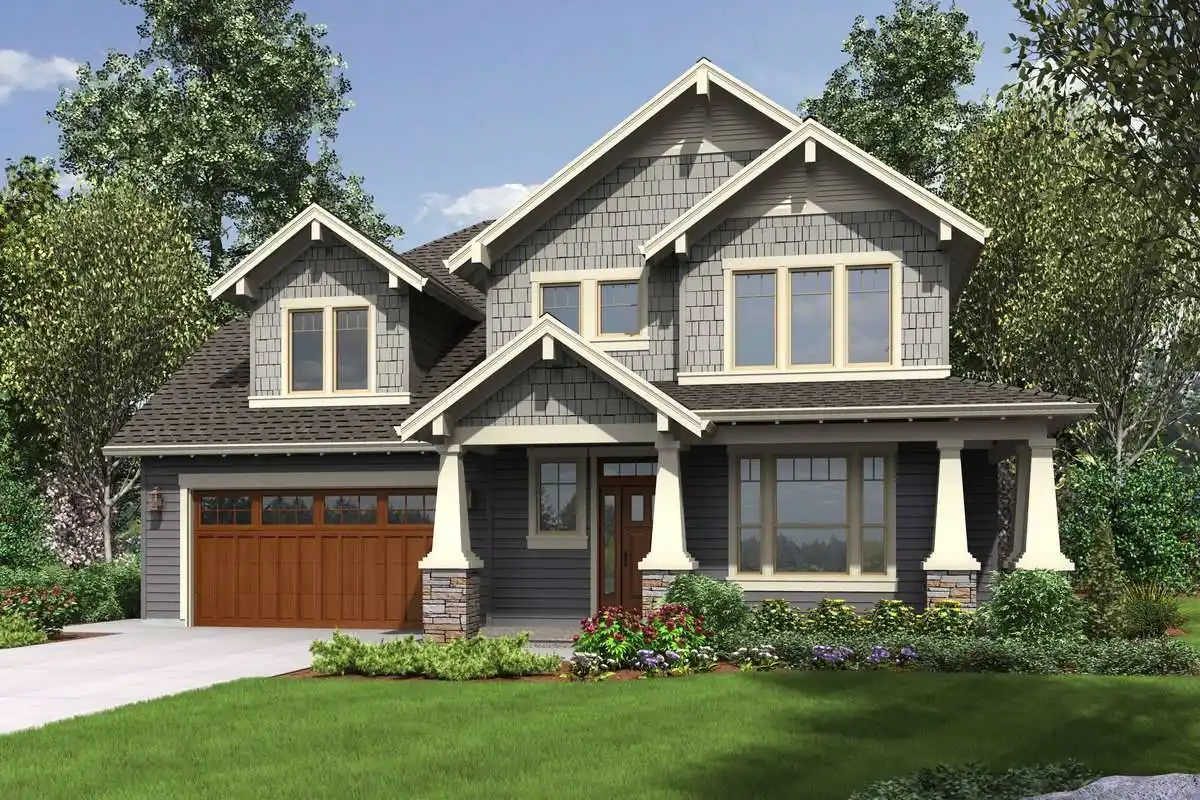

 Craftsman style house plan has many elements that make it perfect for the family who values togetherness but also needs their space every so often. This 3 bed, 2.5 bath home offers 2,936 square feet of functional and stylish space, with a little something for everyone. The 2 car garage offers plenty of storage and work space while the study provides the privacy necessary to get work done. The large wrap-around porch is begging for some rocking chairs and a beautiful sunset. All 3 bedrooms are on the second floor as well as a massive game room, complete with a wet bar. The master bathroom is truly a relaxing getaway with its built-in spa and gorgeous windows.


House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,862
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $2,062
Five printed sets of house plans

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $2,112
Digital plans plus 5 printed sets

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $3,724
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1862
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
1,261 Sq. Ft.
Main Level:
1,675 Sq. Ft.
Upper Level:
2,936 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
2
Number of Stories:
50' 0"
Width:
49' 0"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Unfinished Square Footage
588 Sq. Ft.
Garage:
220 Sq. Ft.
Storage:
200 Sq. Ft.
Porch:
120 Sq. Ft.
Patio:
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
Craftsman
Collections
Open Floor Plan
Foundation
Basement
Crawlspace
Stem Wall Slab Foundation-Included
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
4/12
Porch:
Roof Load
25
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
9'
First Floor Ceiling:
Varies
Second Floor Ceiling:
27' 0"
Maximum House Height:
Key Features
Attached
Basement
Bonus Room
Country Kitchen
Covered Front Porch
Covered Rear Porch
Crawlspace
Fireplace
Foyer
Front-entry
Great Room
Home Office
Kitchen Island
Laundry 1st Fl
Mud Room
Open Floor Plan
Oversized
Rec Room
Slab
Storage Space
Vaulted Ceilings
Walk-in Pantry
Workshop
Wraparound Porch
