House Plan: DFD-5209

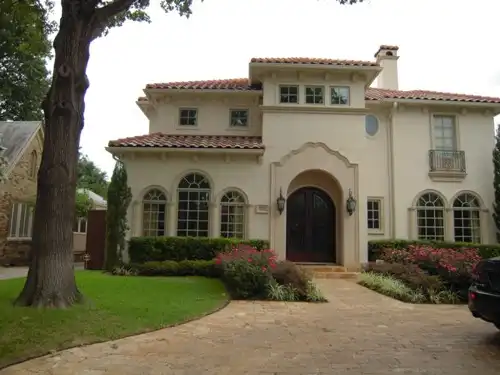

See All 40 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
5,757
BEDS
5
BATHS
5
STORIES
2
CARS
2
HOUSE PLANS SALE
START AT  $1,936.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5209:

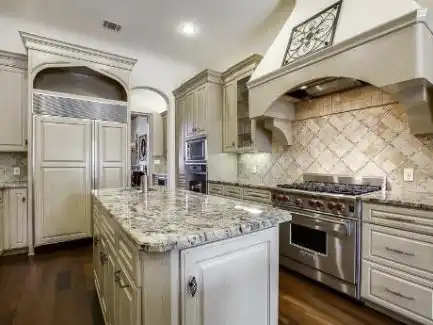

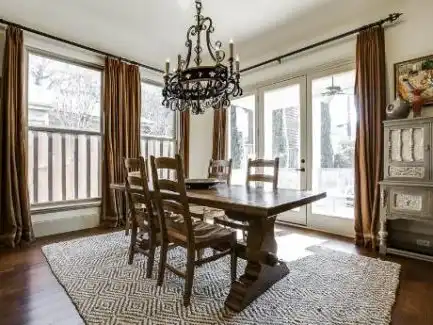

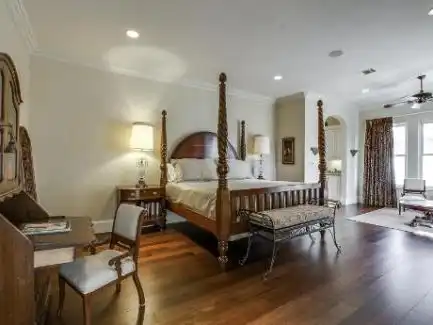

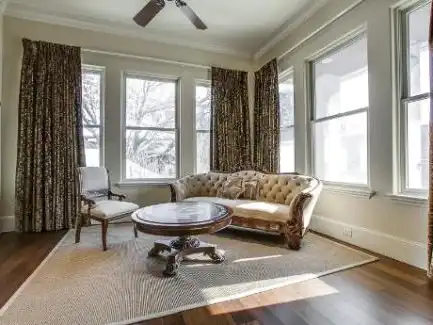

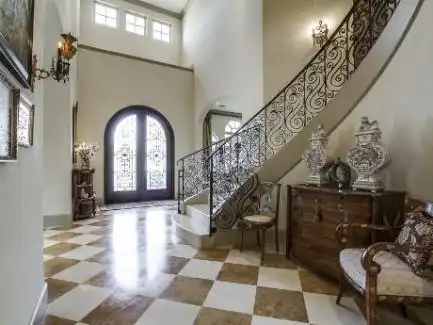

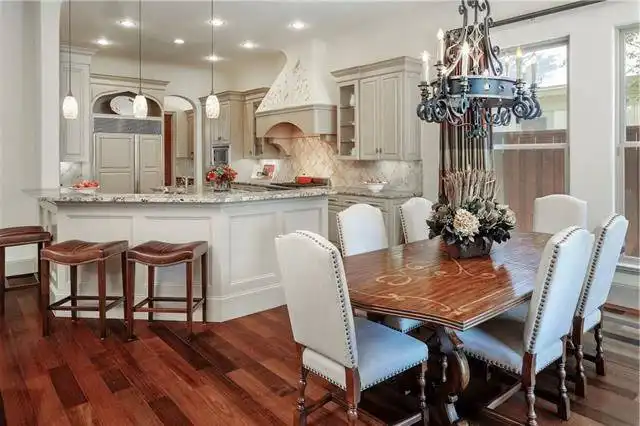

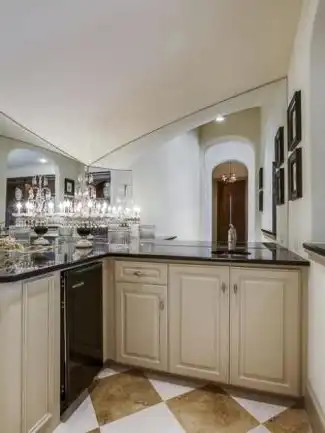

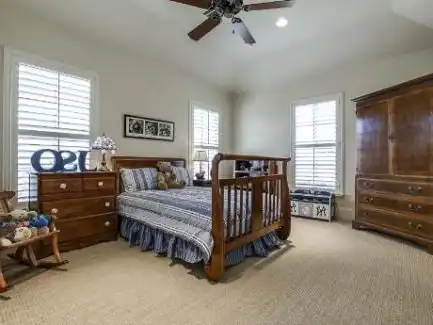

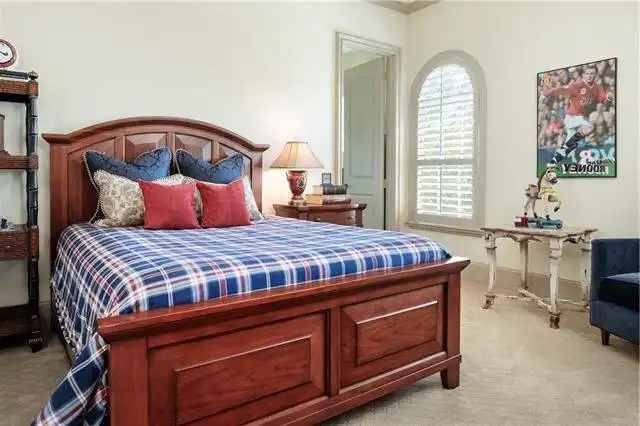

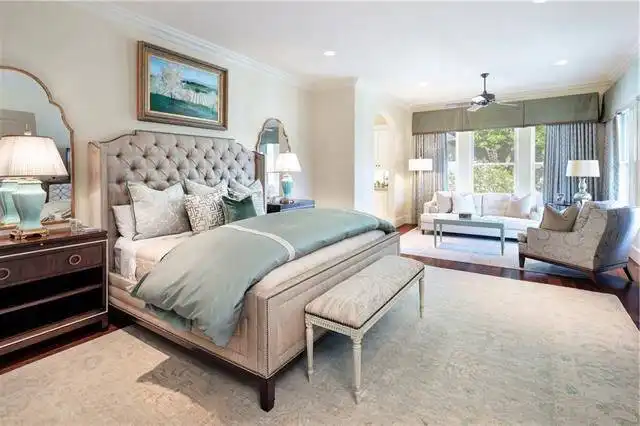

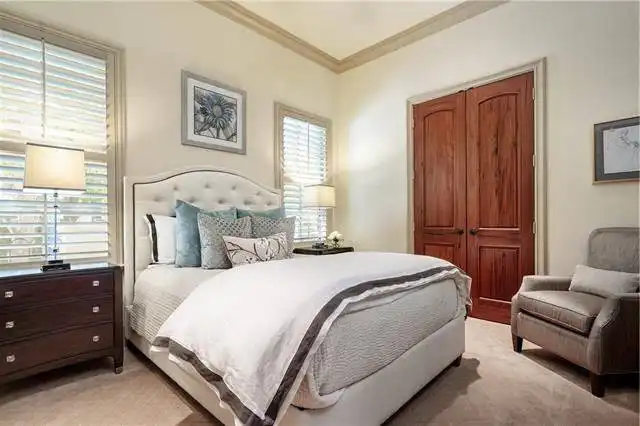

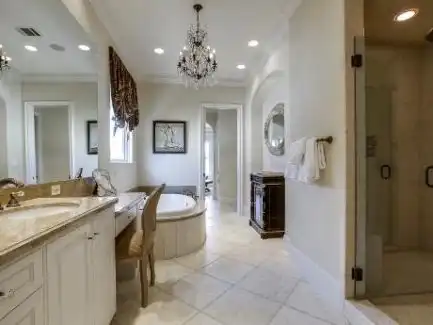

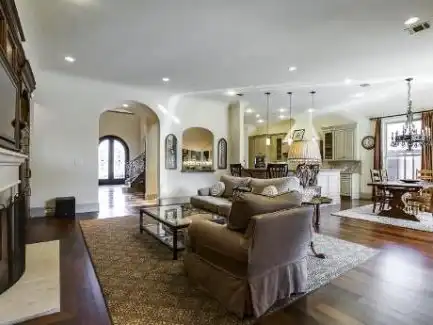

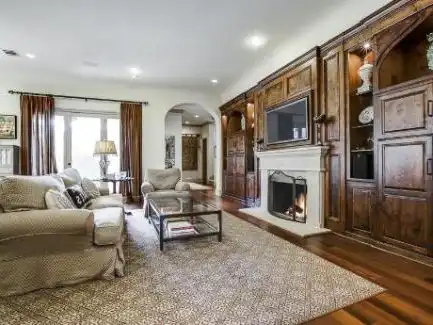

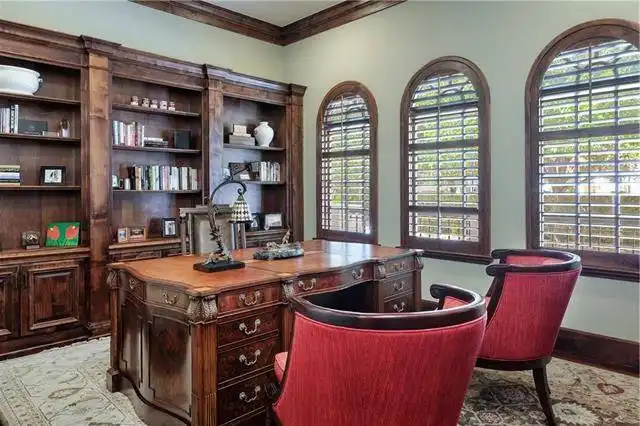

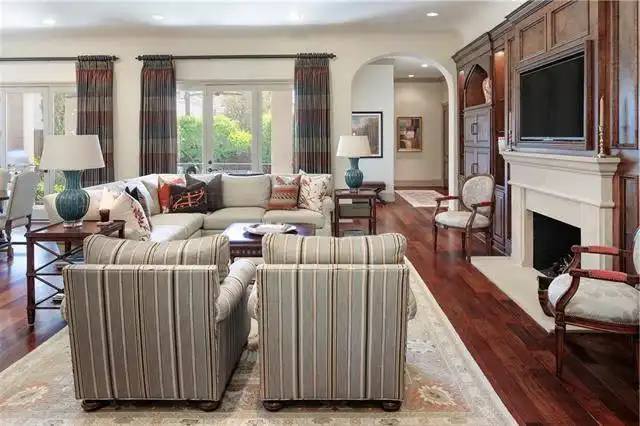

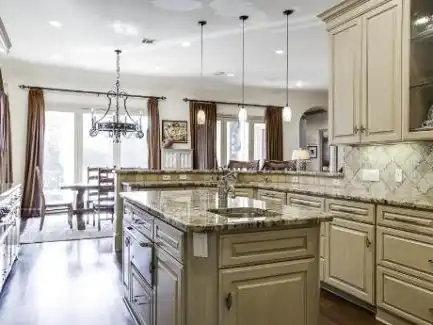

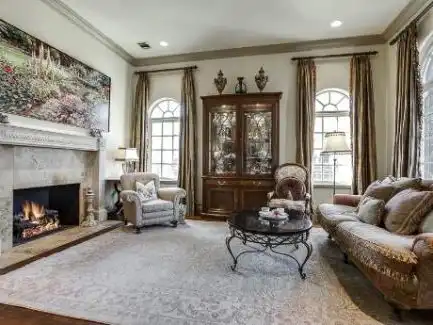

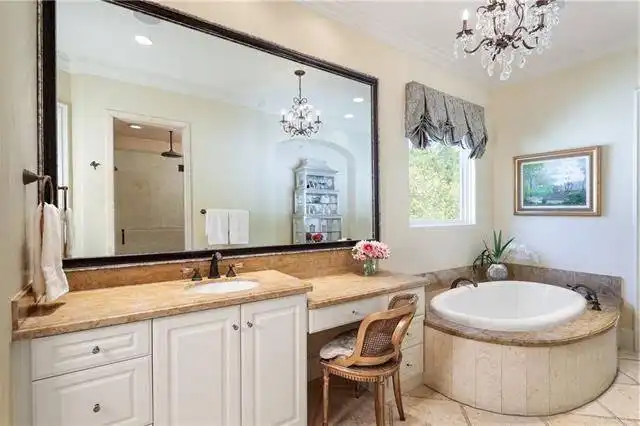

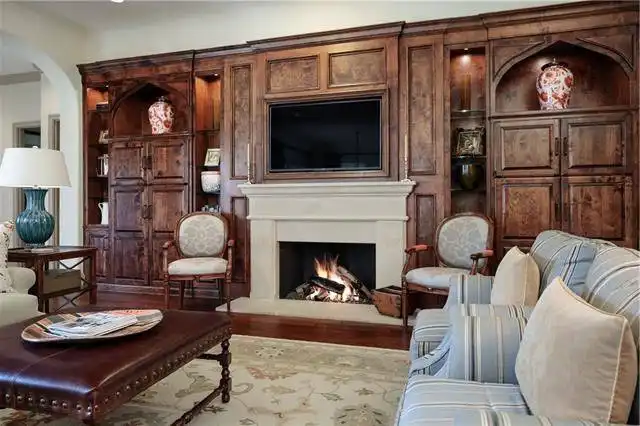

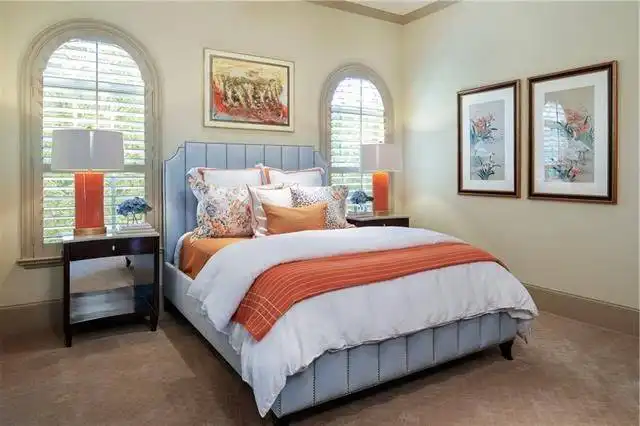

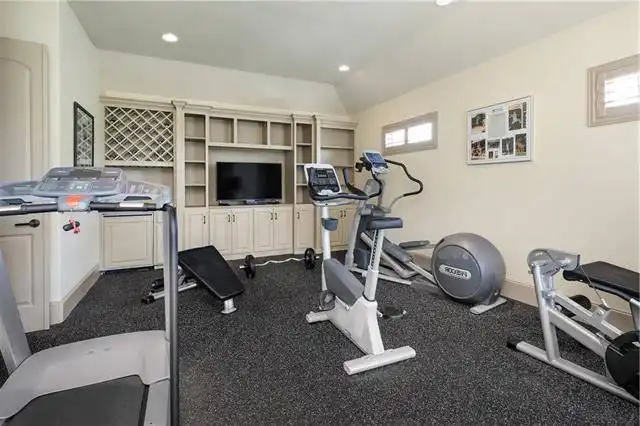

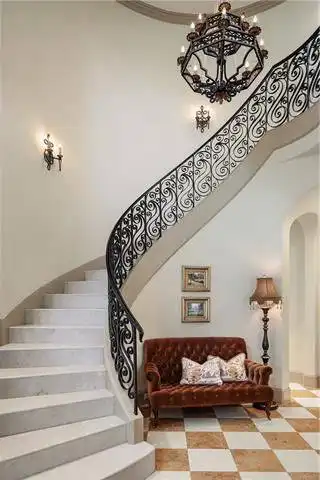

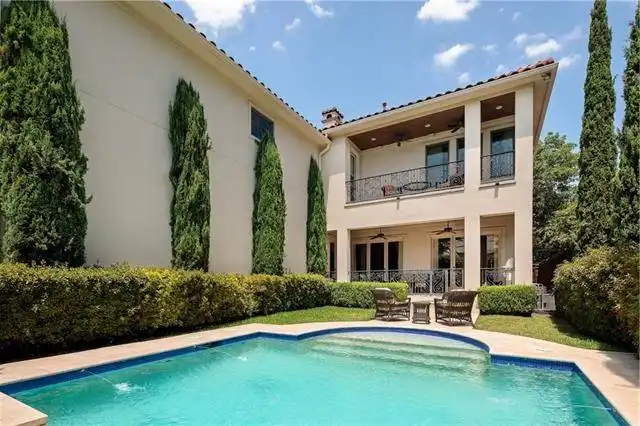

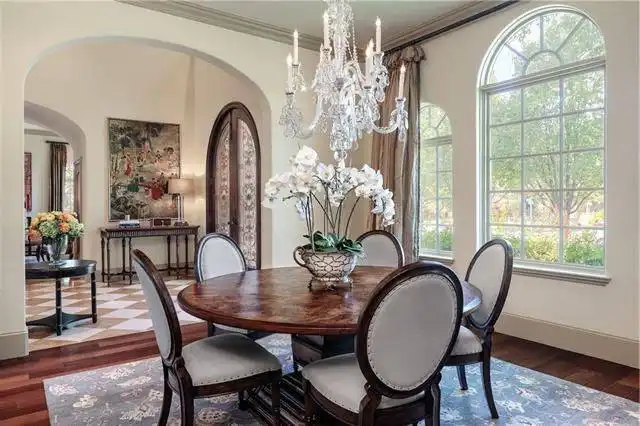

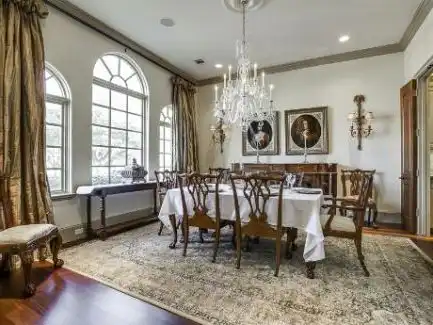

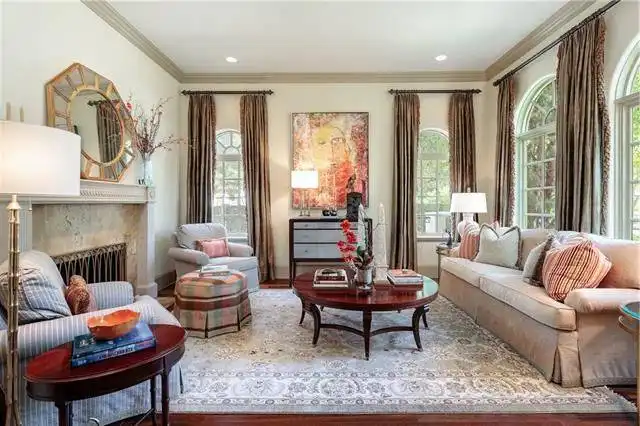

The two story foyer offers views of the spiral staircase ahead and the barrel vaulted ceilings. The open foyer is flanked by a gracious living room with warming fireplace and the formal dining room with pantry and butlery. The family gathering area consists of the kitchen, breakfast room and family room. The center warming fireplace helps keep this area cozy. Access to the patio can be achieved behind the family room. The gourmet kitchen provides a free-standing island for additional counter space. The breakfast bar can be shared with the family room and breakfast area. A quiet study with built-in bookcases and family bedroom with walk-in closet and full bath sit on the left side of the house plan. A two-car garage with rear entry sits at the back of the plan. Upstairs, three family bedrooms with walk-in closets and full baths share space with a exercise area, utility room, game room and gallery. The luxurious master suite boasts a sitting area, bar, lavish bath with his and hers private baths, his and hers vanities, separate shower, tub, his wardrobe, and hers wardrobe with built-ins. An optional elevator is available for this luxury house plan.This luxury house plan is perfect for a narrow lot.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $2,575
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $2,755
Five printed sets of house plans

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $3,860
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$2575
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
2,778 Sq. Ft.
Main Level:
2,979 Sq. Ft.
Upper Level:
5,757 Sq. Ft.
Total:
Room Details
5
Bedrooms:
5
Full Baths:
General House Information
2
Number of Stories:
48' 0"
Width:
95' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
550 Sq. Ft.
Garage:
42 Sq. Ft.
Porch:
125 Sq. Ft.
Deck:
199 Sq. Ft.
Patio:
GARAGE
Rear
Garage Location:
2
Garage Size:

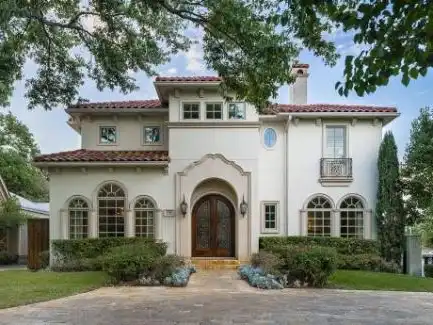

Exterior Style
Mediterranean
Traditional
Tuscan
Collections
Luxury
Old House Classics
Open Floor Plan
Foundation
Crawlspace
Slab
Framing Information
Stick
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
6
Primary:
6
Secondary:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
House And Ceiling Heights
11
First Floor Ceiling:
10
Second Floor Ceiling:
35' 0"
Maximum House Height:
Key Features
2 Story Volume
Arches
Attached
Butler's Pantry
Country Kitchen
Covered Front Porch
Covered Rear Porch
Deck
Dining Room
Double Vanity Sink
Family Room
Fireplace
Formal LR
Foyer
Front Porch
His and Hers Primary Closets
Home Office
Kitchen Island
Laundry 1st Fl
Library/Media Rm
Primary Bdrm Upstairs
Nook / Breakfast Area
Open Floor Plan
Rear Porch
Rear-entry
Separate Tub and Shower
Sitting Area
Slab
Vaulted Ceilings
