House Plan: DFD-5270

Pin It

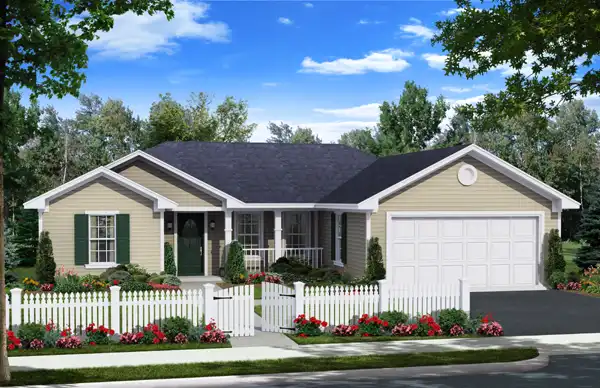

See All 2 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,216
BEDS
3
BATHS
2
STORIES
1
CARS
2
HOUSE PLANS SALE
START AT  $1,076.00
For questions and help, live chat, email or call us at 877-895-5299
1st Level Floorplan
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5270:
This design features a great room which opens directly into your dining room/breakfast area. From the dining, your family has easy access to the large patio, which can be easily built as covered or left open to enjoy the great outdoors. Looking for storage space? This home features large bedroom closets. Make this your family's next home!This home provides a great use of space, innovative features, and the popular split-bedroom floor plan.
House Plan Pricing
STEP 1 Select Your Package

Study Set - Printed

One printed set of house plans stamped NOT FOR CONSTRUCTION". This set is intended for review purposes and are mailed to you. To build from the plans, you need to upgrade to a licensed set.
Study Set - Printed $1,200
One Printed Set - Not for Construction

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,345
Five printed sets of house plans

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,455
Most recommended package

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $1,540
Digital plans plus 5 printed sets

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $1,930
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1345
FREE SHIPPING

Detailed Plan Packages & Pricing
Our Structural Detail & IRC Guarantee
Architect's Preferred Home Products
Plan Details
See All Details
Finished Square Footage
1,216 Sq. Ft.
Main Level:
1,216 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
General House Information
1
Number of Stories:
50' 0"
Width:
47' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
595 Sq. Ft.
Garage:
54 Sq. Ft.
Porch:
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
Country
Ranch
Traditional
Collections
Empty Nester
First Home
Old House Classics
Split Bedroom
Foundation
Basement
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
6 in 12
Primary:
None
Secondary:
Roof Load
30
Live:
10
Dead:
40
Wind:
Insulation (R)
15
Exterior Wall:
0
Interior Wall:
38
Ceiling:
19
Floor:
House And Ceiling Heights
8
First Floor Ceiling:
15' 3"
Maximum House Height:
Key Features
Attached
Basement
Covered Front Porch
Deck
Front-entry
Laundry 1st Fl
Primary Bdrm Main Floor
Open Floor Plan
Oversized
Split Bedrooms
Storage Space
Suited for corner lot
Suited for narrow lot
Suited for sloping lot
Suited for view lot
Unfinished Space
Walk-in Closet
Walkout Basement
