House Plan: DFD-5290

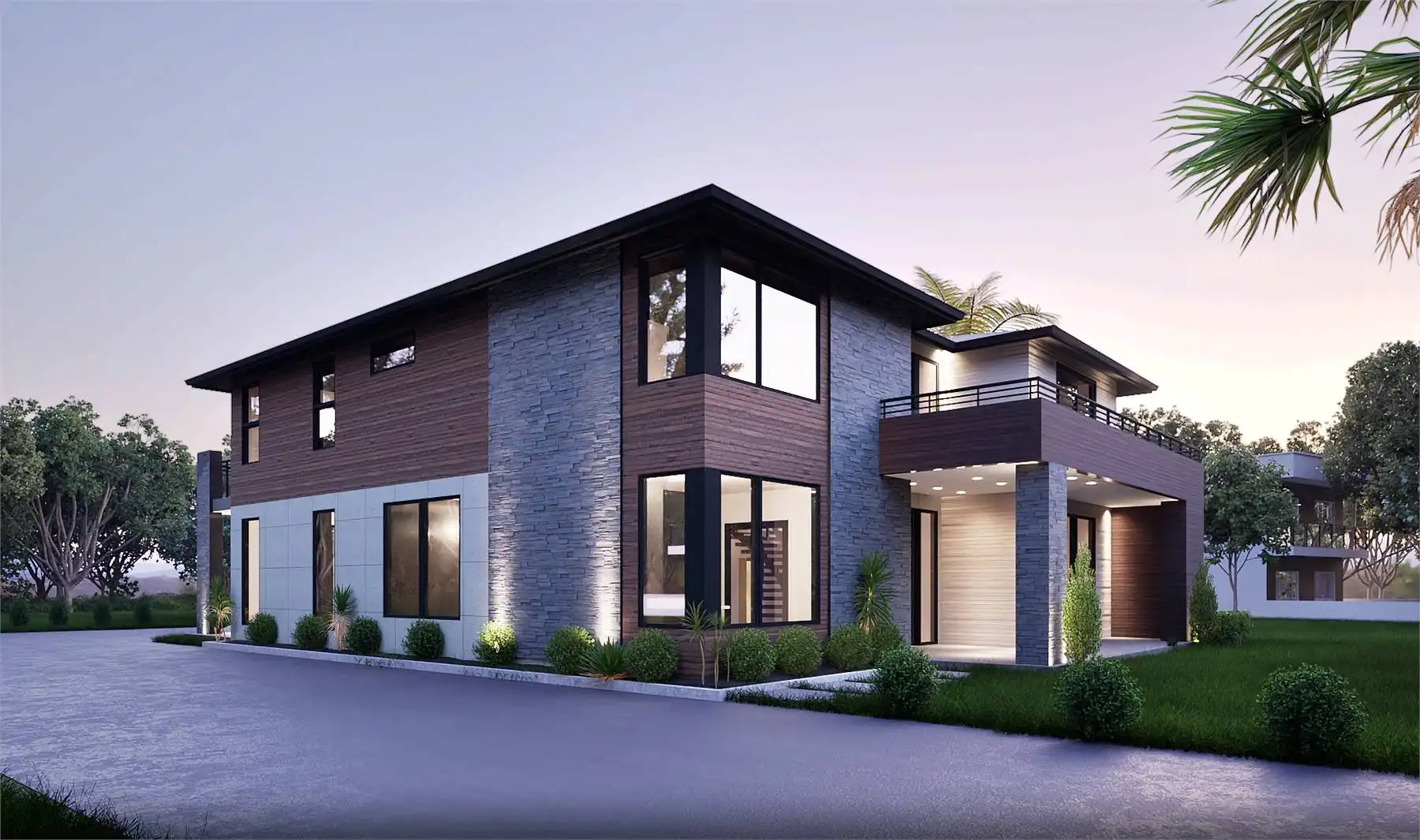

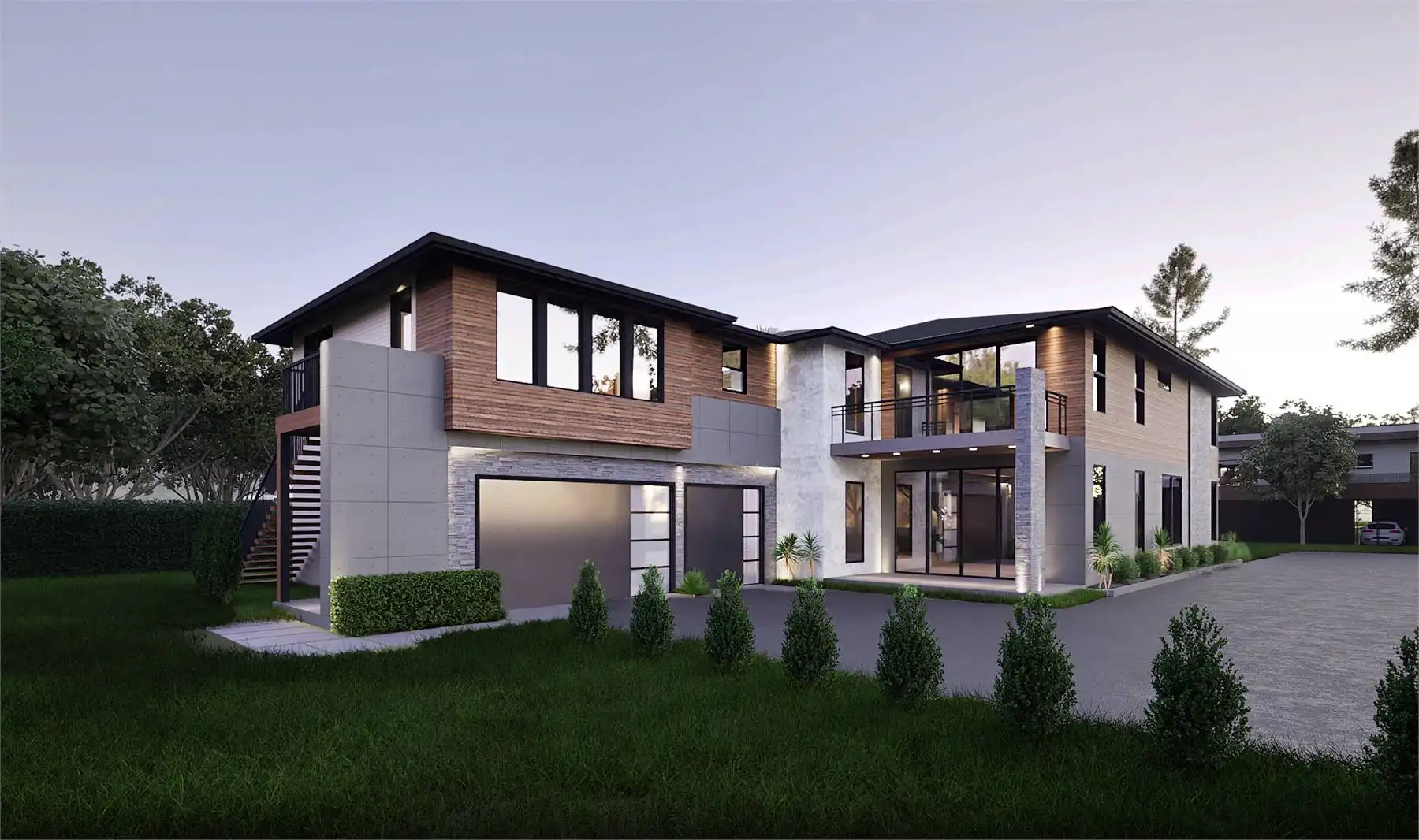

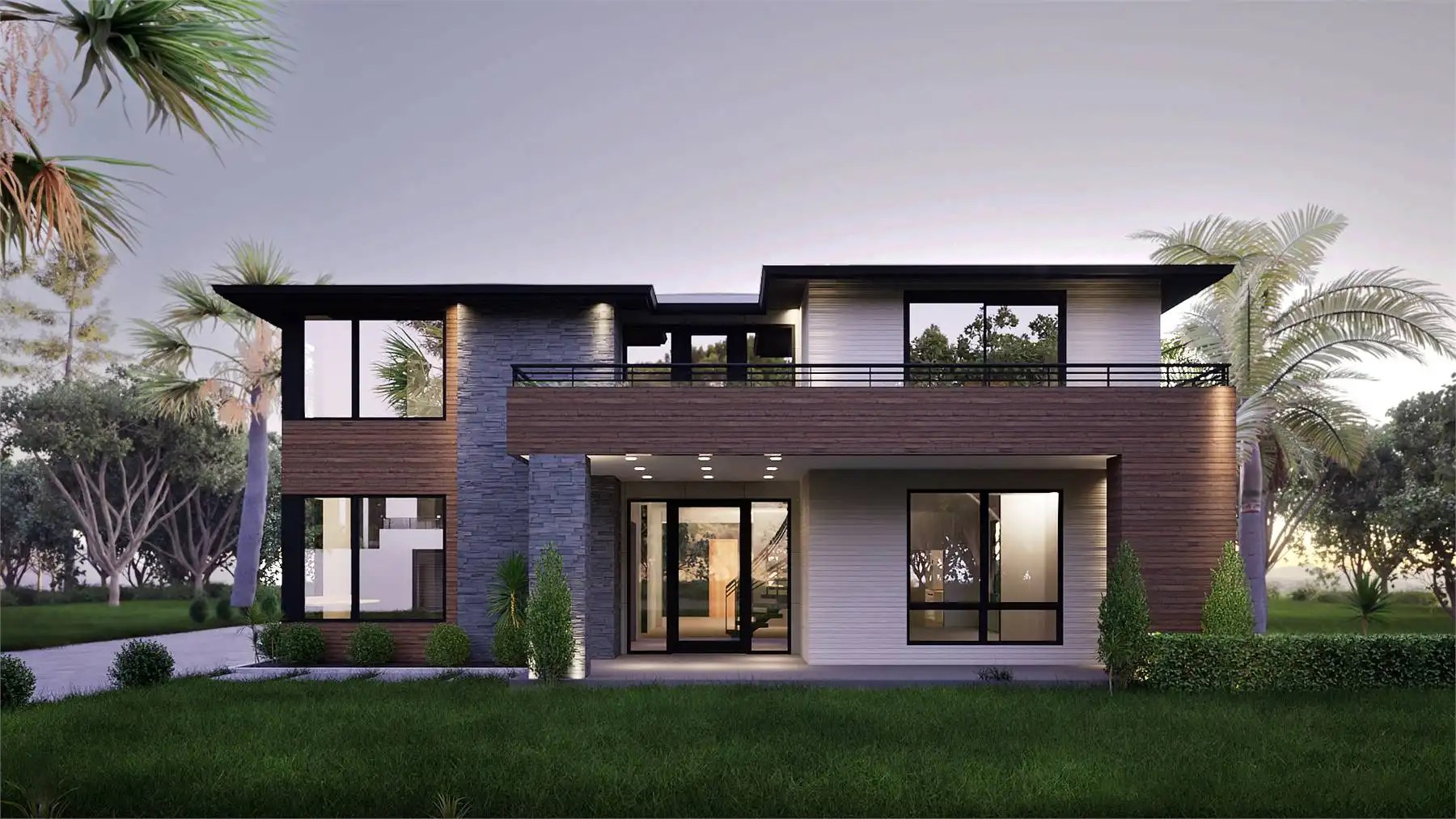

See All 5 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
5,599
BEDS
6
BATHS
6.5
STORIES
2
CARS
3
HOUSE PLANS SALE
START AT  $2,240.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5290:
House Plan 5290 is a contemporary design with 5,599 square feet between the main house and an attached apartment, so it has plenty for a family and in-laws or renters to appreciate! The main level includes a mix of formal and informal spaces, with formal living and dining in addition to the island kitchen that's open to the great room. There's also an office and a guest bedroom suite. Upstairs, you'll find a luxe primary suite with a five piece suite and three smaller suites with three-piece baths. The apartment is located over the garage and has access from the second story as well as up private exterior stairs. With two bedrooms, a kitchen, and open living, this apartment has everything you need!
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $2,800
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $3,100
Five printed sets of house plans

8 Printed Sets


Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

8 Printed Sets $3,250
Eight printed sets of house plans

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $5,319
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$2800
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
3,350 Sq. Ft.
Main Level:
2,249 Sq. Ft.
Upper Level:
5,599 Sq. Ft.
Total:
Room Details
6
Bedrooms:
6
Full Baths:
1
Half Baths:
General House Information
2
Number of Stories:
46' 6"
Width:
90' 7"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
775 Sq. Ft.
Garage:
124 Sq. Ft.
Rear Porch:
245 Sq. Ft.
Deck:
GARAGE
Rear
Garage Location:
3
Garage Size:
Exterior Style
Contemporary
Mid-Century Modern
Modern
Transitional
Collections
In-Law Suite
Kitchens
Luxury
Primary Suites
Mountain
Outdoor Living
Split Bedroom
Foundation
Crawl Space
Slab
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
4/12
Primary:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
10
First Floor Ceiling:
9
Second Floor Ceiling:
28' 6"
Maximum House Height:
Key Features
2 Story Volume
Attached
Bonus Room
Butler's Pantry
Courtyard
Courtyard/Motorcourt Entry
Covered Front Porch
Covered Rear Porch
Deck
Dining Room
Double Vanity Sink
Fireplace
Formal LR
Great Room
Guest Suite
Home Office
In-law Suite
Kitchen Island
Laundry 2nd Fl
Library/Media Rm
Loft / Balcony
L-Shaped
Primary Bdrm Upstairs
Mud Room
Nook / Breakfast Area
Pantry
Separate Tub and Shower
Side-entry
Split Bedrooms
Suited for corner lot
Suited for view lot
Walk-in Closet
Walk-in Pantry
