House Plan: DFD-5345

See All 9 Photos > (photographs may reflect modified homes)
© copyright by architect
SQ FT
1,603
BEDS
3
BATHS
2.5
STORIES
2
CARS
2
HOUSE PLANS SALE
START AT  $796.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5345:

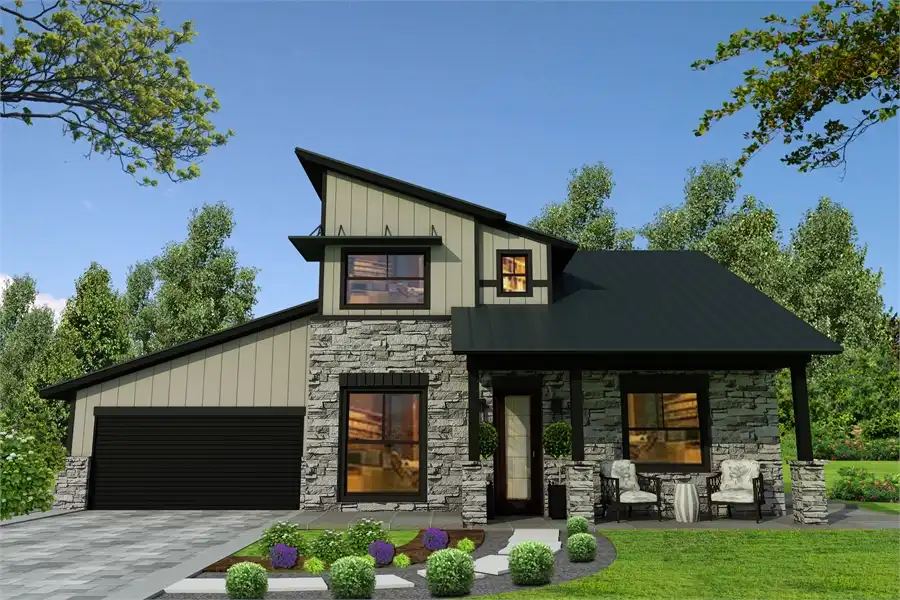

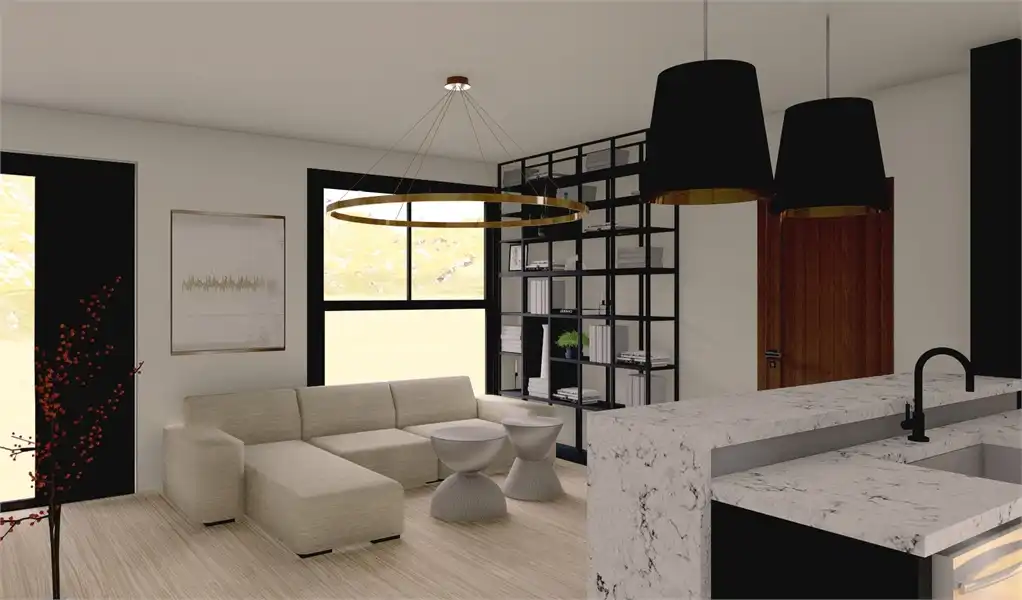

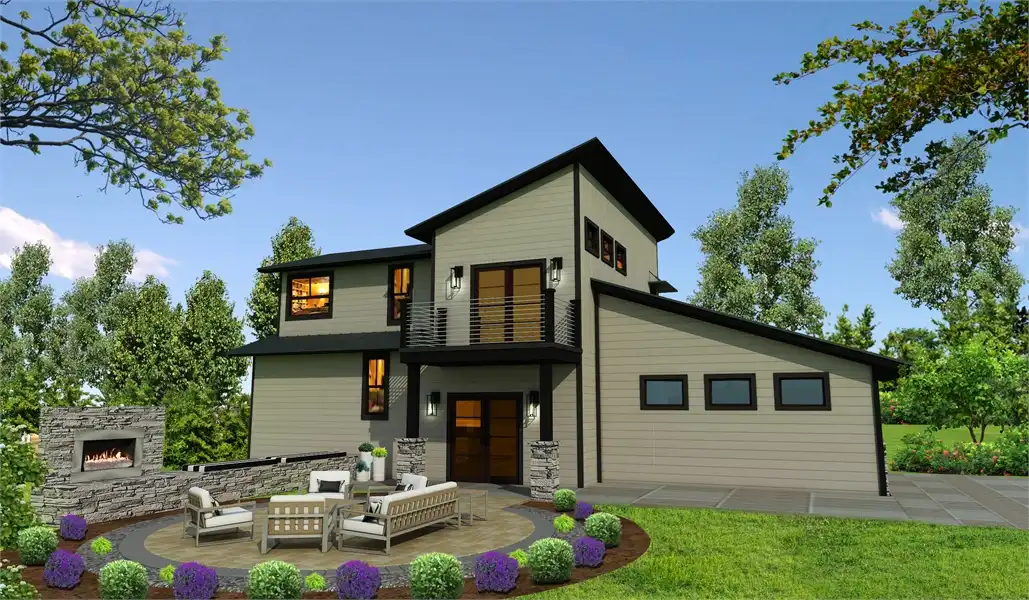

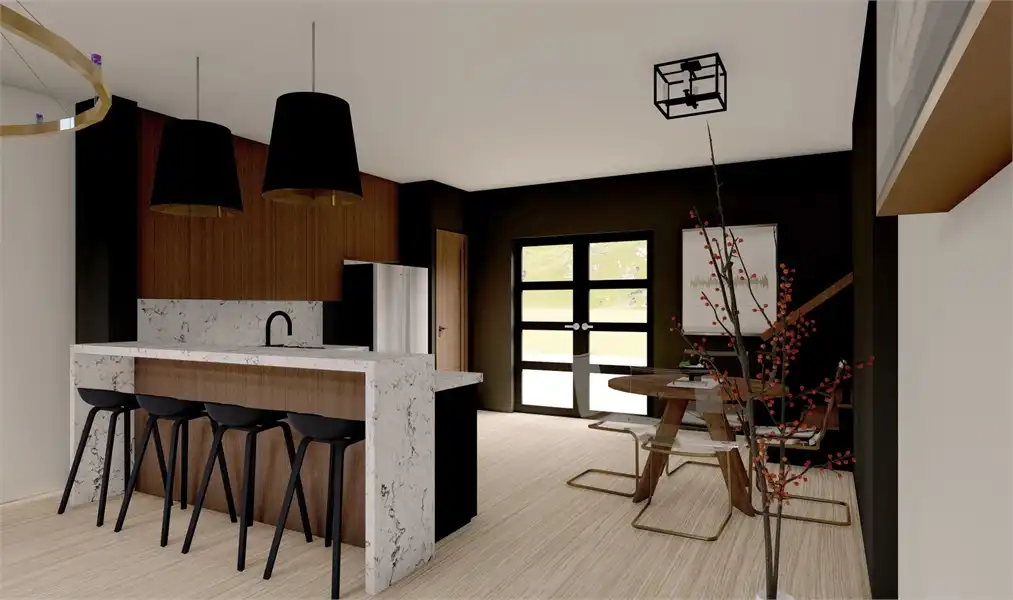

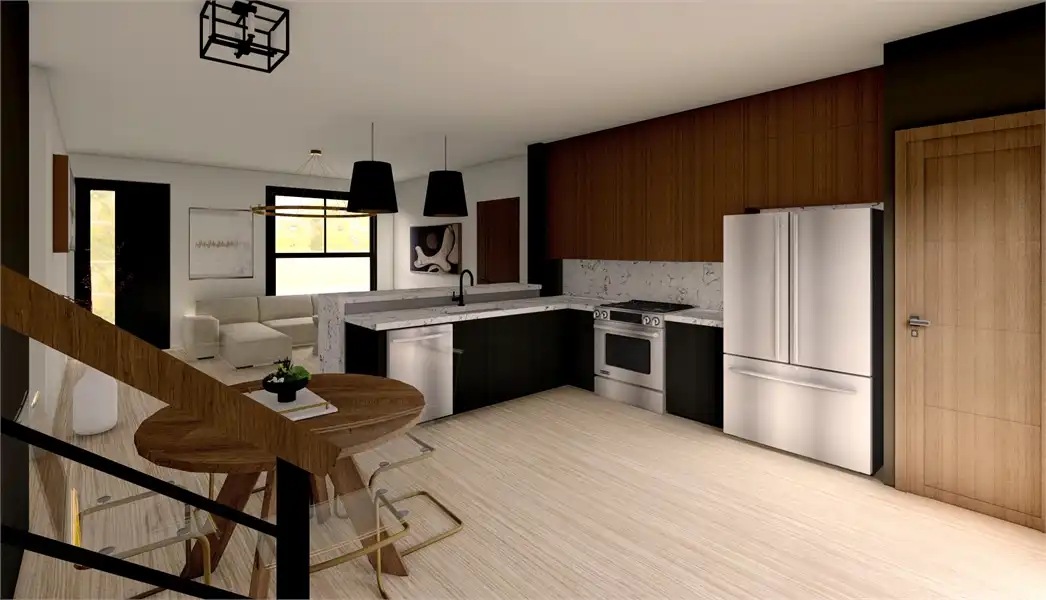

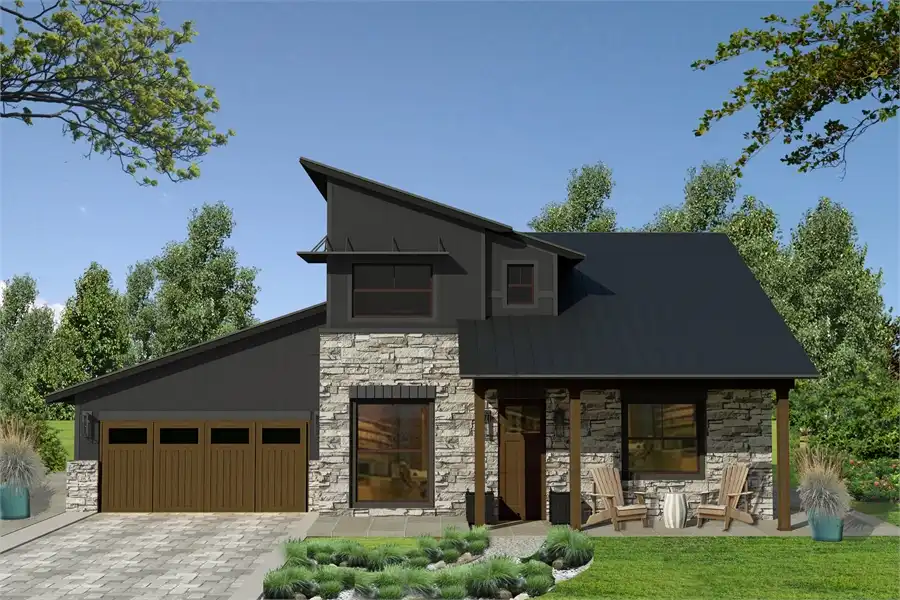

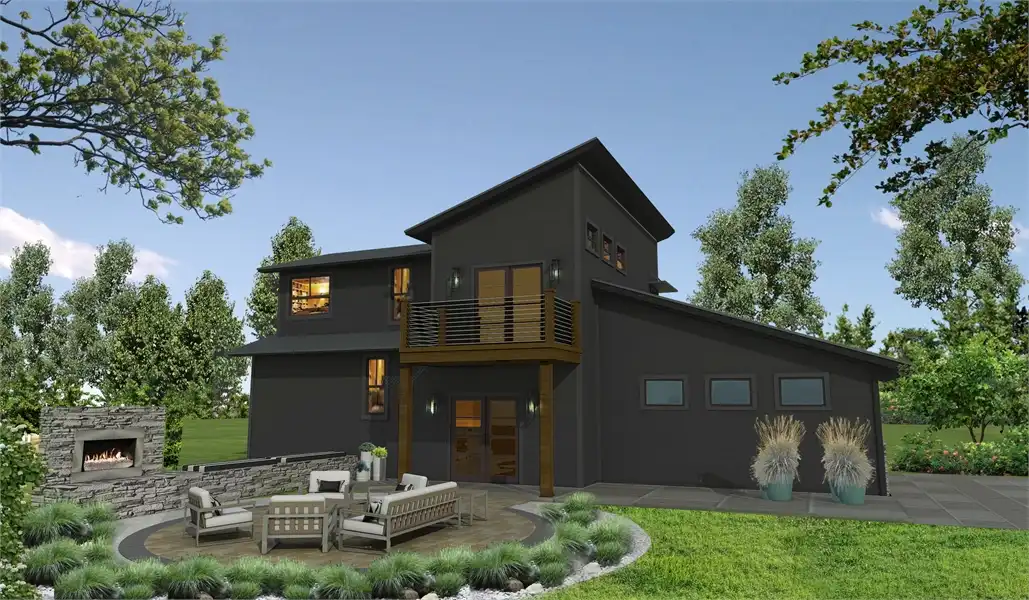

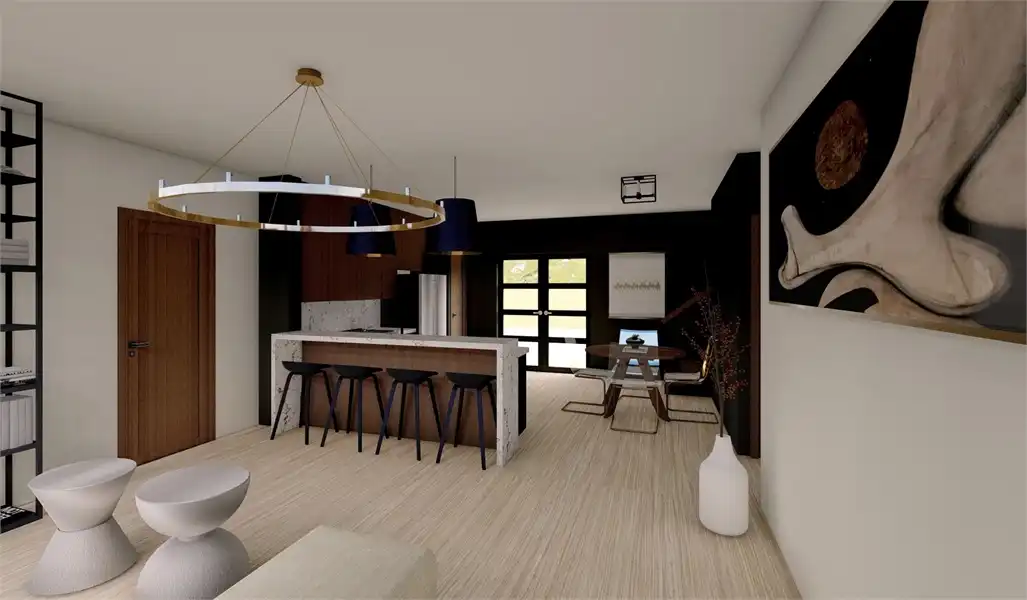

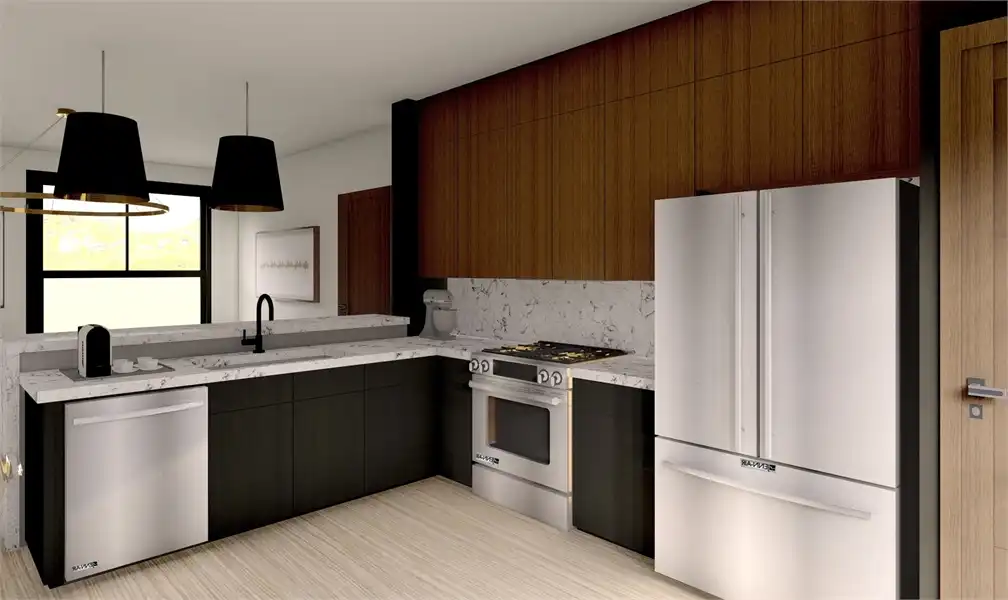

If you’ve been searching for a home that is both compact and efficient, The Raven may be exactly what you’ve been searching for! This charming model is a new addition to the Customer Preferred House Plan list and is based on ‘The Greenview,’ a customer favorite. The Raven incorporates new modifications based directly on feedback from our customers, so this plan is ready with all of the updates. Stone cladding and vertical vinyl siding adorn the exterior, while a sloping, dynamic roofline catches the eye and offers the contemporary style has become so desirable. An attached two-car garage provides ample space for this home to comfortably provide for a working family in any environment. For lovers of outdoor living, a small ground-level patio and second-story deck help you kick back at the end of a long day. The interior of The Raven showcases a modern open floor plan, featuring great things such as a peninsula kitchen with bar seating to increase the functional space. The Raven offers  1,603 square feet of living space, full of great benefits at every turn. The kitchen can also host a dining table for a proper meal, while patio doors open on to the back deck, taking the headache out of hosting guests. An addition to the original plan, The Raven now features a half bathroom on the main level to accommodate guests. The main-level master suite also features an updated bathroom layout, complete with his and hers vanities and a large walk-in shower positioned for gorgeous natural lighting. The toilet is tucked away in a water closet for more privacy, while a spacious walk-in closet will easily accommodate any wardrobe. Upstairs is home to two more bedrooms and a full bathroom, as well as the laundry room, making chores convenient. Kids and parents alike will enjoy the roomy second floor loft that opens to the upper deck. This space is great for any variety of uses, from a second living room, game room, exercise room, or whatever else you desire! We’ve included a suggested list of our tried and trusted products in the floor plan and listing below so you know what we used to design The Raven. These Architect Preferred products were used in the finished renderings. If you like this Customer Preferred House Plan but want more outdoor space, check out 7298: The Elmwood, which has a carport topped with an expansive second story deck, surrounded by beautiful views!
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $995
Immediate Delivery!
Most recommended package

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $1,995

States N/A: TX,NM,LA
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$995
FREE SHIPPING
IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of AL, TN, TX, NM and LA. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Modifications can be provided by the original architect. Please contact us for more information.

Plan Details
See All Details
Finished Square Footage
928 Sq. Ft.
Main Level:
675 Sq. Ft.
Upper Level:
1,603 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
2
Number of Stories:
53' 0"
Width:
41' 6"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
393 Sq. Ft.
Garage:
134 Sq. Ft.
Porch:
GARAGE
Side
Garage Location:
2
Garage Size:
Exterior Style
Contemporary
Modern
Collections
Affordable
Exclusive
North Carolina
Open Floor Plan
Outdoor Living
PDFs Fast!
Split Bedroom
Tennessee
Texas
Vacation
Foundation
Basement
Crawl Space
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
6/12
Primary:
4:12
Secondary:
Roof Load
20
Live:
10
Dead:
Insulation (R)
15
Exterior Wall:
0
Interior Wall:
30
Ceiling:
0
Floor:
House And Ceiling Heights
9
First Floor Ceiling:
9
Second Floor Ceiling:
26' 3"
Maximum House Height:
Facade
Siding/Stone
Key Features
Attached
Country Kitchen
Covered Front Porch
Crawlspace
Deck
Dining Room
Double Vanity Sink
Front Porch
Front-entry
Laundry 2nd Fl
Loft / Balcony
Primary Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Slab
Split Bedrooms
Storage Space
Walk-in Closet
