House Plan: DFD-5498

See All 19 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
4,997
BEDS
4
BATHS
4.5
STORIES
2
CARS
3
HOUSE PLANS SALE
START AT  $2,142.40
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5498:

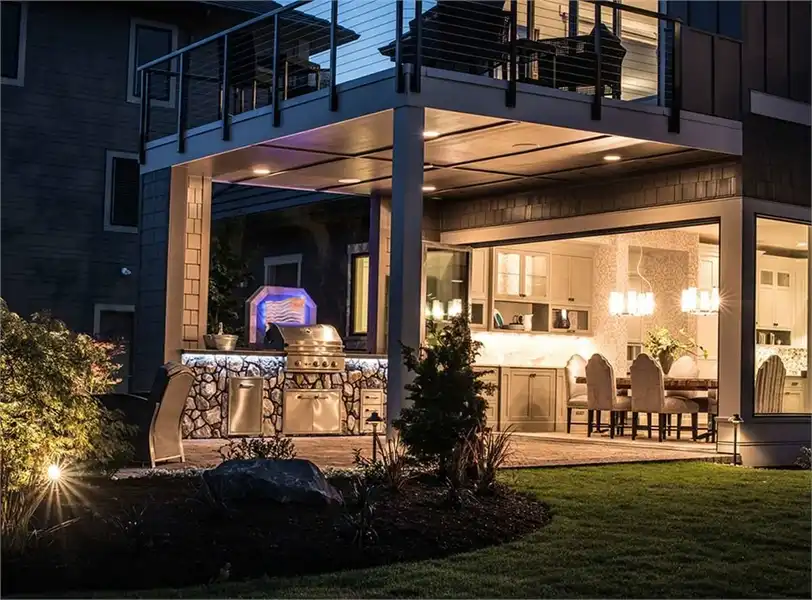

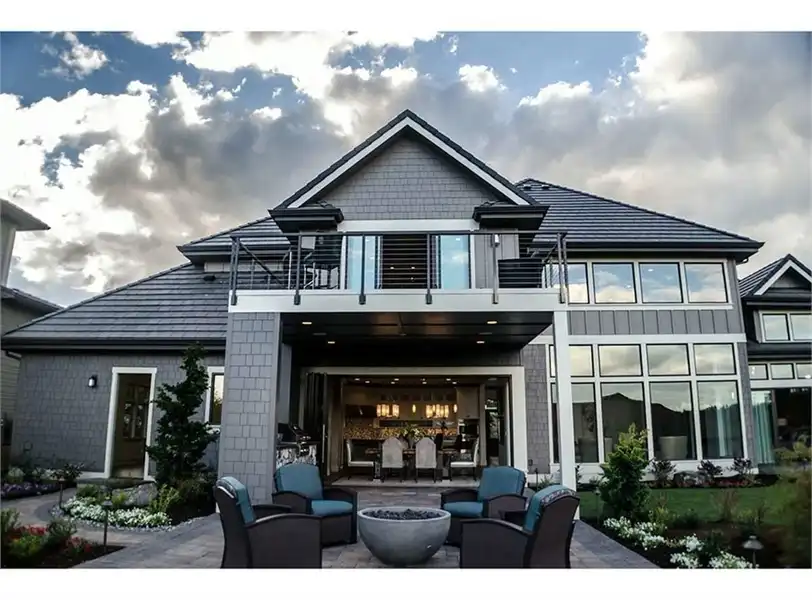

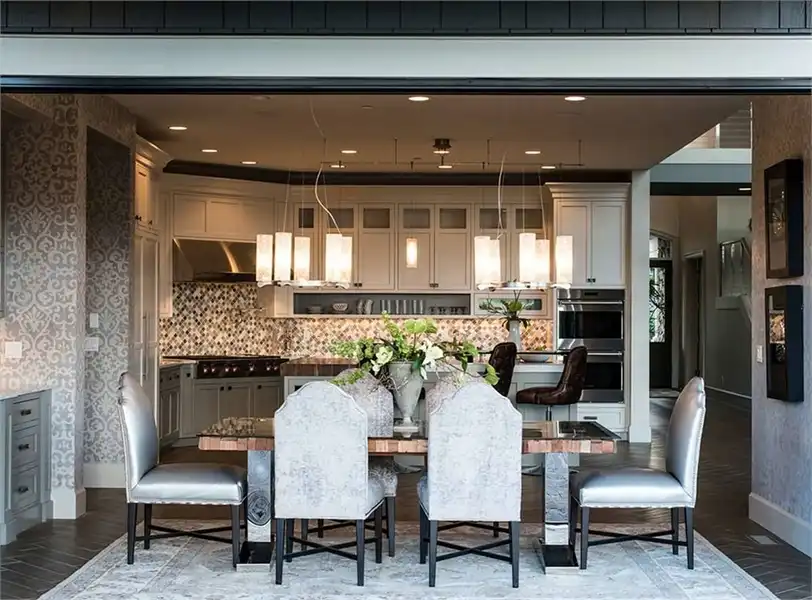

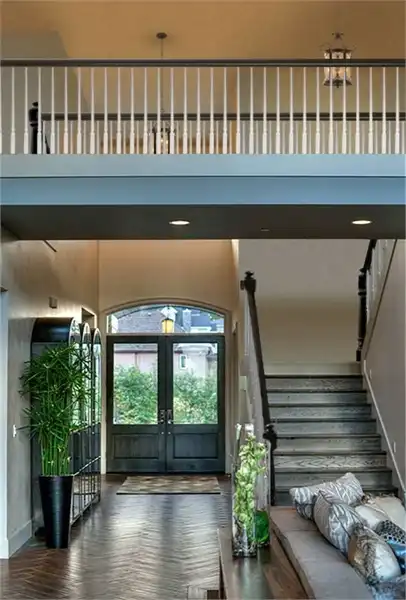

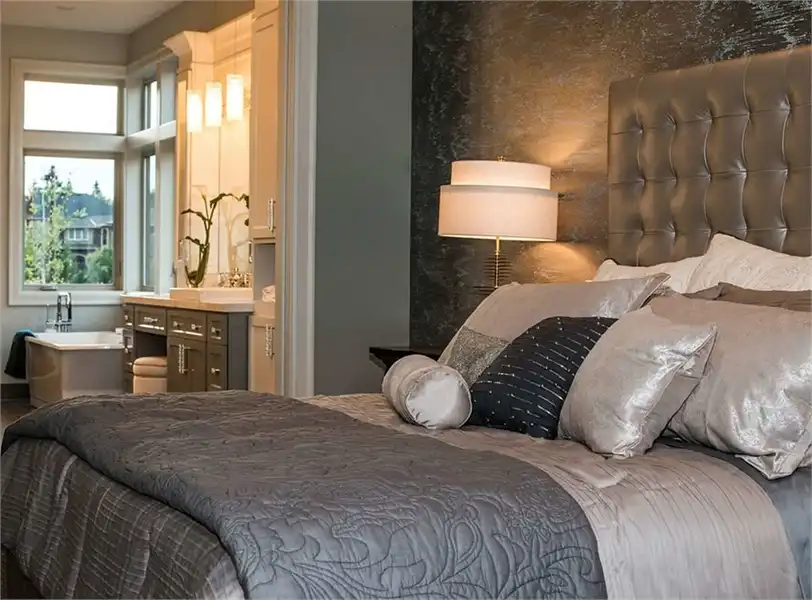

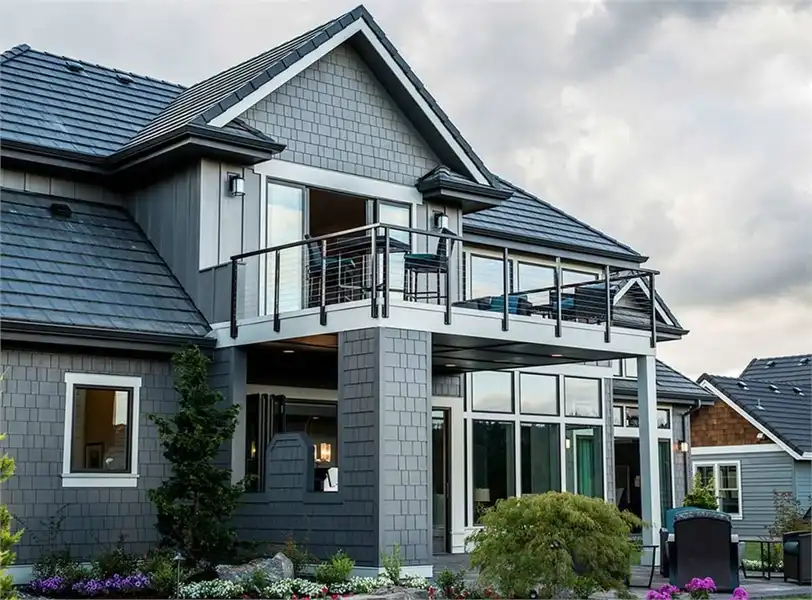

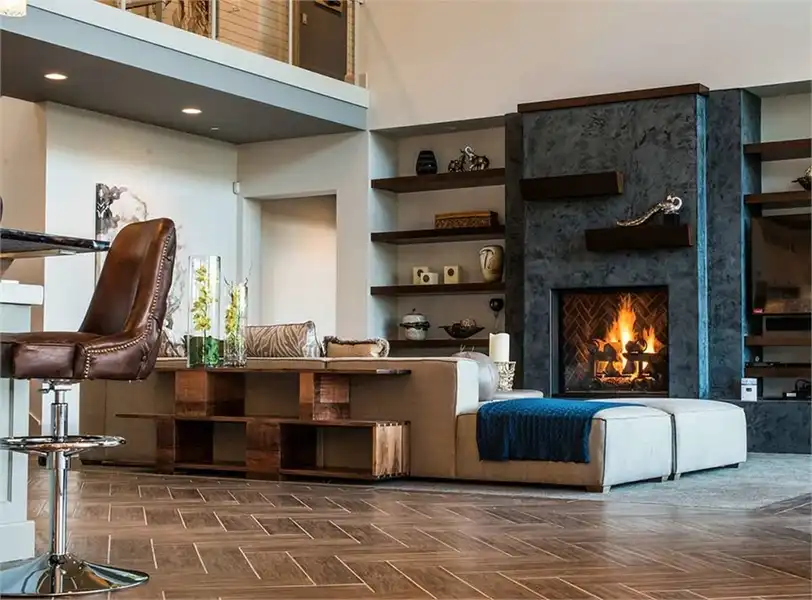

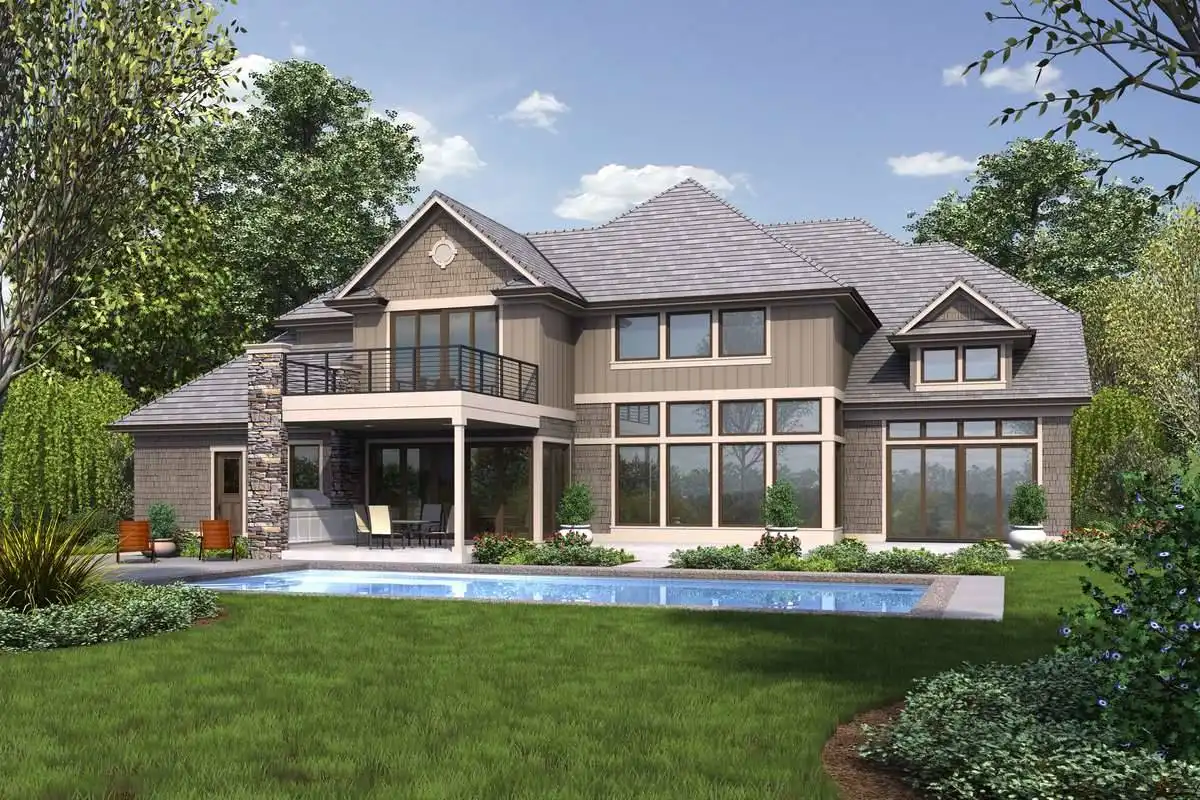

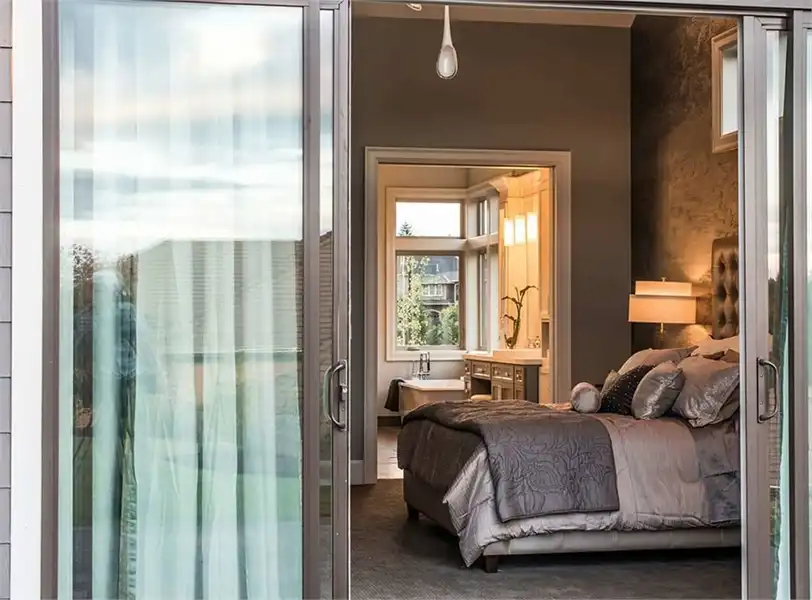

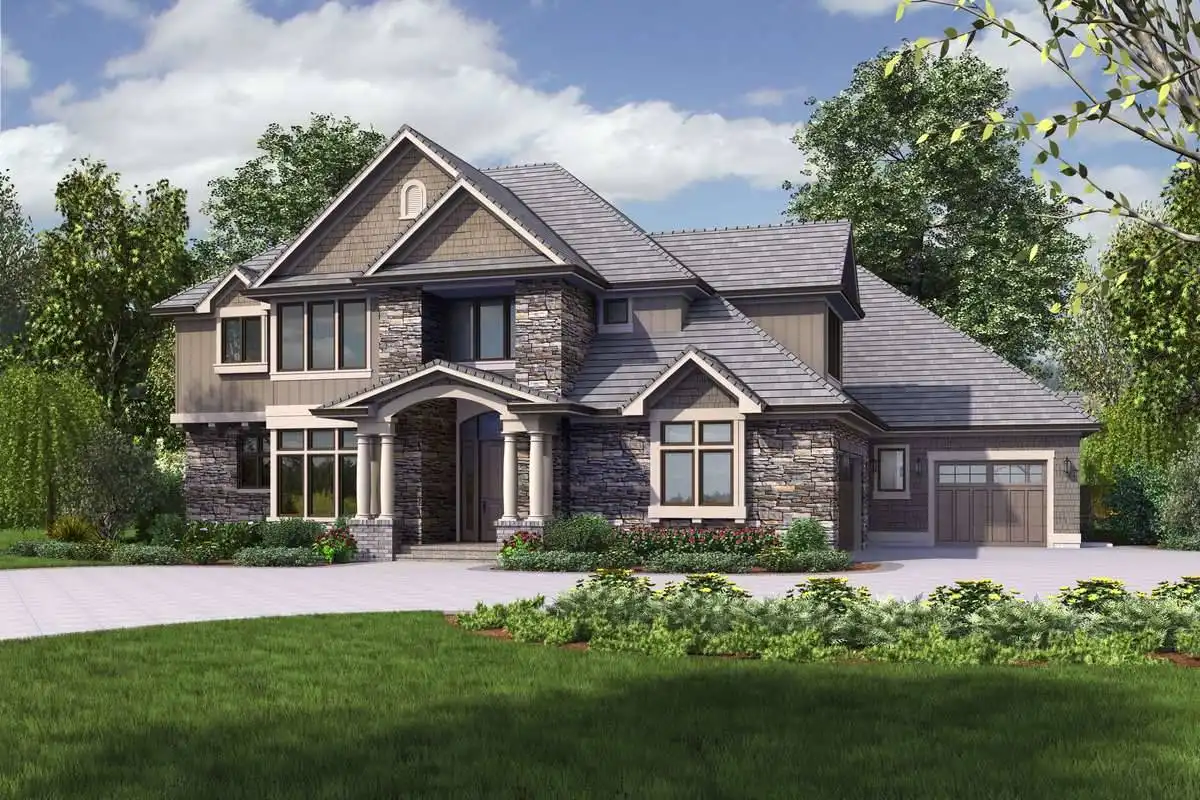

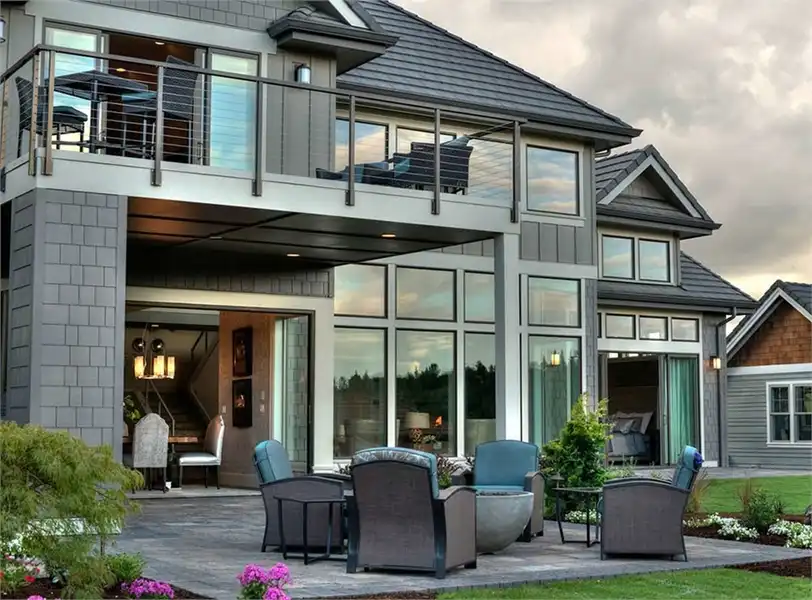

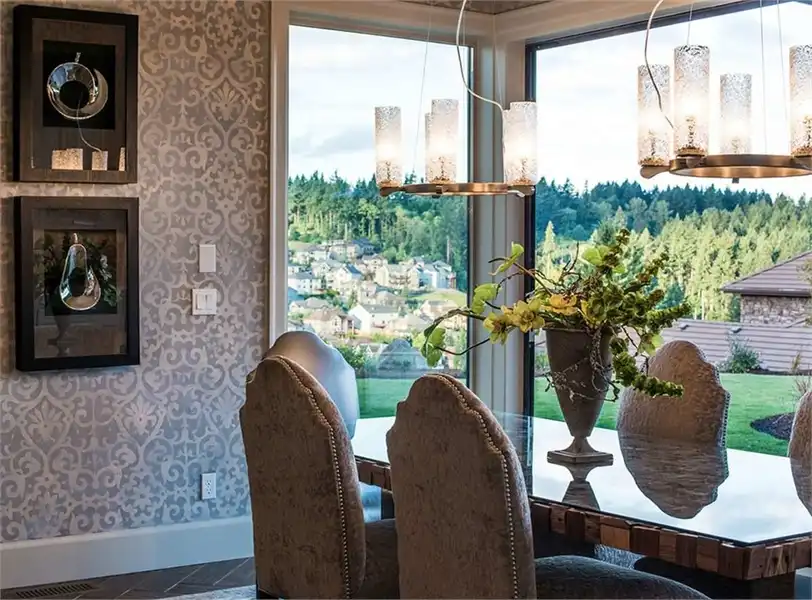

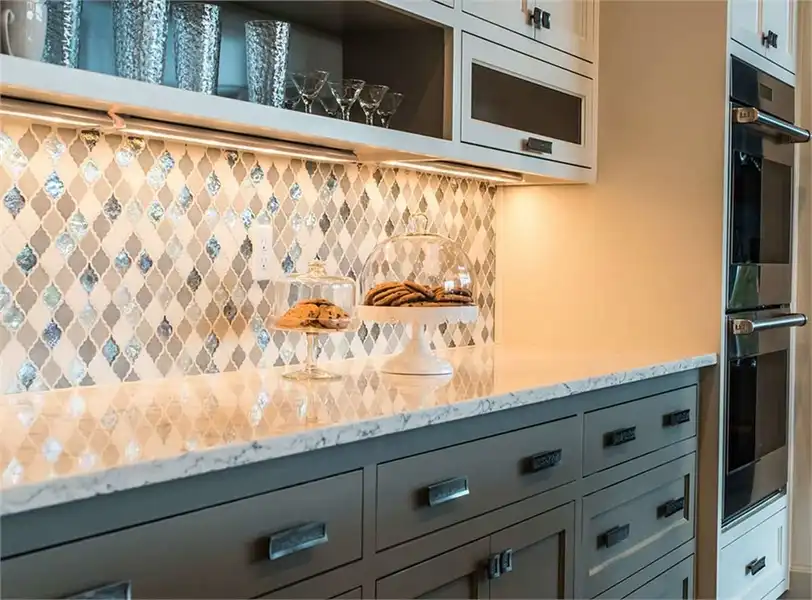

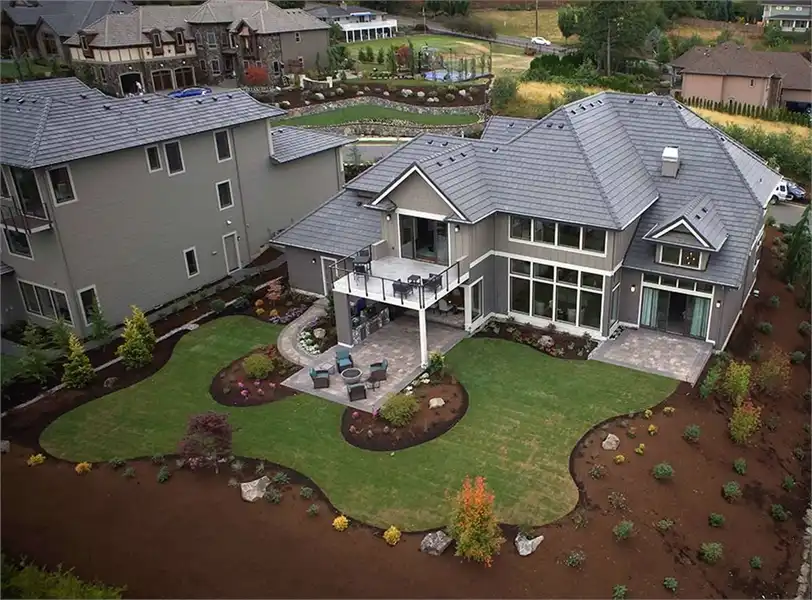

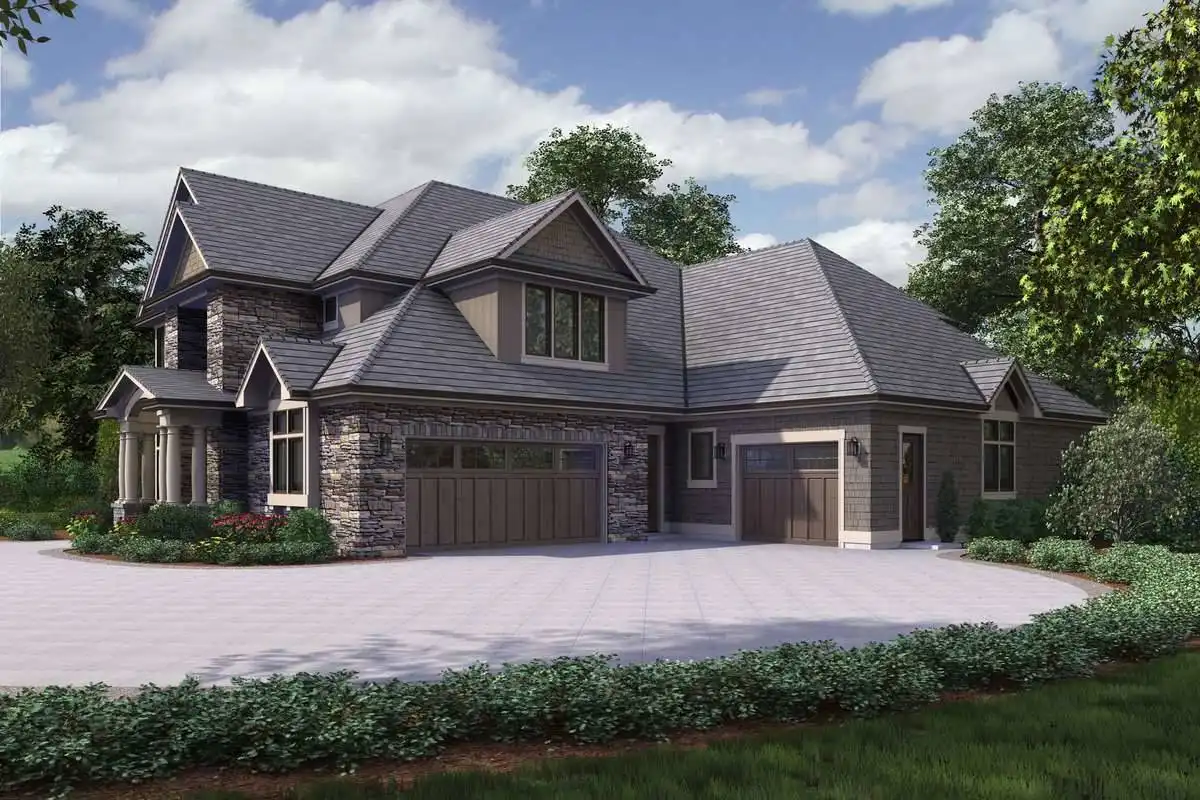

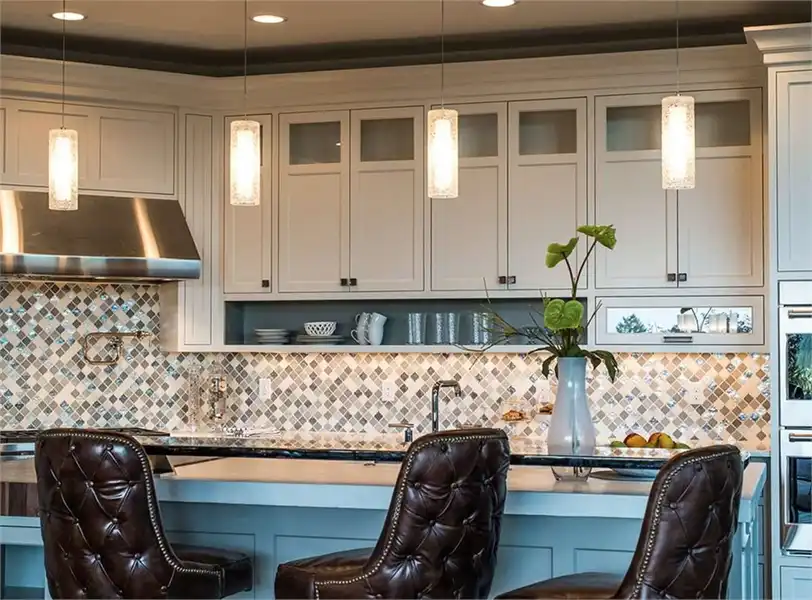

Inside this 4,997, 4 bedroom and 4.2-bathroom Craftsman style house plan are features that are sure to catch the eye. The beautiful double doors provide access to the grand foyer. An open floor layout finds the two-story great room joining with the eat-in island kitchen and dining room with its access to the outdoor living space and built-in barbecue. Off of the great room, you will be pleased to find that this home has a first-floor master suite, complete with his and hers closets, a spa bathroom with dual vanities, and a private patio. The second floor is home to three bedrooms, each with their own walk-in closets and en-suites. The highlight of this home is its spacious game room with a wet bar and your very own in-home theater, great for a family movie night. The outdoor living area, complete with a balcony that provides shade and privacy to the below patio. This outdoor area is a great place for gatherings or hosting parties of all kinds. The side of the home features two separate garages with parking for up to 3 cars, as well as a workshop.


House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $2,678
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $2,878
Five printed sets of house plans

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $2,928
Digital plans plus 5 printed sets

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $5,356
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$2678
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
3,186 Sq. Ft.
Main Level:
1,811 Sq. Ft.
Upper Level:
4,997 Sq. Ft.
Total:
Room Details
4
Bedrooms:
4
Full Baths:
2
Half Baths:
General House Information
2
Number of Stories:
80' 0"
Width:
88' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
1042 Sq. Ft.
Garage:
GARAGE
Side
Garage Location:
3
Garage Size:
Exterior Style
Cape Cod
Contemporary
Craftsman
Traditional
Collections
Kitchens
Luxury
Primary Suites
Open Floor Plan
Outdoor Living
Split Bedroom
Foundation
Basement
Crawlspace
Stem Wall Slab Foundation-Included
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
10/12
Primary:
Roof Load
25
Live:
15
Dead:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
House And Ceiling Heights
10
First Floor Ceiling:
9
Second Floor Ceiling:
34' 7"
Maximum House Height:
Key Features
2 Story Volume
Attached
Basement
Covered Front Porch
Covered Rear Porch
Crawlspace
Dining Room
Double Vanity Sink
Family Room
Fireplace
Foyer
Great Room
His and Hers Primary Closets
Kitchen Island
Laundry 1st Fl
Loft / Balcony
Primary Bdrm Main Floor
Mud Room
Open Floor Plan
Rec Room
Separate Tub and Shower
Sitting Area
Slab
Split Bedrooms
Storage Space
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
Wine Cellar
