House Plan: DFD-5717

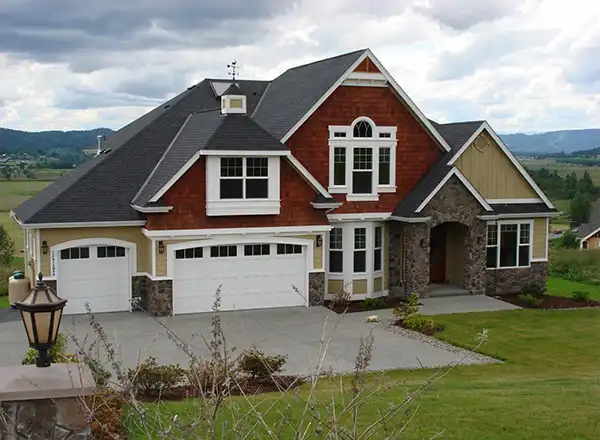

See All 6 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
3,575
BEDS
4
BATHS
2.5
STORIES
2
CARS
3
HOUSE PLANS SALE
START AT  $1,760.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5717:
Craftsman details adorn this luxury house plan, complete with four bedrooms, 2.5 baths and 3,575 square feet of living area. A sidelighted foyer welcomes guests, who will feel important in the living room with fireplace and the dining room with bay window. The island kitchen in this home plan includes a corner pantry as well as a nearby butler's pantry. Note the casual eating nook, and the sizable family room, which shares a two-way fireplace with a cozy den. Upstairs, double doors introduce the luxurious master bedroom in this home design, with its focal-point fireplace and walk-in closet. The personal bath boasts a garden tub, a sit-down shower and two sinks. Three secondary bedrooms share a compartmentalized bath. Our customers love the versatile bonus room above the three-car garage.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $2,200
Most recommended package

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $3,700
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$2200
FREE SHIPPING
IMPORTANT NOTE: Due to state regulations, this home is not available for purchase in the State of Washington. Contact us for more information.

Note: This plan cannot be purchased for construction in Washington State.

Plan Details
See All Details
Finished Square Footage
1,745 Sq. Ft.
Main Level:
1,830 Sq. Ft.
Upper Level:
3,575 Sq. Ft.
Total:
Room Details
4
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
2
Number of Stories:
64' 0"
Width:
52' 0"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Unfinished Square Footage
912 Sq. Ft.
Garage:
GARAGE
Front
Garage Location:
3
Garage Size:
Exterior Style
Craftsman
French Country
Traditional
Collections
Kitchens
Luxury
Primary Suites
Open Floor Plan
Outdoor Living
Foundation
Crawl Space
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
8
Primary:
12
Secondary:
Roof Load
25
Live:
15
Dead:
85
Wind:
Insulation (R)
21
Exterior Wall:
13
Interior Wall:
38
Ceiling:
30
Floor:
House And Ceiling Heights
9
First Floor Ceiling:
8
Second Floor Ceiling:
29' 6"
Maximum House Height:
Key Features
2 Story Volume
Arches
Attached
Bonus Room
Butler's Pantry
Covered Front Porch
Crawlspace
Dining Room
Double Vanity Sink
Family Room
Fireplace
Formal LR
Foyer
Front-entry
Home Office
Kitchen Island
Laundry 2nd Fl
Primary Bdrm Upstairs
Mud Room
Nook / Breakfast Area
Open Floor Plan
Separate Tub and Shower
Walk-in Closet
Walk-in Pantry
