House Plan: DFD-5822

See All 11 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,809
BEDS
4
BATHS
2.5
STORIES
2
CARS
2
HOUSE PLANS SALE
START AT  $1,060.00
For questions and help, live chat, email or call us at 877-895-5299

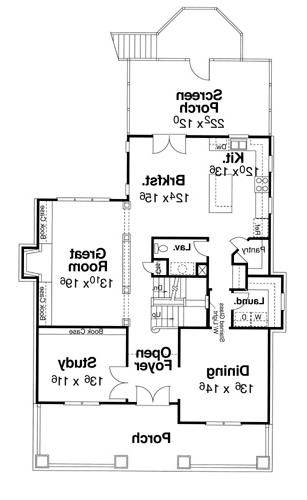

Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5822:

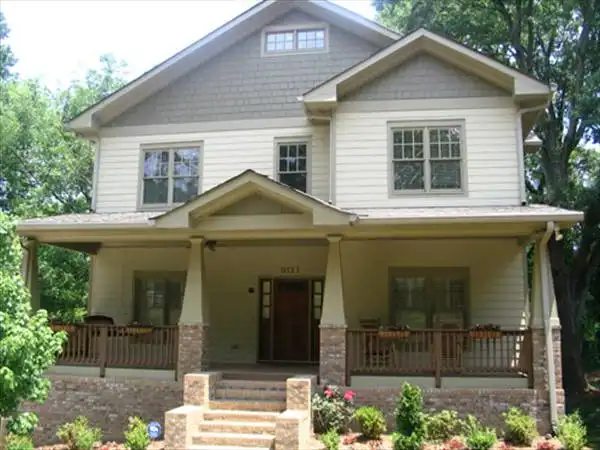

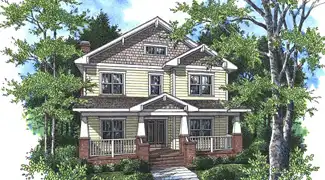

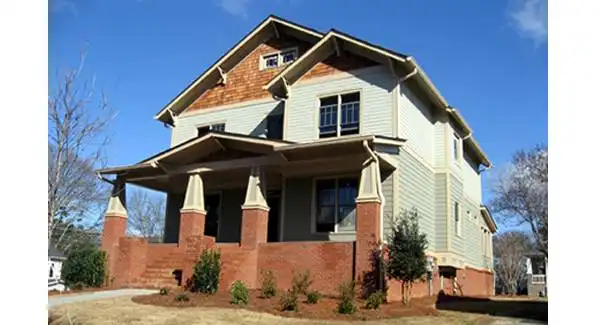

This compact plan offers open spacious vistas from kitchen to great room, foyer to screen porch, helping the owner feel they are sacrificing nothing to live on a narrow lot. Front and rear porches make city living more enjoyable in this stylish craftsman designed cottage.

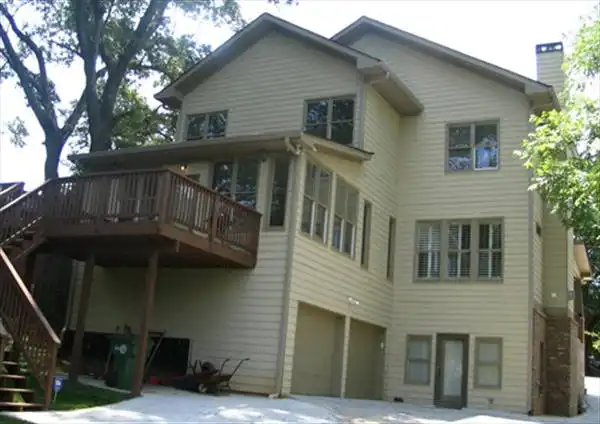

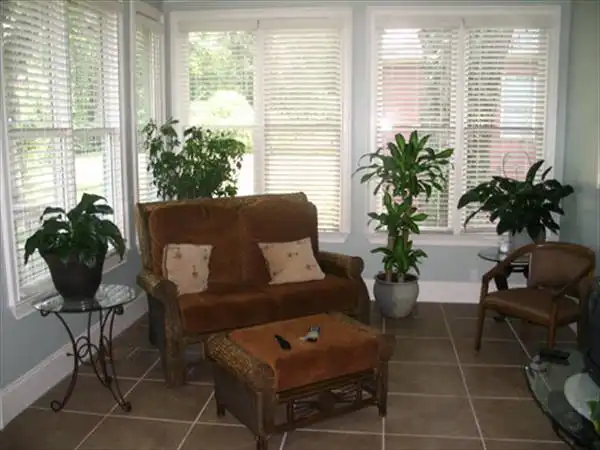

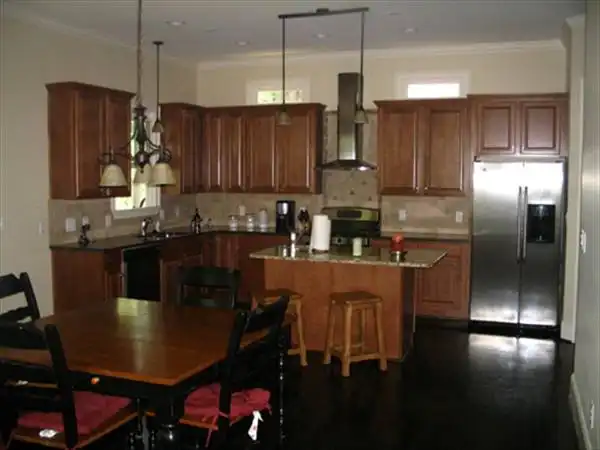

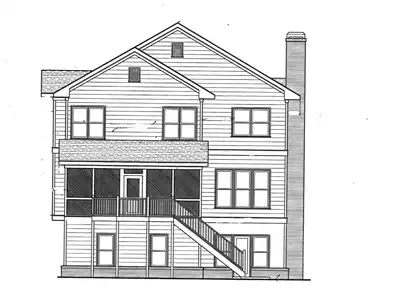

The rear garage, which can be oriented as a side or rear entry provides the additional main floor space for an expansive screen porch. The kitchen/breakfast area opens to it allowing the homeowner to enjoy the outdoors.

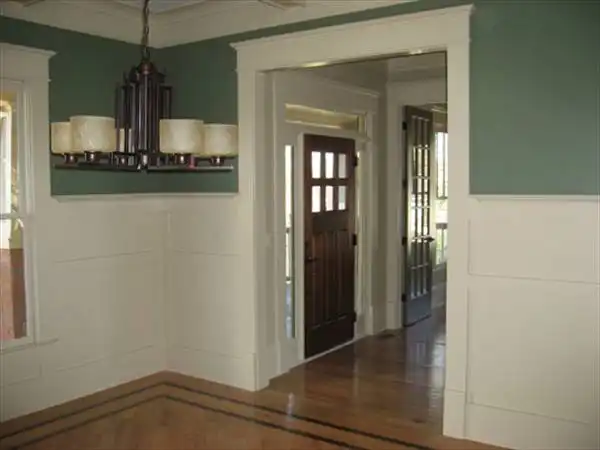

The second floor has room for a master and three spacious secondary rooms. The switch back staircase opens to a spacious landing with an overlook to the foyer.

An expansive modified cathedral ceiling adds to the grandeur of the master suite. A volume ceiling in the master bath provides elegance and increases the feeling of spaciousness with its shelf above the commode closet and shower.

The ground level allows for growth providing the perfect recreation room open to the motor court. The door on the stair landing allows this space to be finished at a later date or just closed off for privacy's sake.


House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $850
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,325
Immediate Delivery!
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,450
Five printed sets of house plans

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $1,988
2D electronic editable computer files
STEP 2 CHOOSE YOUR FOUNDATION
STEP 3 OPTIONAL ADD-ONS
Subtotal
$1325
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
1,434 Sq. Ft.
Main Level:
1,375 Sq. Ft.
Upper Level:
1,434 Sq. Ft.
Lower Level:
2,809 Sq. Ft.
Total:
Room Details
4
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
2
Number of Stories:
40' 4"
Width:
72' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
484 Sq. Ft.
Garage:
552 Sq. Ft.
Porch:
90 Sq. Ft.
Deck:
GARAGE
Under
Garage Location:
2
Garage Size:
Exterior Style
Cottage
Craftsman
Traditional
Collections
Old House Classics
Open Floor Plan
PDFs Fast!
Foundation
WALK OUT BASEMENT
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
7/12
Primary:
3/12
Porch:
Roof Load
20
Live:
10
Dead:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
10
First Floor Ceiling:
9
Second Floor Ceiling:
28' 8"
Maximum House Height:
Key Features
Attached
Basement
Butler's Pantry
Covered Front Porch
Covered Rear Porch
Deck
Double Vanity Sink
Drive-under
Family Room
Fireplace
Formal LR
Foyer
Front Porch
Home Office
Kitchen Island
Library/Media Rm
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Rear Porch
Rec Room
Screened Porch/Sunroom
Side-entry
Suited for narrow lot
Suited for sloping lot
Unfinished Space
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
Walkout Basement
