House Plan: DFD-5823

Pin It

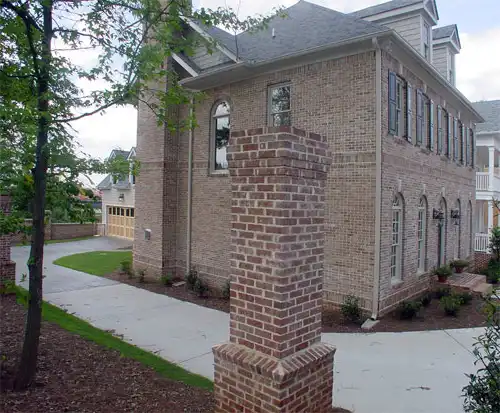

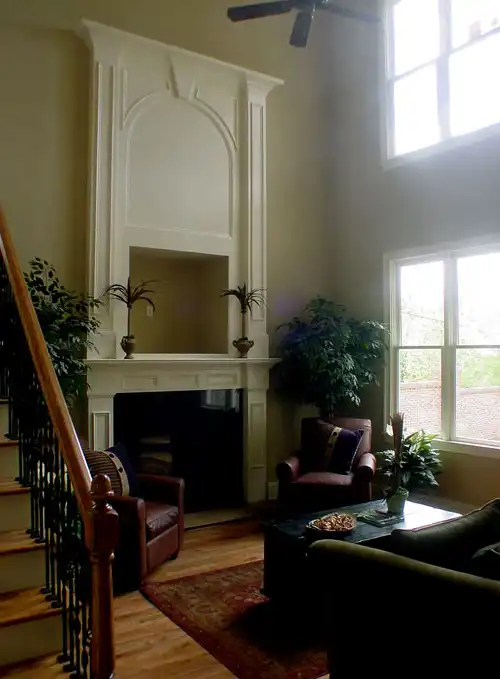

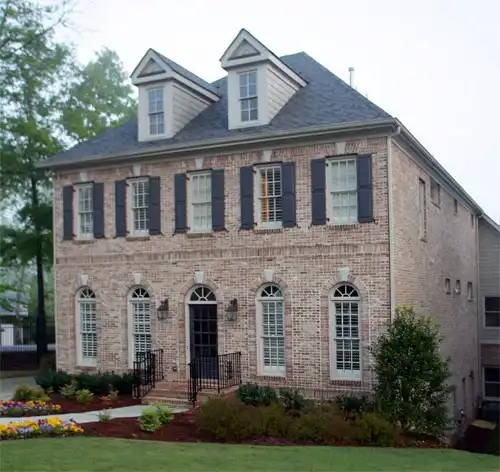

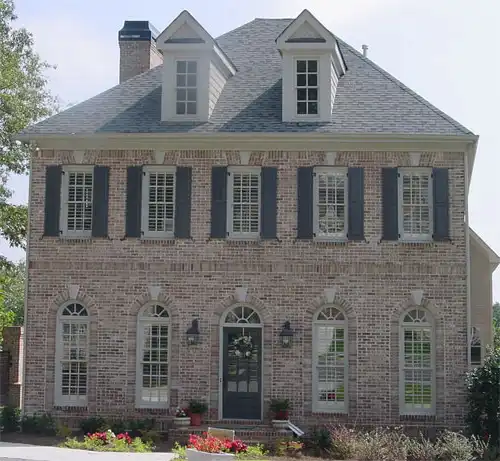

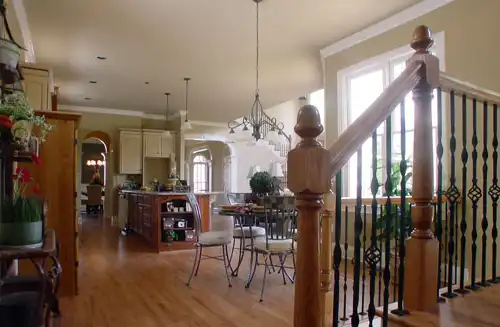

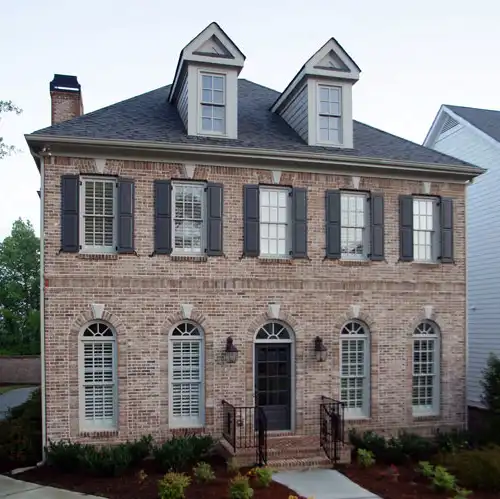

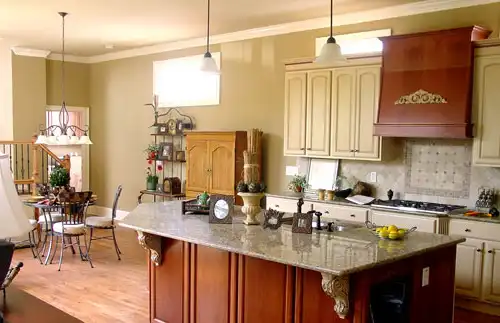

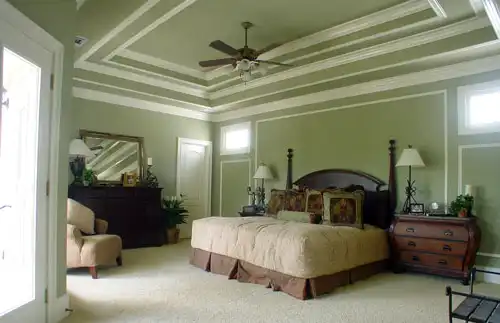

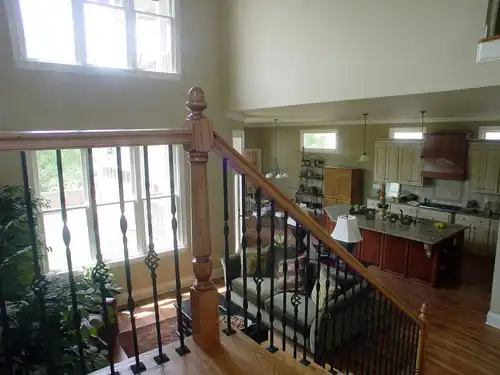

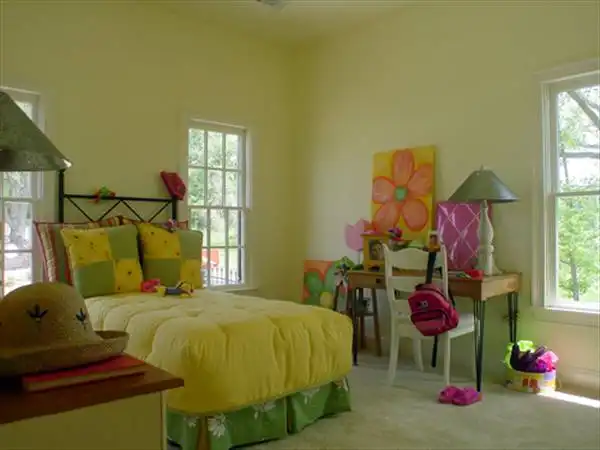

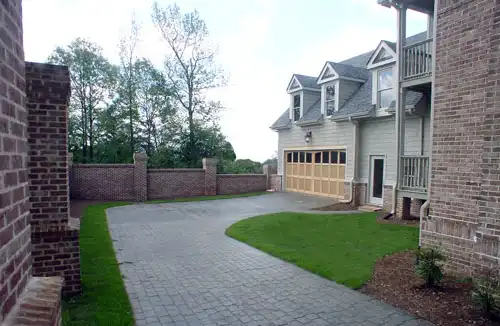

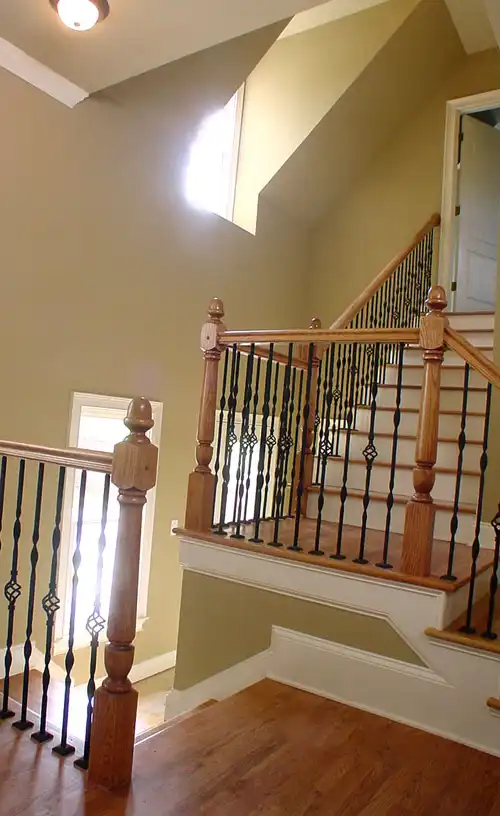

See All 17 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
3,412
BEDS
4
BATHS
3.5
STORIES
2
CARS
2
HOUSE PLANS SALE
START AT  $1,120.00
For questions and help, live chat, email or call us at 877-895-5299
First Floor
Second Floor

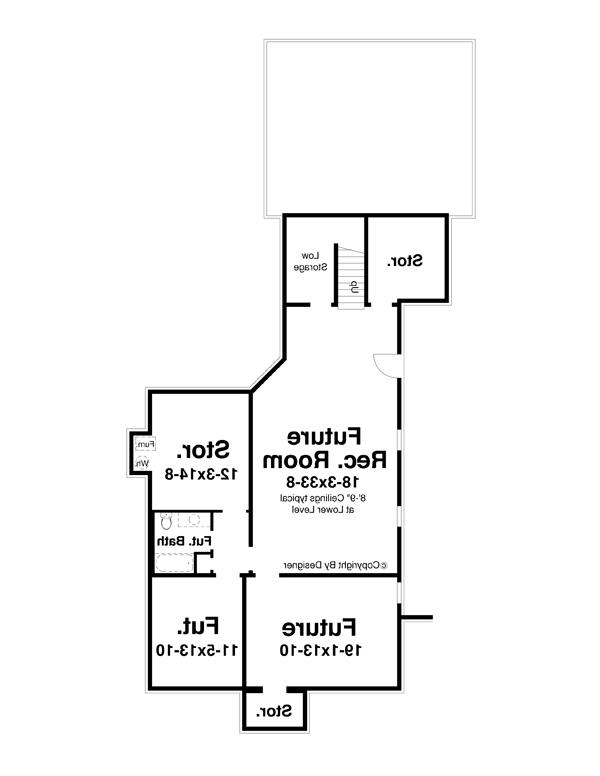

Lower Level
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5823:
Formality can be comfortable, too in this narrow plan with rear garage. While providing the beauty of a formal dining and study, this house explodes with light as the rear of the house opens to a courtyard visible from all the rear rooms of the house.
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $900
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,400
Immediate Delivery!
Most recommended package

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,550
Five printed sets of house plans
STEP 2 CHOOSE YOUR FOUNDATION
STEP 3 OPTIONAL ADD-ONS
Subtotal
$1400
FREE SHIPPING

Detailed Plan Packages & Pricing
Our Structural Detail & IRC Guarantee
Architect's Preferred Home Products
Plan Details
See All Details
Finished Square Footage
1,659 Sq. Ft.
Main Level:
1,290 Sq. Ft.
Upper Level:
3,412 Sq. Ft.
Total:
Room Details
4
Bedrooms:
3
Full Baths:
1
Half Baths:
General House Information
2
Number of Stories:
43' 4"
Width:
82' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
463 Sq. Ft.
Garage:
110 Sq. Ft.
Storage:
45 Sq. Ft.
Porch:
160 Sq. Ft.
Deck:
463 Sq. Ft.
Bonus Room:
GARAGE
Rear
Garage Location:
2
Garage Size:
Exterior Style
Colonial
Georgian
Southern
Traditional
Collections
Luxury
Old House Classics
Split Level
Foundation
Basement Alternate
Walk-Out Basement Standard
Any other bsmt. type requires changes.
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
12/12
Primary:
12/12
Gable:
12/12
Dormer:
Roof Load
20
Live:
10
Dead:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
10
First Floor Ceiling:
9
Second Floor Ceiling:
35' 0"
Maximum House Height:
Key Features
Attached
Basement
Bonus Room
Covered Rear Porch
Deck
Dining Room
Double Vanity Sink
Family Room
Fireplace
Formal LR
Foyer
Guest Suite
Kitchen Island
Laundry 1st Fl
Loft / Balcony
Primary Bdrm Upstairs
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Rear Porch
Separate Tub and Shower
Side-entry
Storage Space
Suited for narrow lot
Suited for view lot
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
Walkout Basement
