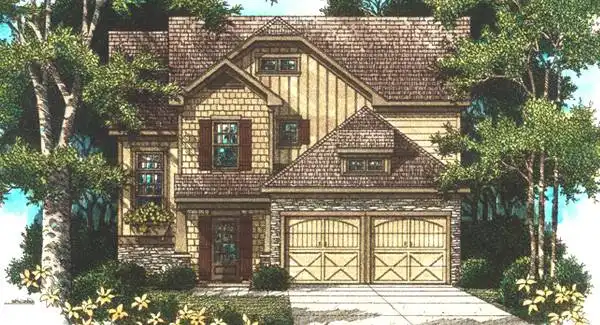

House Plan: DFD-5841

See All 8 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,577
BEDS
3
BATHS
2.5
STORIES
2
CARS
2
HOUSE PLANS SALE
START AT  $880.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5841:

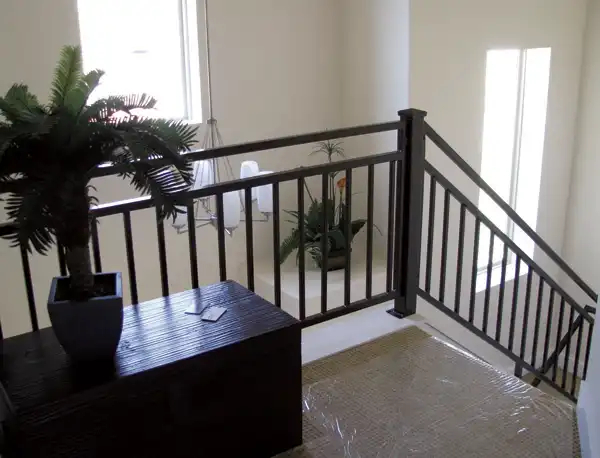

Upon entering the modest sized foyer of this two-story home, an open switch-back staircase featuring a large window on its landing greets you filling the foyer and living area with light.

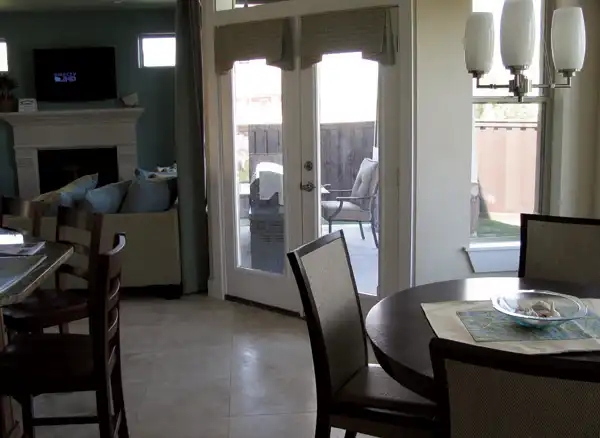

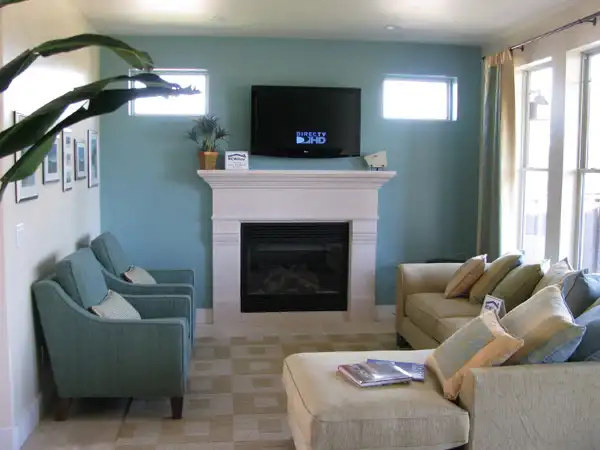

A sidewall fireplace allows the entire rear of the house to be filled with windows. The door to the outside is located on the angled wall across from the breakfast bar minimizing its impact on furniture placement. The raised bar provides both privacy for the kitchen and a second source for dining making the table area more formal.

There is even room for a computer station outside the kitchen providing the perfect workstation for mom.

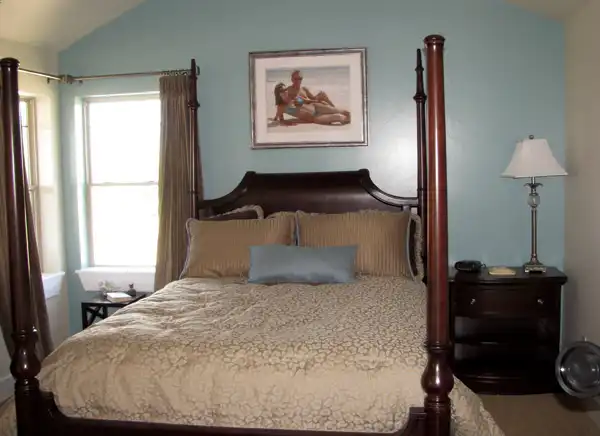

The master suite includes every amenity you would expect to find in a much larger plan.
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $725
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,100
Immediate Delivery!
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,200
Five printed sets of house plans
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1100
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
737 Sq. Ft.
Main Level:
840 Sq. Ft.
Upper Level:
737 Sq. Ft.
Lower Level:
1,577 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
2
Number of Stories:
36' 0"
Width:
42' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
400 Sq. Ft.
Garage:
40 Sq. Ft.
Porch:
80 Sq. Ft.
Patio:
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
Bungalow
Cottage
Craftsman
Collections
Affordable
First Home
PDFs Fast!
Foundation
Basement Alternate
Slab
Framing Information
Truss
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
9/12
Primary:
9/12
Gable:
5/12
Dormer:
Roof Load
20
Live:
10
Dead:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
9
First Floor Ceiling:
8
Second Floor Ceiling:
27' 2"
Maximum House Height:
Key Features
2 Story Volume
Attached
Basement
Covered Front Porch
Double Vanity Sink
Fireplace
Foyer
Front-entry
Great Room
Home Office
Laundry 1st Fl
Loft / Balcony
Primary Bdrm Upstairs
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Separate Tub and Shower
Slab
Suited for narrow lot
Suited for view lot
Vaulted Ceilings
Walk-in Closet
