House Plan: DFD-5857

Pin It

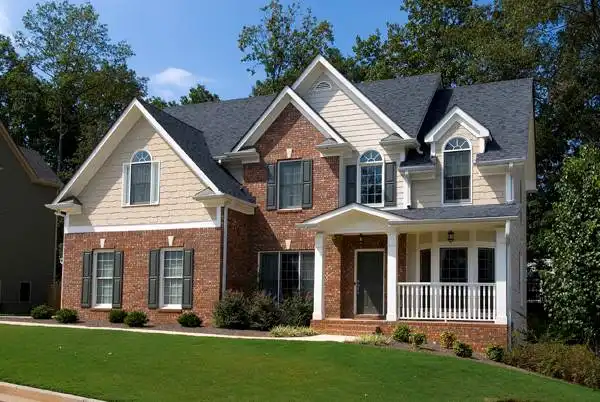

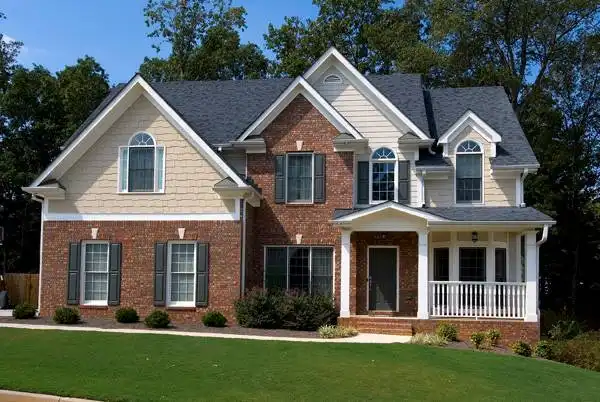

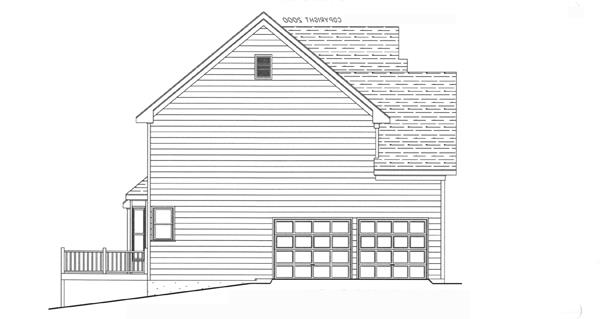

See All 6 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,389
BEDS
4
BATHS
2.5
STORIES
2
CARS
2
HOUSE PLANS SALE
START AT  $960.00
For questions and help, live chat, email or call us at 877-895-5299

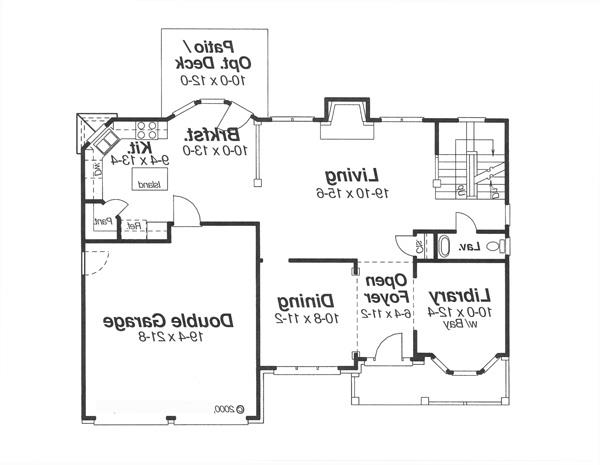

First Floor

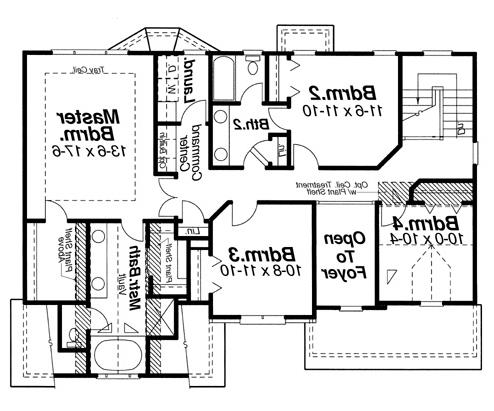

Second Floor
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5857:
Although compact with an overall width of only 48' this design shows large. The entire rear of the house is open. The kitchen takes advantage of its corners by angling the sink on one side with windows on both walls and a pantry on the other maximizing storage. Even the staircase located on the rear wall brings light into the house with a large window on both landings. This makes for comfortable access to the terrace level where there is room for expansion. Four bedrooms upstairs provide room for everyone.
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $750
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,200
Immediate Delivery!
Most recommended package

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,300
Five printed sets of house plans
STEP 2 CHOOSE YOUR FOUNDATION
STEP 3 OPTIONAL ADD-ONS
Subtotal
$1200
FREE SHIPPING
Note: RRR is only available with 6\" wall construction

Detailed Plan Packages & Pricing
Our Structural Detail & IRC Guarantee
Architect's Preferred Home Products
Plan Details
See All Details
Finished Square Footage
1,067 Sq. Ft.
Main Level:
1,322 Sq. Ft.
Upper Level:
1,067 Sq. Ft.
Lower Level:
2,389 Sq. Ft.
Total:
Room Details
4
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
2
Number of Stories:
48' 0"
Width:
36' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
460 Sq. Ft.
Garage:
85 Sq. Ft.
Porch:
120 Sq. Ft.
Deck:
GARAGE
Side
Garage Location:
2
Garage Size:
Exterior Style
Cottage
Traditional
Collections
Builders
Old House Classics
Open Floor Plan
PDFs Fast!
Foundation
WALK OUT BASEMENT
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
10/12
Primary:
10/12
Dormer:
3/12
Porch:
Roof Load
20
Live:
10
Dead:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
9
First Floor Ceiling:
8
Second Floor Ceiling:
30' 6"
Maximum House Height:
Key Features
2 Story Volume
Attached
Basement
Covered Front Porch
Deck
Dining Room
Double Vanity Sink
Fireplace
Foyer
Front Porch
Great Room
His and Hers Primary Closets
Kitchen Island
Laundry 2nd Fl
Library/Media Rm
Primary Bdrm Upstairs
Nook / Breakfast Area
Separate Tub and Shower
Side-entry
Suited for narrow lot
Suited for sloping lot
Suited for view lot
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
Walkout Basement
