House Plan: DFD-5909

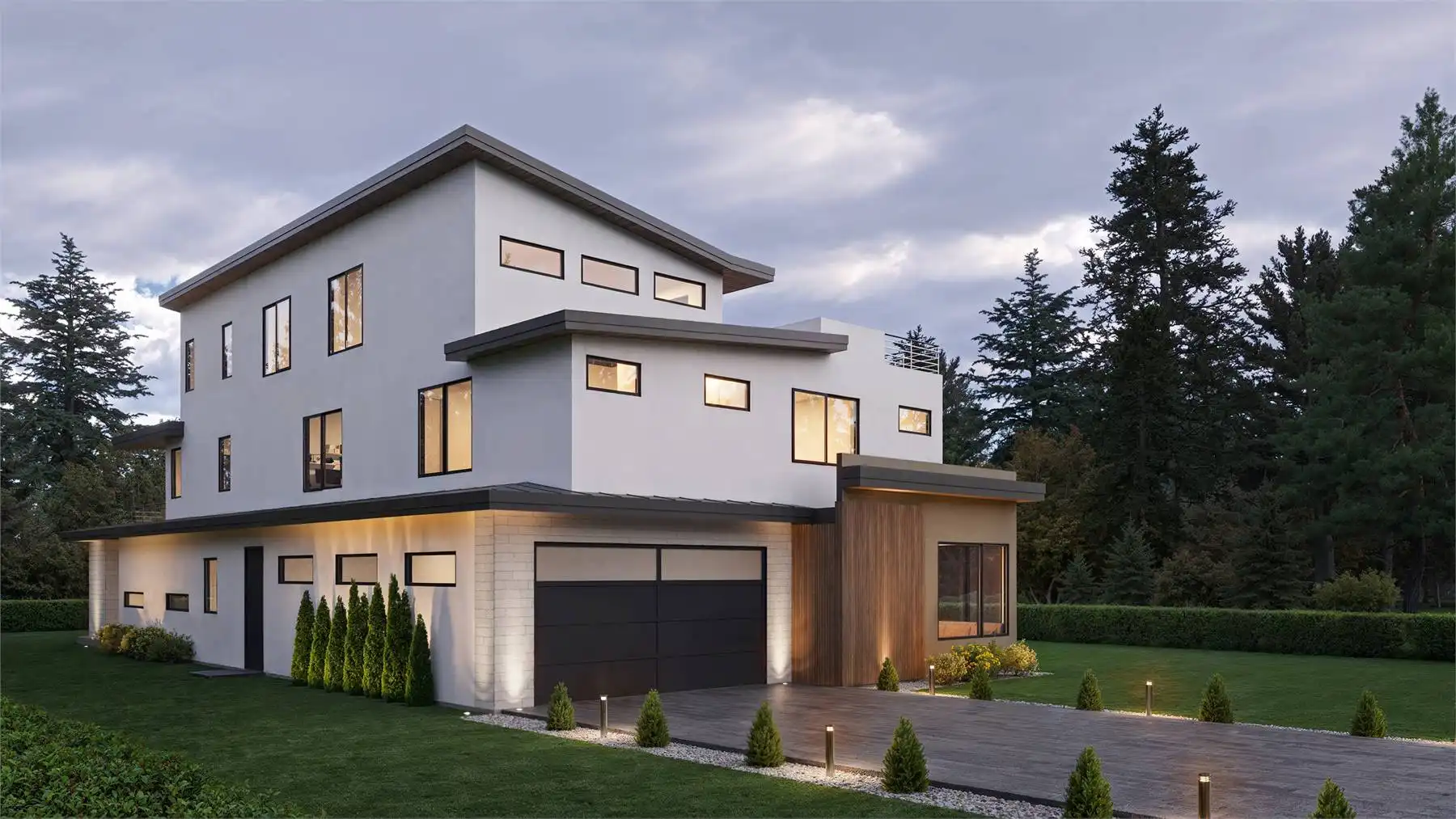

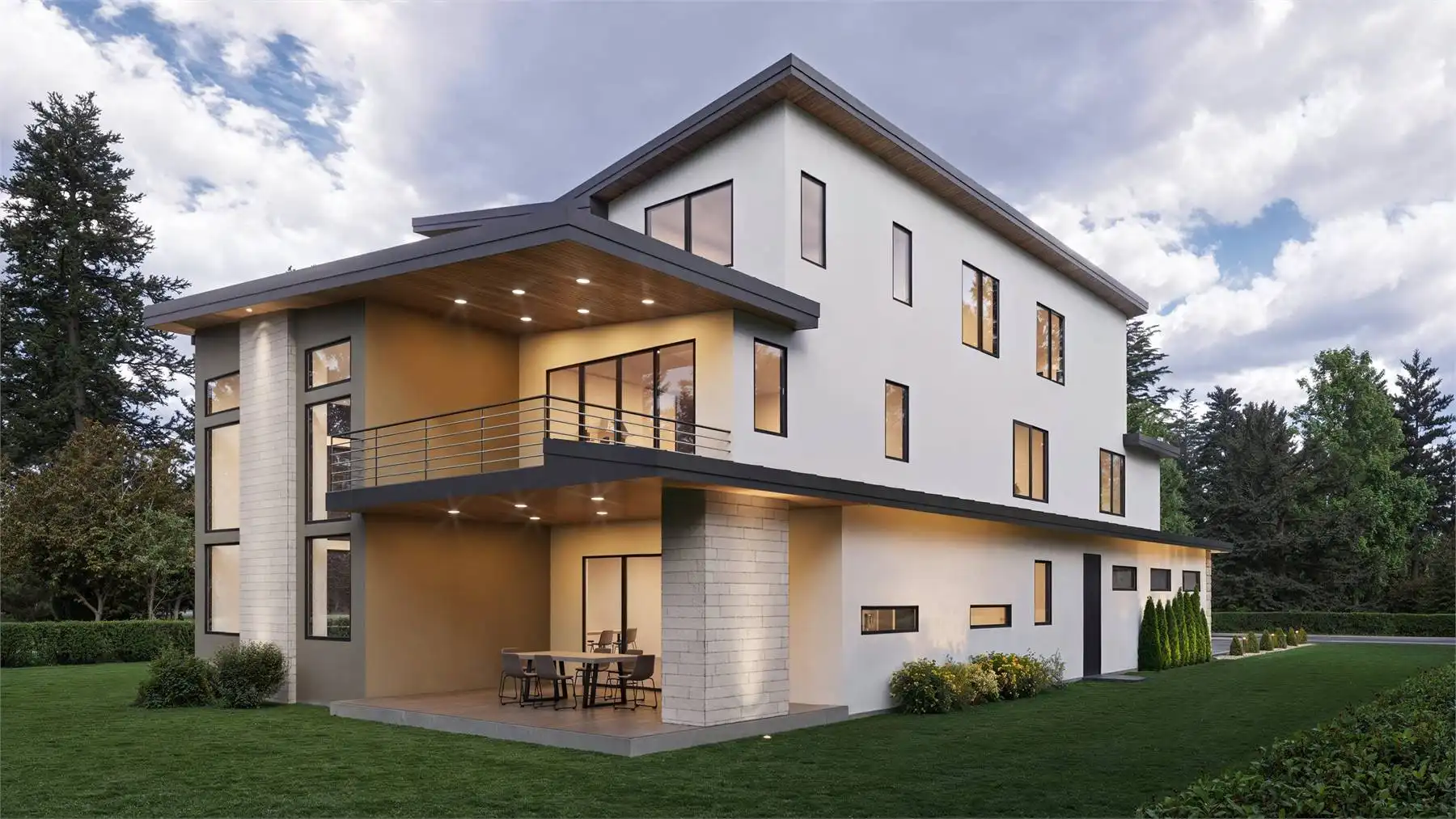

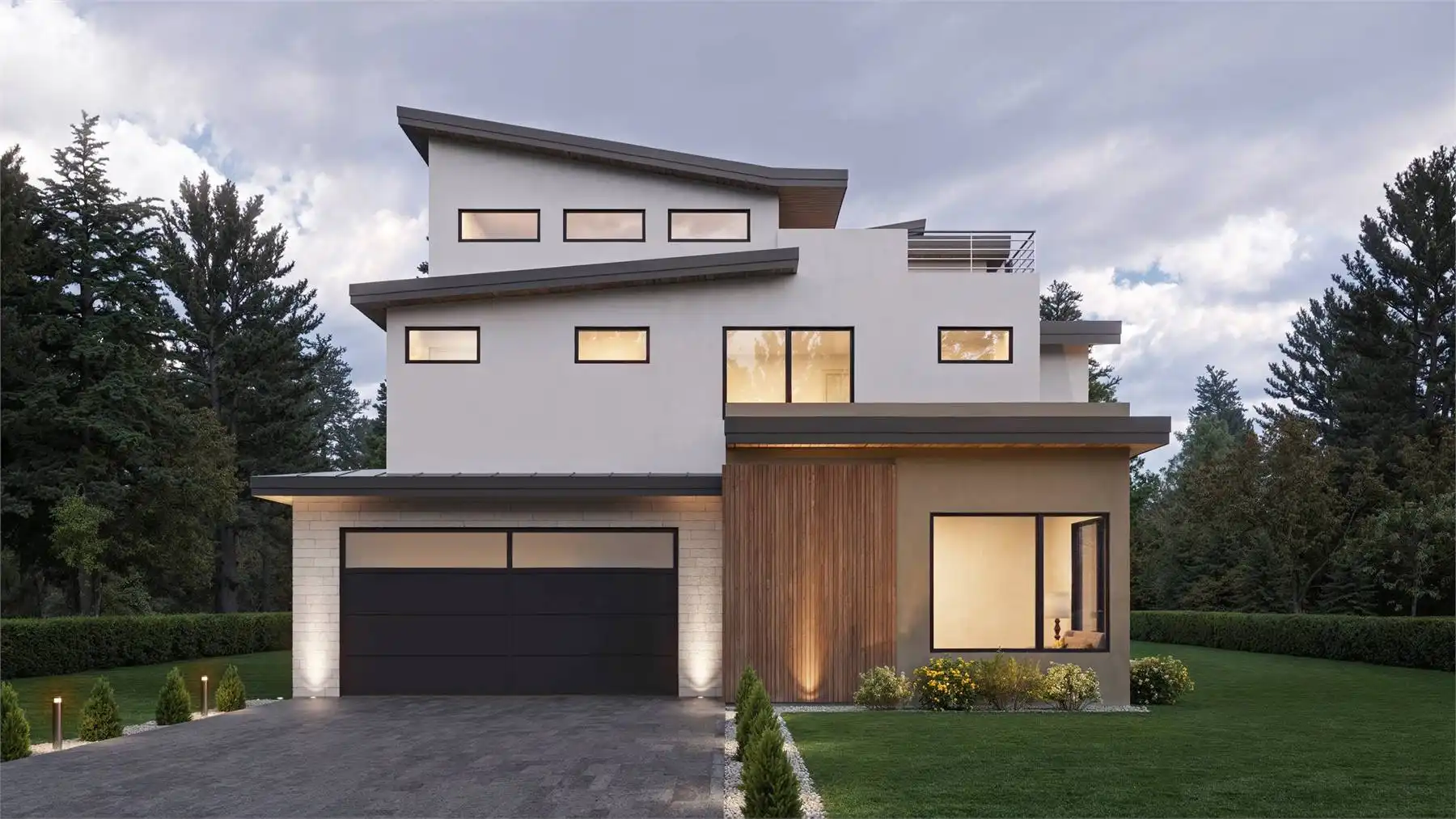

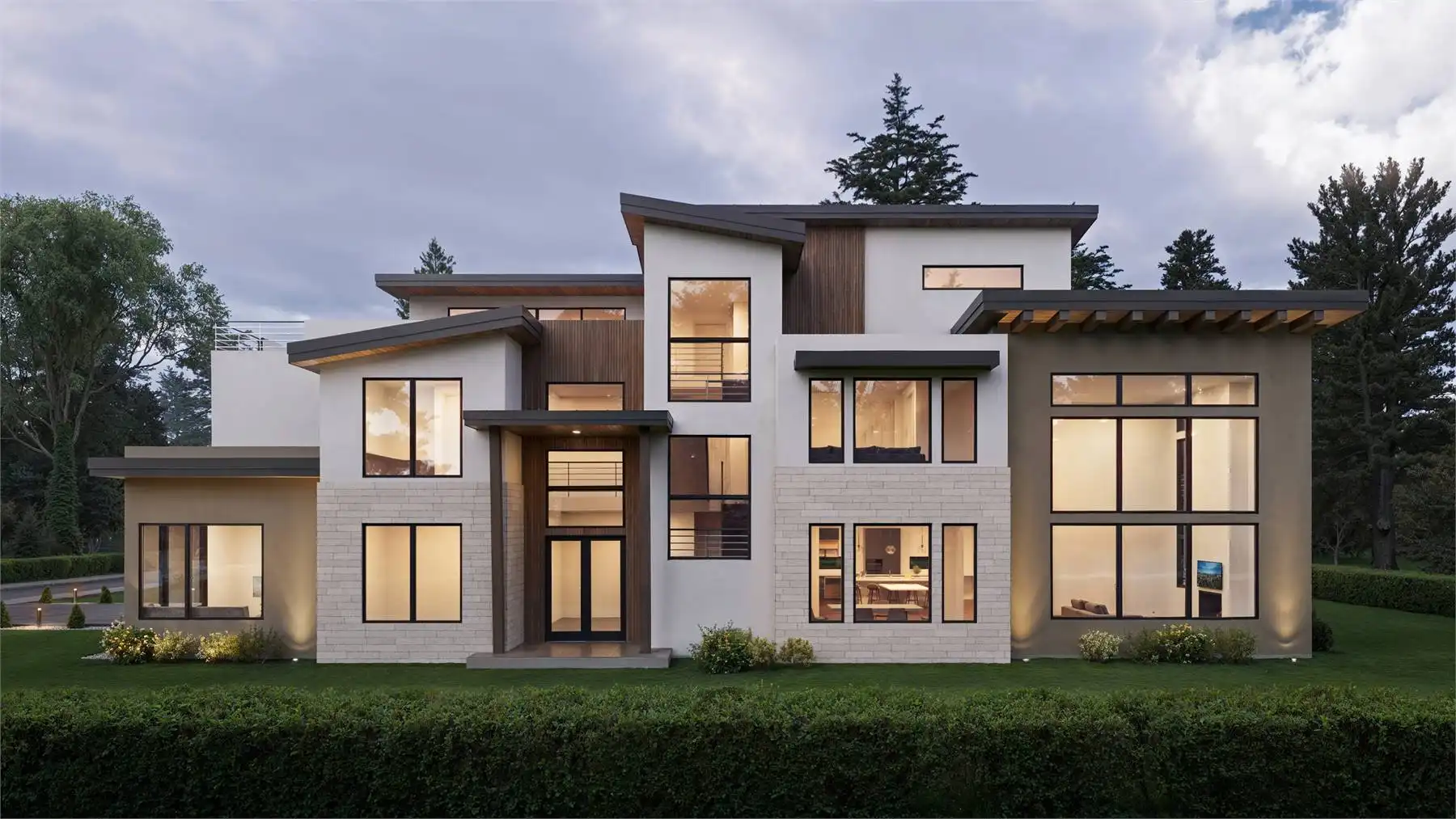

See All 6 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
6,305
BEDS
6
BATHS
6.5
STORIES
3
CARS
3
HOUSE PLANS SALE
START AT  $2,522.40
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5909:
House Plan 5909 is an amazing luxury design that spreads 6,305 square feet across three levels, so it makes a great choice if you want to maximize your house on any lot. Behind its sharp contemporary facade with large windows and angled rooflines, you'll find wide-open living with a huge kitchen, an office, and a guest bedroom suite on the main level. There's also a prep kitchen and a mudroom coming in from the three-car side-entry garage. The second level includes the luxurious primary suite with its own deck and three smaller bedroom suites for the kids. The third level has the final bedroom--that brings the total to six--as well as an array of common spaces like a media room, fitness room, and a rec room with a bar and deck. Just imagine the hosting potential up here!
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $3,153
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $3,453
Five printed sets of house plans

8 Printed Sets


Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

8 Printed Sets $3,603
Eight printed sets of house plans

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $5,990
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$3153
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
2,605 Sq. Ft.
Main Level:
2,226 Sq. Ft.
Upper Level:
1,474 Sq. Ft.
Third Level:
6,305 Sq. Ft.
Total:
Room Details
6
Bedrooms:
6
Full Baths:
1
Half Baths:
General House Information
3
Number of Stories:
85' 3"
Width:
45' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
707 Sq. Ft.
Garage:
89 Sq. Ft.
Front Porch:
331 Sq. Ft.
Deck:
GARAGE
Rear
Garage Location:
3
Garage Size:
Exterior Style
Contemporary
Mid-Century Modern
Modern
Transitional
Collections
Kitchens
Luxury
Primary Suites
Open Floor Plan
Outdoor Living
Foundation
Crawl Space
Slab
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
2/12
Primary:
1/12
Secondary:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
10
First Floor Ceiling:
9
Second Floor Ceiling:
34' 6"
Maximum House Height:
Key Features
2 Story Volume
Attached
Bonus Room
Butler's Pantry
Covered Front Porch
Covered Rear Porch
Deck
Dining Room
Double Vanity Sink
Exercise Room
Fireplace
Foyer
Great Room
Guest Suite
Home Office
Kitchen Island
Laundry 2nd Fl
Library/Media Rm
Loft / Balcony
L-Shaped
Primary Bdrm Upstairs
Mud Room
Nook / Breakfast Area
Open Floor Plan
Outdoor Living Space
Rec Room
Separate Tub and Shower
Side-entry
Split Bedrooms
Suited for corner lot
Vaulted Great Room/Living
Walk-in Closet
Walk-in Pantry
