House Plan: DFD-5987

Pin It

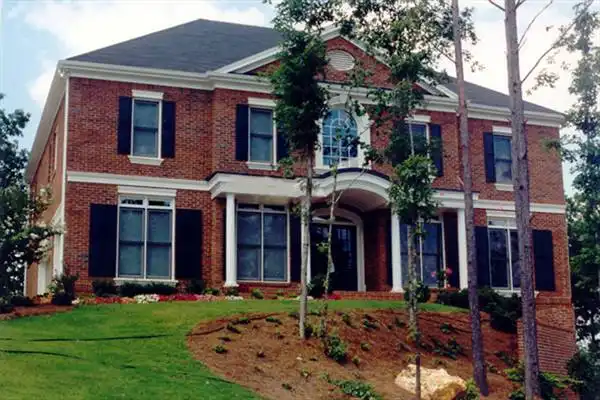

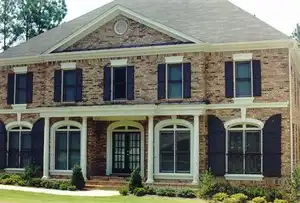

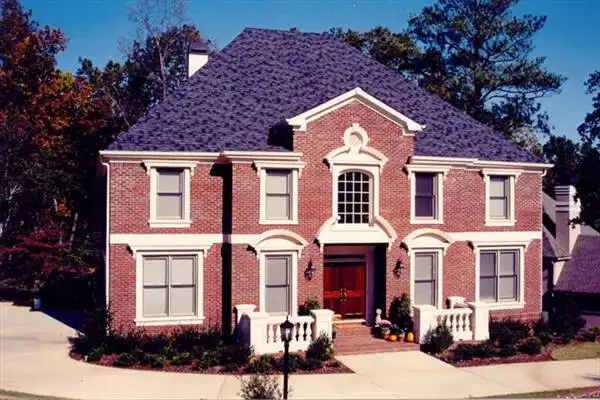

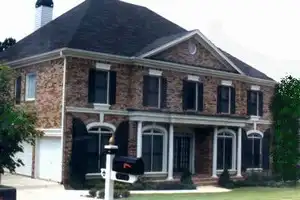

See All 7 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
3,073
BEDS
5
BATHS
4
STORIES
2
CARS
3
HOUSE PLANS SALE
START AT  $1,440.75
For questions and help, live chat, email or call us at 877-895-5299
1st Floor Plan
2nd Floor Plan
Basement
Floor Plans
Click to Zoom In on Floor Plan

House Plan 5987
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,695
Most recommended package

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $2,125
Five printed sets of house plans

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $2,225
Digital plans plus 5 printed sets

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $2,495
2D electronic editable computer files

CAD Unlimited Build

2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

CAD Unlimited Build $3,290
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1695
FREE SHIPPING

Detailed Plan Packages & Pricing
Our Structural Detail & IRC Guarantee
Architect's Preferred Home Products
Plan Details
See All Details
Finished Square Footage
1,593 Sq. Ft.
Main Level:
1,480 Sq. Ft.
Upper Level:
3,073 Sq. Ft.
Total:
Room Details
5
Bedrooms:
4
Full Baths:
General House Information
2
Number of Stories:
51' 0"
Width:
46' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
548 Sq. Ft.
Garage:
GARAGE
Side
Garage Location:
3
Garage Size:
Exterior Style
Colonial
Southwest
Traditional
Tuscan
Collections
Luxury
Old House Classics
Foundation
Basement
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Load
40 lbs
Live:
12 lbs
Dead:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
9
First Floor Ceiling:
9
Second Floor Ceiling:
34' 7"
Maximum House Height:
Key Features
2 Story Volume
Attached
Basement
Best Selling Plan
Covered Entry
Daylight Basement
Foyer
Grand Salon
Guest Suite on Main
His & Her Bath in Primary
His and Hers Primary Closets
In-law Suite
Kitchen - Breakfast Nook
Kitchen Island
Laundry Room - Second Floor
Primary - Private Patio / Deck Access
Primary on Second
Rear Porch
Terrace-Rear
