House Plan: DFD-7583

See All 2 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,302
BEDS
3
BATHS
2
STORIES
1
CARS
2
HOUSE PLANS SALE
START AT  $1,036.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 7583:

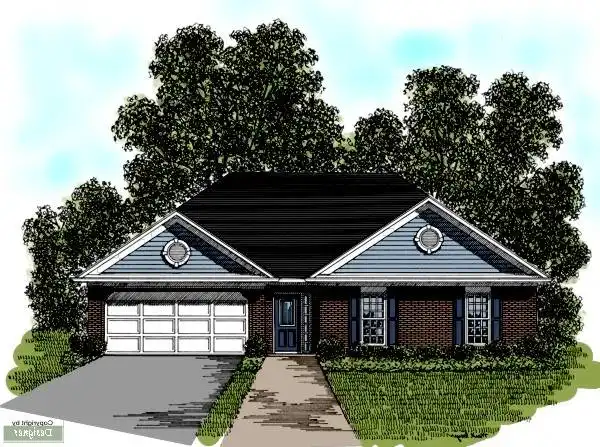

This attractive ranch features a brick and siding exterior. A vaulted ceiling and fireplace are the focal points of the 14'x15' living room. The living room also features a ceiling fan. The 9'x11' dining room has a door leading onto the 11'x10' patio. Another vaulted ceiling is found in the kitchen and breakfast room area. These areas measure 10'x8' each. The washer and dryer are conveniently located in a laundry closet off of the breakfast area. Bedroom #2 measures 10'x10' and has a roomy closet. Bedroom #3 measures 11'x12' and has an interesting wall angle in the closet area. These two bedrooms share a hall bath. The master bedroom, measuring 13'x12', also features a vaulted ceiling with ceiling fan. The master bath features a large garden tub.
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $845
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,295
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,345
Five printed sets of house plans

8 Printed Sets


Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

8 Printed Sets $1,395
Eight printed sets of house plans

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $1,795
2D electronic editable computer files
STEP 2 CHOOSE YOUR FOUNDATION
STEP 3 OPTIONAL ADD-ONS
Subtotal
$1295
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
1,302 Sq. Ft.
Main Level:
1,302 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
General House Information
1
Number of Stories:
50' 0"
Width:
49' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
Traditional
Collections
Old House Classics
Foundation
Crawl Space
Framing Information
Truss
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
Roof Load
30
Live:
90
Wind:
Insulation (R)
21
Exterior Wall:
0
Interior Wall:
38
Ceiling:
25
Floor:
House And Ceiling Heights
8
First Floor Ceiling:
20' 0"
Maximum House Height:
Key Features
Attached
Crawlspace
Front-entry
No Porch
