House Plan: DFD-7702

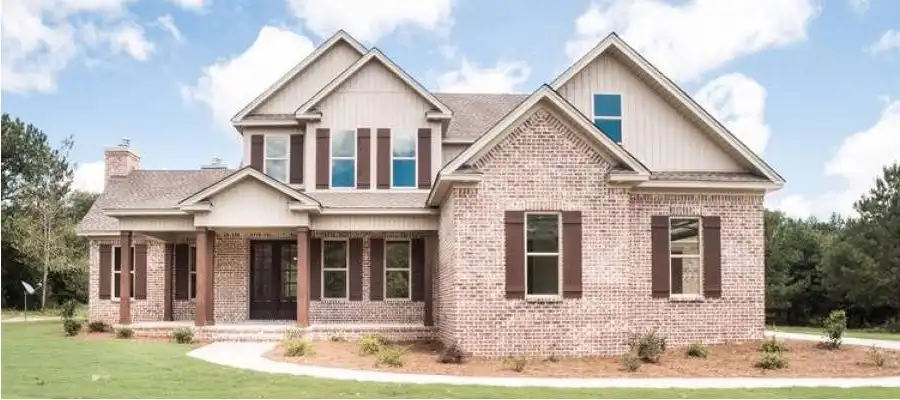

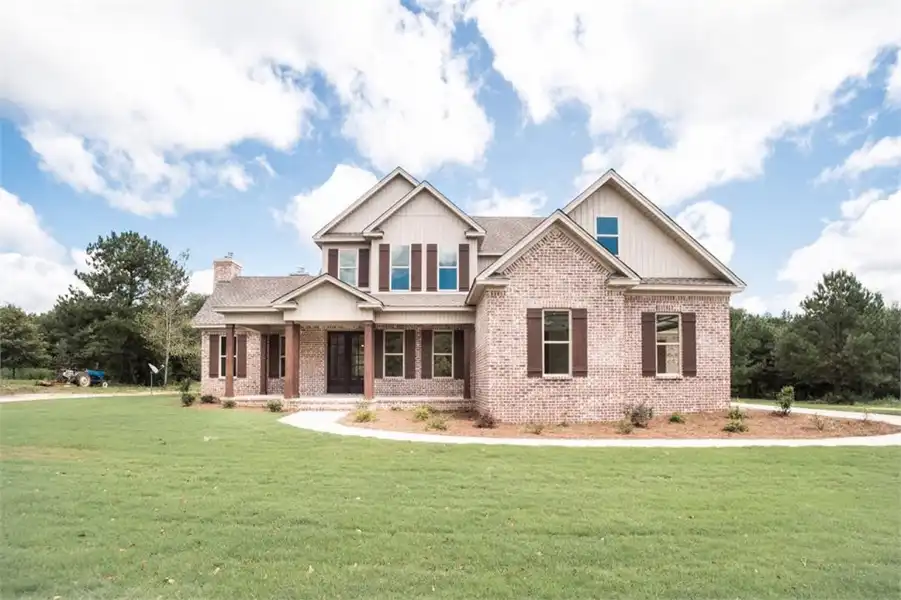

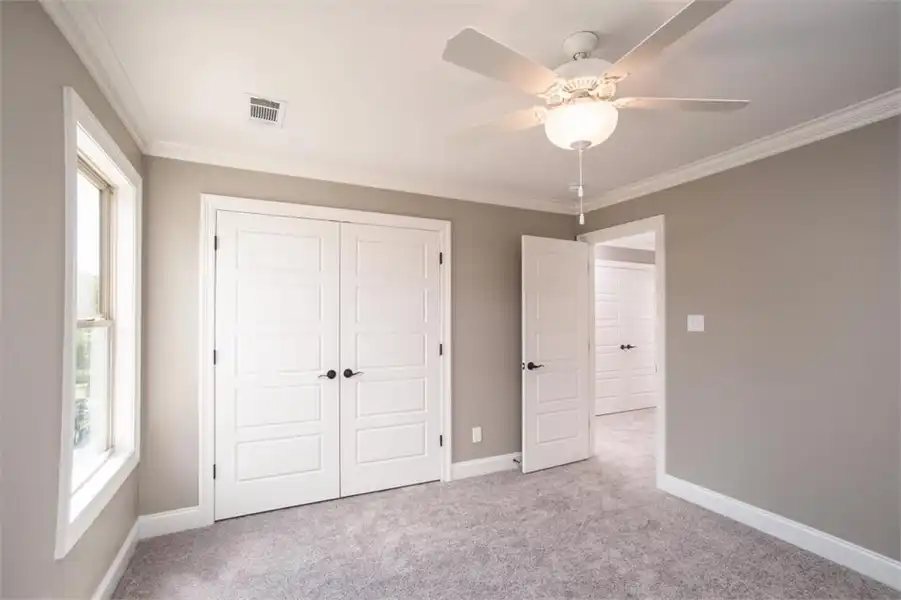

See All 17 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,758
BEDS
4
BATHS
3
STORIES
2
CARS
2
HOUSE PLANS SALE
START AT  $1,533.40
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 7702:

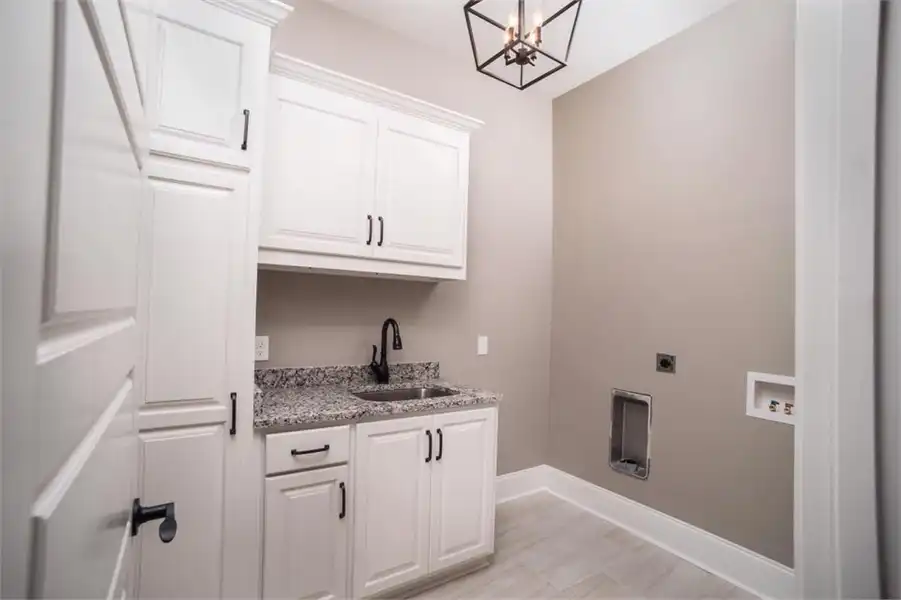

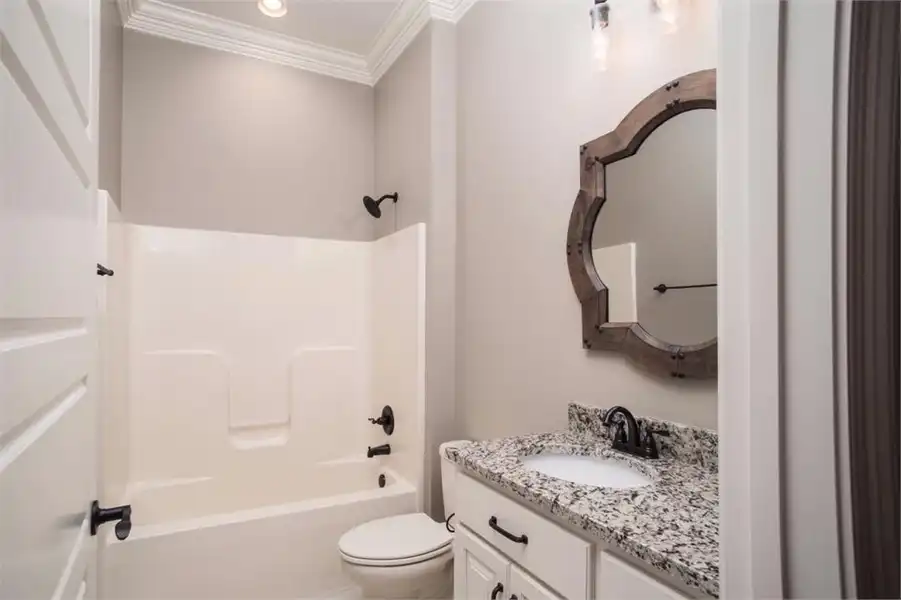

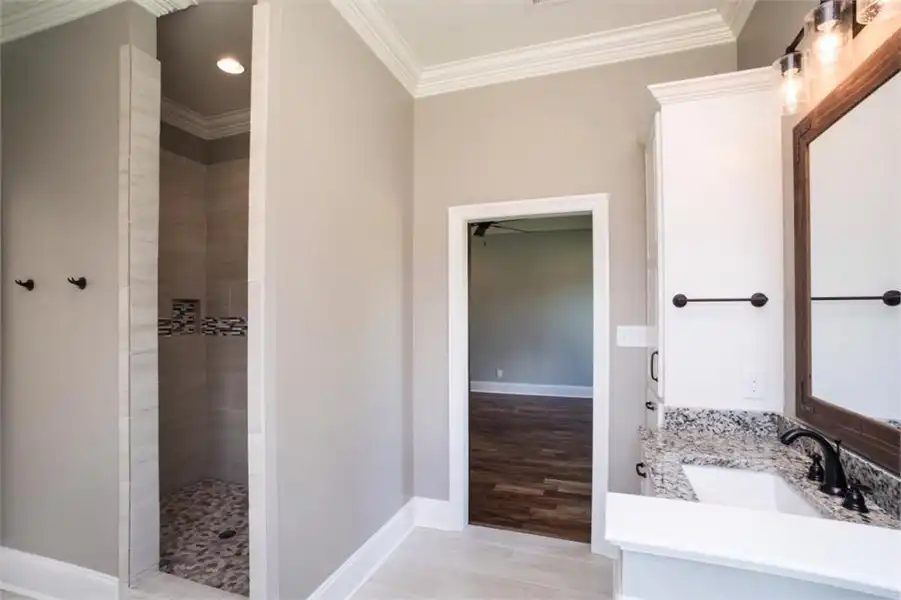

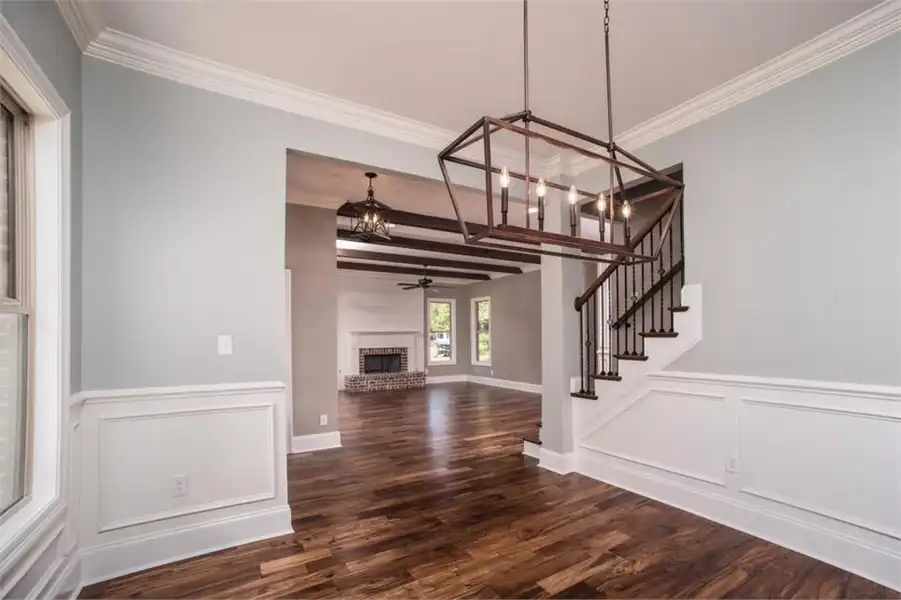

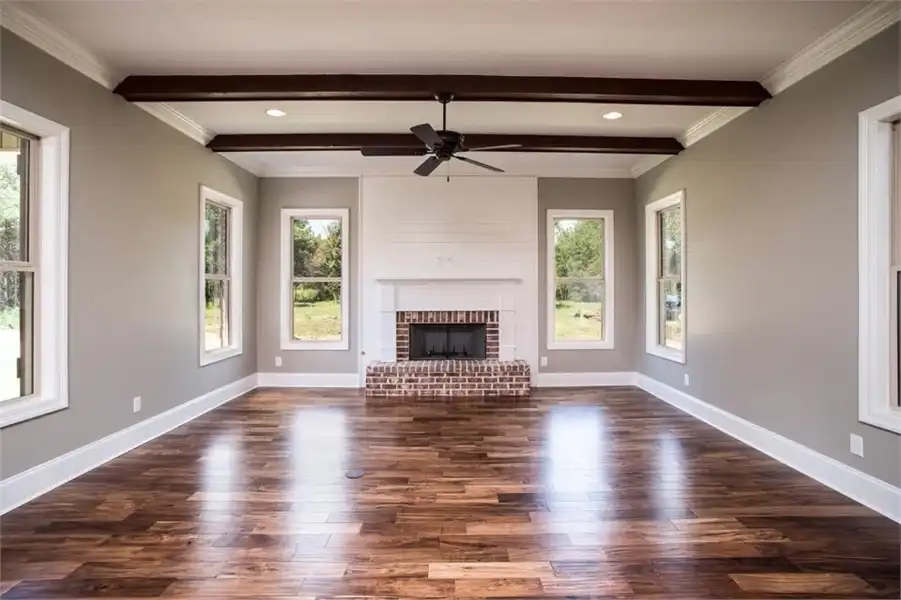

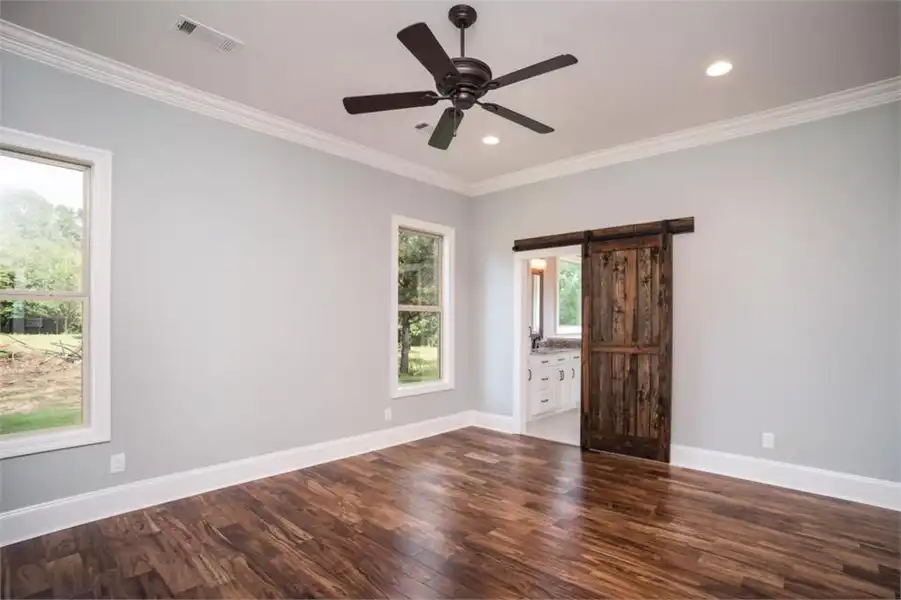

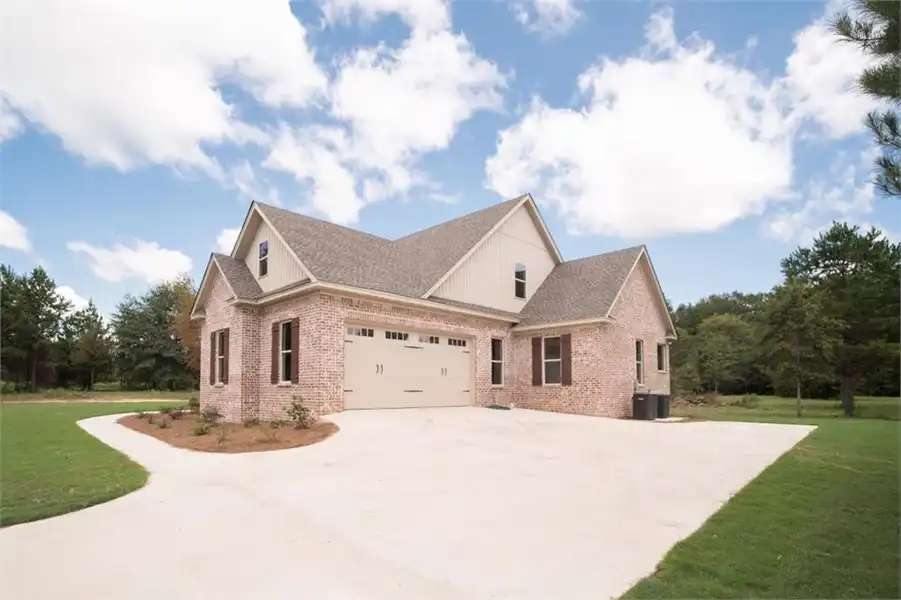

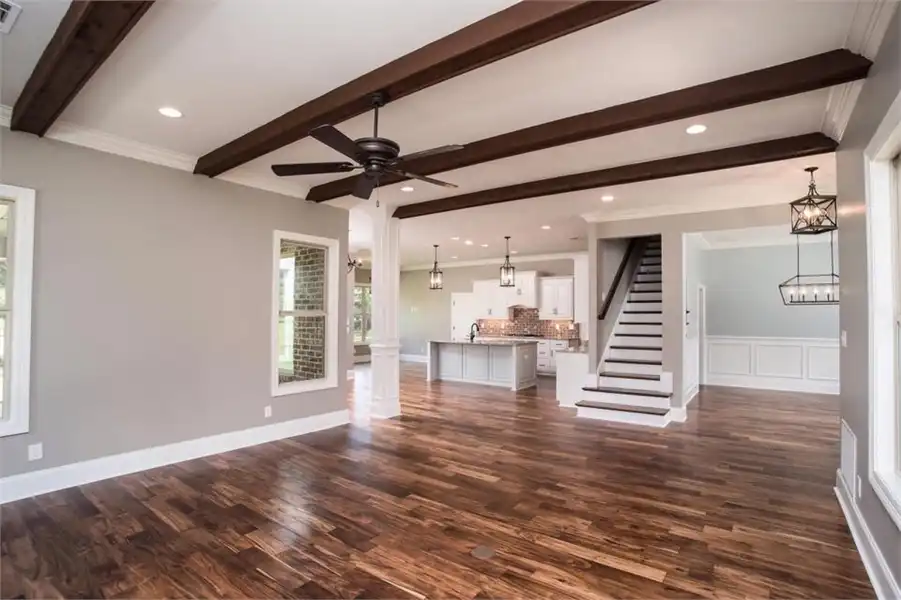

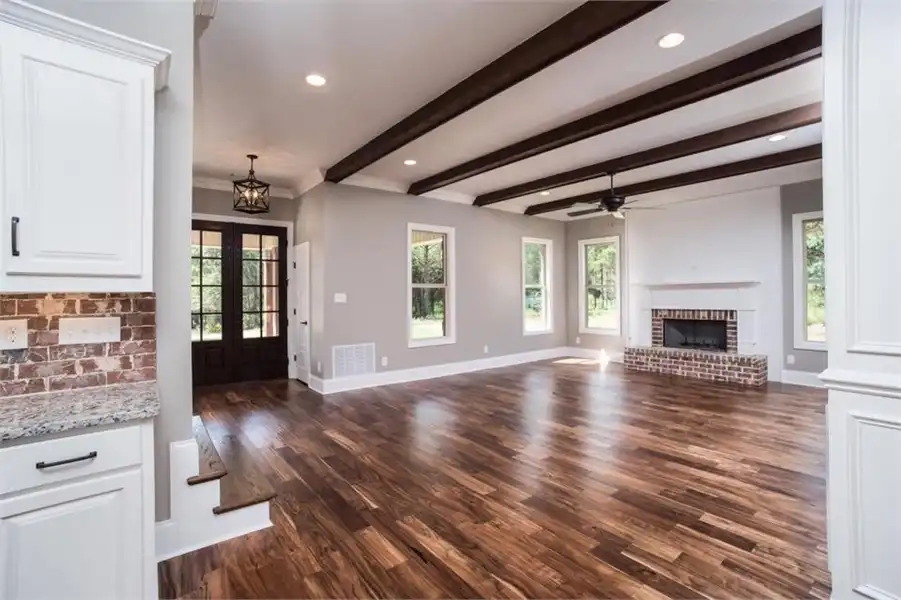

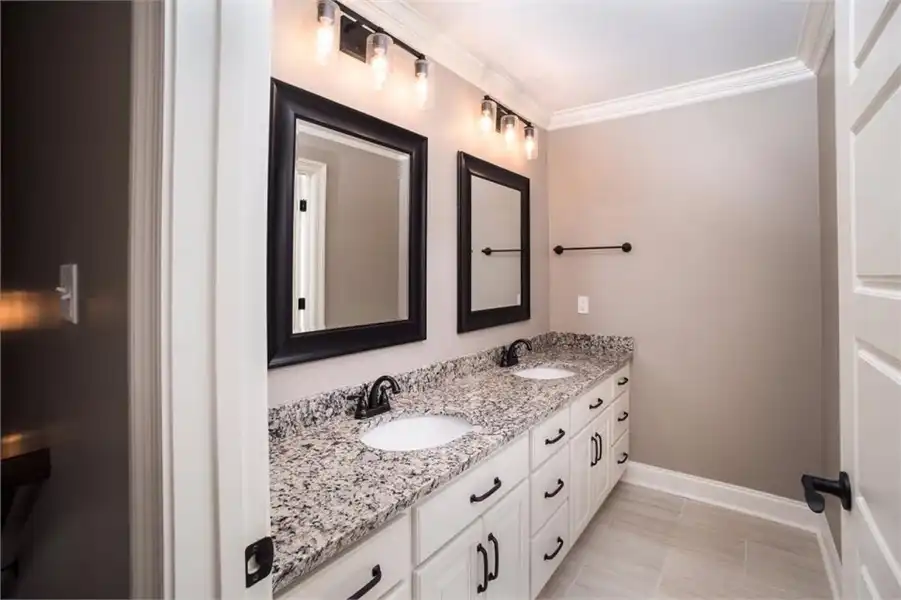

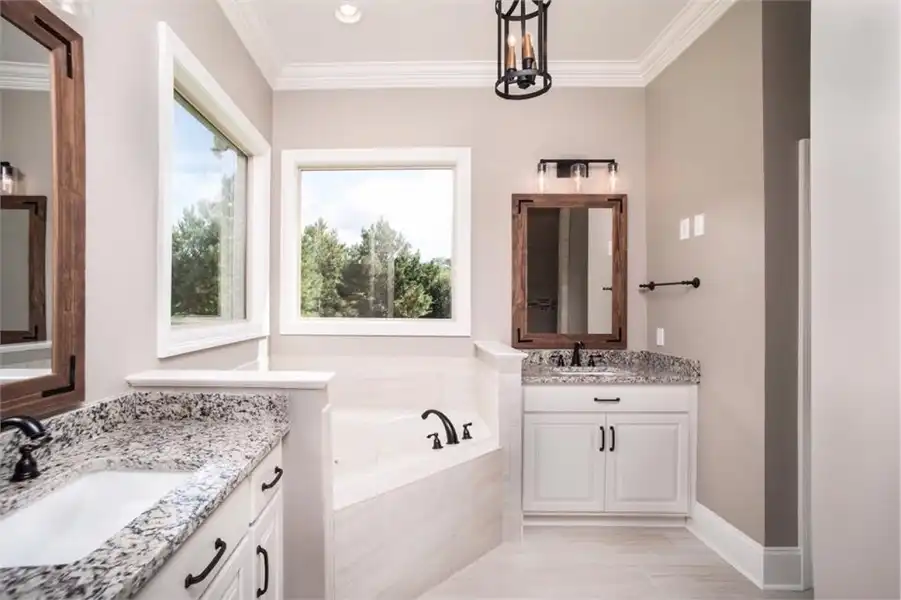

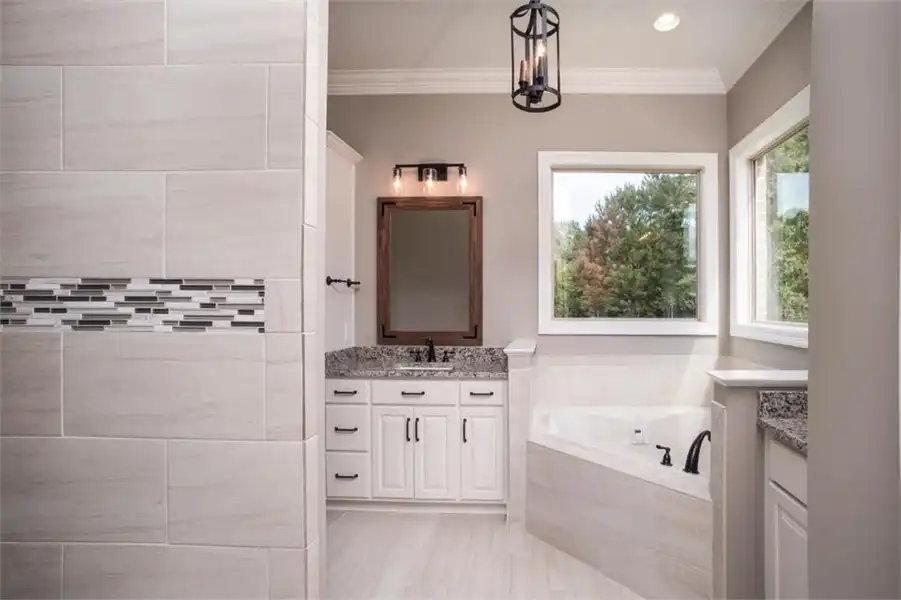

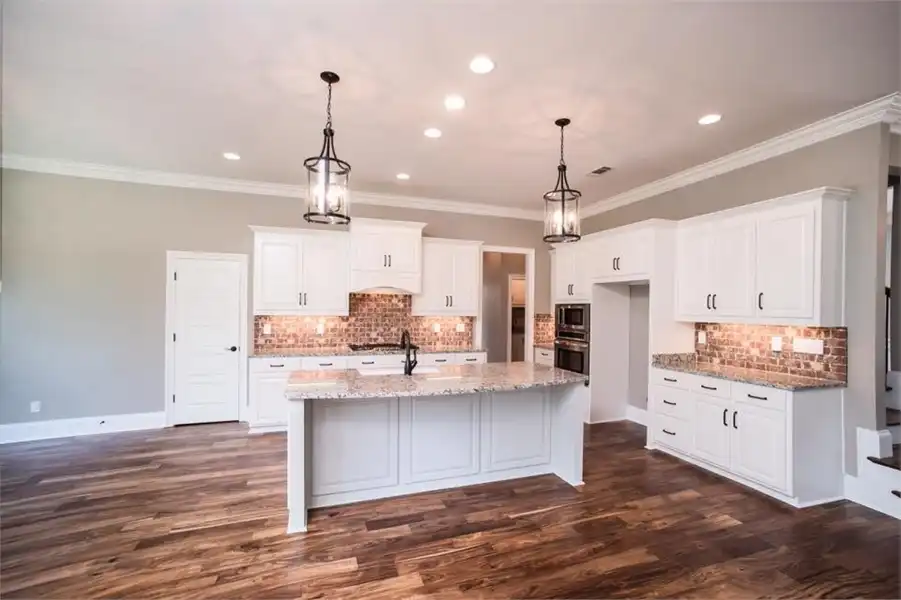

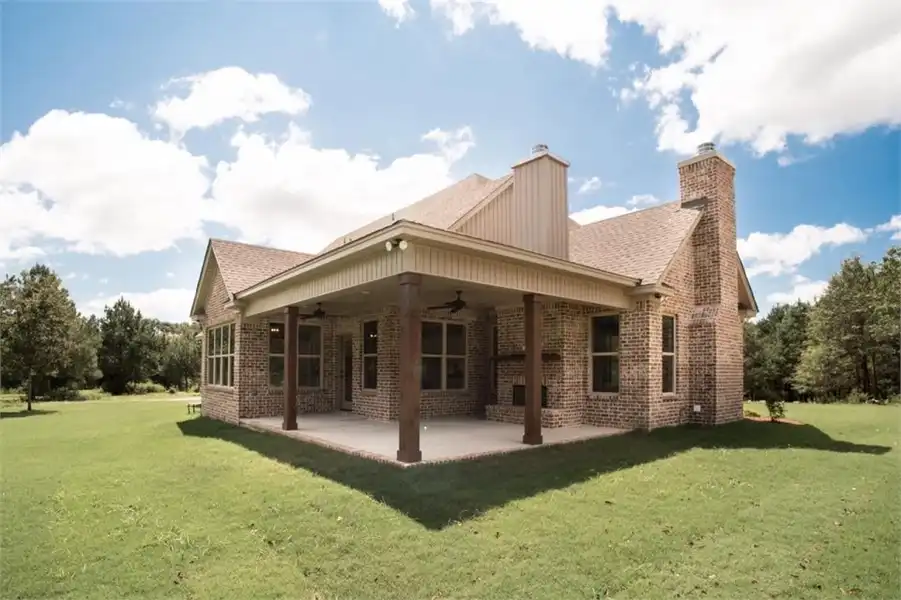

Take a look at House Plan 7702 if you're shopping for a family! This perfectly appointed design offers 2,758 square feet with four bedrooms and three bathrooms. The main level includes formal dining by the foyer, an island kitchen beside the breakfast nook and keeping room, and a family room with a fireplace. The back hallway is where you'll find the five-piece primary suite, another bedroom, a hall bathroom, the laundry, and the entry from the two-car garage. There's also a great covered back porch to enjoy the fresh air! Upstairs, two more bedrooms share a hall bath, plus there's a bonus room you can make whatever you like. This home is ready to grow with your household!
House Plan Pricing
STEP 1 Select Your Package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,804
Five printed sets of house plans

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $1,848
Digital set of plans for bidding purposes only

8 Printed Sets


Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

8 Printed Sets $1,892
Eight printed sets of house plans

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $2,024
Most recommended package

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $2,332
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1804
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
2,164 Sq. Ft.
Main Level:
594 Sq. Ft.
Upper Level:
2,758 Sq. Ft.
Total:
Room Details
4
Bedrooms:
3
Full Baths:
General House Information
2
Number of Stories:
74' 0"
Width:
62' 2"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Unfinished Square Footage
574 Sq. Ft.
Garage:
586 Sq. Ft.
Porch:
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
Country
Southern
Traditional
Collections
Kitchens
Primary Suites
Open Floor Plan
Outdoor Living
Split Bedroom
Foundation
Basement
Crawl Space
Slab
Framing Information
2x4
Exterior Wall Framing:
Roof Pitch
10/12
Primary:
Roof Load
15
Live:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
House And Ceiling Heights
10
First Floor Ceiling:
8
Second Floor Ceiling:
28' 7"
Maximum House Height:
Key Features
Attached
Butler's Pantry
Covered Front Porch
Covered Rear Porch
Dining Room
Double Vanity Sink
Family Room
Fireplace
Foyer
Great Room
Kitchen Island
Laundry 1st Fl
L-Shaped
Primary Bdrm Main Floor
Nook / Breakfast Area
Nursery Room
Open Floor Plan
Outdoor Living Space
Separate Tub and Shower
Side-entry
Split Bedrooms
Suited for corner lot
Suited for view lot
Unfinished Space
Walk-in Closet
Walk-in Pantry
