House Plan: DFD-8402

Pin It

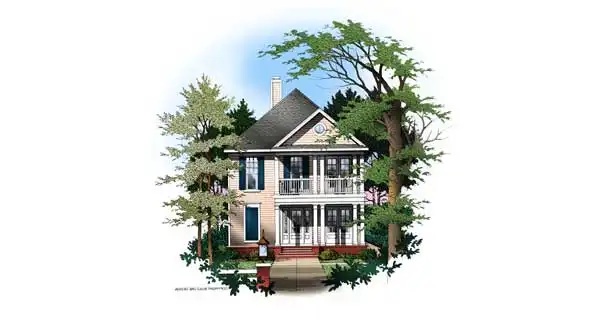

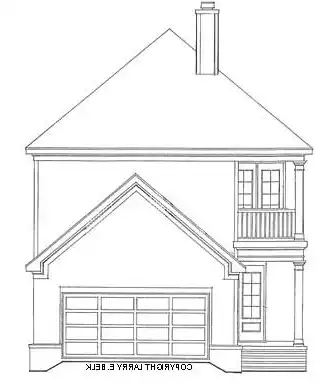

See All 2 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,447
BEDS
3
BATHS
3
STORIES
2
CARS
2
HOUSE PLANS SALE
START AT  $1,190.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plan
Floor Plans
Click to Zoom In on Floor Plan

House Plan 8402
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $1,050
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,400
Immediate Delivery!
Most recommended package

Multi-Use PDF

Two Builds Only
Multi-Use PDF $1,895
Immediate Delivery!
Two Builds Only

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $2,750
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1400
FREE SHIPPING

Detailed Plan Packages & Pricing
Our Structural Detail & IRC Guarantee
Architect's Preferred Home Products
Plan Details
See All Details
Finished Square Footage
1,311 Sq. Ft.
Main Level:
1,136 Sq. Ft.
Upper Level:
2,447 Sq. Ft.
Total:
Room Details
3
Bedrooms:
3
Full Baths:
General House Information
2
Number of Stories:
29' 10"
Width:
79' 4"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
484 Sq. Ft.
Garage:
532 Sq. Ft.
Porch:
GARAGE
Rear
Garage Location:
2
Garage Size:
Exterior Style
Beach
Country
Traditional
Collections
Old House Classics
Vacation
Foundation
Basement
Crawl Space
Daylight Basement
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
10/12
Primary:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
10
First Floor Ceiling:
9
Second Floor Ceiling:
33' 6"
Maximum House Height:
Key Features
2 Story Volume
2nd Floor Deck
Attached
Balcony Outside
Basement
Built-in Bookcases
Built-in Cabinets
Built-in Desk
Columns - Inside
Columns - Outside
Covered Front Porch
Covered Rear Porch
Crawlspace
Dining Room
Double Vanity Sink
Family Room
Fireplace
Formal Dining Room
Foyer
Front Porch
His and Hers Primary Closets
Home Office
Kitchen - Snack Bar
Laundry 1st Fl
Loft / Balcony
Primary Bdrm Upstairs
Primary Bedroom - 2nd Floor
Nook / Breakfast Area
Open Floor Plan
Rear Porch
Rear-entry
Separate Tub and Shower
Siding Facade
Slab
Suited for narrow lot
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
Washer & Dryer Closet
