House Plan: DFD-8470

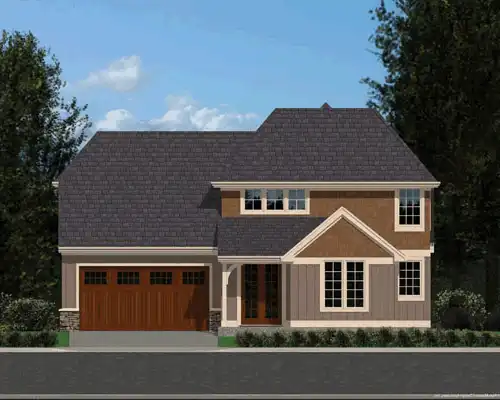

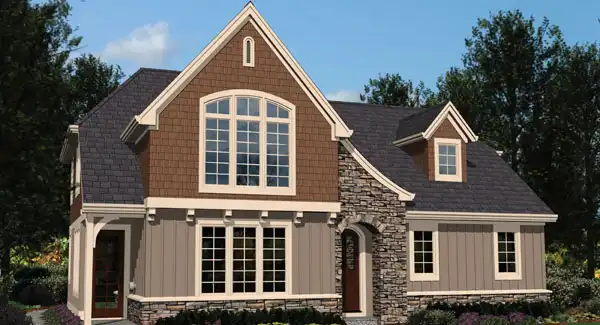

See All 2 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,976
BEDS
3
BATHS
2.5
STORIES
2
CARS
2
HOUSE PLANS SALE
START AT  $1,187.20
For questions and help, live chat, email or call us at 877-895-5299

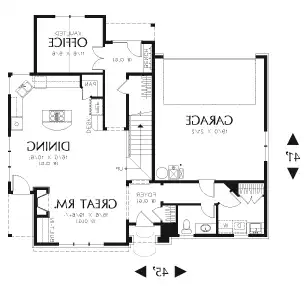

Floor Plans
Click to Zoom In on Floor Plan

House Plan 8470
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,484
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,684
Five printed sets of house plans

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $1,734
Digital plans plus 5 printed sets

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $2,968
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1484
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
1,065 Sq. Ft.
Main Level:
911 Sq. Ft.
Upper Level:
1,976 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
2
Number of Stories:
45' 0"
Width:
41' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
423 Sq. Ft.
Garage:
36 Sq. Ft.
Patio:
GARAGE
Rear
Garage Location:
2
Garage Size:
Exterior Style
Craftsman
European
Traditional
Collections
Affordable
First Home
Open Floor Plan
PDFs Fast!
Foundation
Basement
Crawlspace
Stem Wall Slab Foundation-Included
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
10/12
Primary:
14/12
Gable:
6/12
Porch:
Roof Load
25
Live:
15
Dead:
0
Wind:
Insulation (R)
21
Exterior Wall:
0
Interior Wall:
38
Ceiling:
30
Floor:
House And Ceiling Heights
Varies
First Floor Ceiling:
varies
Second Floor Ceiling:
27' 1"
Maximum House Height:
Key Features
Attached
Basement
Country Kitchen
Covered Front Porch
Crawlspace
Double Vanity Sink
Fireplace
Foyer
Front Porch
Great Room
Home Office
Laundry 1st Fl
Primary Bdrm Upstairs
Open Floor Plan
Peninsula / Eating Bar
Rear-entry
Slab
Suited for narrow lot
Walk-in Closet
Walk-in Pantry
