House Plan: DFD-8670

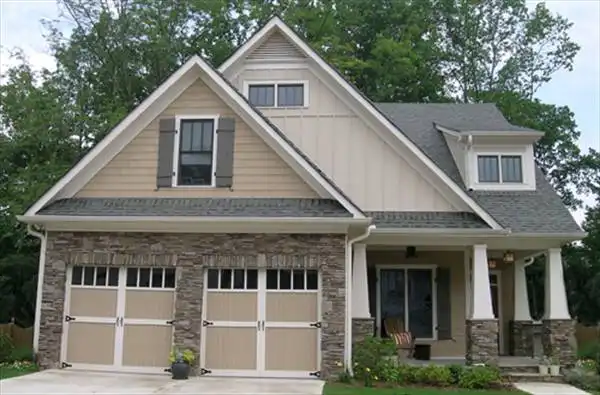

See All 6 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,449
BEDS
4
BATHS
3.5
STORIES
2
CARS
2
HOUSE PLANS SALE
START AT  $1,000.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 8670:
The expansive feel when entering the living area makes you forget you are in a home narrow enough to fit almost any lot. As a side entry garage impact is minimized adding to this cozy cottages curb appeal. The spacious kitchen provides windows on both side and rear walls adding to its size. Just enough hallway to create privacy separates upstairs the master and three bedrooms from one another. The second floor laundry located in the childrens wing keeps steps to a minimum when washing clothes. Designed for a full walkout basement a future recreation room and 5th bedroom and office allow the house to grow with the family.

House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $800
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,250
Immediate Delivery!
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,350
Five printed sets of house plans
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1250
FREE SHIPPING

Note: Front Entry and Side entry versions are available

Plan Details
See All Details
Finished Square Footage
1,113 Sq. Ft.
Main Level:
1,336 Sq. Ft.
Upper Level:
1,113 Sq. Ft.
Lower Level:
2,449 Sq. Ft.
Total:
Room Details
4
Bedrooms:
3
Full Baths:
1
Half Baths:
General House Information
2
Number of Stories:
40' 0"
Width:
61' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
488 Sq. Ft.
Garage:
206 Sq. Ft.
Porch:
298 Sq. Ft.
Deck:
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
Bungalow
Cottage
Craftsman
Collections
PDFs Fast!
Foundation
WALK OUT BASEMENT
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
12/12
Primary:
12/5
Secondary:
12/12
Gable:
5/12
Dormer:
Roof Load
20
Live:
10
Dead:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
10
First Floor Ceiling:
8
Second Floor Ceiling:
27' 7"
Maximum House Height:
Key Features
Attached
Basement
Covered Front Porch
Deck
Dining Room
Double Vanity Sink
Fireplace
Foyer
Front Porch
Front-entry
Great Room
Kitchen Island
Laundry 2nd Fl
Primary Bdrm Upstairs
Mud Room
Nook / Breakfast Area
Open Floor Plan
Separate Tub and Shower
Side-entry
Suited for narrow lot
Suited for sloping lot
Vaulted Ceilings
Walk-in Closet
Walkout Basement
