House Plan: DFD-8770

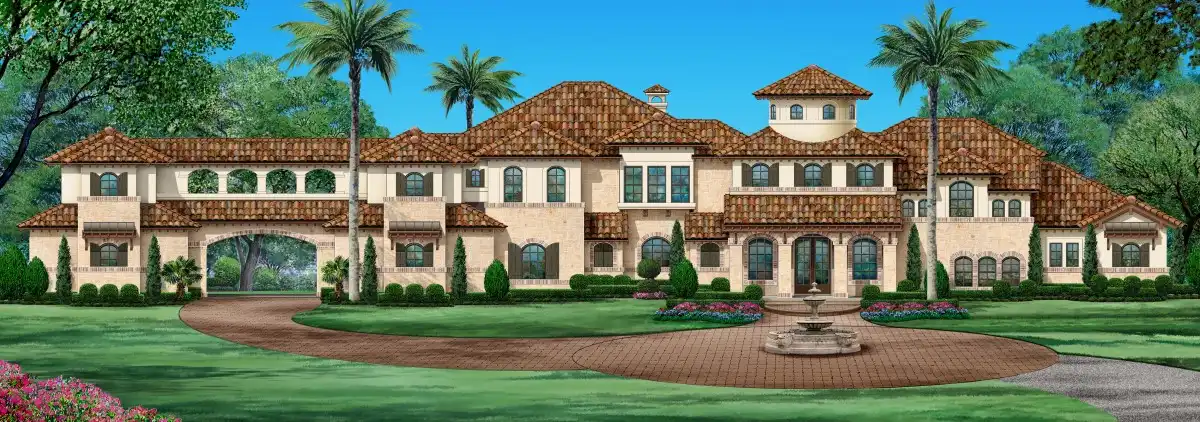

See All 5 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
6,989
BEDS
5
BATHS
5.5
STORIES
2
CARS
4
HOUSE PLANS SALE
START AT  $2,288.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 8770:
Stately and luxurious, this Mediterranean estate is a special home that is packed full of surprises. Offering 2-stories of living space with over 6,989 square feet, the 5 bed 5.5 bath layout is something that you have to see to believe. This home has practical features such as garage parking for 4 cars and an entertainment-centered living room and kitchen. It's also got impressively unique spaces like a home gym, a theater, and even a hidden safe room off of the office. And you won't want to miss the astonishing master suite, complete with a private patio, a sitting area, dual closets, and a huge spa bath. Upstairs is just as amazing, offering additional bedroom and bathroom suites, as well as a game room for the kids and several bonus rooms that you can fully customize to your needs!
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $2,965
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $3,145
Five printed sets of house plans

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $4,455
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$2965
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
4,962 Sq. Ft.
Main Level:
2,024 Sq. Ft.
Upper Level:
6,989 Sq. Ft.
Total:
Room Details
5
Bedrooms:
5
Full Baths:
2
Half Baths:
General House Information
2
Number of Stories:
185'
Width:
93'
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Unfinished Square Footage
1272 Sq. Ft.
Garage:
167 Sq. Ft.
Porch:
70 Sq. Ft.
Deck:
678 Sq. Ft.
Bonus Room:
GARAGE
Side
Garage Location:
4
Garage Size:
Exterior Style
European
Mediterranean
Traditional
Collections
Kitchens
Luxury
Primary Suites
Open Floor Plan
Outdoor Living
Foundation
Slab
Framing Information
Stick
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
6
Primary:
3.5
Secondary:
Insulation (R)
House And Ceiling Heights
11
First Floor Ceiling:
10
Second Floor Ceiling:
37'
Maximum House Height:
Key Features
Attached
Bonus Room
Courtyard/Motorcourt Entry
Covered Front Porch
Covered Rear Porch
Detached
Double Vanity Sink
Exercise Room
Family Room
Fireplace
Foyer
His and Hers Primary Closets
Home Office
Kitchen Island
Laundry 1st Fl
Library/Media Rm
Primary Bdrm Main Floor
Outdoor Living Space
Peninsula / Eating Bar
Porte-cochere
Rear-entry
Separate Tub and Shower
Side-entry
Sitting Area
U-Shaped
Walk-in Closet
Walk-in Pantry
Wine Cellar
