House Plan: DFD-9028

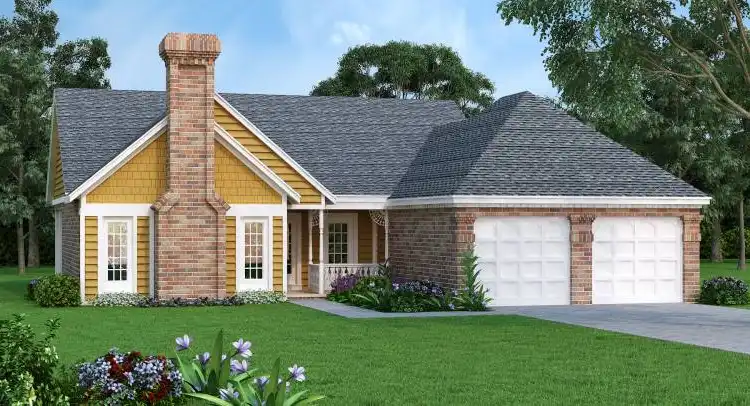

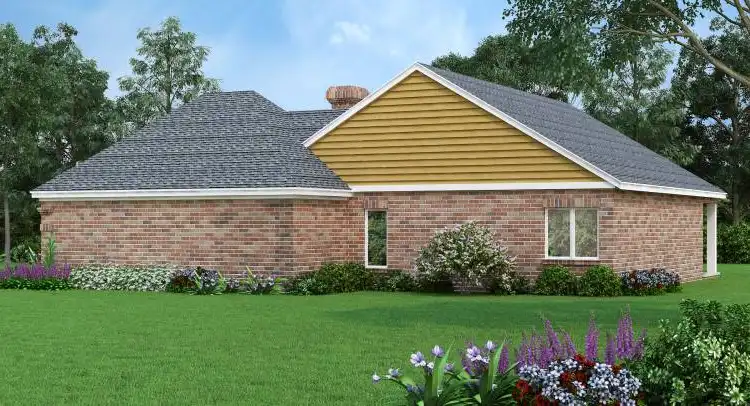

See All 2 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,407
BEDS
3
BATHS
2
STORIES
1
CARS
2
HOUSE PLANS SALE
START AT  $720.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 9028:
The living room has a wonderful and expansive vaulted ceiling and a real brick wood burning fireplace. Two bed rooms are isolated from the master and share the hall bath. The master suite has an adjoining bath and private access to the covered side porch. The large gourmet kitchen is fully appointed and it offers a see-thru and pass-thru bar into the living room. An oversized front loading garage has an open storage area and attic access via a pull down stair. To top it all off, this is a super energy saving plan featuring 2x6 exterior walls. This well designed compact home has a small footprint but it is packed with living space. For example, all of the bed rooms have very large walk-in closets and all of the bed rooms are generous in size. Compare with other home plans of this same size range.
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $700
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $900
Immediate Delivery!
Most recommended package

4 Printed Sets


Four printed sets of construction drawings shipped and received in 3-5 business days

4 Printed Sets $1,005
Four printed sets of house plans

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,050
Five printed sets of house plans

8 Printed Sets


Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

8 Printed Sets $1,110
Eight printed sets of house plans

8 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS eight printed sets shipped and delivered 3-5 business days.

8 Printed Sets + PDF $1,160
Immediate Delivery!
Digital plans plus 8 printed sets

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $1,600
2D electronic editable computer files
STEP 2 CHOOSE YOUR FOUNDATION
STEP 3 OPTIONAL ADD-ONS
Subtotal
$900
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
1,407 Sq. Ft.
Main Level:
1,407 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
General House Information
1
Number of Stories:
52' 0"
Width:
54' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
484 Sq. Ft.
Garage:
60 Sq. Ft.
Storage:
202 Sq. Ft.
Porch:
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
Southern
Traditional
Victorian
Collections
Affordable
Builders
First Home
Old House Classics
PDFs Fast!
Split Level
Foundation
Concrete Slab Foundation
Optional Crawl Space Foundation
Framing Information
Stick
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
7/12
Primary:
Insulation (R)
19
Exterior Wall:
0
Interior Wall:
38
Ceiling:
38
Floor:
House And Ceiling Heights
8
First Floor Ceiling:
19' 0"
Maximum House Height:
Facade
Brick/Siding
Key Features
Attached
Crawlspace
Front-entry
Oversized
Slab
Suited for corner lot
Suited for narrow lot
